NCP91L-AHPRKR (2009)

Toyota Yaris (Asia)

Production Oct 2009 - Sep 2014
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )TAIW

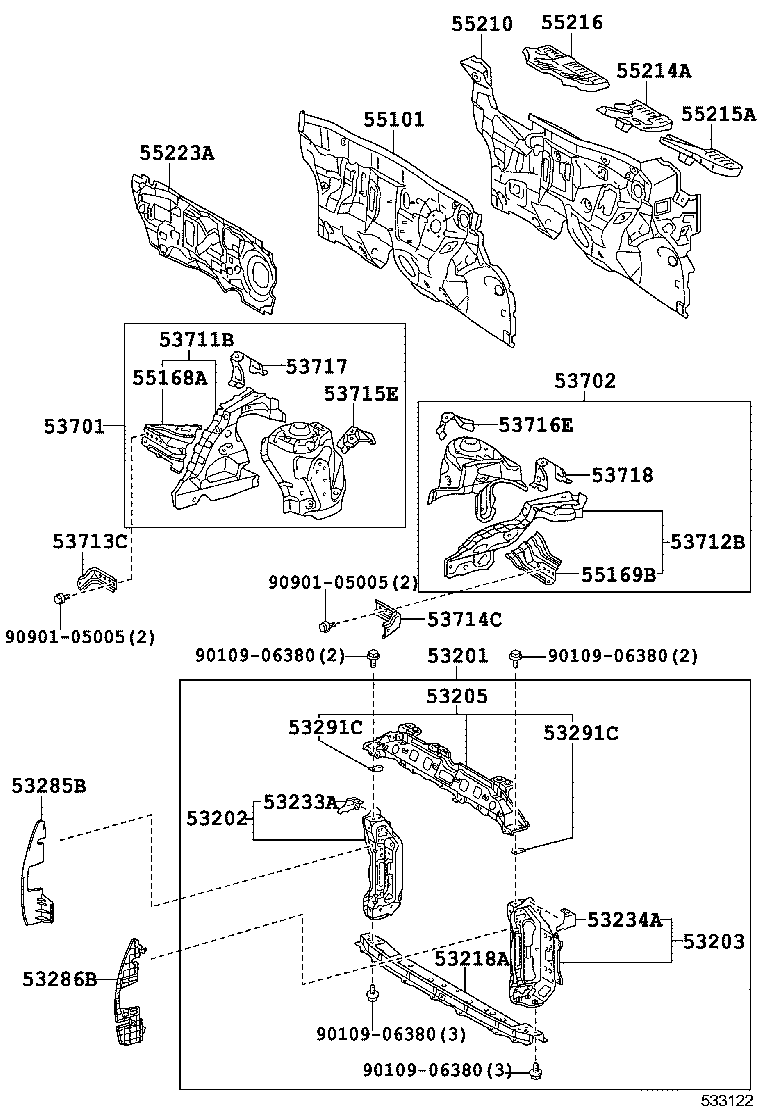

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53218A 53233A 53234A 53285B 53286B 53291C 53291C 53701 53702 53711B 53712B 53713C 53714C 53715E 53716E 53717 53718 55101 55168A 55169B 55210 55214A 55215A 55216 55223A 9010906380 9010906380 9010906380 9010906380 9090105005 9090105005
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-0D100

NCP91..TAIW

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0D905

NCP91..TAIW

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0D905

NCP91..TAIW

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0D903

NCP91..TAIW

 1
53233A - BRACKET, HEADLAMP, NO.1 RH
53233-52030

NCP91..TAIW

 1
53234A - BRACKET, HEADLAMP, NO.1 LH
53234-52040

NCP91..TAIW

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-52070

NCP91..TAIW

 2
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-52070

NCP91..TAIW

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0D150

NCP91..TAIW

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0D140

NCP91..TAIW

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-52010

NCP91..TAIW

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-52020

NCP91..TAIW

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-52030

NCP91..TAIW

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-52030

NCP91..TAIW

 1
53717 - PLATE, FENDER APRON, RH
53717-52080

NCP91..TAIW

 1
53718 - PLATE, FENDER APRON, LH
53718-52080

NCP91..TAIW

 1
55101 - PANEL SUB-ASSY, DASH
55101-0D300

NCP91..TAIW

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0D170

NCP91..TAIW

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0D080

NCP91..TAIW

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-0D070

NCP91..TAIW

 1
55216 - PAD, DASH PANEL INSULATOR, NO.4
55216-0D070

NCP91..TAIW

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-0D110

NCP91..TAIW

 1
Common parts
90109-06380
90901-05005
