NCP91L-AHPRKR (2009)

Toyota Yaris (Asia)

Production Oct 2009 - Sep 2014
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0910-1204)S..TAIW ; (0910- )E,G..TAIW

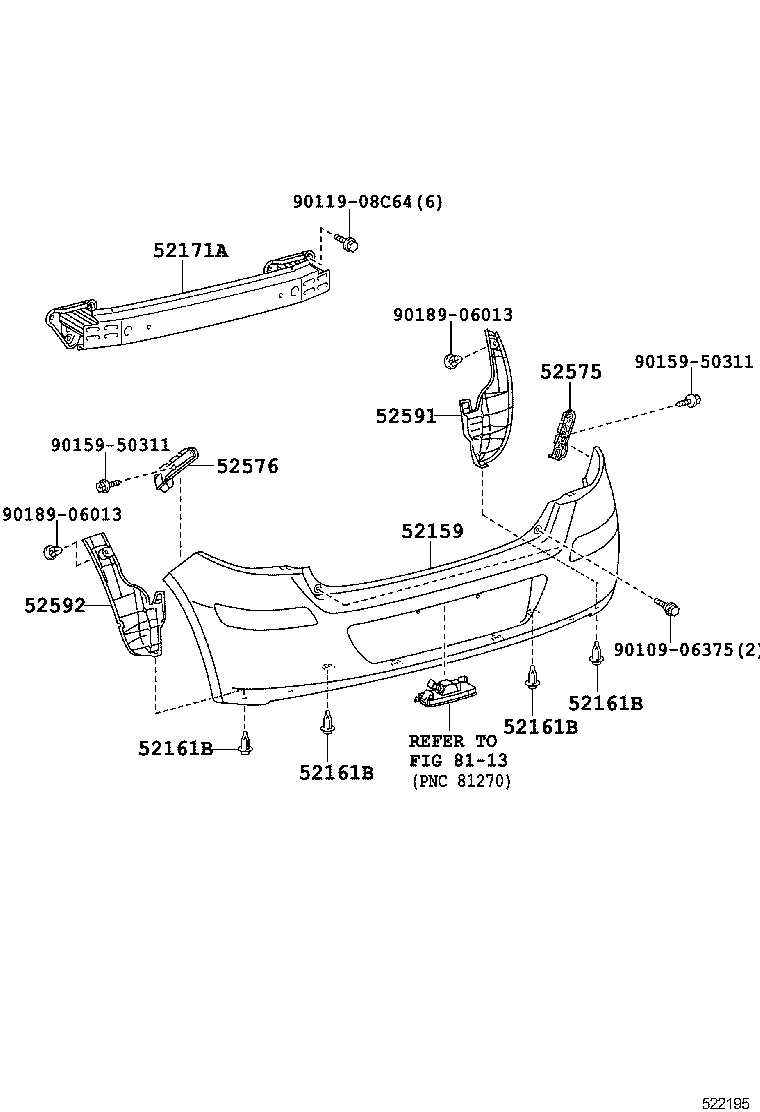

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52171A 52575 52576 52591 52592 8113 9010906375 9011908C64 9015950311 9015950311 9018906013 9018906013
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-0D988

NCP91..(E,G)..TAIW

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP91..(E,G)..TAIW

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCP91..(E,G)..TAIW

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCP91..(E,G)..TAIW

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCP91..(E,G)..TAIW

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-0D020

NCP91..TAIW

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D060

NCP91..TAIW

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D060

NCP91..TAIW

 1
Common parts
90109-06375
90119-08C64
90159-50311
90189-06013
Linked diagrams
8113
