NCP91L-AHPRKR (2009)

Toyota Yaris (Asia)

Production Oct 2009 - Sep 2014
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

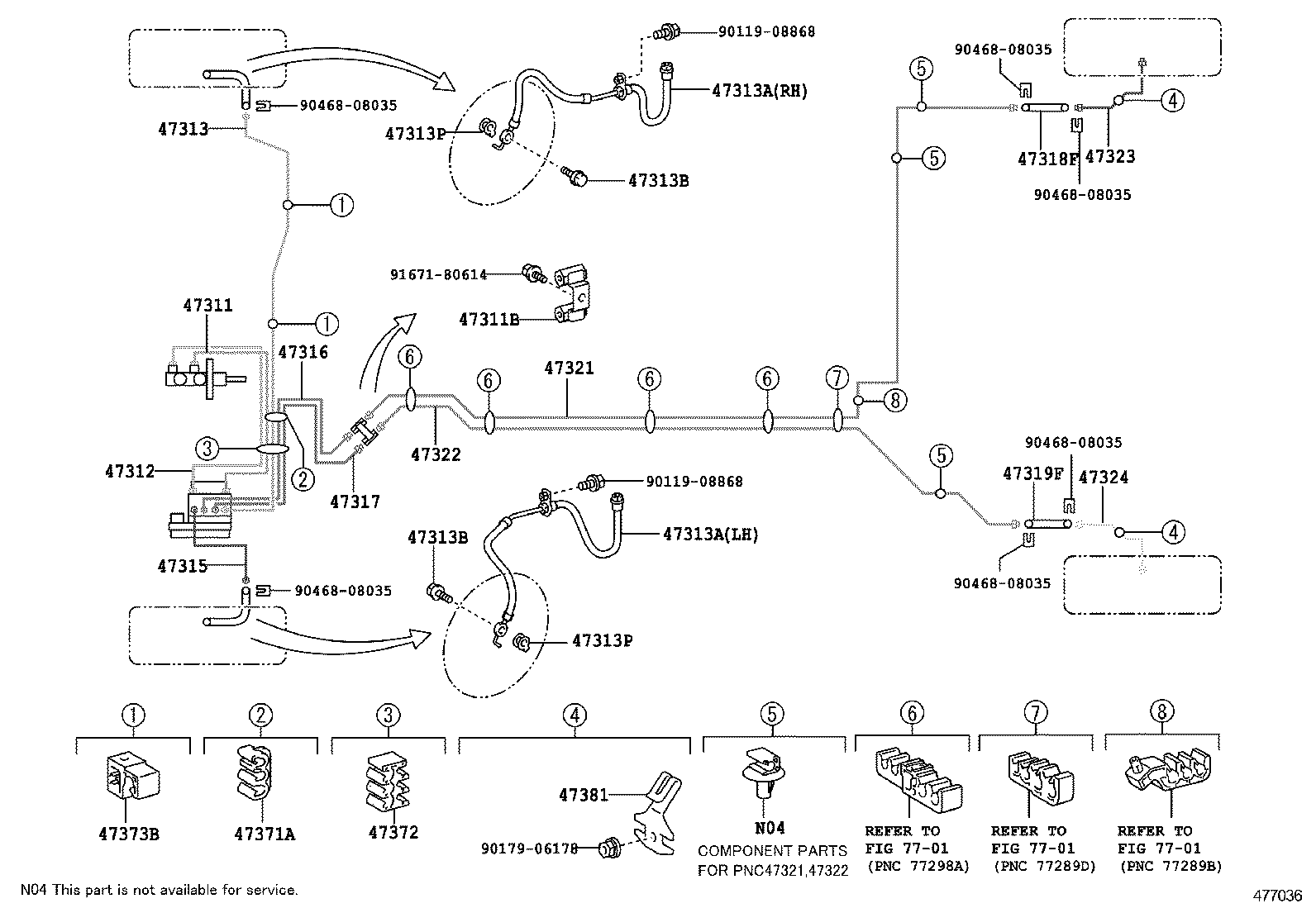

ILLUST NO. 1 OF 2(0910- )E,G..TAIW

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D380

NCP91..TAIW

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP91..ATM;NCP91..MTM..(E,J)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D320

NCP91..TAIW

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D250

NCP91..TAIW

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E08

NCP91..TAIW

LH

 1
90947-02E07

NCP91..TAIW

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E08

NCP91..TAIW

LH

 1
90947-02E07

NCP91..TAIW

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP91..ATM;NCP91..MTM..(E,J)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP91..ATM;NCP91..MTM..(E,J)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP91

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP91

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D290

NCP91..TAIW

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D220

NCP91..TAIW

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D220

NCP91..TAIW

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP91..TAIW

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NCP91..TAIW

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D160

NCP91..TAIW

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D160

NCP91..TAIW

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D090

NCP91..(E,G)..TAIW

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D090

NCP91..(E,G)..TAIW

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP91..ATM;NCP91..MTM..(E,J)

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
Linked diagrams
7701
