NCP91L-AHPGKR (2006)

Toyota Yaris (Asia)

Production Nov 2006 - Oct 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

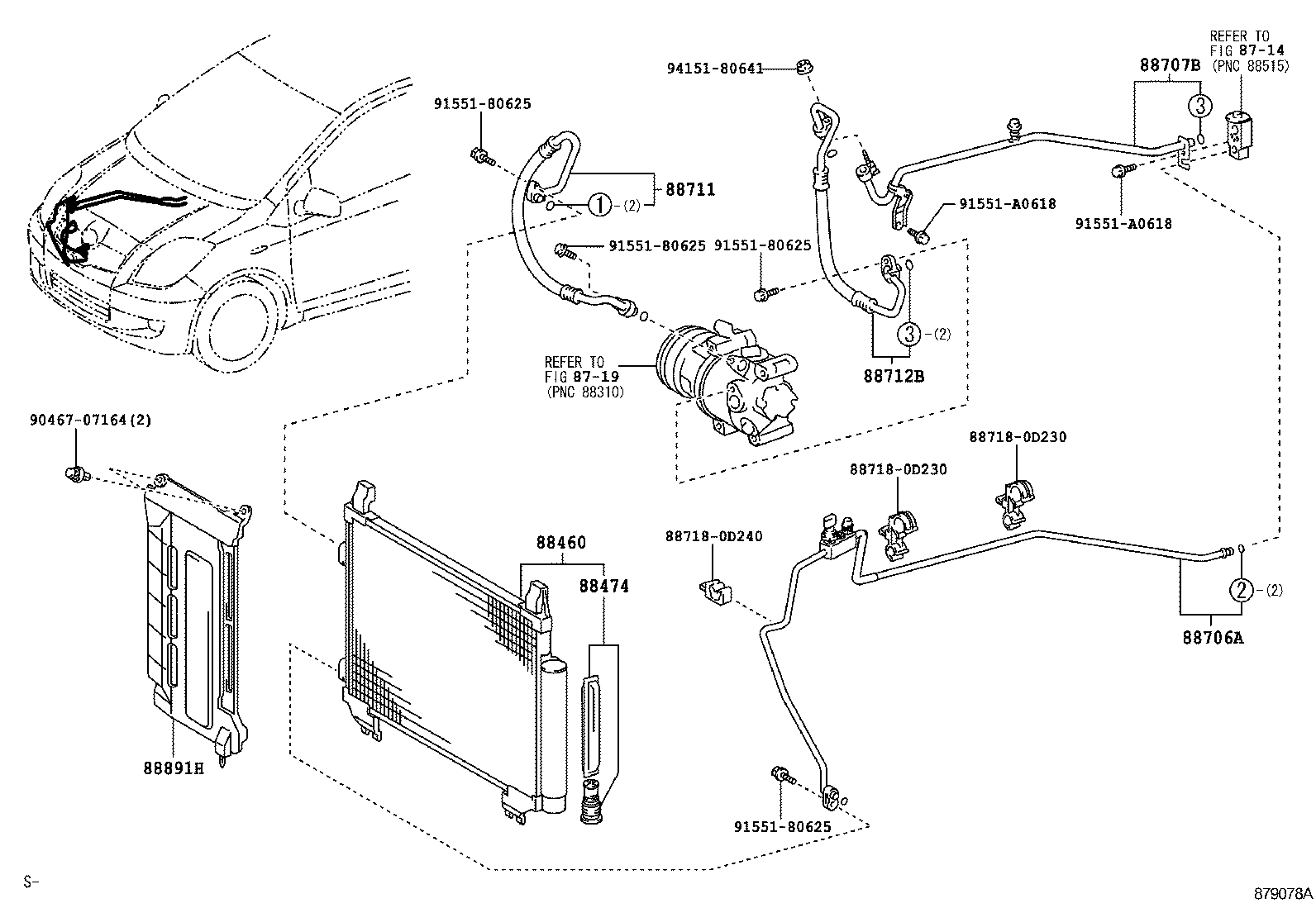

ILLUST NO. 1 OF 2(0611- )TAIW

Click highlighted areas on diagram

diagram 8714 8719 88460 88474 88706A 88707B 88711 88712B 887180D230 887180D230 887180D240 88891H 9046707164 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0D080

NCP91..TAIW

 1
88474 - DRYER, COOLER
88474-17010

NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D230

NCP91..TAIW

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0D090

NCP91..TAIW

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D160

NCP91..TAIW

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-0D210

NCP91..TAIW

 1
88891H - COVER, COOLER, NO.1
88891-0D090

NCP91..TAIW

 1
Common parts
88718-0D230
88718-0D240
90467-07164
91551-80625
91551-A0618
94151-80641
Linked diagrams
8714
8719
