NSP151R-GEXRKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

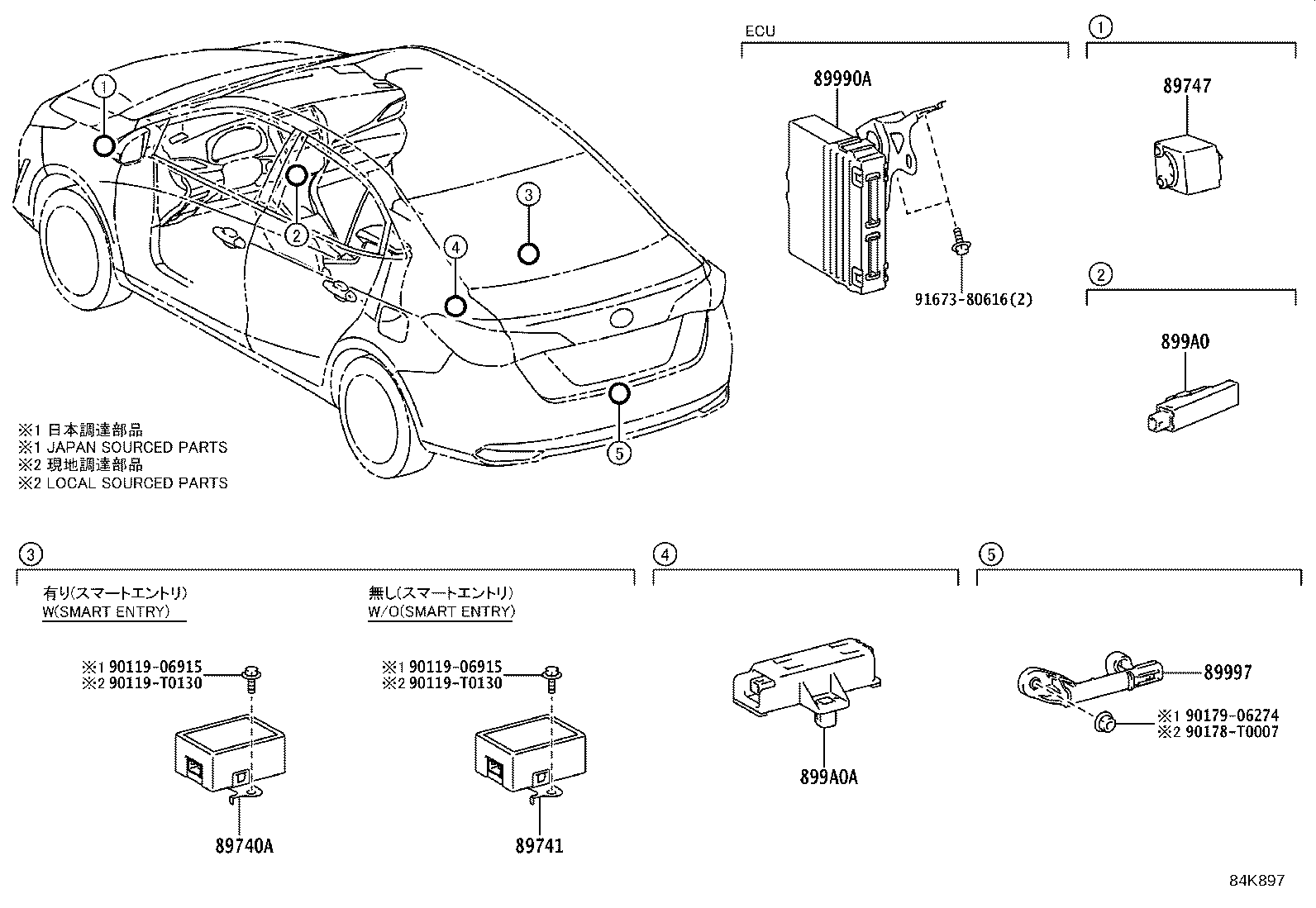

Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-0D440 |
NSP151..D |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
(1908- )
Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-0D320 |
NSP151..G,R,V |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
NSP151..G,R,V |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-0D310 |
NSP151..G,R,V |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30100 |
NSP151..G,R,V |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0K010 |
NSP151..G,R,V |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-0D240 |
NSP151..G,R,V |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
| 90178-T0007 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
