NSP151R-GEXDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0144 | ||||
(1908- )

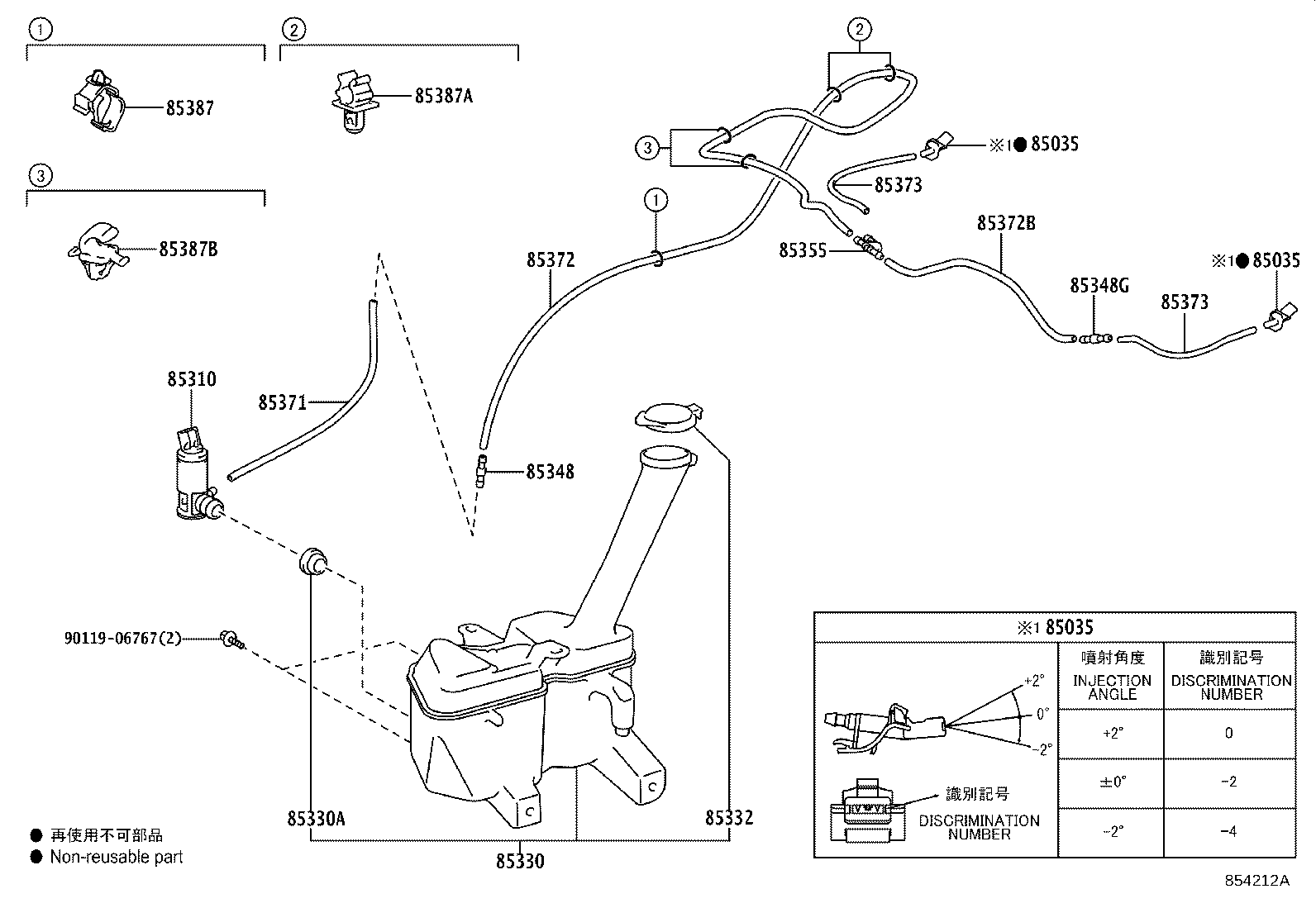

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20230 |
NSP151 ANGLE 0 |
2 | ||
| 85381-20310 |
NSP151 ANGLE -2 |
2 | ||
| 85381-20300 |
NSP151 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20230 |
NSP151 ANGLE 0 |
2 | ||
| 85381-20310 |
NSP151 ANGLE -2 |
2 | ||
| 85381-20300 |
NSP151 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20230 |
NSP151 ANGLE 0 |
2 | ||
| 85381-20310 |
NSP151 ANGLE -2 |
2 | ||
| 85381-20300 |
NSP151 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0K011 |
NSP151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0D410 |
NSP151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-50013 |
NSP151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-0D410 |
NSP151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NSP151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NSP151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NSP151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-46081 |
NSP151 L=300 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-46086 |
NSP151 L=205 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-46086 |
NSP151 L=205 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46089 |
NSP151 L=180 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46089 |
NSP151 L=180 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-0K100 |
NSP151 |
1 | ||
| 82711-3F230 |
NSP151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-52110 |
NSP151 |
2 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 90469-07011 |
NSP151 (J) |
2 | ||
| 90469-T0005 |
NSP151 (L) |
2 | ||
| Common parts | ||||
| 90119-T0144 | ||||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06767 | ||||
