NSP151R-GEXDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

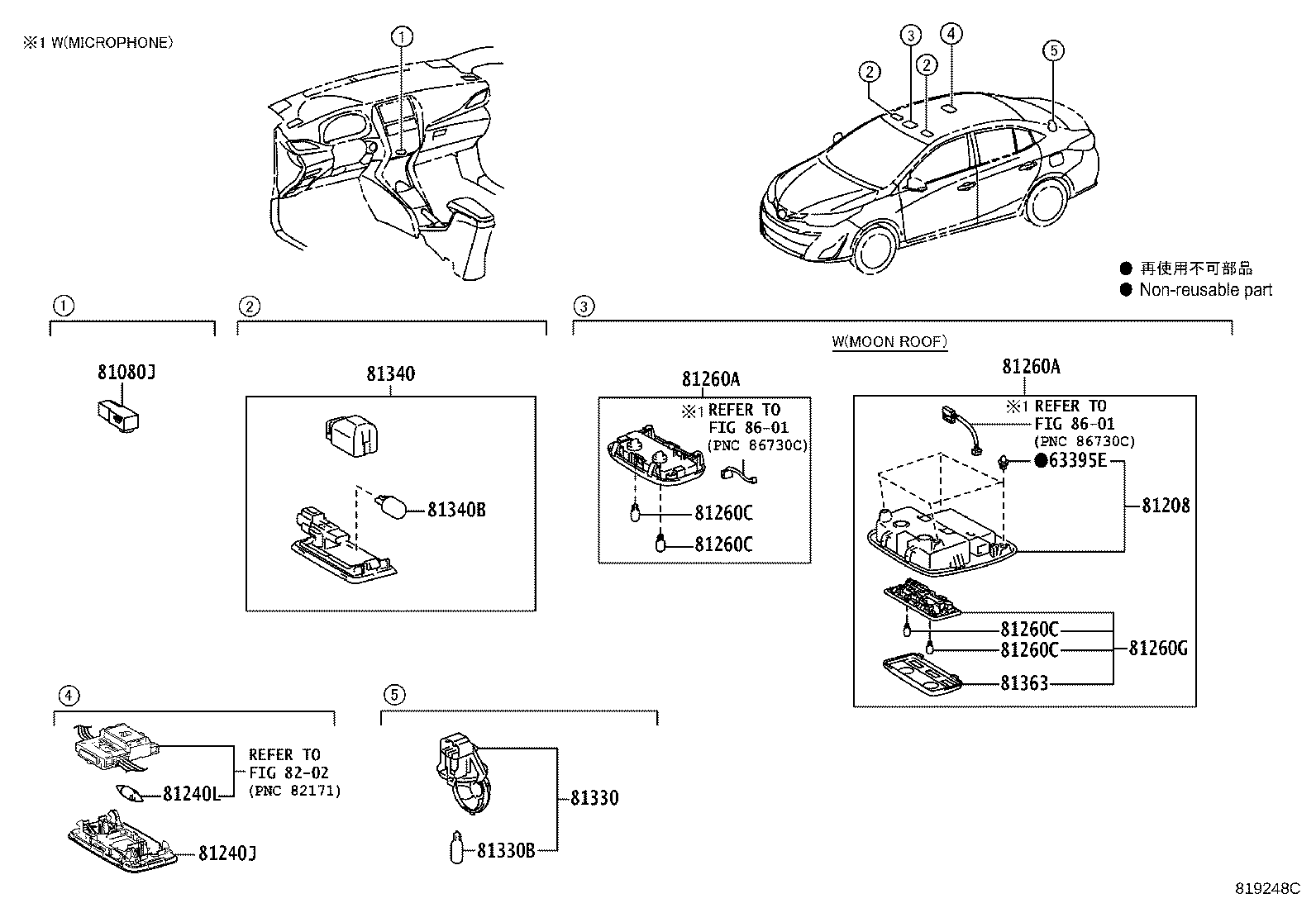

ILLUST NO. 1 OF 2(1908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-48020 |
NSP151 |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12050 |
NSP151..G,R,V 12V 5W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12050 |
NSP151..G,R,V 12V 5W |
2 | ||
| 81240J - LAMP ASSY, ROOM | ||||
| 81240-42020A1 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 81240-35020A4 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 81240L - BULB, ROOM LAMP | ||||
| 90981-14011 |
NSP151..D 12V 8W |
1 | ||
| 81249 - SWITCH, ROOM LAMP | ||||
| 84532-58010 |
NSP151..G,R,V |
2 | ||
| 81249 - SWITCH, ROOM LAMP | ||||
| 84532-58010 |
NSP151..G,R,V |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-12020 |
NSP151 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
NSP151 12V 3.8W |
1 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-20010A3 |
NSP151..G,R,V IVORY,TRIM0# |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09240 |
NSP151..G,R,V |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-0D130A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 63650-0K380A0 |
NSP151..G,R,V IVORY,TRIM0# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-0D130A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 63650-0K380A0 |
NSP151..G,R,V IVORY,TRIM0# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NSP151..G,R,V 12V 8W |
2 | ||
| 90981-11067 |
NSP151..D 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NSP151..G,R,V 12V 8W |
2 | ||
| 90981-11067 |
NSP151..D 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NSP151..G,R,V 12V 8W |
2 | ||
| 90981-11067 |
NSP151..D 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NSP151..G,R,V 12V 8W |
2 | ||
| 90981-11067 |
NSP151..D 12V 5W |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
NSP151..G,R,V |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
NSP151..G,R,V |
2 | ||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||
