NSP151R-GEXDKX (2019)
Toyota Yaris

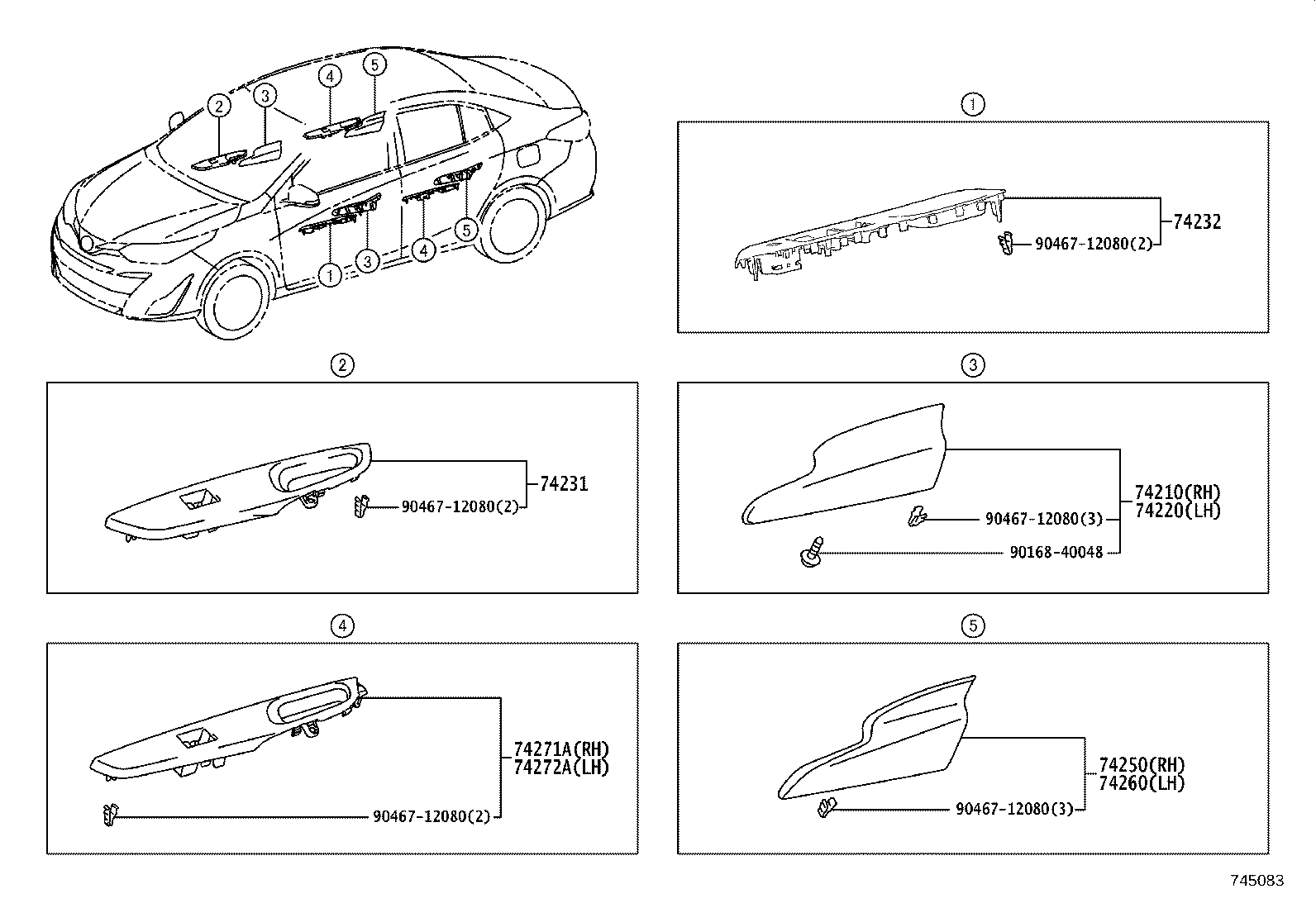

ILLUST NO. 1 OF 2(1908- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-0D170A0 |
NSP151..G SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74210-0D170A0 |
NSP151..V IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74210-0D160A0 |
NSP151..D,G,R IVORY,TRIM0# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-0D160A0 |
NSP151..D,G,R IVORY,TRIM0# |
1 | ||
| 74220-0D170A0 |
NSP151..G SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74220-0D170A0 |
NSP151..V IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0DC10 |
NSP151..D |
1 | ||
| 74231-0DC20 |
NSP151..G,R,V |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0DC60 |
NSP151..G,R,V |
1 | ||
| 74232-0DC50 |
NSP151..D |
1 | ||
| 74250 - ARMREST ASSY, REAR RH | ||||
| 74250-0D170A0 |
NSP151..V IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74250-0D170A0 |
NSP151..G SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74250-0D160A0 |
NSP151..G,R IVORY,TRIM0# |
1 | ||
| 74250-0D150A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 74260 - ARMREST ASSY, REAR LH | ||||
| 74260-0D170A0 |
NSP151..G SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74260-0D170A0 |
NSP151..V IVORY/CAMEL STITCH,TRIM0# |
1 | ||
| 74260-0D150A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 74260-0D160A0 |
NSP151..G,R IVORY,TRIM0# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D630 |
NSP151..G,R,V |
1 | ||
| 74271-0D620 |
NSP151..D |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D630 |
NSP151..G,R,V |
1 | ||
| 74272-0D620 |
NSP151..D |
1 | ||
| Common parts | ||||
| 90168-40048 | ||||
| 90467-T0034 | ||||

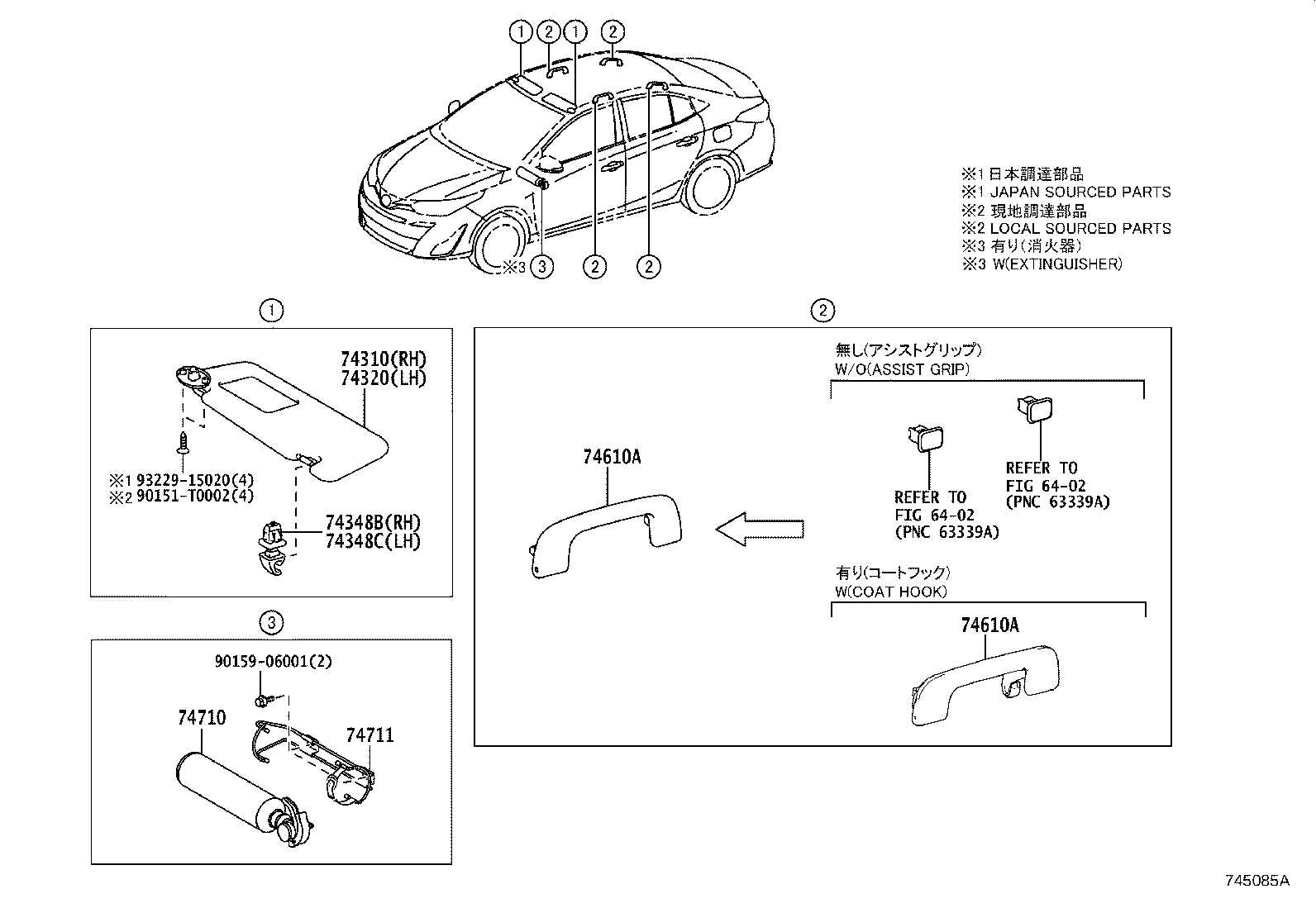

ILLUST NO. 2 OF 2(1908- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0DF50A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0DF00A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-0K090A0 |
NSP151 SHELL,TRIM0# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-0K090A0 |
NSP151 SHELL,TRIM0# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0K040A0 |
NSP151..G,R,V IVORY,TRIM0#,W/O(COAT HOOK) |
2 | ||
| 74610-0K040A0 |
NSP151..D IVORY,TRIM0# |
4 | ||
| 74610-0K050A0 |
NSP151..G,R,V IVORY,TRIM0#,W(COAT HOOK) |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0K040A0 |
NSP151..G,R,V IVORY,TRIM0#,W/O(COAT HOOK) |
2 | ||
| 74610-0K040A0 |
NSP151..D IVORY,TRIM0# |
4 | ||
| 74610-0K050A0 |
NSP151..G,R,V IVORY,TRIM0#,W(COAT HOOK) |
2 | ||
| Common parts | ||||
| 90151-T0002 | ||||
| 93229-15020 | ||||
ILLUST NO. 1 OF 2(1911- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90168-40048 | ||||
| 90467-12080 | ||||
ILLUST NO. 2 OF 2(1911- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90151-T0002 | ||||
| 90159-06001 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6402 | ||||
