NSP151R-GEXDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1908- )
Click highlighted areas on diagram
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06080A3 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06110A3 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP151 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02140 |
NSP151 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0D560A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-0K010 |
NSP151 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
NSP151 GRAY |
1 | ||
| 73219-33010 |
NSP151 BLACK |
1 | ||
| 73219-33030 |
NSP151 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0D550A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0D700A0 |
NSP151..D,G,R IVORY,TRIM0# |
1 | ||
| 73230-0D720A0 |
NSP151..V IVORY,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0D710A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90105-T0056 | ||||
| 90105-T0063 | ||||
| 90109-11060 | ||||
| 90109-T0042 | ||||
| 90178-T0017 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
ILLUST NO. 2 OF 2(1908- )
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP151 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-0D020 |
NSP151 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-0D020 |
NSP151 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
NSP151 GRAY |
1 | ||
| 73219-33010 |
NSP151 BLACK |
1 | ||
| 73219-33030 |
NSP151 BEIGE |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-0D020A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-0D020A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020A3 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D420A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D370A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D070 |
NSP151 |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D070 |
NSP151 |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D070 |
NSP151 |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D400A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D400A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-0D080 |
NSP151 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-0D080 |
NSP151 |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6403 | ||||
ILLUST NO. 1 OF 2(1911- )
Click highlighted areas on diagram
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 73214-0E010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11060 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

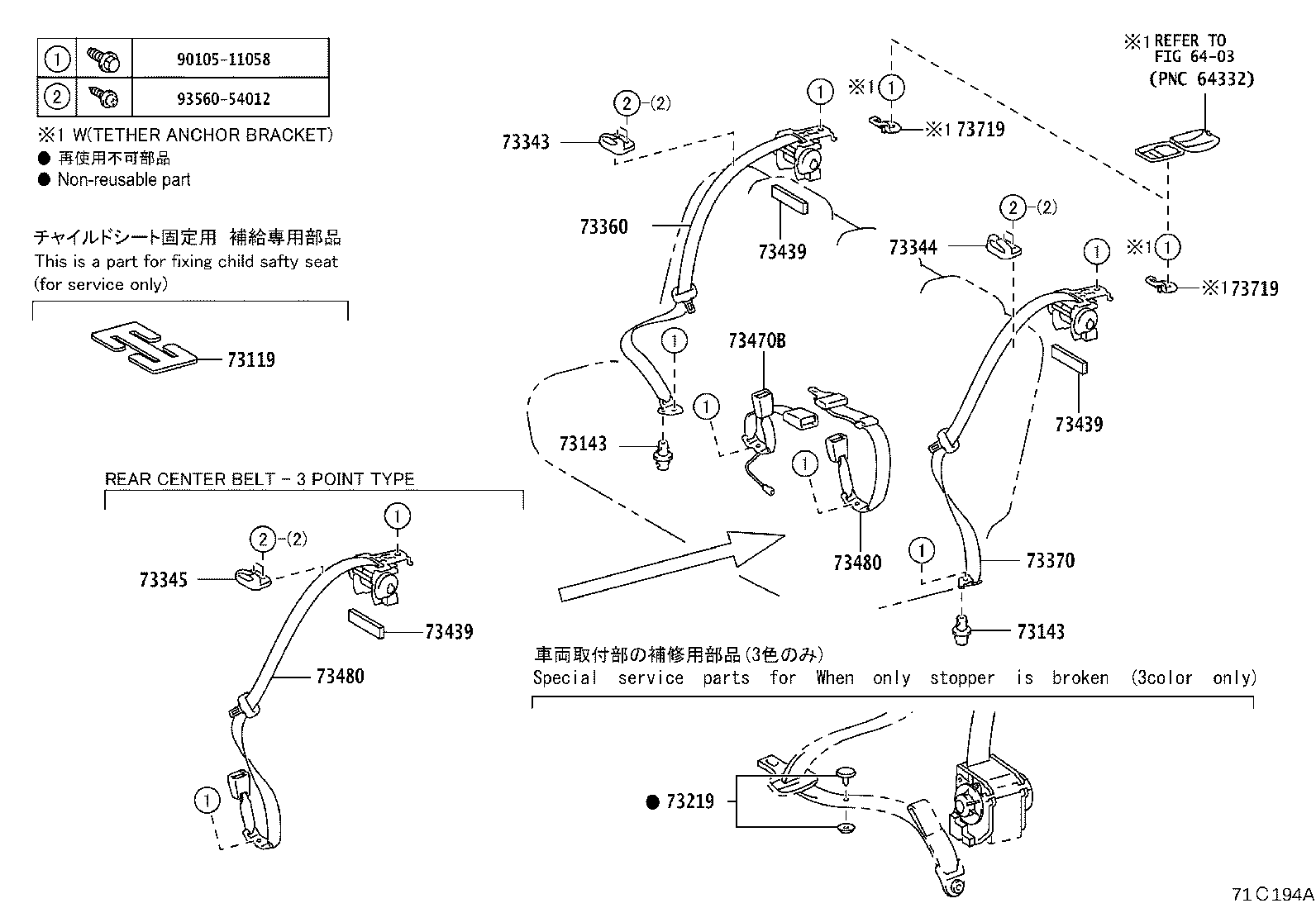

ILLUST NO. 2 OF 2(1911- )4D
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11058 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6403 | ||||
