NSP151R-GEXDKX (2019)
Toyota Yaris

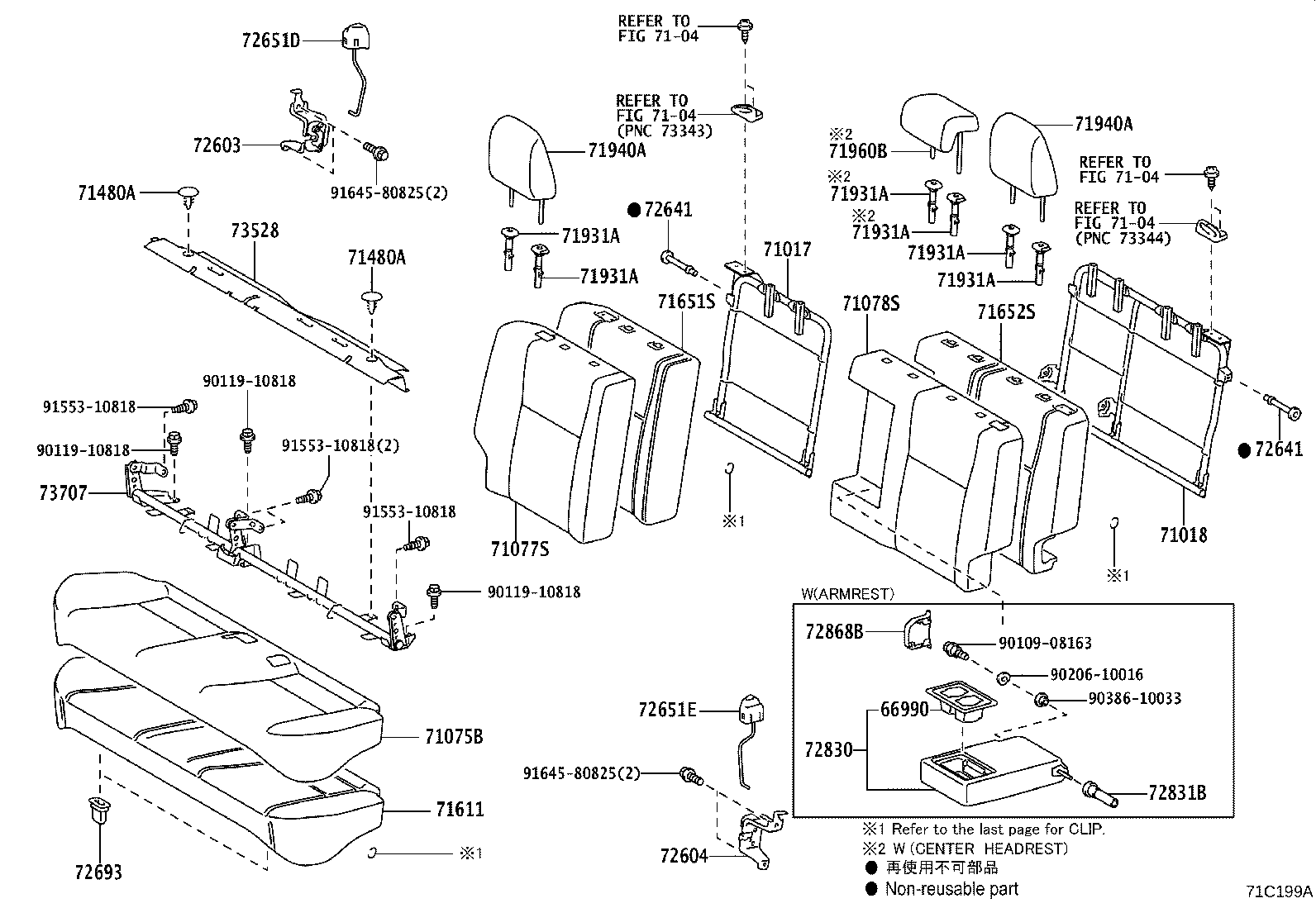

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-0D070A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0D670 |
NSP151 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0D400 |
NSP151 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0U210A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 71075-0U220A0 |
NSP151..G,R IVORY,TRIM0# |
1 | ||
| 71075-0U230A0 |
NSP151..V IVORY,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0DW50A1 |
NSP151..V IVORY/CAMEL,TRIM0# |
1 | ||
| 71077-0DW41A1 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 71077-0DW30A1 |
NSP151..G,R IVORY/CAMEL,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0DD81A1 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 71078-0DD90A1 |
NSP151..G,R IVORY/CAMEL,TRIM0# |
1 | ||
| 71078-0DE00A1 |
NSP151..V IVORY/CAMEL,TRIM0# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C3 |
NSP151 BLACK,(J) |
2 | ||
| 90467-08186C3 |
NSP151 BLACK |
2 | ||
| 90467-T0045C0 |
NSP151 BLACK,(L) |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08186C3 |
NSP151 BLACK,(J) |
2 | ||
| 90467-08186C3 |
NSP151 BLACK |
2 | ||
| 90467-T0045C0 |
NSP151 BLACK,(L) |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0D690 |
NSP151 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0D850 |
NSP151 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0D500 |
NSP151 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02130A2 |
NSP151 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71930-02370A2 |
NSP151 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DE30A0 |
NSP151..D IVORY,TRIM0# |
2 | ||
| 71940-0DK50A0 |
NSP151..V IVORY/CAMEL,TRIM0# |
2 | ||
| 71940-0DK40A0 |
NSP151..G,R IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DE30A0 |
NSP151..D IVORY,TRIM0# |
2 | ||
| 71940-0DK50A0 |
NSP151..V IVORY/CAMEL,TRIM0# |
2 | ||
| 71940-0DK40A0 |
NSP151..G,R IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0DA90A0 |
NSP151..G,R IVORY,TRIM0# |
1 | ||
| 71960-0DB00A0 |
NSP151..V IVORY/CAMEL,TRIM0# |
1 | ||
| 71960-0D660A0 |
NSP151..D IVORY,TRIM0# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-0D180 |
NSP151 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-0D180 |
NSP151 |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-0D070A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72652-0D070A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NSP151 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0D170A0 |
NSP151..V IVORY,TRIM0# |
1 | ||
| 72830-0D160A0 |
NSP151..D,G,R IVORY,TRIM0# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-0D010 |
NSP151 |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-0D050A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 73528 - CARPET, REAR SEAT SUB FLOOR, REAR | ||||
| 73528-0D100C0 |
NSP151 BLACK,TRIM0# |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73705-0D560 |
NSP151 |
1 | ||
| Common parts | ||||
| 90105-T0175 | ||||
| 90109-08163 | ||||
| 90119-T0340 | ||||
| 90119-T0458 | ||||
| 90206-10016 | ||||
| 90386-10033 | ||||
| 91645-80825 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1908- )
CLIP & SEAT EDGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1911- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1911- )4D
6:4 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08163 | ||||
| 90119-10818 | ||||
| 90206-10016 | ||||
| 90386-10033 | ||||
| 91553-10818 | ||||
| 91645-80825 | ||||
| Linked diagrams | ||||
| 7104 | ||||
