NSP151R-GEXDKX (2019)

Toyota Yaris

Production Aug 2019 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

LH SEAT,W(VERTICAL ADJUSTER)

diagram 71014S 7104 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71873B 71874 71874A 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72495 72526A 7270252030 7270252030 7270252030 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 1 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

LH SEAT,W/O(VERTICAL ADJUSTER)

diagram 71014S 7104 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72526A 7270252030 7270252030 7270252030 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

RH SEAT,W(VERTICAL ADJUSTER)

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71873 71873B 71874A 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72494 72525A 7270252030 7270252030 7270252030 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1310-1911)A ; (1310- )B,C,F

Click highlighted areas on diagram

RH SEAT,W/O(VERTICAL ADJUSTER)

diagram 71013S 7104 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71811D 71861 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72525A 7270252030 7270252030 7270252030 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90105-T0176
90107-T0003
90119-10601
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

RH SEAT,POWER SEAT

diagram 7104 7104 7104 71051A 71071S 71073S 71511S 71537G 71538A 71551S 71630S 71811D 71848A 71849 71861 71867A 71873B 71874A 71910A 71931 71931 72010 72137 72147 73910A 8202 8202 8401 8401 8401 8401 90105T0176 90105T0176 9011910601 9011910601 9014810007 9014810007 9014810007 9016740044 9016740044 9016740044 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-0D140

NSP151..V

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0U010A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71071-0DZ91A0

NSP151..D

IVORY,TRIM0#

 1
71071-0U020A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0U210A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71073-0U201A0

NSP151..D

IVORY,TRIM0#

 1
71073-0U240A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71073-0UK00A0

NSP151..R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71073-0UJ90A0

NSP151..D

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D610

NSP151..V

 1
71511-0D770

NSP151..D,G,R

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D440A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71537-02280A0

NSP151..V

IVORY,TRIM0#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02210A0

NSP151..V

IVORY,TRIM0#

 1
71538-0D360A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D760

NSP151..D,G,R

 1
71551-0D840

NSP151..V

 1
71551-0D890

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D370

NSP151..D,G,R

 1
71013-0D320

NSP151..V

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D600A0

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71811-0D540A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71811-0D550A0

NSP151..V

IVORY,TRIM0#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D120

NSP151

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71849-0D010

NSP151

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D370A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71861-0D380A0

NSP151..V

IVORY,TRIM0#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-02040A0

NSP151..V

IVORY,TRIM0#

 1
71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71873-02190

NSP151..D,G,R

 1
71873-02200

NSP151..V

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02190

NSP151..V

 1
71874-02180

NSP151..D,G,R

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DF70A0

NSP151..D

IVORY,TRIM0#

 2
71910-0DJ70A0

NSP151..V

IVORY/CAMEL,TRIM0#

 2
71910-0DJ60A0

NSP151..G,R

IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0D690

NSP151..V

 1
72010-0D660

NSP151..D,G,R

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D250A0

NSP151..D,G,R

IVORY,TRIM0#

 1
72137-0D210A0

NSP151..V

IVORY,TRIM0#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D080

NSP151

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0D140

NSP151..V

 1
73910-0D130

NSP151..D,G,R

 1
Common parts
90105-T0176
90119-10601
90148-10007
90167-40044
94185-60600
Linked diagrams
7104
8202
8401

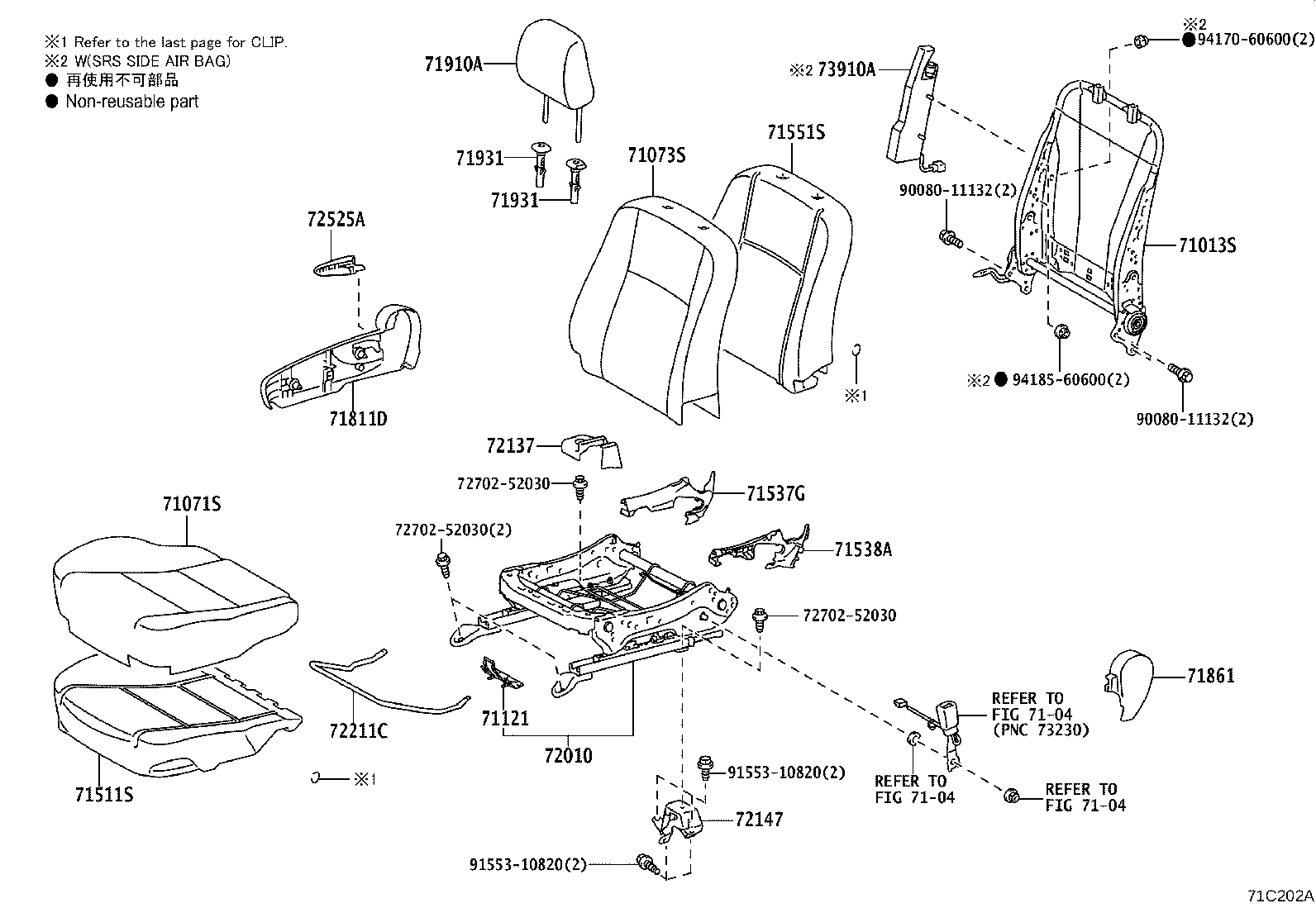

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

RH SEAT,MANUAL SEAT

diagram 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71630S 71811D 71848A 71849 71861 71873 71873B 71874A 71910A 71931 71931 72010 72125A 72125D 72137 72147 72211C 72265 72266 72494 72525A 73910A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9016740044 9016740044 9016850078 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0U010A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71071-0DZ91A0

NSP151..D

IVORY,TRIM0#

 1
71071-0U020A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0U210A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71073-0U201A0

NSP151..D

IVORY,TRIM0#

 1
71073-0U240A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71073-0UK00A0

NSP151..R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71073-0UJ90A0

NSP151..D

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D610

NSP151..V

 1
71511-0D770

NSP151..D,G,R

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D440A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71537-02280A0

NSP151..V

IVORY,TRIM0#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02210A0

NSP151..V

IVORY,TRIM0#

 1
71538-0D360A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D760

NSP151..D,G,R

 1
71551-0D840

NSP151..V

 1
71551-0D890

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D370

NSP151..D,G,R

 1
71013-0D320

NSP151..V

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D600A0

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71811-0D540A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71811-0D550A0

NSP151..V

IVORY,TRIM0#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D120

NSP151

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71849-0D010

NSP151

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D370A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71861-0D380A0

NSP151..V

IVORY,TRIM0#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0D200A0

NSP151..D,G,R

IVORY,TRIM0#

 1
71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71873-02190

NSP151..D,G,R

 1
71873-02200

NSP151..V

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02190

NSP151..V

 1
71874-02180

NSP151..D,G,R

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DF70A0

NSP151..D

IVORY,TRIM0#

 2
71910-0DJ70A0

NSP151..V

IVORY/CAMEL,TRIM0#

 2
71910-0DJ60A0

NSP151..G,R

IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0D690

NSP151..V

 1
72010-0D660

NSP151..D,G,R

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-0D060

NSP151..V

 1
72125-0D060

NSP151..D,G,R

 2
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-0D100

NSP151..D,G,R

 2
72125-0D100

NSP151..V

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D250A0

NSP151..D,G,R

IVORY,TRIM0#

 1
72137-0D210A0

NSP151..V

IVORY,TRIM0#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D080

NSP151

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-02150

NSP151..V

 1
72211-02150

NSP151..D,G,R

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D110

NSP151..V

 1
72265-0D110

NSP151..D,G,R

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D110

NSP151..V

 1
72265-0D110

NSP151..D,G,R

 2
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-0D210A0

NSP151..D,G,R

IVORY,TRIM0#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-02260A0

NSP151..D,G,R

IVORY,TRIM0#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0D140

NSP151..V

 1
73910-0D130

NSP151..D,G,R

 1
Common parts
90105-T0176
90107-T0003
90119-10601
90167-40044
90168-50078
94185-60600
Linked diagrams
7104

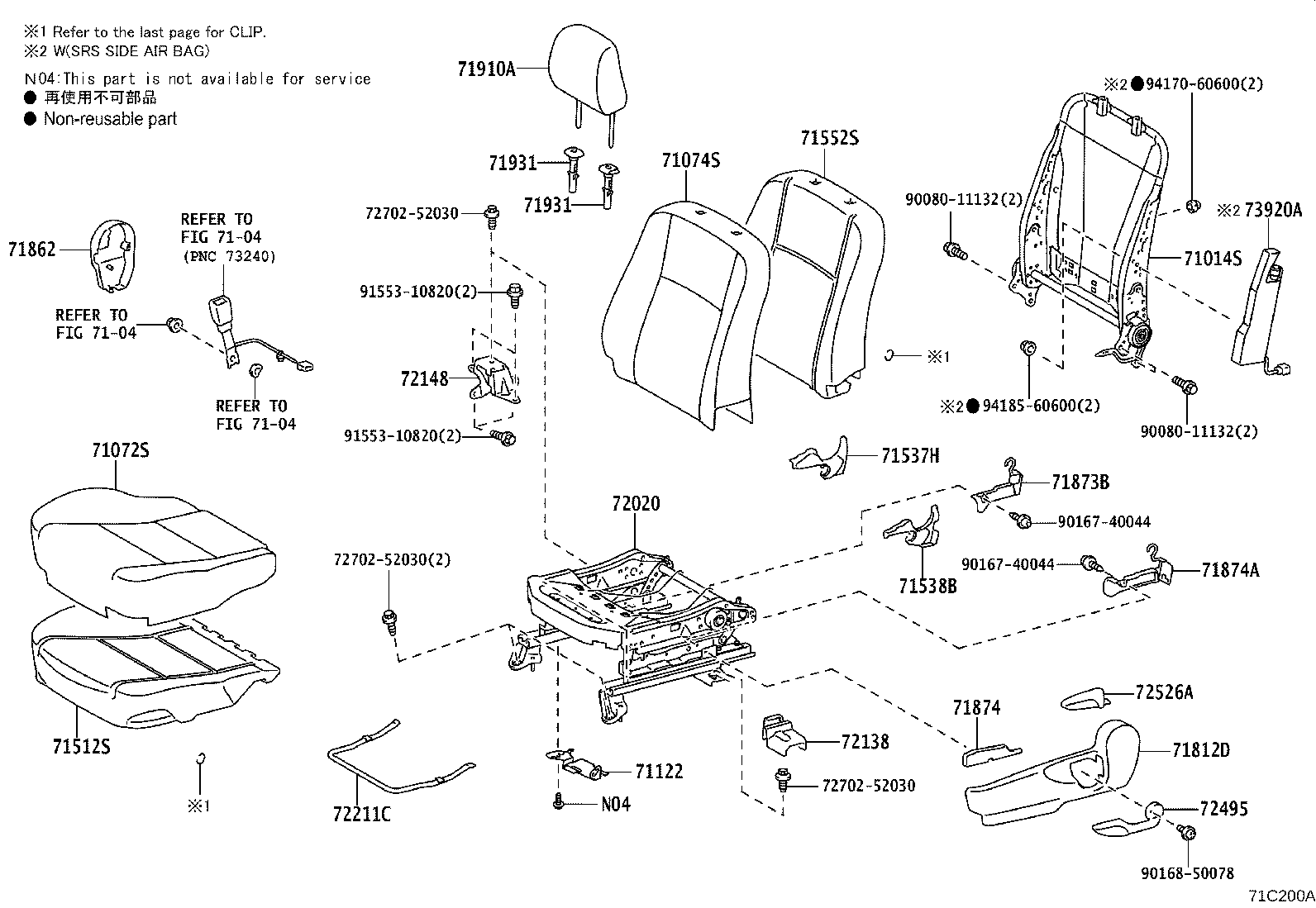

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

LH SEAT

diagram 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71640S 71812D 71848A 71849 71862 71910A 71931 71931 72020 72125A 72125D 72138 72148 72211C 72265 72266 72526A 73920A 90105T0176 90105T0176 90107T0003 90107T0003 90107T0003 9011910601 9011910601 9326915012 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0U070A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71072-0U080A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71072-0U061A0

NSP151..D

IVORY,TRIM0#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0DY60A0

NSP151..G,R

IVORY/CAMEL,TRIM0#

 1
71074-0UE60A0

NSP151..D

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71074-0UE70A0

NSP151..R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71074-0DY51A0

NSP151..D

IVORY,TRIM0#

 1
71074-0DY70A0

NSP151..V

IVORY/CAMEL,TRIM0#

 1
71122 - BRACKET, FRONT SEAT CUSHION, LH
71122-0D040

NSP151

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0D130

NSP151

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D450A0

NSP151

IVORY,TRIM0#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D370A0

NSP151

IVORY,TRIM0#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D840

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE)

 1
71552-0D700

NSP151

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D350

NSP151

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D600A0

NSP151..D,R

SRS AIR BAG-WITH(*DRP & KNEE),IVORY,TRIM0#

 1
71812-0D390A0

NSP151

IVORY,TRIM0#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D120

NSP151

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71849-0D010

NSP151

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D370A0

NSP151

IVORY,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0DF70A0

NSP151..D

IVORY,TRIM0#

 2
71910-0DJ70A0

NSP151..V

IVORY/CAMEL,TRIM0#

 2
71910-0DJ60A0

NSP151..G,R

IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A2

NSP151

W(LOCK)&W(BUTTON),IVORY,TRIM0#

 2
71931-02130A2

NSP151

W/O(LOCK),IVORY,TRIM0#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0D640

NSP151

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-0D060

NSP151..V

 1
72125-0D060

NSP151..D,G,R

 2
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-0D100

NSP151..D,G,R

 2
72125-0D100

NSP151..V

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D230A0

NSP151

IVORY,TRIM0#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D090

NSP151

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-02150

NSP151..V

 1
72211-02150

NSP151..D,G,R

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D110

NSP151..V

 1
72265-0D110

NSP151..D,G,R

 2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D110

NSP151..V

 1
72265-0D110

NSP151..D,G,R

 2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-02250A0

NSP151

IVORY,TRIM0#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0D130

NSP151

 1
Common parts
90105-T0176
90107-T0003
90119-10601
93269-15012
94185-60600
Linked diagrams
7104

ILLUST NO. 3 OF 3(1911- )

Click highlighted areas on diagram

CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

ILLUST NO. 1 OF 3(1911- )4D

Click highlighted areas on diagram

LH SEAT

diagram 71014S 7104 7104 7104 71072S 71074S 71122 71512S 71537H 71538B 71552S 71812D 71862 71873B 71874 71874A 71910A 71931 71931 72020 72138 72148 72211C 72495 72526A 7270252030 7270252030 7270252030 73920A 9008011132 9008011132 9016740044 9016740044 9016850078 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90080-11132
90167-40044
90168-50078
91553-10820
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 3(1911- )4D

Click highlighted areas on diagram

RH SEAT

diagram 71013S 7104 7104 7104 71071S 71073S 71121 71511S 71537G 71538A 71551S 71811D 71861 71910A 71931 71931 72010 72137 72147 72211C 72525A 7270252030 7270252030 7270252030 73910A 9008011132 9008011132 9155310820 9155310820 9417060600 9418560600
Part # Description Qty Price
Common parts
72702-52030
90080-11132
91553-10820
94170-60600
94185-60600
Linked diagrams
7104
