NSP151R-GEXDKX (2019)
Toyota Yaris

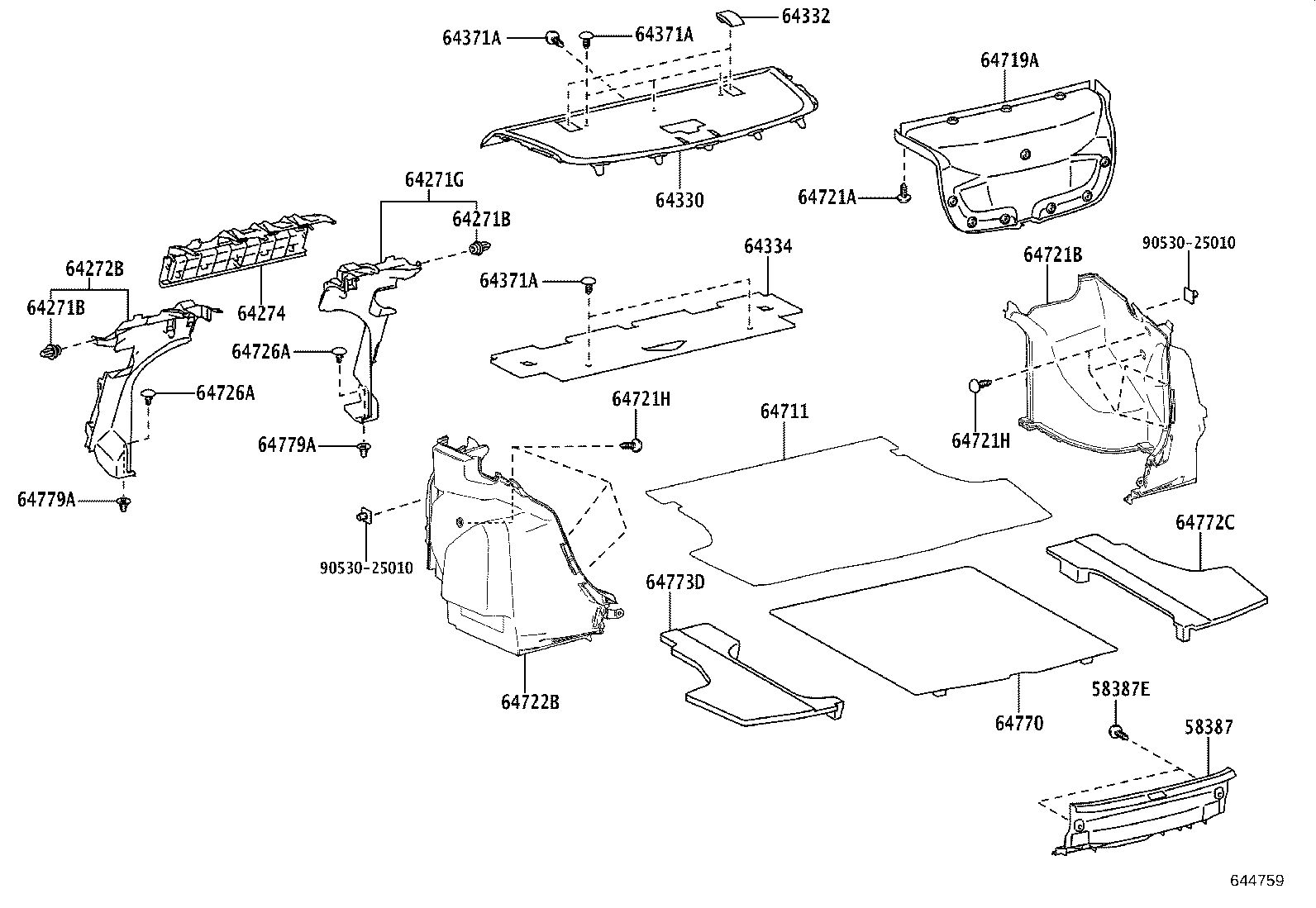

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D230 |
NSP151 |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C3 |
NSP151 BLACK,TRIM0#,(J) |
2 | ||
| 90467-08186C3 |
NSP151 BLACK,TRIM0# |
2 | ||
| 90467-T0045C0 |
NSP151 BLACK,TRIM0#,(L) |
2 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-T0021 |
NSP151 |
2 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-T0021 |
NSP151 |
2 | ||
| 64271G - BOARD, ROOM PARTITION, RH | ||||
| 64271-0D110 |
NSP151 |
1 | ||
| 64272B - BOARD, ROOM PARTITION, LH | ||||
| 64272-0D100 |
NSP151 |
1 | ||
| 64274 - PAD, ROOM PARTITION TRIM, NO.1 | ||||
| 64275-0D240 |
NSP151 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-0D410C1 |
NSP151 BLACK,TRIM0# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-0D210C1 |
NSP151 BLACK,TRIM0# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08186C3 |
NSP151 BLACK,TRIM0# |
12 | ||
| 90467-08186C3 |
NSP151 BLACK,TRIM0#,(J) |
12 | ||
| 90467-T0045C0 |
NSP151 BLACK,TRIM0#,(L) |
12 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64721-0D350C1 |
NSP151..D BLACK,TRIM0# |
1 | ||
| 64721-0D360C1 |
NSP151..G,R,V BLACK,TRIM0# |
1 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NSP151 BLACK,TRIM0# |
7 | ||
| 90467-08186C3 |
NSP151 BLACK,TRIM0#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151 BLACK,TRIM0#,(L) |
7 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NSP151 BLACK,TRIM0# |
7 | ||
| 90467-08186C3 |
NSP151 BLACK,TRIM0#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151 BLACK,TRIM0#,(L) |
7 | ||
| 64722B - COVER, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64722-0D350C1 |
NSP151..D BLACK,TRIM0# |
1 | ||
| 64722-0D360C1 |
NSP151..G,R,V BLACK,TRIM0# |
1 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-0D020 |
NSP151 |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-0D020 |
NSP151 |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-0D360 |
NSP151 |
1 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64772-0D140 |
NSP151 |
1 | ||
| 64773D - COVER, SPARE WHEEL, NO.2 | ||||
| 64773-0D080 |
NSP151 |
1 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NSP151 |
2 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NSP151 |
2 | ||
| Common parts | ||||
| 90530-25010 | ||||
ILLUST NO. 2 OF 2(1908- )
PACKAGE TRAY TRIM PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D610A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 64330-0D620A0 |
NSP151..V SUNSHADE-WITH,IVORY,TRIM0# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D610A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 64330-0D620A0 |
NSP151..V SUNSHADE-WITH,IVORY,TRIM0# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
2 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
2 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
2 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
2 | ||
| 90467-06020C0 |
NSP151 BLACK |
2 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
2 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
2 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
2 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
2 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
2 | ||
| 90467-06020C0 |
NSP151 BLACK |
2 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
2 | ||
| 64332 - COVER, PACKAGE TRAY TRIM | ||||
| 64332-0D080A0 |
NSP151 IVORY,TRIM0# |
2 | ||
| 64332 - COVER, PACKAGE TRAY TRIM | ||||
| 64332-0D080A0 |
NSP151 IVORY,TRIM0# |
2 | ||
| 64334 - PAD, PACKAGE TRAY TRIM SILENCER | ||||
| 64334-0D370 |
NSP151..G,R,V |
1 | ||
| 64334-0D360 |
NSP151..D |
1 | ||
| 64334-0D380 |
NSP151..V SUNSHADE-WITH |
1 | ||
| 64334 - PAD, PACKAGE TRAY TRIM SILENCER | ||||
| 64334-0D370 |
NSP151..G,R,V |
1 | ||
| 64334-0D360 |
NSP151..D |
1 | ||
| 64334-0D380 |
NSP151..V SUNSHADE-WITH |
1 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
4 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK |
4 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
4 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
4 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
4 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK |
4 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
4 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
4 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
4 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK |
4 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
4 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
4 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151 SHELL,TRIM0# |
4 | ||
| 90467-T0046A0 |
NSP151 SHELL,TRIM0#,(L) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK,(J) |
4 | ||
| 90467-06020C0 |
NSP151 BLACK |
4 | ||
| 90467-T0046C0 |
NSP151 BLACK,(L) |
4 | ||
| 90467-06020A5 |
NSP151 SHELL,TRIM0#,(J) |
4 | ||
| Common parts | ||||
| 90467-10167 | ||||
(1911- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90530-25010 | ||||
