NSP151R-GEXDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
NSP151 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NSP151 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D270 |
NSP151..G,R,V |
1 | ||
| 63102-0D250 |
NSP151..D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0100 |
NSP151 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-0D160 |
NSP151 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0D250 |
NSP151 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0D230 |
NSP151 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D210 |
NSP151 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-0D140 |
NSP151 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-0D140 |
NSP151 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-0D240 |
NSP151 |
1 | ||
| 64243 - PANEL, ROOM PARTITION, NO.2 RH | ||||
| 64243-0D040 |
NSP151 |
1 | ||
| 64244 - PANEL, ROOM PARTITION, NO.2 LH | ||||
| 64244-0D040 |
NSP151 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-0D290 |
NSP151..D |
1 | ||
| 64801-0D300 |
NSP151..G,R,V |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-0D270 |
NSP151 L=574 |
1 | ||
| 64813-0D500 |
NSP151 L=2631 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-0D270 |
NSP151 L=574 |
1 | ||
| 64813-0D500 |
NSP151 L=2631 |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90119-T0208 | ||||
| 90119-T0329 | ||||

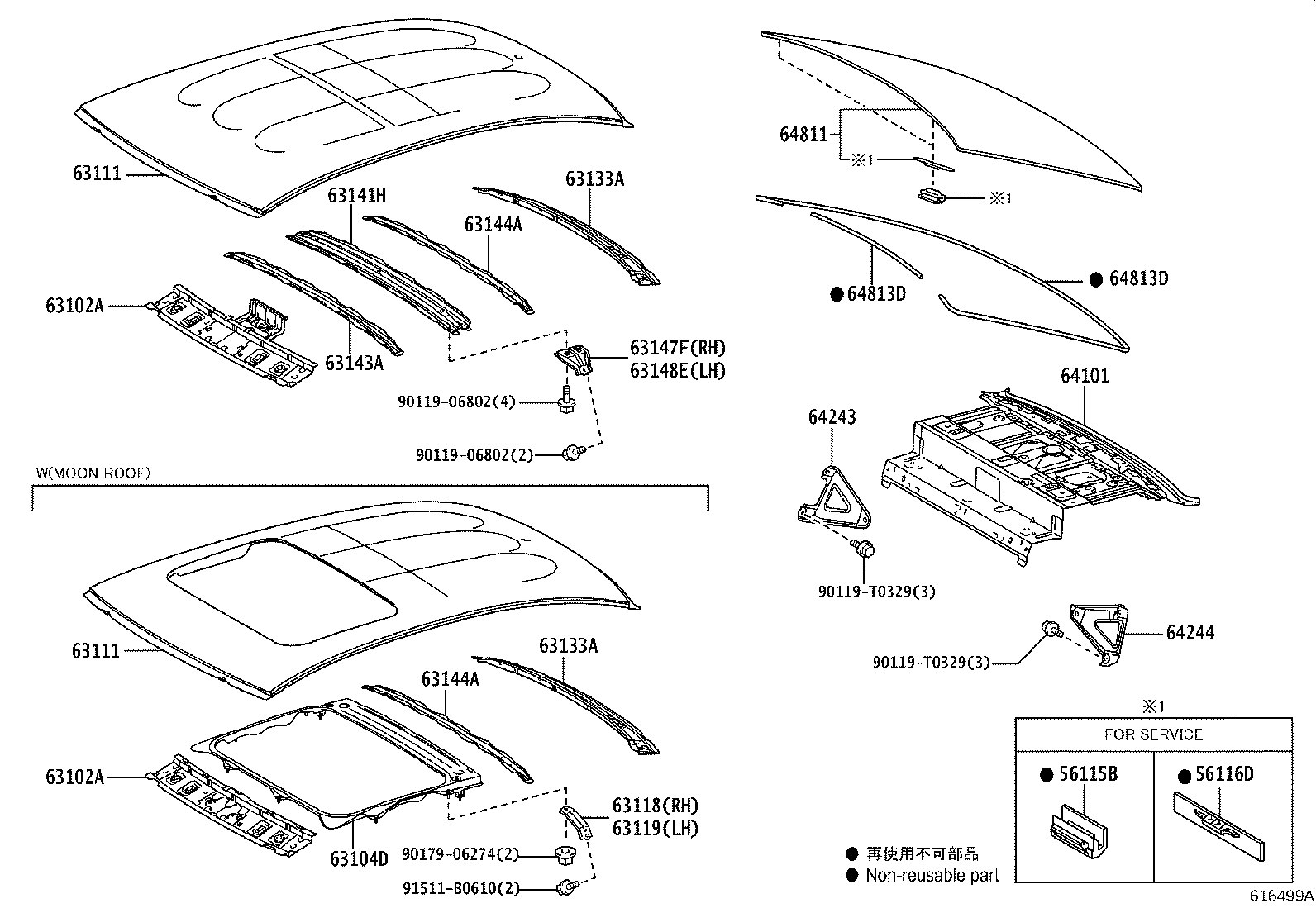

ILLUST NO. 1 OF 2(1911- )4D
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06802 | ||||
| 90119-T0329 | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||

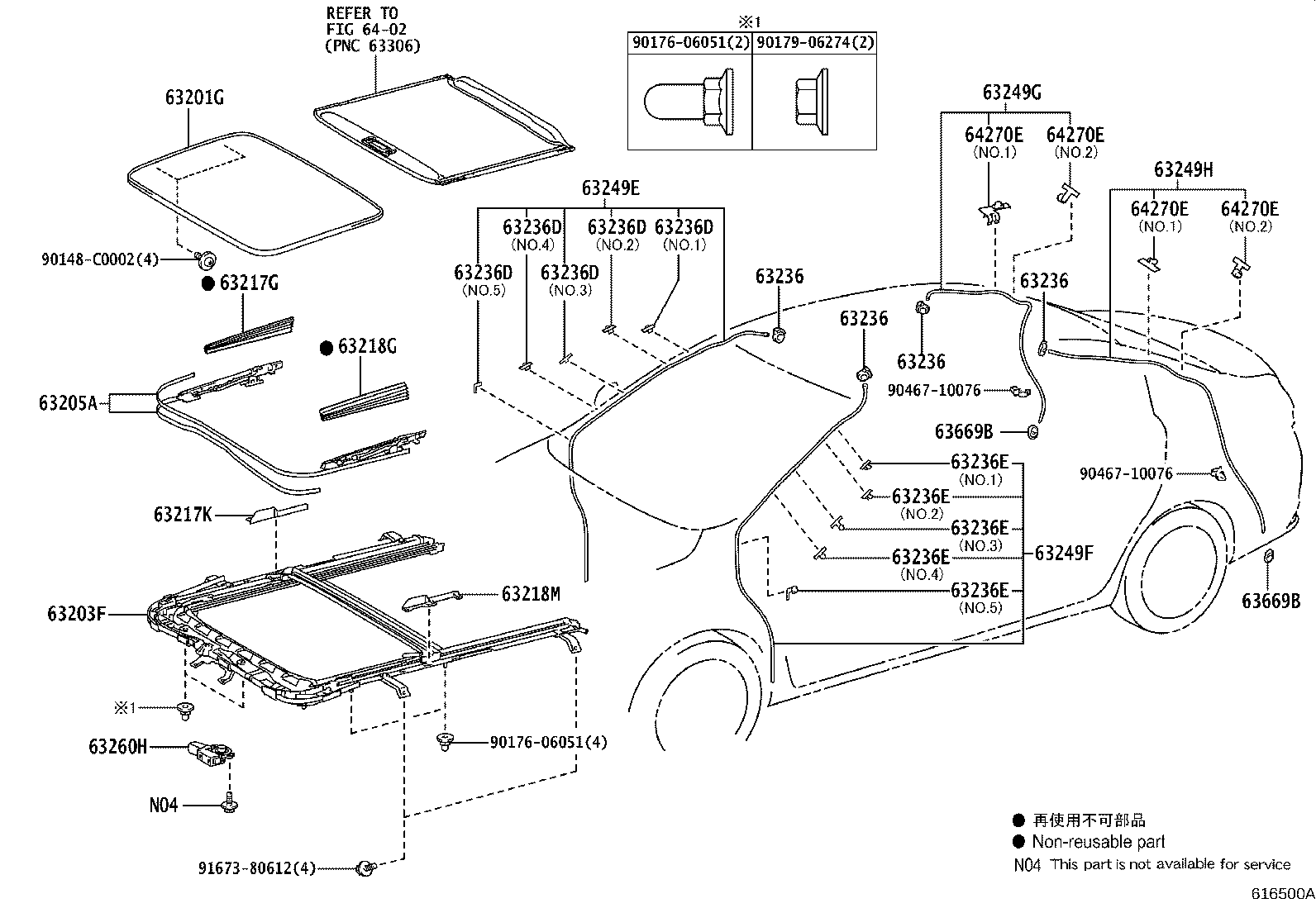

ILLUST NO. 2 OF 2(1911- )4D
Click highlighted areas on diagram
MOON ROOF HOUSING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-C0002 | ||||
| 90176-06051 | ||||
| 90179-06274 | ||||
| 90467-10076 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
