NSP151R-GEXDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

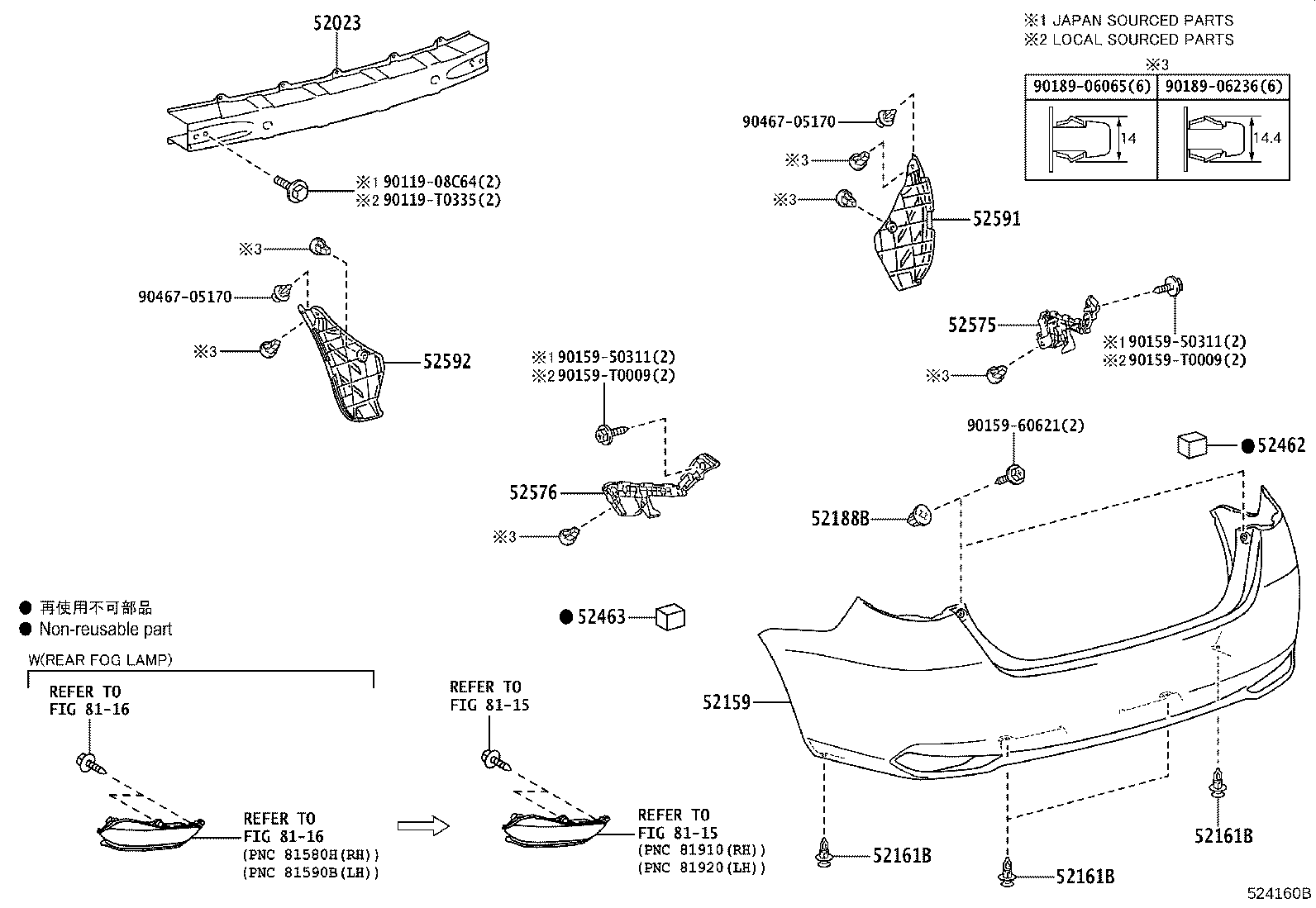

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0D060 |
NSP151 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0U944 |
NSP151..G,V PAINT REQ. |
1 | ||
| 52159-0U961 |
NSP151..G,V PAINT REQ. |
1 | ||
| 52159-0U960 |
NSP151..D,R PAINT REQ. |
1 | ||
| 52159-0U943 |
NSP151..D,R PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-0K040 |
NSP151 (L) |
4 | ||
| 52161-16010 |
NSP151 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-0K040 |
NSP151 (L) |
4 | ||
| 52161-16010 |
NSP151 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-0K040 |
NSP151 (L) |
4 | ||
| 52161-16010 |
NSP151 (J) |
4 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
NSP151 |
2 | ||
| 52188-0D010 |
NSP151 (L) |
2 | ||
| 52188-33040 |
NSP151 (J) |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-0D090 |
NSP151 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-0D090 |
NSP151 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0D370 |
NSP151 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0D360 |
NSP151 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0D430 |
NSP151 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0D430 |
NSP151 |
1 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
NSP151 |
2 | ||
| 75895-53010 |
NSP151 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
NSP151 |
2 | ||
| 75895-53010 |
NSP151 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
NSP151 |
2 | ||
| 75895-53010 |
NSP151 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
NSP151 |
2 | ||
| 75895-53010 |
NSP151 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-0D030 |
NSP151..G,V |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-0D030 |
NSP151 |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90119-T0335 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90159-T0009 | ||||
| 90189-06065 | ||||
| 90189-T0018 | ||||
| 90467-05170 | ||||
| 90467-T0047 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C64 | ||||
| 90119-T0335 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90159-T0009 | ||||
| 90189-06065 | ||||
| 90189-06236 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
