NSP151R-GEXDKX (2019)

Toyota Yaris

Production Aug 2019 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )

Click highlighted areas on diagram

MLM PACKAGE

diagram 47749F 5102 5102 5102 51451C 51451L 51451L 51451L 51451S 52021 52119A 52119C 52127C 52127D 52128B 52161C 52521A 52535 52536 52543 52544 52611 52618 5302 5302 5302 53112E 53121D 53127D 53128E 53289E 53879H 76851G 9010906388 90159T0009 90159T0009 9016750063 9016750063 9016750063 90178T0088 90178T0088 9017906349
Part # Description Qty Price
Common parts
90109-06388
90159-T0009
90167-50063
90178-T0088
90179-06349
Linked diagrams
5102
5302

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 52021 52521A 52535 52536 52611 52618 5302 5302 5302 53879H 9011906355 9011906355 9011906355 90119T0360 90119T0360 90119T0360 90159T0009 90159T0009 90178T0088 90178T0088 9018906237 9018906237 90189T0024 9046710216 90467T0049
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

NSP151

 2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D180

NSP151

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-T0047

NSP151

(L)

 2
90467-05170

NSP151

(J)

 2
90467-05170

NSP151

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D250

NSP151

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D250

NSP151

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0D101

NSP151

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0D110

NSP151

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

NSP151

 2
Common parts
90119-06355
90119-T0360
90159-T0009
90178-T0088
90189-06237
90189-T0024
90467-10216
90467-T0049
Linked diagrams
5102
5302

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

diagram 52119A 52127C 52127D 52128B 52161C 53112E 53113E 53121E 8119 8119 8119 81481E 81482C 81483J 81484F 89C48D 9010906388 9016750063 9016750063 9016750063 9016750063 9017906349
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0U937

NSP151..D,R

PAINT REQ.

 1
52119-0U940

NSP151..G,V

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52721-0D230

NSP151..D,R

 1
52721-0D250

NSP151..G,V

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0DA20

NSP151..D

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D650

NSP151..D

 1
52161C - PIECE, FRONT BUMPER
52161-0K040

NSP151

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D580

NSP151..G,V

NO PAINT REQ.

 1
53112-0D550

NSP151..D,R

NO PAINT REQ.

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-0D080

NSP151

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05063C0

NSP151..D,G,R

BLACK

 4
81481E - COVER, FOG LAMP, RH
52127-0DA10

NSP151..G,R,V

 1
81482C - COVER, FOG LAMP, LH
52128-0D660

NSP151..G,R,V

 1
81483J - COVER, DAYTIME RUNNING LAMP, RH
81483-0D070

NSP151..D,R

 1
81483-0D130

NSP151..G

 1
81484F - COVER, DAYTIME RUNNING LAMP, LH
81484-0D050

NSP151..D,R

 1
81484-0D110

NSP151..G

 1
89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-0D030

NSP151..G,V

 2
Common parts
90109-06388
90167-50063
90179-06349
Linked diagrams
8119

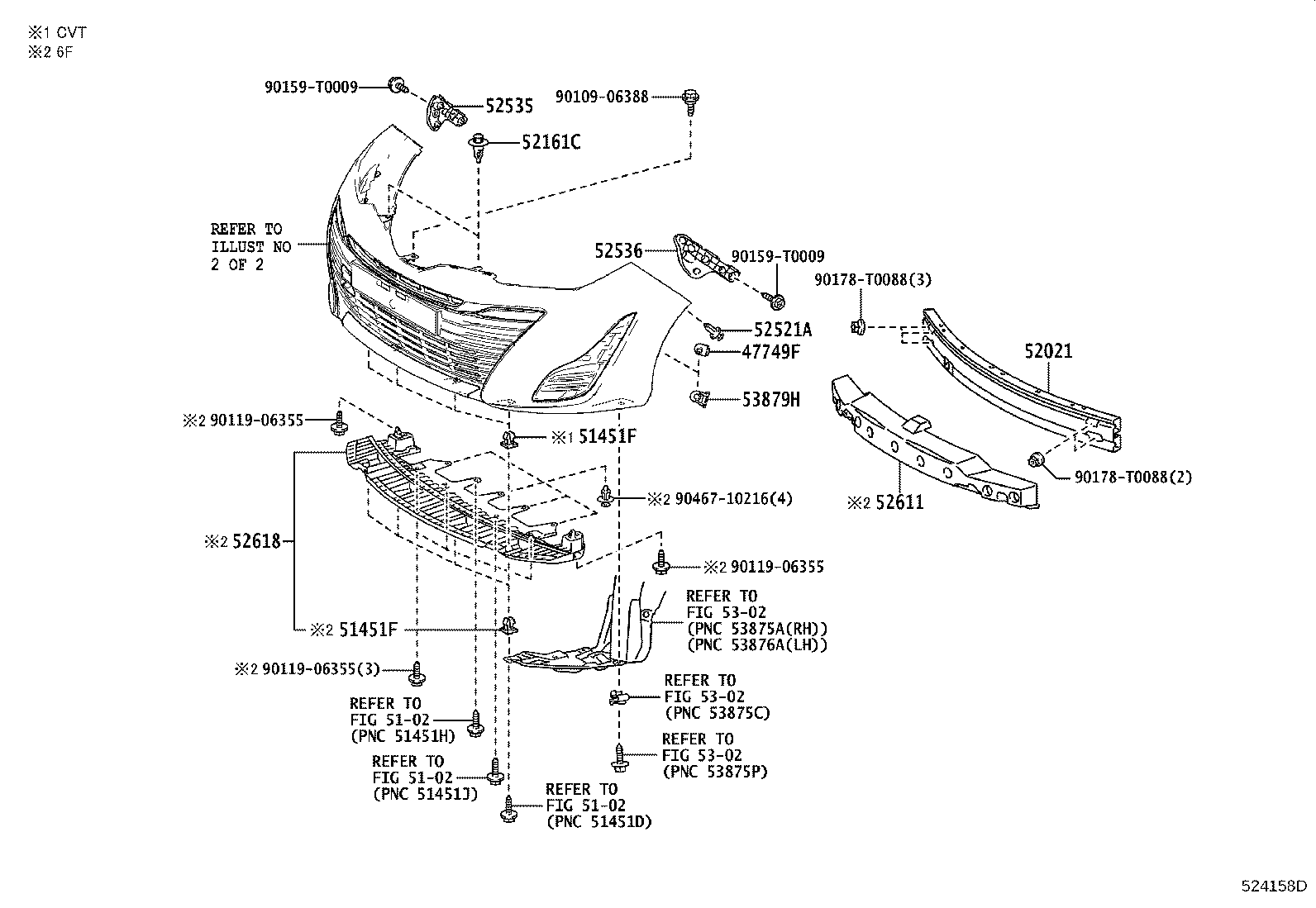

ILLUST NO. 1 OF 2(1911- )4D

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 51451F 51451F 52021 52161C 52521A 52535 52536 52611 52618 5302 5302 5302 53879H 9010906388 9011906355 9011906355 9011906355 90159T0009 90159T0009 90178T0088 90178T0088 9046710216
Part # Description Qty Price
Common parts
90109-06388
90119-06355
90159-T0009
90178-T0088
90467-10216
Linked diagrams
5102
5302

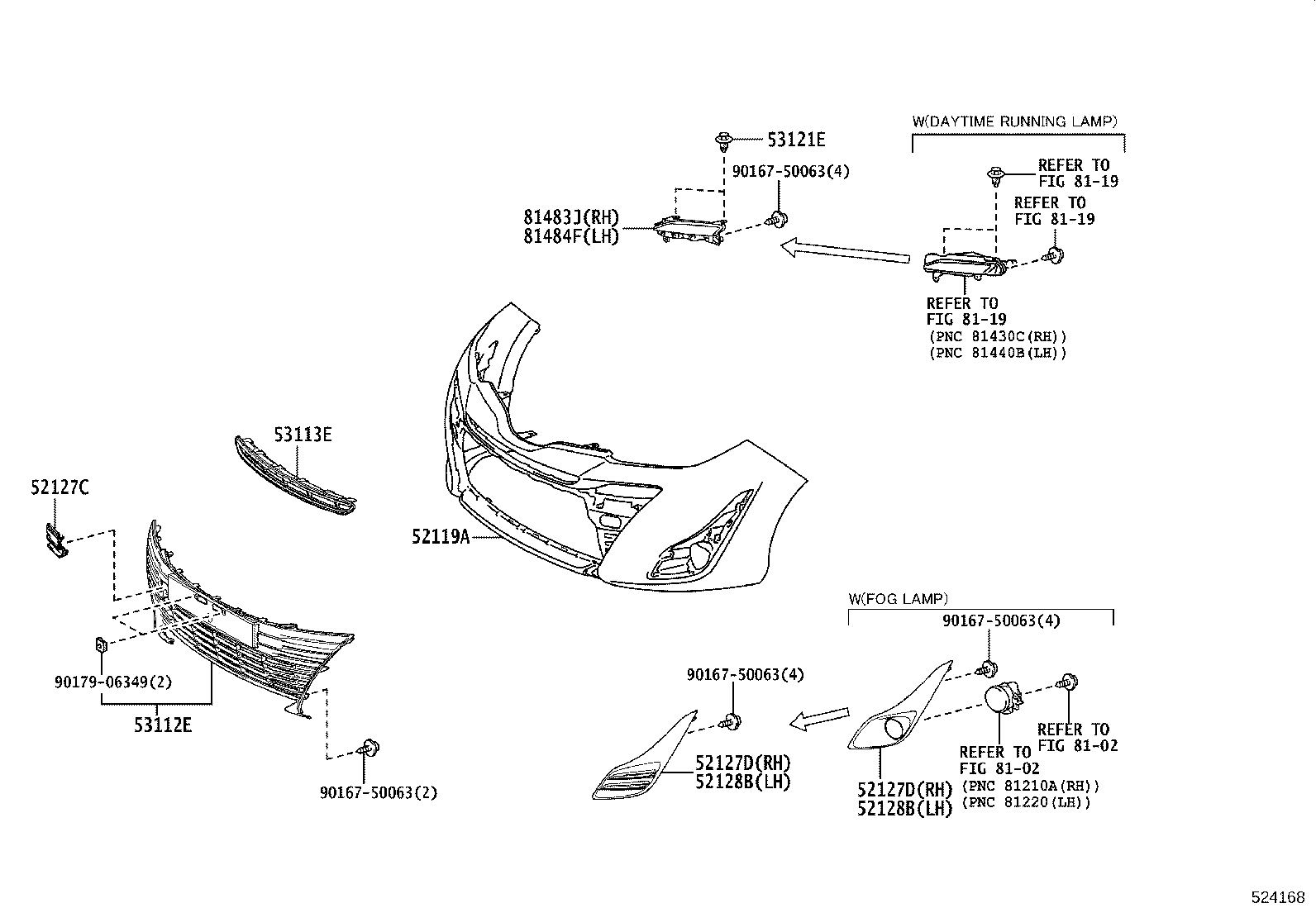

ILLUST NO. 2 OF 2(1911- )4D

Click highlighted areas on diagram

diagram 52119A 52127C 52127D 52127D 52128B 52128B 53112E 53113E 53121E 8102 8102 8119 8119 8119 81483J 81484F 9016750063 9016750063 9016750063 9016750063 9017906349
Part # Description Qty Price
Common parts
90167-50063
90179-06349
Linked diagrams
8102
8119
