NSP151R-GEFRKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

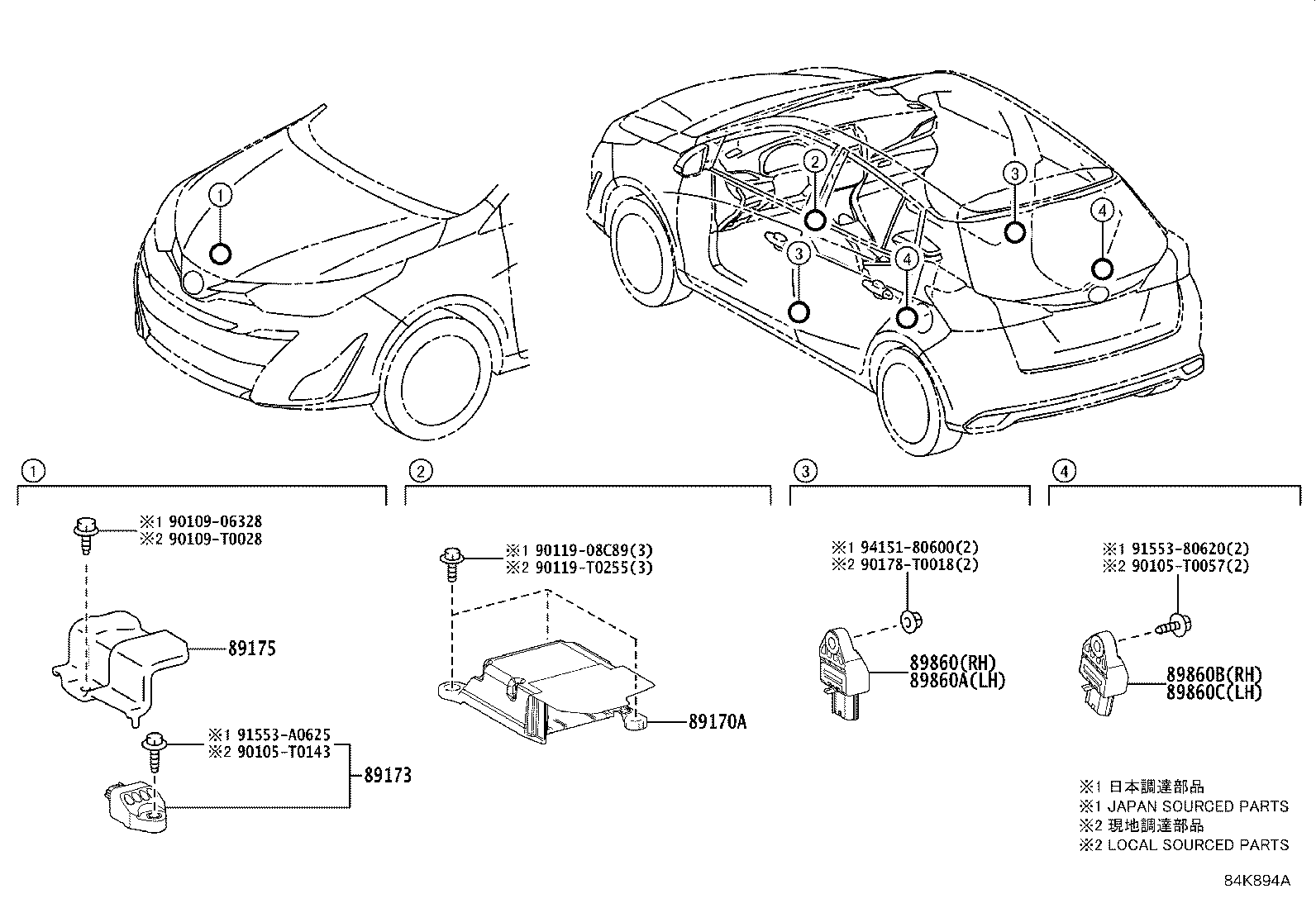

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170A - COMPUTER ASSY, AIR BAG | ||||
| 89170-0DB70 |
NSP151..6F..(D,G,R) |
1 | ||
| 89170-0DE50 |
NSP151..6F..(D,R) SRS AIR BAG-WITH(*DRP & KNEE) |
1 | ||
| 89173 - SENSOR, AIR BAG, FRONT | ||||
| 89173-09C00 |
NSP151 |
1 | ||
| 89175 - BRACKET, AIR BAG SENSOR | ||||
| 89175-0D040 |
NSP151 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-02260 |
NSP151..D,R SRS AIR BAG-WITH(*DRP & KNEE) |
1 | ||
| 89831-02260 |
NSP151 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-02260 |
NSP151..D,R SRS AIR BAG-WITH(*DRP & KNEE) |
1 | ||
| 89831-02260 |
NSP151 |
1 | ||
| 89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-02260 |
NSP151 |
1 | ||
| 89831-02260 |
NSP151..D,R SRS AIR BAG-WITH(*DRP & KNEE) |
1 | ||
| 89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-02260 |
NSP151 |
1 | ||
| 89831-02260 |
NSP151..D,R SRS AIR BAG-WITH(*DRP & KNEE) |
1 | ||
| Common parts | ||||
| 90105-T0057 | ||||
| 90105-T0143 | ||||
| 90109-06328 | ||||
| 90109-T0028 | ||||
| 90119-T0255 | ||||
| 90178-T0018 | ||||
| 91553-80620 | ||||
| 91553-A0625 | ||||
| 94151-80600 | ||||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0057 | ||||
| 90105-T0143 | ||||
| 90109-06328 | ||||
| 90109-T0028 | ||||
| 90119-08C89 | ||||
| 90119-T0255 | ||||
| 90178-T0018 | ||||
| 91553-80620 | ||||
| 91553-A0625 | ||||
| 94151-80600 | ||||
