NSP151R-GEFGKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

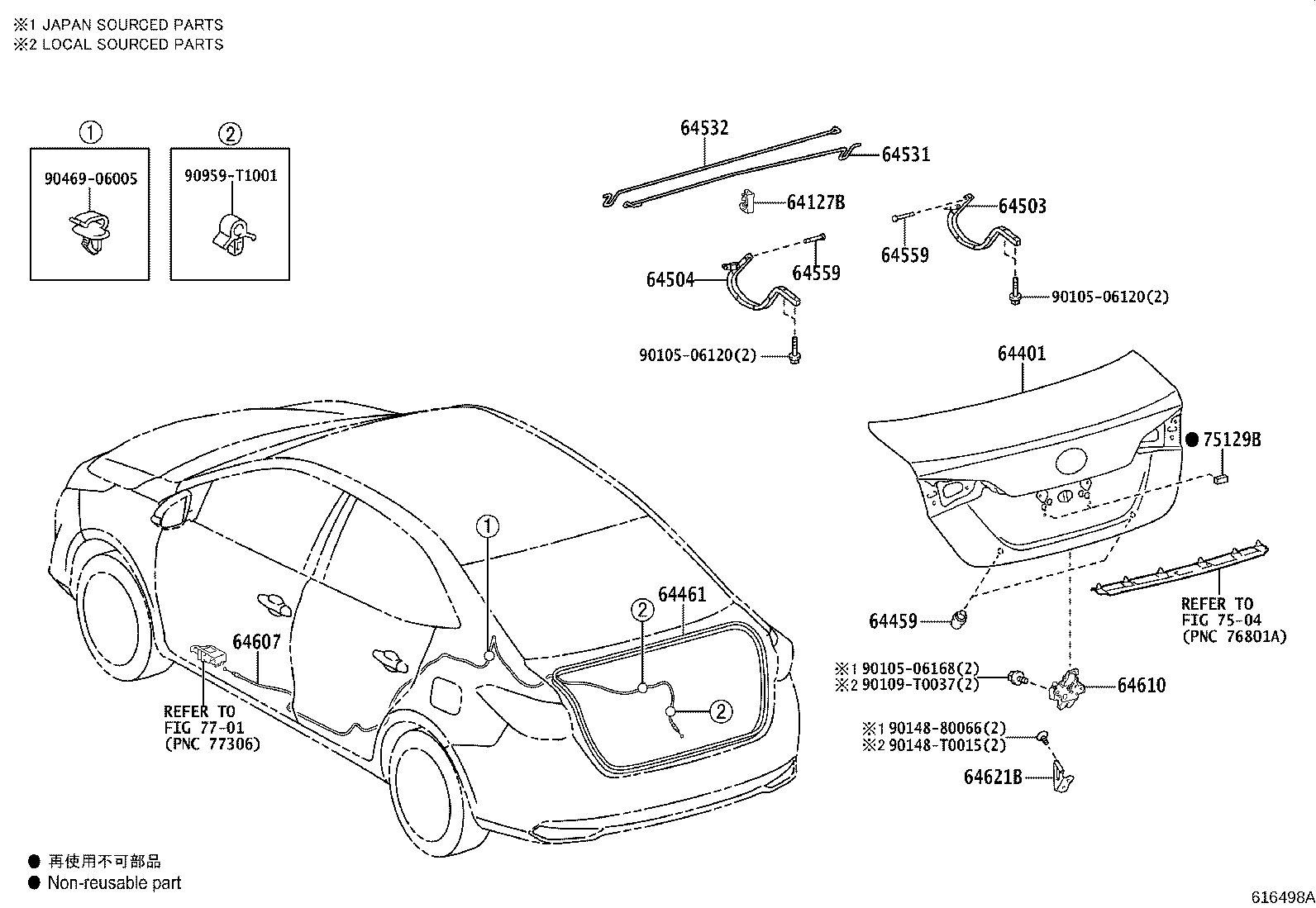

ILLUST NO. 1 OF 2(1908- )
Click highlighted areas on diagram
LUGGAGE COMPARTMENT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-0D060 |
NSP151 |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-0D360 |
NSP151..R |
1 | ||
| 64401-0D500 |
NSP151..D |
1 | ||
| 64401-0D490 |
NSP151..G,V |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09069 |
NSP151 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-0D230 |
NSP151 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-0D110 |
NSP151 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-0D110 |
NSP151 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-0D350 |
NSP151 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-0D340 |
NSP151 |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NSP151 |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NSP151 |
2 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-02080 |
NSP151 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-06080 |
NSP151 |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-0D020 |
NSP151 |
2 | ||
| Common parts | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90105-T0145 | ||||
| 90109-T0037 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| Linked diagrams | ||||
| 7504 | ||||
ILLUST NO. 2 OF 2(1908- )
Click highlighted areas on diagram
LUGGAGE DOOR LOCK CONTROL CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-0D500 |
NSP151 |
1 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 90469-06005 | ||||
| 90469-T0001 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(1911- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-T0037 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90469-06005 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 7701 | ||||
