NSP151R-GEFDKX (2019)
Toyota Yaris
Production
Aug 2019
-
Sep 9999
Engine
2NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )6F

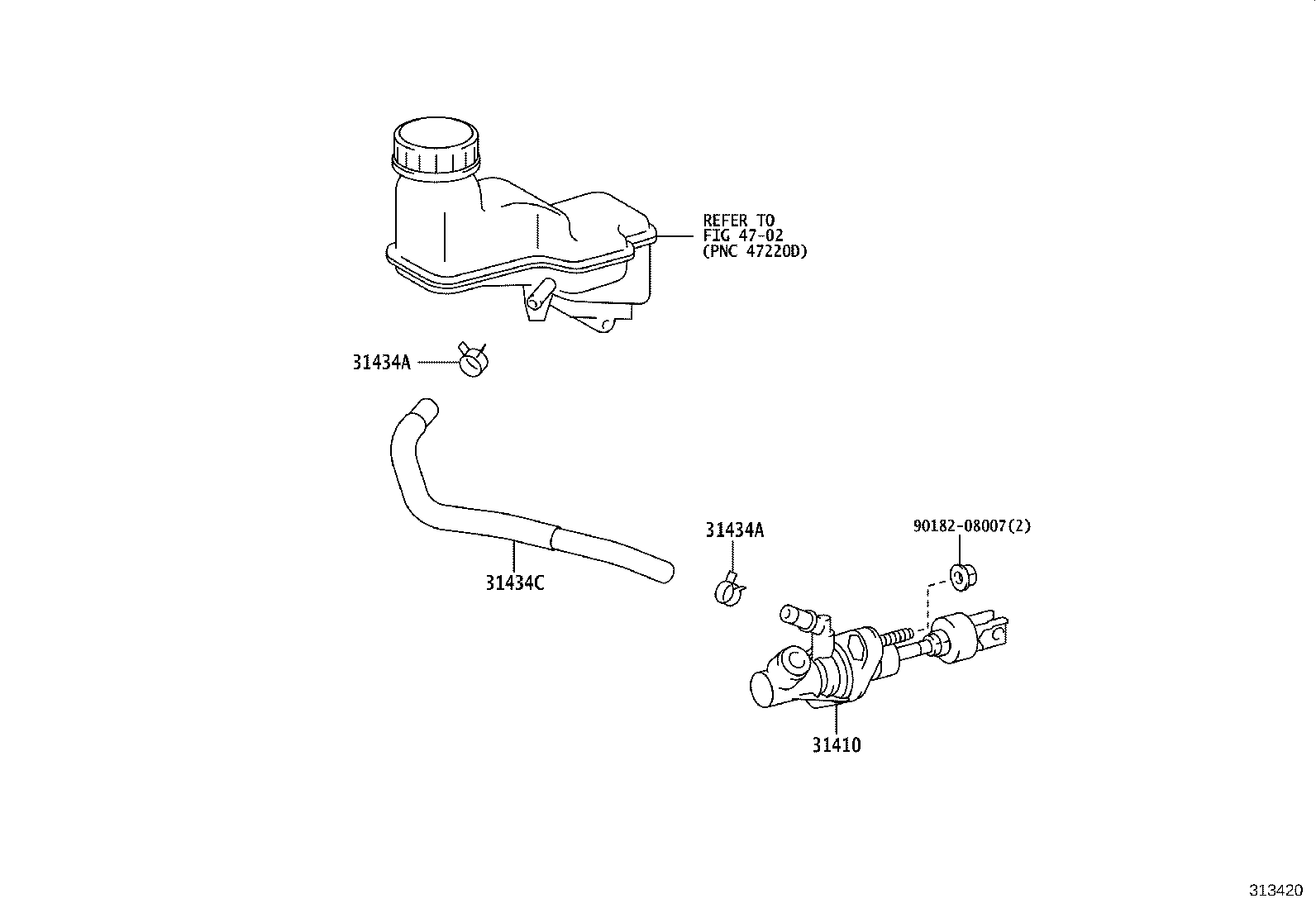

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-12030 |
NSP151..6F |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90466-T0052 |
NSP151..6F |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90466-T0052 |
NSP151..6F |
2 | ||
| 31434C - TUBE, CLUTCH RESERVOIR | ||||
| 31434-0D010 |
NSP151..6F |
1 | ||
| Common parts | ||||
| 90182-T0028 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(1911- )6F

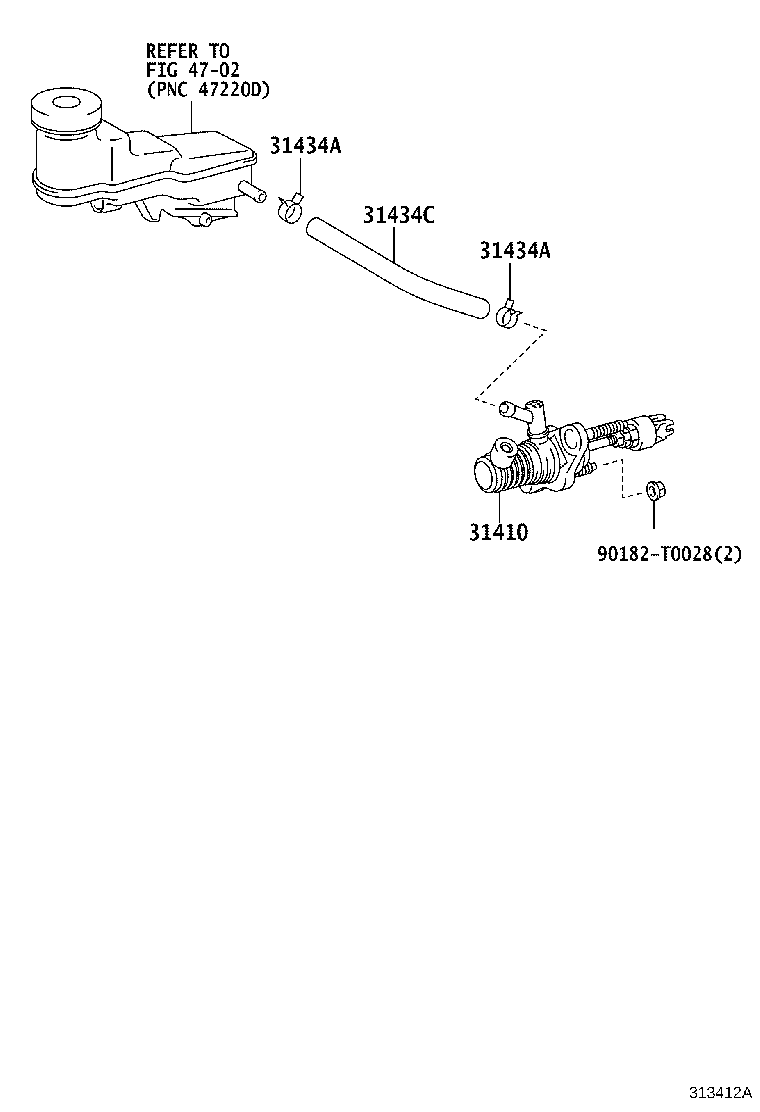

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90182-08007 | ||||
| Linked diagrams | ||||
| 4702 | ||||
