NSP151R-CHXGKD (2016)
Toyota Yaris
Production
Oct 2016
-
Dec 2017
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1310-1709)NSP152 ; (1310-1710) ; (1710-1802)IDN,TAIW
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0D090 |
NSP151..C |
1 | ||
| 68950-0D190 |
NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 68960B - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0D030 |
NSP151..C |
1 | ||
| 68960-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0D180 |
NSP151..C |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0D180 |
NSP151..C |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0D090 |
NSP151..C |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-T0167 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90179-08096 | ||||
| 90182-T0016 | ||||
| 91551-10816 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8401 | ||||

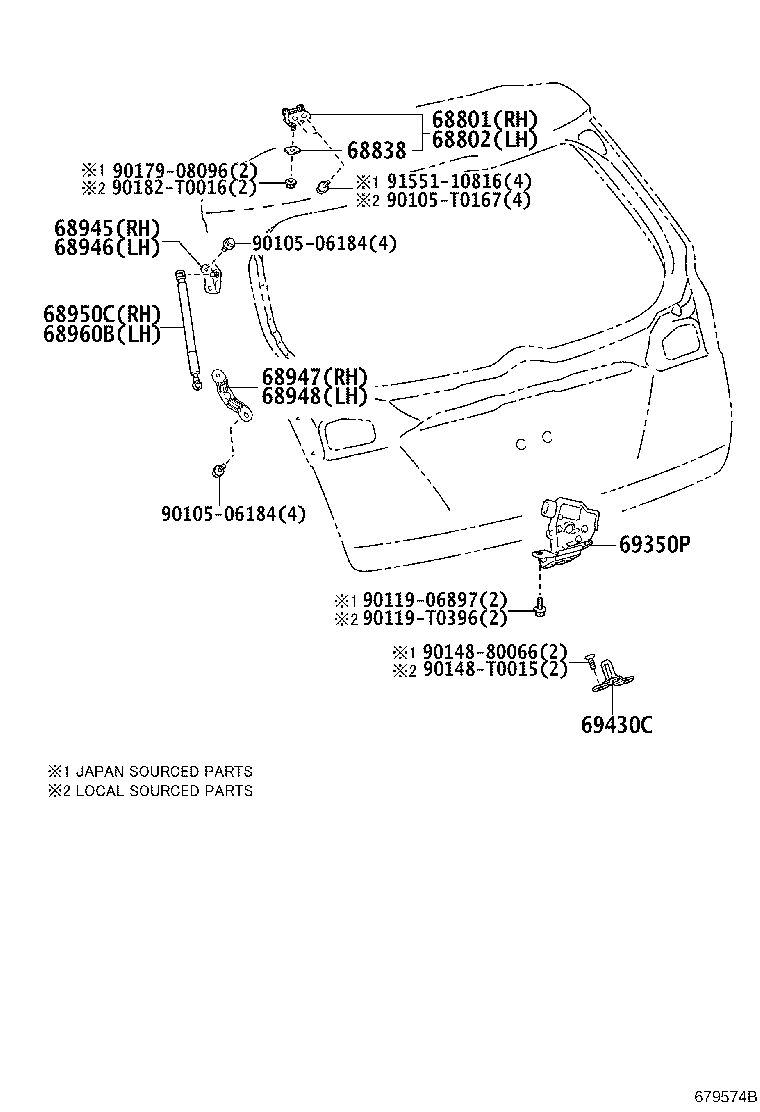

(1709- )HTWC ; (1710- )GCC,GEN,PH,SA,VN..A; (1802- )B,C,F,H ; (1911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0D090 |
NSP151..C |
1 | ||
| 68950-0D190 |
NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 68960B - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0D030 |
NSP151..C |
1 | ||
| 68960-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0D180 |
NSP151..C |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0D090 |
NSP151..C |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-T0167 | ||||
| 90119-06897 | ||||
| 90119-T0396 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90179-08096 | ||||
| 90182-T0016 | ||||
| 91551-10816 | ||||
