NSP151L-HHXVGG (2018)

Toyota Yaris

Production Jun 2018 - Oct 2019
Engine 2NRFBE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )AGT..V ; (1806- )NSP151..BZ,GEN..G,V

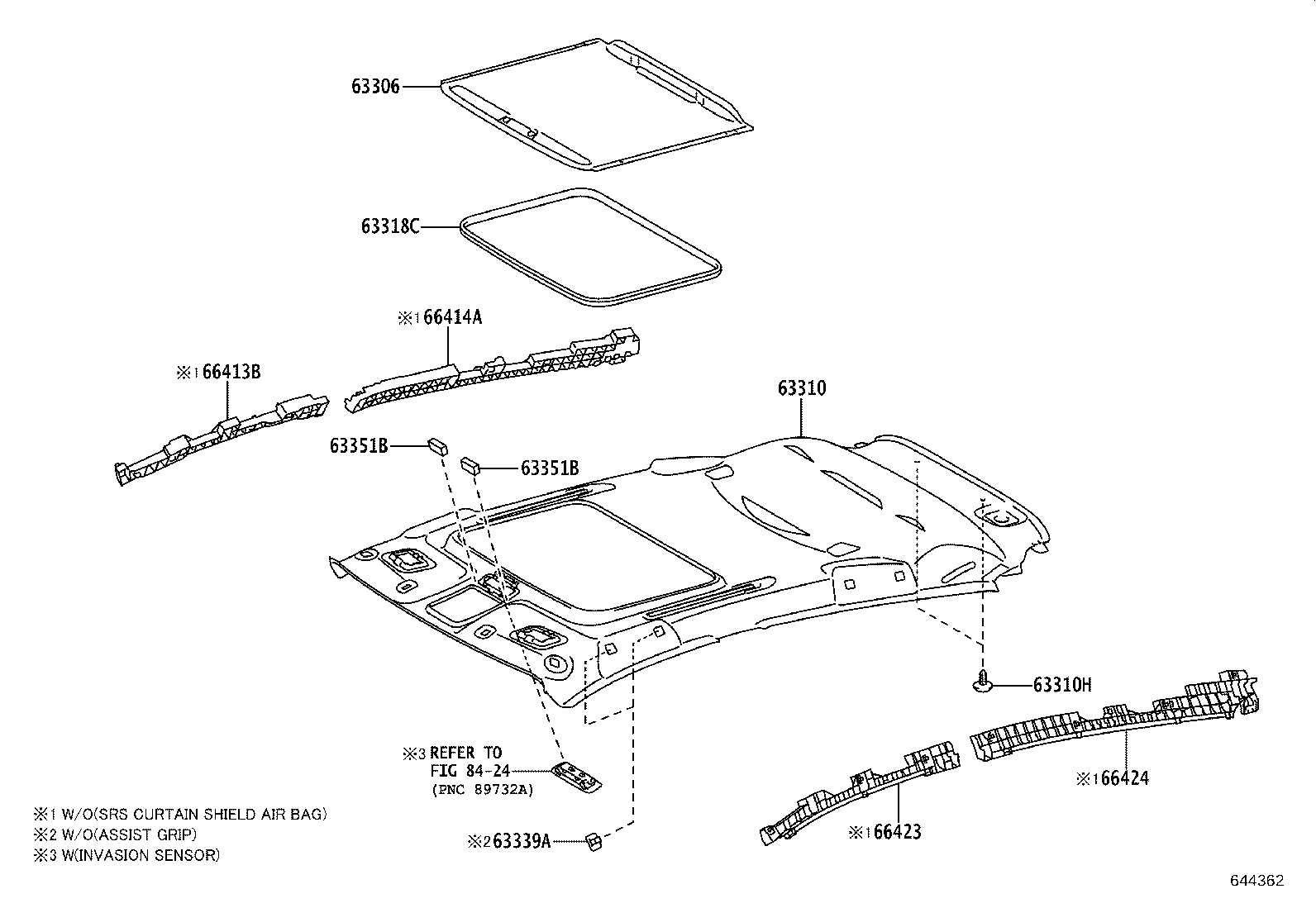

Click highlighted areas on diagram

W(MOON ROOF)

diagram 63306 63310 63310H 63318C 63339A 63351B 63351B 66413B 66414A 66423 66424 8424
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0D070C0

NSP151..V..H

BLACK,TRIM2#

 1
63306-0D070C0

NSP151..(BZ,GEN)..G

SPORT PACKAGE(*RCL(LED TYPE)),BLACK,TRIM2#

 1
63310 - HEADLINING ASSY, ROOF
63310-0DD50C0

NSP150,151..(D,G,R)..H

BLACK,TRIM2#

 1
63310-0DD60C0

NSP151..(BZ,GEN)..G

SPORT PACKAGE(*RCL(LED TYPE)),BLACK,TRIM2#

 1
63310-0DD60C0

NSP151..V..H

BLACK,TRIM2#

 1
63310-0DE40C0

NSP150,151..BZ..(G,R)

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),BLACK,TRIM2#

 1
63310-0DE50C0

NSP151..BZ..G

SPORT PACKAGE(*RCL(LED TYPE))&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),BLACK,TRIM2#

 1
63310-0DE50C0

NSP151..BZ..V

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),BLACK,TRIM2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-T0004C4

NSP150,151..H

BLACK,TRIM2#,(L)

 2
90467-05164C7

NSP150,151..H

BLACK,TRIM2#,(J)

 2
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-52080C0

NSP151..V..H

L=2091,BLACK,TRIM2#

 1
63318-52080C0

NSP151..BZ..G

L=2091,SPORT PACKAGE(*RCL(LED TYPE))&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER &*IS),BLACK,TRIM2#

 1
63318-52080C0

NSP151..(BZ,GEN)..G

L=2091,SPORT PACKAGE(*RCL(LED TYPE)),BLACK,TRIM2#

 1
63318-52080C0

NSP151..BZ..V

L=2091,ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS),BLACK,TRIM2#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030C0

NSP151..6F..AGT..(G,R);NSP150,151..(BZ,GEN)..(D,G,R)..H

BLACK,TRIM2#

 2
63351B - PAD, ROOF HEADLINING
63351-0D050

NSP151..V..H

 2
63351-0D050

NSP151..(BZ,GEN)..G

SPORT PACKAGE(*RCL(LED TYPE))

 2
63351-0D050

NSP151..BZ..G

SPORT PACKAGE(*RCL(LED TYPE))&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS)

 2
63351B - PAD, ROOF HEADLINING
63351-0D050

NSP151..V..H

 2
63351-0D050

NSP151..(BZ,GEN)..G

SPORT PACKAGE(*RCL(LED TYPE))

 2
63351-0D050

NSP151..BZ..G

SPORT PACKAGE(*RCL(LED TYPE))&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER & *IS)

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-0D410

NSP151..6F..AGT..(G,R);NSP150,151..(BZ,GEN)..(D,G,R)..H

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D440

NSP151..6F..AGT..(G,R);NSP150,151..(BZ,GEN)..(D,G,R)..H

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-0D380

NSP151..6F..AGT..(G,R);NSP150,151..(BZ,GEN)..(D,G,R)..H

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D440

NSP151..6F..AGT..(G,R);NSP150,151..(BZ,GEN)..(D,G,R)..H

 1
Linked diagrams
8424

(1908- )D

Click highlighted areas on diagram

diagram 63310 63310H 63341 63341 63342 63342 63343 63344 66413B 66414A 66423 66424
Part # Description Qty Price

(1908- )G,R,V

Click highlighted areas on diagram

diagram 63310 63310H 63341 63341 63341G 63342 63342 63343 63343 63351B 63351B 63351B 63351B 63351B 63351B 63351B 63351C 63351C 63351C 63351C 63352D 63352D 63352D 63352D 63353C 63356C 63660 66413B 66414A 66423 66424 9046705172
Part # Description Qty Price
Common parts
90467-05172
