NSP151L-HHFVKH (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 2NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )6F

Click highlighted areas on diagram

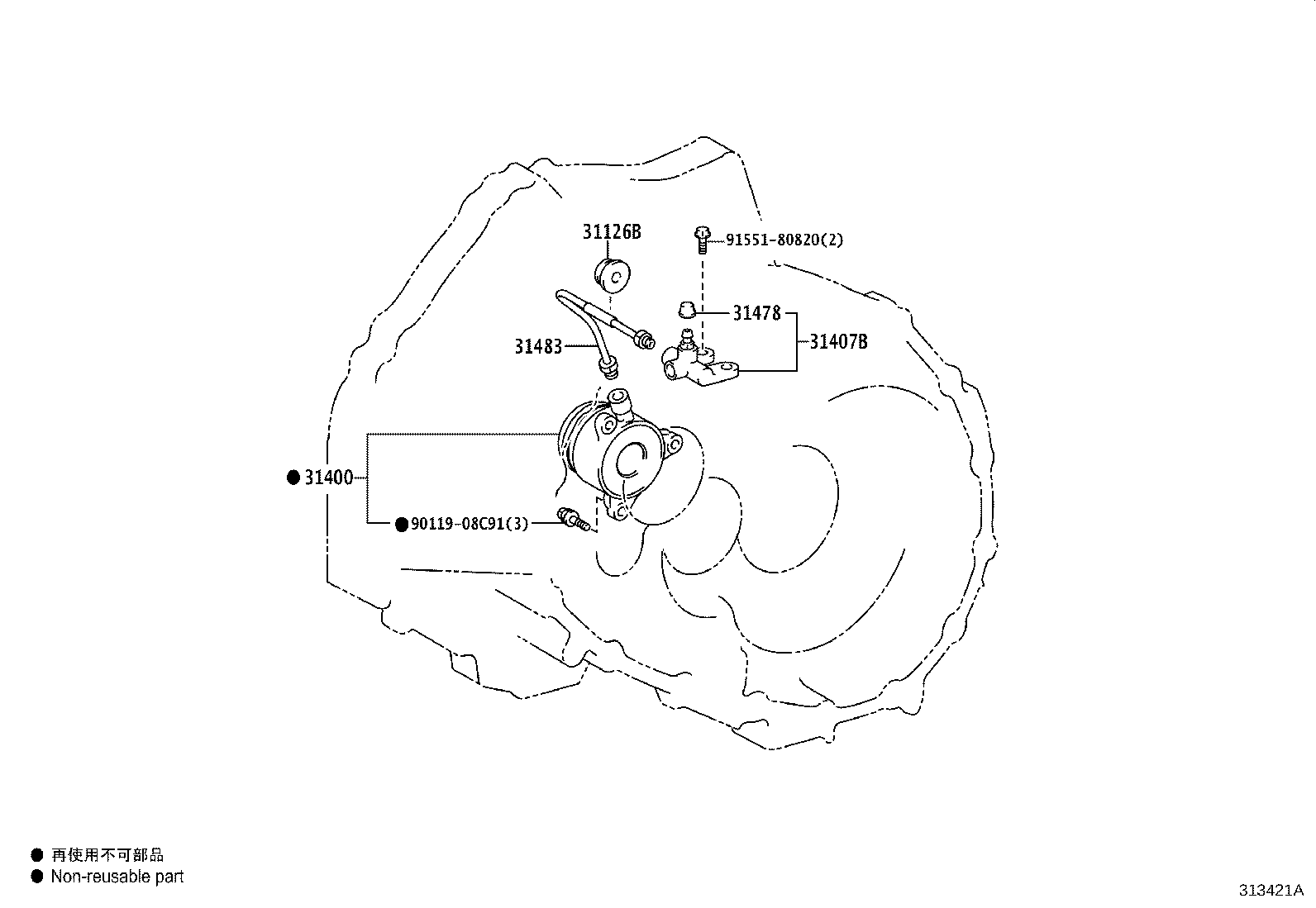

diagram 31126B 31400 31407B 31478 31483 9011908C91 9155180820
Part # Description Qty Price
31126B - BOOT, CLUTCH TUBE
31126-0D070

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING
31400-09020

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE
31407-52010

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
31483 - TUBE, BLEEDER CLUTCH RELEASE
31482-0D300

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
Common parts
90119-08C91
91551-80820
