NSP151L-HEXVGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 2NRFBE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )2NR#..4D

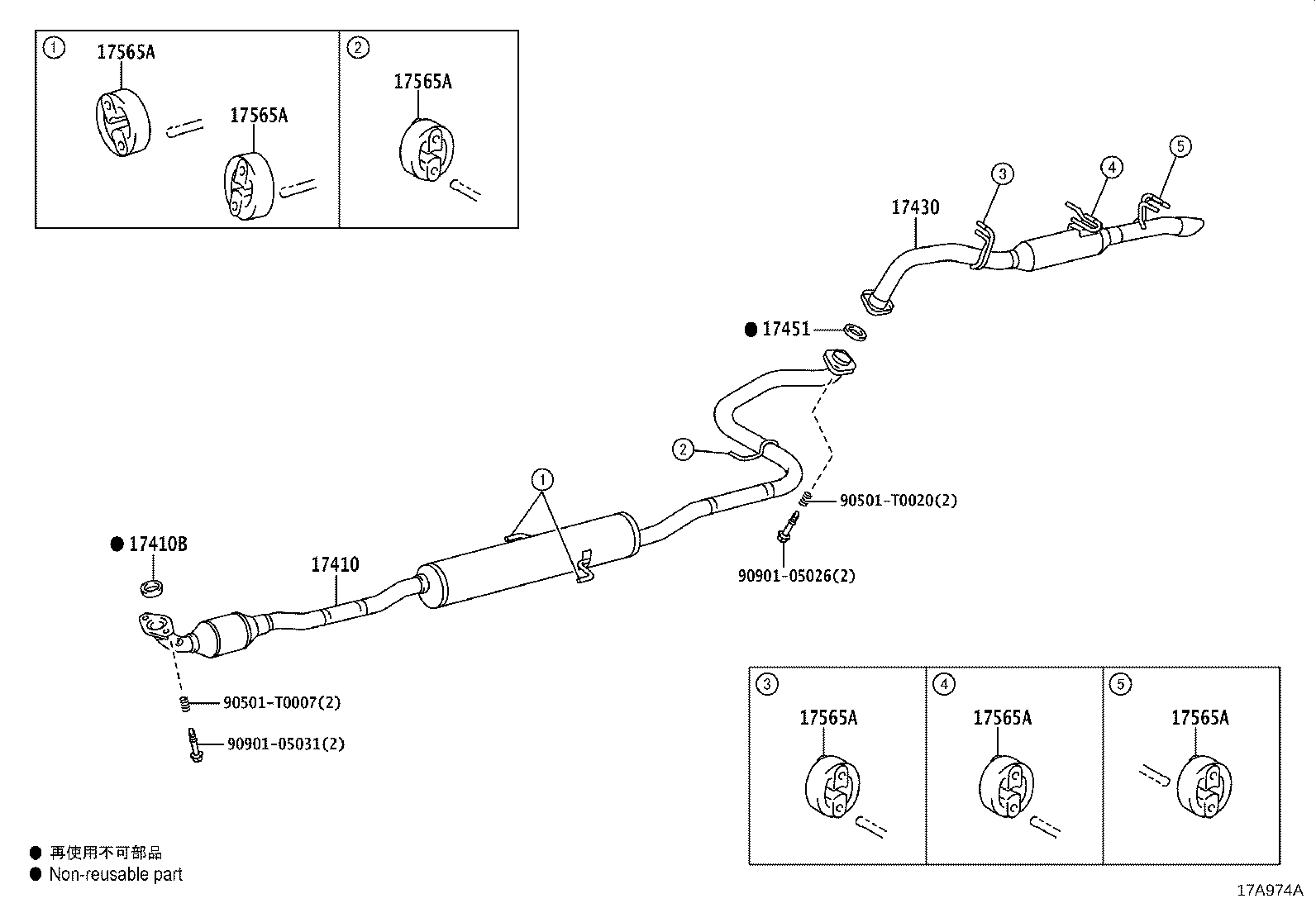

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 90501T0007 90501T0020 9090105026 9090105031
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y650

2NRFBE..NSP151..4D

 1
17410-0Y880

2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 1
17410-0Y650

2NRFBE..NSP151..4D..(D,G)

PARAGUAY SPEC

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

2NRFE..NSP151;1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y340

2NRFBE..NSP151..4D

 1
17430-0Y240

2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 1
17430-0Y340

2NRFBE..NSP151..4D..(D,G)

PARAGUAY SPEC

 1
17451 - GASKET, EXHAUST PIPE
17451-0M032

2NRFE..NSP151;1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NSP151..4D;2NRFBE..NSP151..4D..CVT;2NRFBE..NSP151..4D..6F..(D,G)

 6
Common parts
90501-T0007
90501-T0020
90901-05026
90901-05031
