NSP151L-HEFGGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )4D

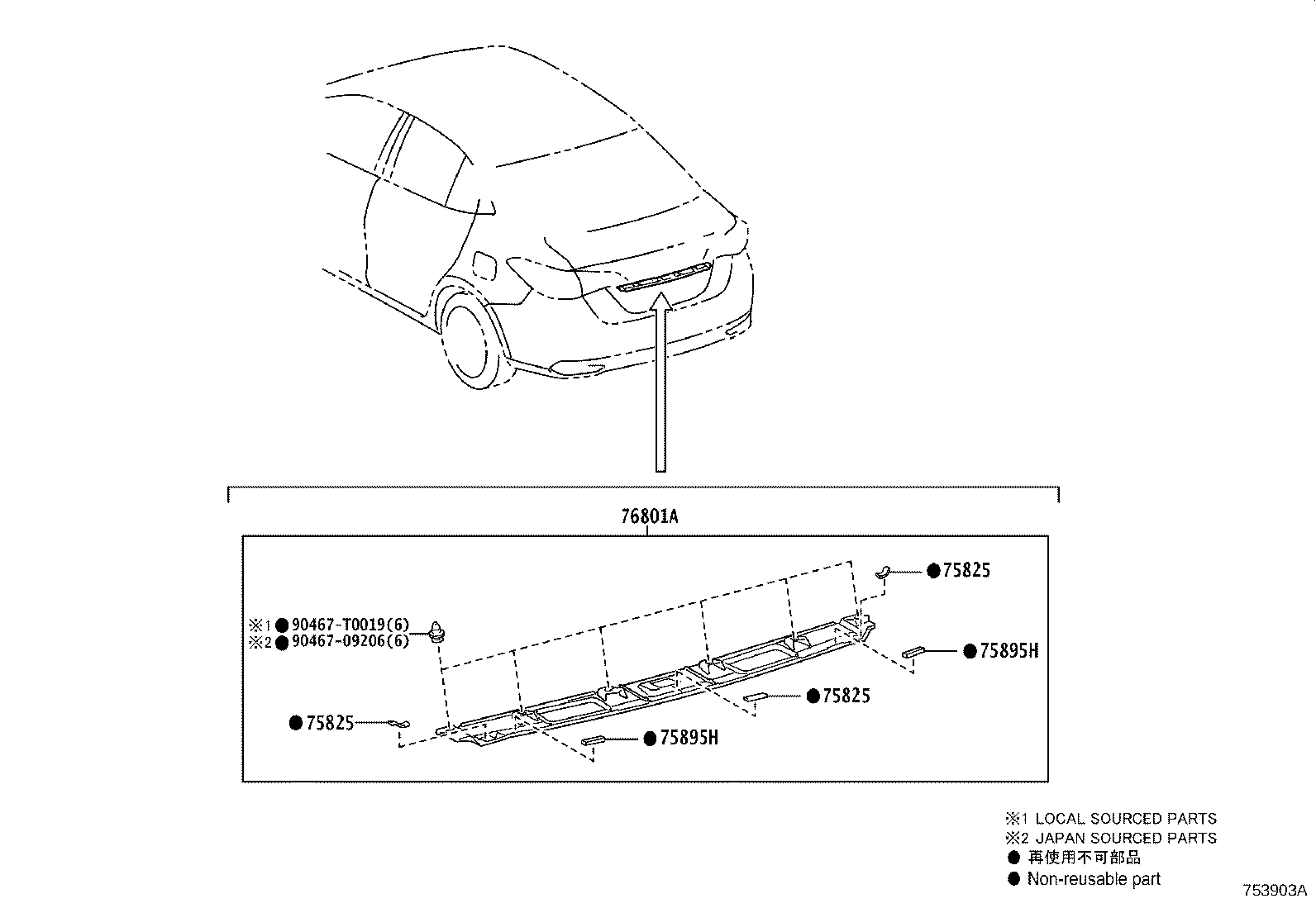

Click highlighted areas on diagram

diagram 75825 75825 75825 75895H 75895H 76801A 9046709206 90467T0019
Part # Description Qty Price
75825 - PAD, LUGGAGE COMPARTMENT DOOR MOULDING
75825-0D090

NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G)

 3
75825-0D090

NSP151..4D..6F..BZ..R

 3
75825 - PAD, LUGGAGE COMPARTMENT DOOR MOULDING
75825-0D090

NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G)

 3
75825-0D090

NSP151..4D..6F..BZ..R

 3
75825 - PAD, LUGGAGE COMPARTMENT DOOR MOULDING
75825-0D090

NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G)

 3
75825-0D090

NSP151..4D..6F..BZ..R

 3
75895H - TAPE, MOULDING, NO.1
75895-0D230

NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G)

 2
75895-0D230

NSP151..4D..6F..BZ..R

 2
75895H - TAPE, MOULDING, NO.1
75895-0D230

NSP151..4D..6F..BZ..R

 2
75895-0D230

NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G)

 2
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-0DA20

NSP151..4D..6F..BZ..R

NO PAINT REQ.

 1
76801-0DA30

NSP151..4D..6F..BZ..R

NO PAINT REQ.,XL-PLUS PACKAGE(BRAZIL)

 1
76801-0DA20

NSP151..4D..AGT;NSP151..6F..BZ..D;NSP151..4D..CVT..BZ..(D,R)

NO PAINT REQ.

 1
76801-0DA30

NSP151..4D..(BZ,GEN)..(G,V)

NO PAINT REQ.

 1
Common parts
90467-09206
90467-T0019
