NSP151L-HEFGGG (2019)
Toyota Yaris

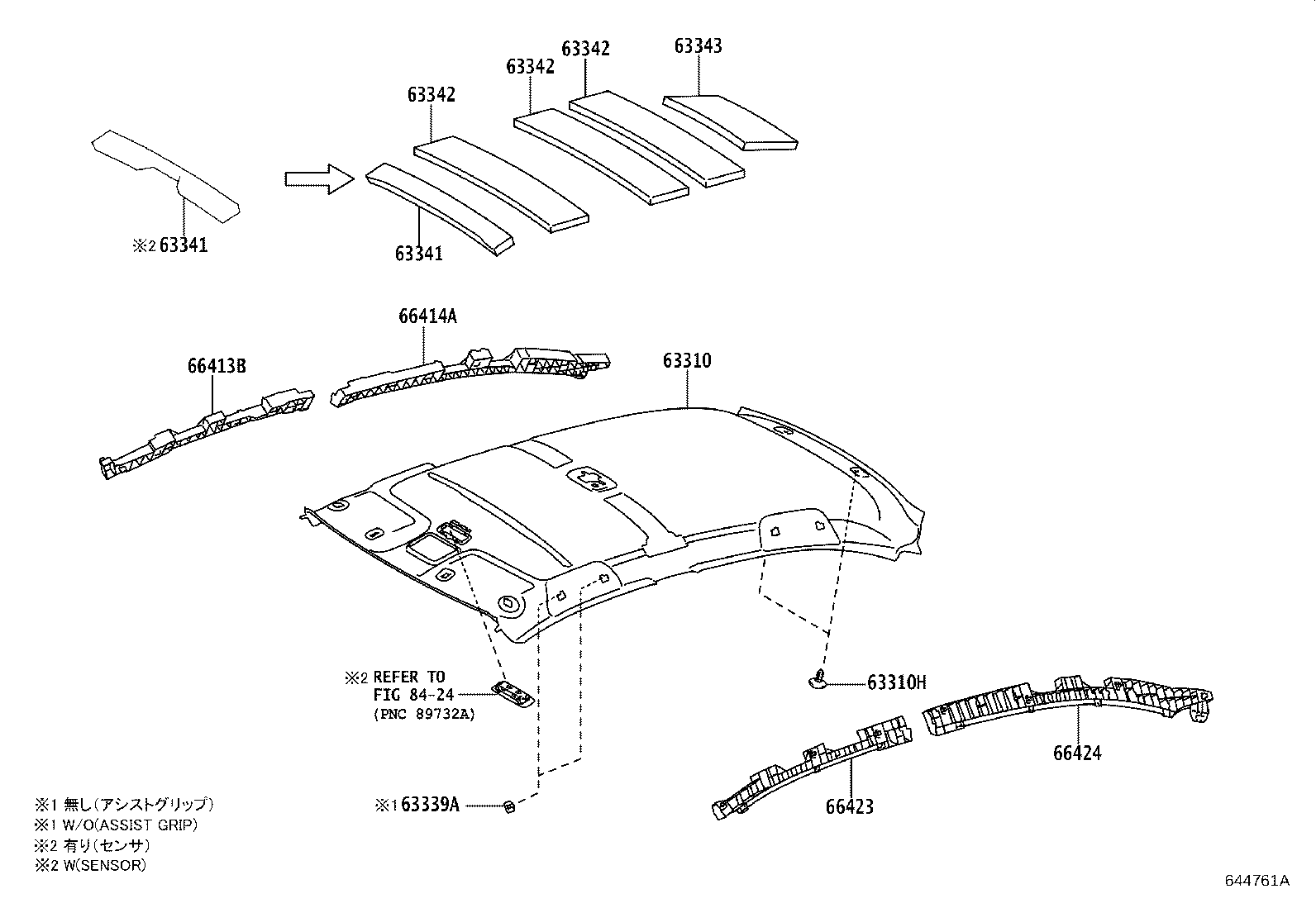

ILLUST NO. 1 OF 2(1911- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0DJ90B0 |
NSP151..4D..6F..BZ..R GRAY,TRIM2# |
1 | ||
| 63310-0DD30B0 |
NSP151..4D..6F..BZ..R XL-PLUS PACKAGE(BRAZIL),GRAY,TRIM2# |
1 | ||
| 63310-0DE20B0 |
NSP151..4D..6F..BZ..R XL-PLUS PACKAGE(BRAZIL)&ANTI-THEFT SYSTEM-WITH(IMMO&INTRUDE&ALARM),GRAY,TRIM2# |
1 | ||
| 63310-0DD30B0 |
NSP151..4D..(AGT,BZ)..G;NSP151..4D..(AGT,GEN)..(D,R) GRAY,TRIM2# |
1 | ||
| 63310-0DJ90B0 |
NSP151..6F..BZ..D;NSP151..4D..CVT..BZ..(D,R) GRAY,TRIM2# |
1 | ||
| 63310-0DE20B0 |
NSP151..4D..BZ..G ANTI-THEFT SYSTEM-WITH(IMMO&INTRUDE&ALARM),GRAY,TRIM2# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B1 |
NSP151..4D..6F..BZ..R GRAY,TRIM2#,(L) |
2 | ||
| 90467-05164B6 |
NSP151..4D..6F..BZ..R GRAY,TRIM2#,(J) |
2 | ||
| 90467-05164B6 |
NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G) GRAY,TRIM2#,(J) |
2 | ||
| 90467-T0004B1 |
NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G) GRAY,TRIM2#,(L) |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B1 |
NSP151..4D..GEN..D;NSP151..4D..(BZ,GEN)..G GRAY,TRIM2# |
2 | ||
| 63339-52030B1 |
NSP151..4D..6F..BZ..R GRAY,TRIM2# |
8 | ||
| 63339-52030B1 |
NSP151..6F..BZ..D;NSP151..4D..CVT..BZ..(D,R) GRAY,TRIM2# |
8 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0D620 |
NSP150..CVT;NSP151..D,G;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 63341-0D620 |
NSP15#..6F..BZ..R |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0D620 |
NSP150..CVT;NSP151..D,G;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 63341-0D620 |
NSP15#..6F..BZ..R |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-0D440 |
NSP15#..D,G,R |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-0D440 |
NSP15#..D,G,R |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-0D440 |
NSP15#..D,G,R |
3 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0D530 |
NSP151..4D..AGT..R;NSP151..4D..6F..(D,G);NSP151..4D..CVT..(D,G,R) |
1 | ||
| 63343-0D530 |
NSP151..4D..6F..BZ..R |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0D410 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 66413-0D410 |
NSP15#..6F..BZ..R |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0D450 |
NSP151..4D..6F..BZ..R |
1 | ||
| 66414-0D450 |
NSP151..4D..6F..(BZ,GEN)..(D,G);NSP151..4D..CVT..(BZ,GEN)..(D,G,R) |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0D380 |
NSP15#..6F..BZ..R |
1 | ||
| 66423-0D380 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0D450 |
NSP151..4D..6F..(BZ,GEN)..(D,G);NSP151..4D..CVT..(BZ,GEN)..(D,G,R) |
1 | ||
| 66424-0D450 |
NSP151..4D..6F..BZ..R |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||

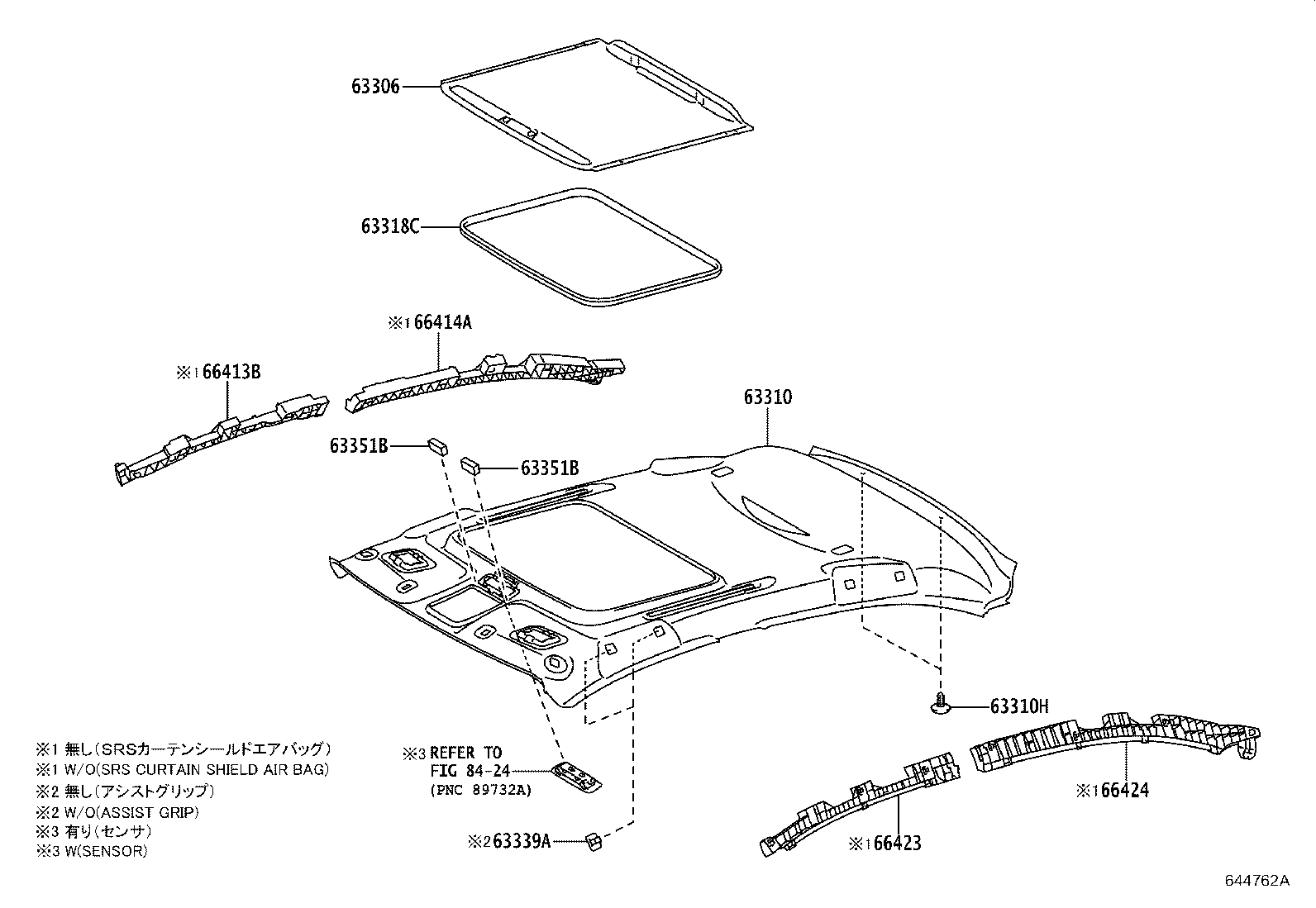

ILLUST NO. 2 OF 2(1911- )4D
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0DJ90B0 |
NSP151..4D..6F..BZ..R GRAY,TRIM2# |
1 | ||
| 63310-0DD30B0 |
NSP151..4D..6F..BZ..R XL-PLUS PACKAGE(BRAZIL),GRAY,TRIM2# |
1 | ||
| 63310-0DE20B0 |
NSP151..4D..6F..BZ..R XL-PLUS PACKAGE(BRAZIL)&ANTI-THEFT SYSTEM-WITH(IMMO&INTRUDE&ALARM),GRAY,TRIM2# |
1 | ||
| 63310-0DD30B0 |
NSP151..4D..(AGT,BZ)..G;NSP151..4D..(AGT,GEN)..(D,R) GRAY,TRIM2# |
1 | ||
| 63310-0DJ90B0 |
NSP151..6F..BZ..D;NSP151..4D..CVT..BZ..(D,R) GRAY,TRIM2# |
1 | ||
| 63310-0DE20B0 |
NSP151..4D..BZ..G ANTI-THEFT SYSTEM-WITH(IMMO&INTRUDE&ALARM),GRAY,TRIM2# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B1 |
NSP151..4D..6F..BZ..R GRAY,TRIM2#,(L) |
2 | ||
| 90467-05164B6 |
NSP151..4D..6F..BZ..R GRAY,TRIM2#,(J) |
2 | ||
| 90467-05164B6 |
NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G) GRAY,TRIM2#,(J) |
2 | ||
| 90467-T0004B1 |
NSP151..4D..CVT;NSP151..4D..AGT..R;NSP151..4D..6F..(D,G) GRAY,TRIM2#,(L) |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B1 |
NSP151..4D..GEN..D;NSP151..4D..(BZ,GEN)..G GRAY,TRIM2# |
2 | ||
| 63339-52030B1 |
NSP151..4D..6F..BZ..R GRAY,TRIM2# |
8 | ||
| 63339-52030B1 |
NSP151..6F..BZ..D;NSP151..4D..CVT..BZ..(D,R) GRAY,TRIM2# |
8 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0D410 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 66413-0D410 |
NSP15#..6F..BZ..R |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0D450 |
NSP151..4D..6F..BZ..R |
1 | ||
| 66414-0D450 |
NSP151..4D..6F..(BZ,GEN)..(D,G);NSP151..4D..CVT..(BZ,GEN)..(D,G,R) |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0D380 |
NSP15#..6F..BZ..R |
1 | ||
| 66423-0D380 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0D450 |
NSP151..4D..6F..(BZ,GEN)..(D,G);NSP151..4D..CVT..(BZ,GEN)..(D,G,R) |
1 | ||
| 66424-0D450 |
NSP151..4D..6F..BZ..R |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||
