NSP151L-HEFDGG (2019)
Toyota Yaris

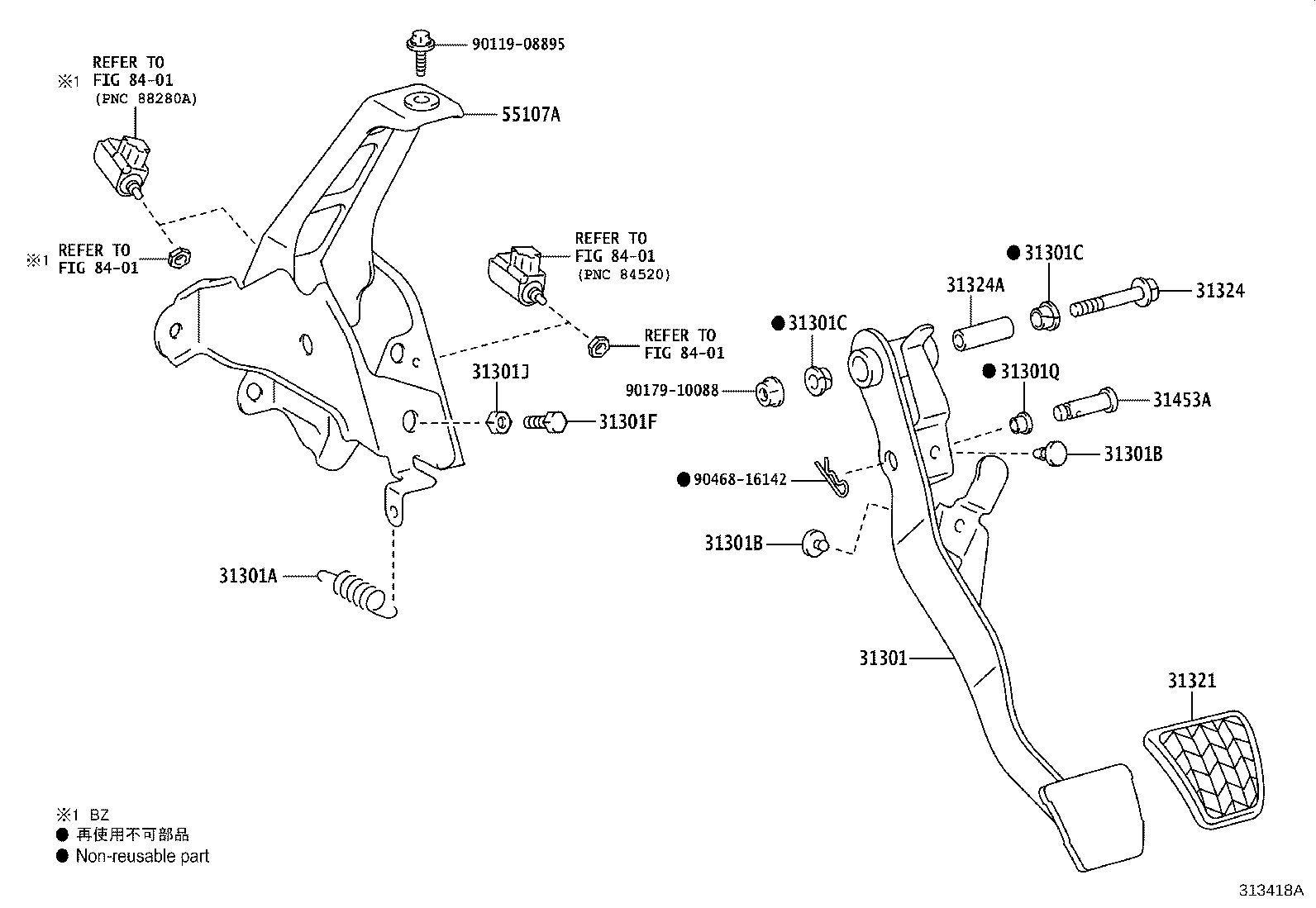

ILLUST NO. 1 OF 2(1911- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0D320 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31301-0D320 |
NSP15#..6F..BZ..R |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14018 |
NSP15#..6F..BZ..R |
1 | ||
| 90507-14018 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 90541-06036 |
NSP15#..6F..BZ..R |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 90541-06036 |
NSP15#..6F..BZ..R |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NSP15#..6F..BZ..R |
2 | ||
| 90386-13015 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NSP15#..6F..BZ..R |
2 | ||
| 90386-13015 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
NSP15#..6F..BZ..R |
1 | ||
| 90101-10369 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
NSP15#..6F..BZ..R |
1 | ||
| 94120-41000 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-08002 |
NSP15#..6F..BZ..R |
1 | ||
| 90386-08002 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-02010 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31321-02010 |
NSP15#..6F..BZ..R |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10081 |
NSP15#..6F..BZ..R |
1 | ||
| 90101-10081 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
NSP15#..6F..BZ..R |
1 | ||
| 90387-10004 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08051 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) L=31.5 |
1 | ||
| 90249-08051 |
NSP15#..6F..BZ..R L=31.5 |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0D310 |
NSP15#..6F..BZ..(D,G) |
1 | ||
| 55107-0D310 |
NSP15#..6F..BZ..R |
1 | ||
| Common parts | ||||
| 90119-08895 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||

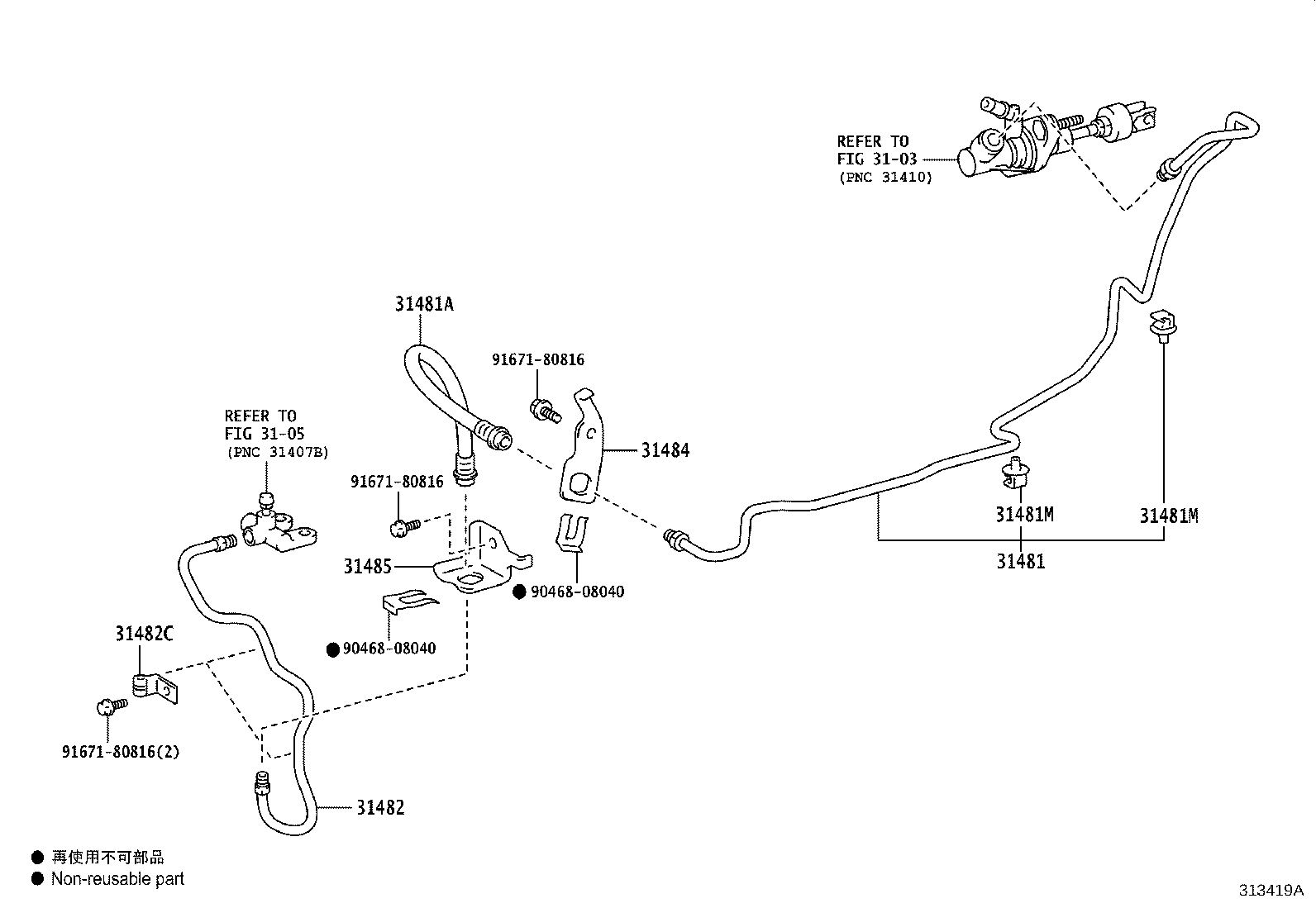

ILLUST NO. 2 OF 2(1911- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-0D300 |
NSP15#..6F..BZ..R |
1 | ||
| 31481-0D300 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02J45 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 90947-02J45 |
NSP15#..6F..BZ..R |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D17 |
NSP15#..6F..BZ..R |
2 | ||
| 90949-01D17 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D17 |
NSP15#..6F..BZ..R |
2 | ||
| 90949-01D17 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0D310 |
NSP15#..6F..BZ..R |
1 | ||
| 31482-0D310 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 90461-10753 |
NSP15#..6F..BZ..R |
2 | ||
| 90461-10753 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
2 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-0D300 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| 31484-0D300 |
NSP15#..6F..BZ..R |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-0D260 |
NSP15#..6F..BZ..R |
1 | ||
| 31484-0D260 |
NSP151..AGT..R;NSP15#..6F..(D,G,V) |
1 | ||
| Common parts | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
