NSP151L-AHXRKU (2017)
Toyota Yaris
(1804- )F

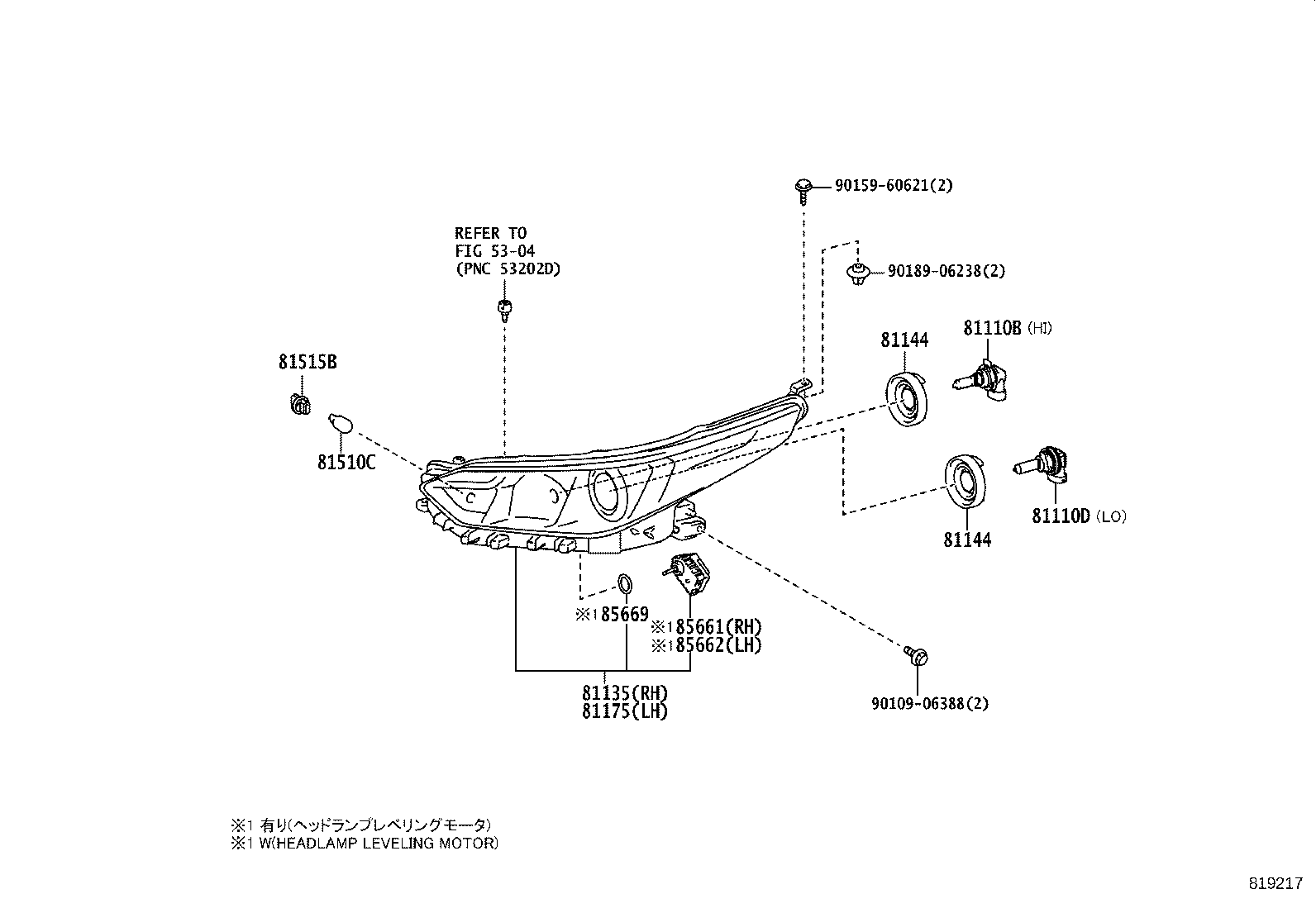

HALOGEN(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81110-0DF60 |
NSP151..V..C |
1 | ||
| 81110-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NSP152..HTWCB;NSP150..CVT..GEN..G;NSP151..(PH,SA,VN)..(G,V) 12V65W(SAE),60W(ECE),MLM PACKAGE |
2 | ||
| 90981-13099 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) 12V 65W(SAE),60W(UN) |
2 | ||
| 90981-13099 |
NSP151..V..C 12V 65W(SAE),60W(UN),MLM PACKAGE |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13085 |
NSP151..F 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81130-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81130-0DF60 |
NSP151..V..C |
1 | ||
| 81140-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81150-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81150-0DF60 |
NSP151..V..C |
1 | ||
| 81150-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81170-0DF60 |
NSP151..V..C |
1 | ||
| 81170-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81070-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NSP151..C |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1804- )F
HALOGEN(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81110-0DF60 |
NSP151..V..C |
1 | ||
| 81110-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NSP152..HTWCB;NSP150..CVT..GEN..G;NSP151..(PH,SA,VN)..(G,V) 12V65W(SAE),60W(ECE),MLM PACKAGE |
2 | ||
| 90981-13099 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) 12V 65W(SAE),60W(UN) |
2 | ||
| 90981-13099 |
NSP151..V..C 12V 65W(SAE),60W(UN),MLM PACKAGE |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13085 |
NSP151..F 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81130-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81130-0DF60 |
NSP151..V..C |
1 | ||
| 81140-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81150-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81150-0DF60 |
NSP151..V..C |
1 | ||
| 81150-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81170-0DF60 |
NSP151..V..C |
1 | ||
| 81170-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81070-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(2005- )
LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81110-0DF60 |
NSP151..V..C |
1 | ||
| 81110-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81130-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81130-0DF60 |
NSP151..V..C |
1 | ||
| 81140-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DF30 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 81150-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81150-0DF60 |
NSP151..V..C |
1 | ||
| 81150-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL00 |
NSP151..R..H;NSP150,151..BZ..(D,G,R) |
1 | ||
| 81170-0DF60 |
NSP151..V..C |
1 | ||
| 81170-0DF60 |
NSP151..V..C MLM PACKAGE |
1 | ||
| 81070-YP220 |
NSP151..V..A MLM PACKAGE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90109-T0046 | ||||
| 90159-50311 | ||||
| 90159-T0009 | ||||
| 90189-05142 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06388 | ||||
| 90159-50311 | ||||
| 90159-T0009 | ||||
| 90189-05142 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1911- )4D..V ; (1911- )5D..G,V ; (1911-)4D..AGT..G
CLEARANCE LAMP=LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5304 | ||||
