NSP151L-AHXRKR (2016)
Toyota Yaris
(1310-1709)NSP152 ; (1310-1710)GCC,GEN,IDN,MA,PH,VN ; (1710-1802)C

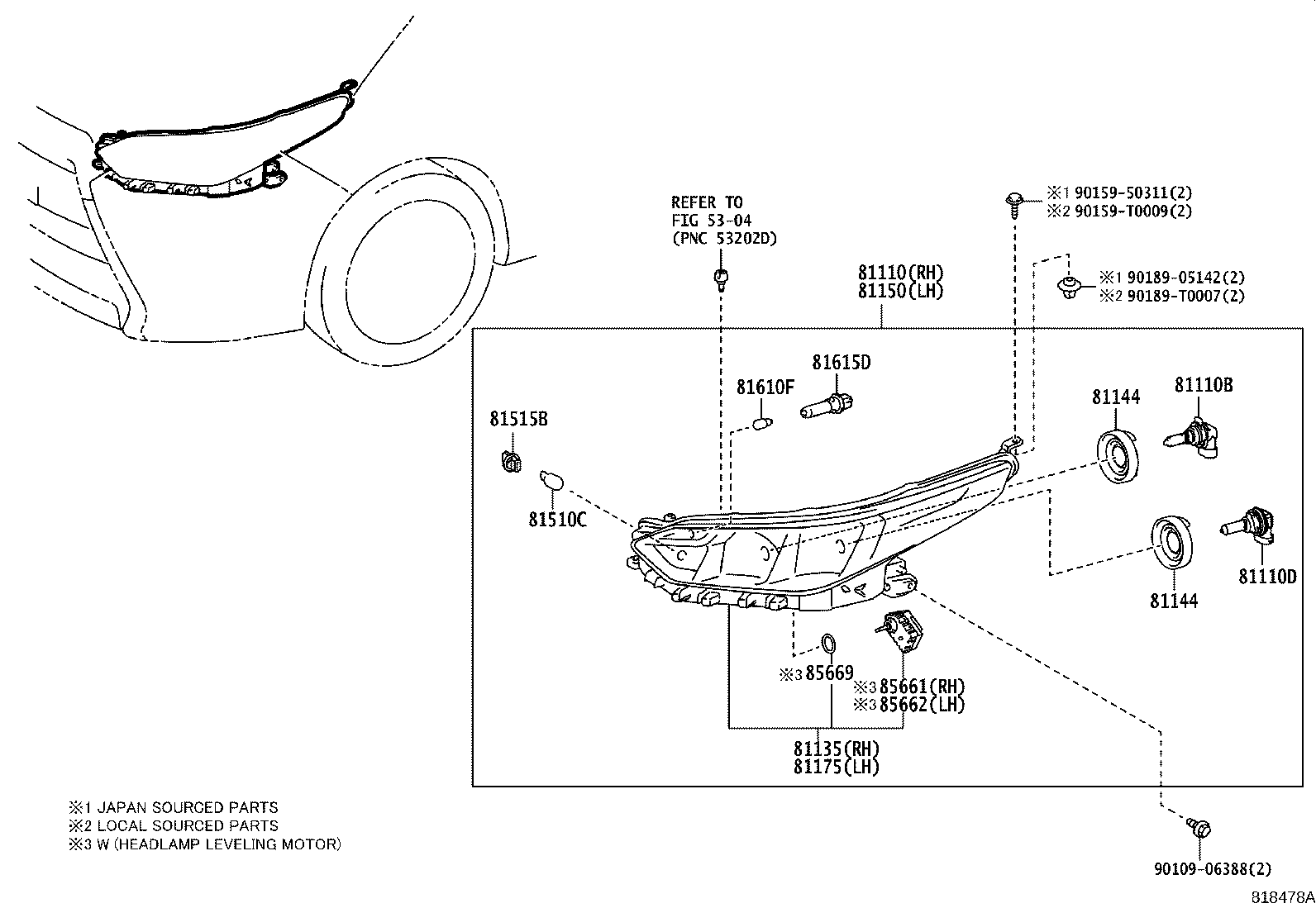

HALOGEN(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13100 |
NSP151..TAIW..R 12V 60/55W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NSP151..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| 90075-60069 |
NSP151..TAIW |
2 | ||
| 90075-60028 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NSP151..TAIW 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NSP151..C |
2 | ||
| 90075-60077 |
NSP151..TAIW |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-T0019 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1310-1709)NSP152 ; (1310-1710)GCC,GEN,IDN,MA,PH,VN ; (1710-1802)C

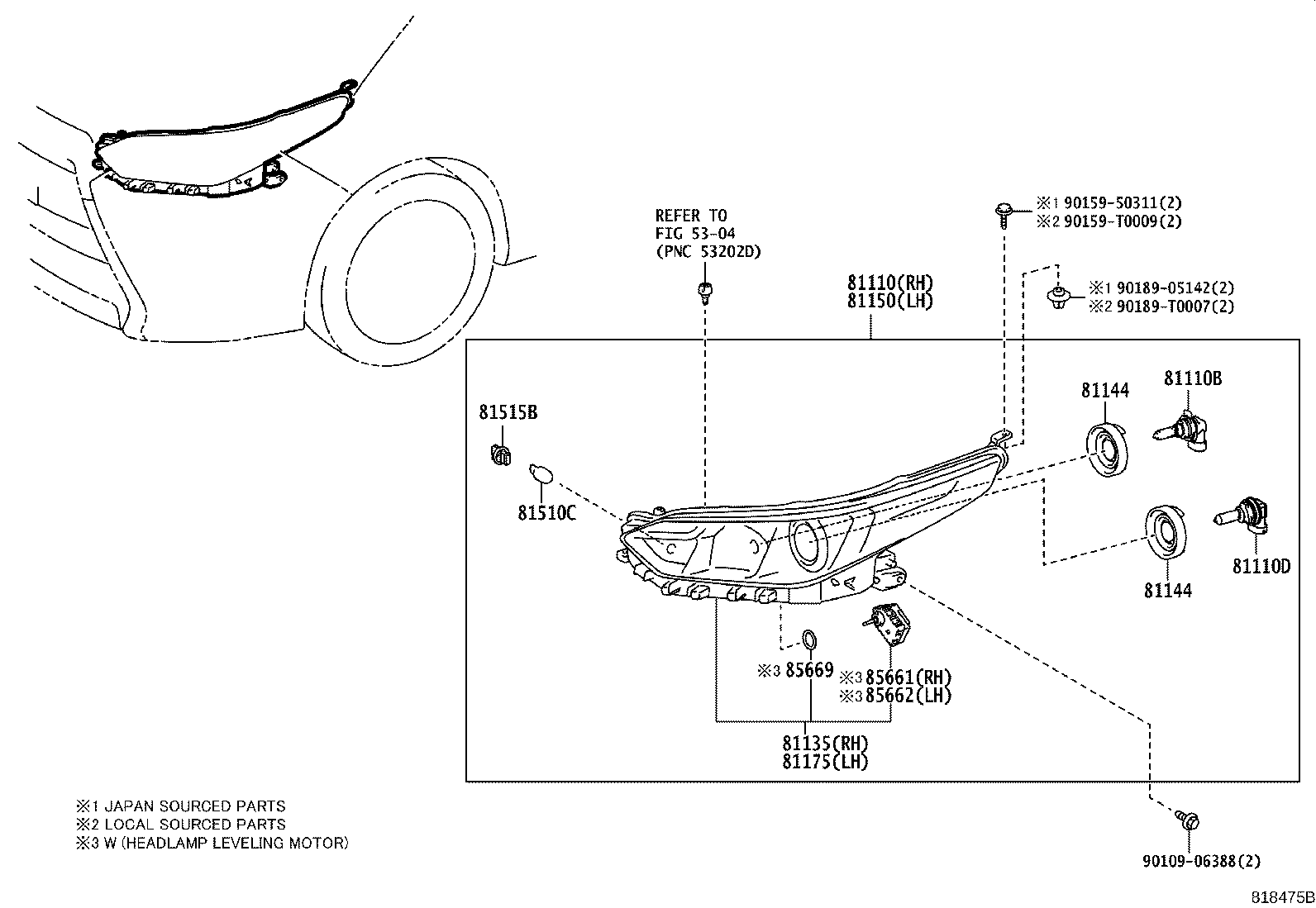

HALOGEN(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13100 |
NSP151..TAIW..R 12V 60/55W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NSP151..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| 90075-60069 |
NSP151..TAIW |
2 | ||
| 90075-60028 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NSP151..TAIW 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NSP151..C |
2 | ||
| 90075-60077 |
NSP151..TAIW |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-T0019 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1709- )HTWC ; (1710- )GCC,GEN,PH,SA,VN..A; (1802- )C ; (1904- )G,R,V.
HALOGEN(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13100 |
NSP151..TAIW..R 12V 60/55W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NSP151..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| 90075-60069 |
NSP151..TAIW |
2 | ||
| 90075-60028 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-50311 | ||||
| 90159-T0009 | ||||
| 90189-05142 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
(1709- )HTWC ; (1710- )GCC,GEN,PH,SA,VN..A; (1802- )C ; (1904- )D..B ;
HALOGEN(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13100 |
NSP151..TAIW..R 12V 60/55W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NSP151..R..C |
2 | ||
| 90075-65006 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DL30 |
NSP151..TAIW..(G,V) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
NSP151..C 12V 21W,AMBER |
2 | ||
| 90981-15028 |
NSP151..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
NSP151..C |
2 | ||
| 90075-60069 |
NSP151..TAIW |
2 | ||
| 90075-60028 |
NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NSP151..TAIW 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NSP151..C |
2 | ||
| 90075-60077 |
NSP151..TAIW |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-50311 | ||||
| 90159-T0009 | ||||
| 90189-05142 | ||||
| 90189-T0007 | ||||
| Linked diagrams | ||||
| 5304 | ||||
