Toyota Yaris NSP151 INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

Manufacturers Home
Toyota
GR
YARIS
NSP151L-AHXRKR (2016)
6401 - INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

NSP151L-AHXRKR (2016)

Toyota Yaris

Production May 2016 - Feb 2018

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1310-1802)NCP15# ; (1605-1802)TAIW ; (1610-1

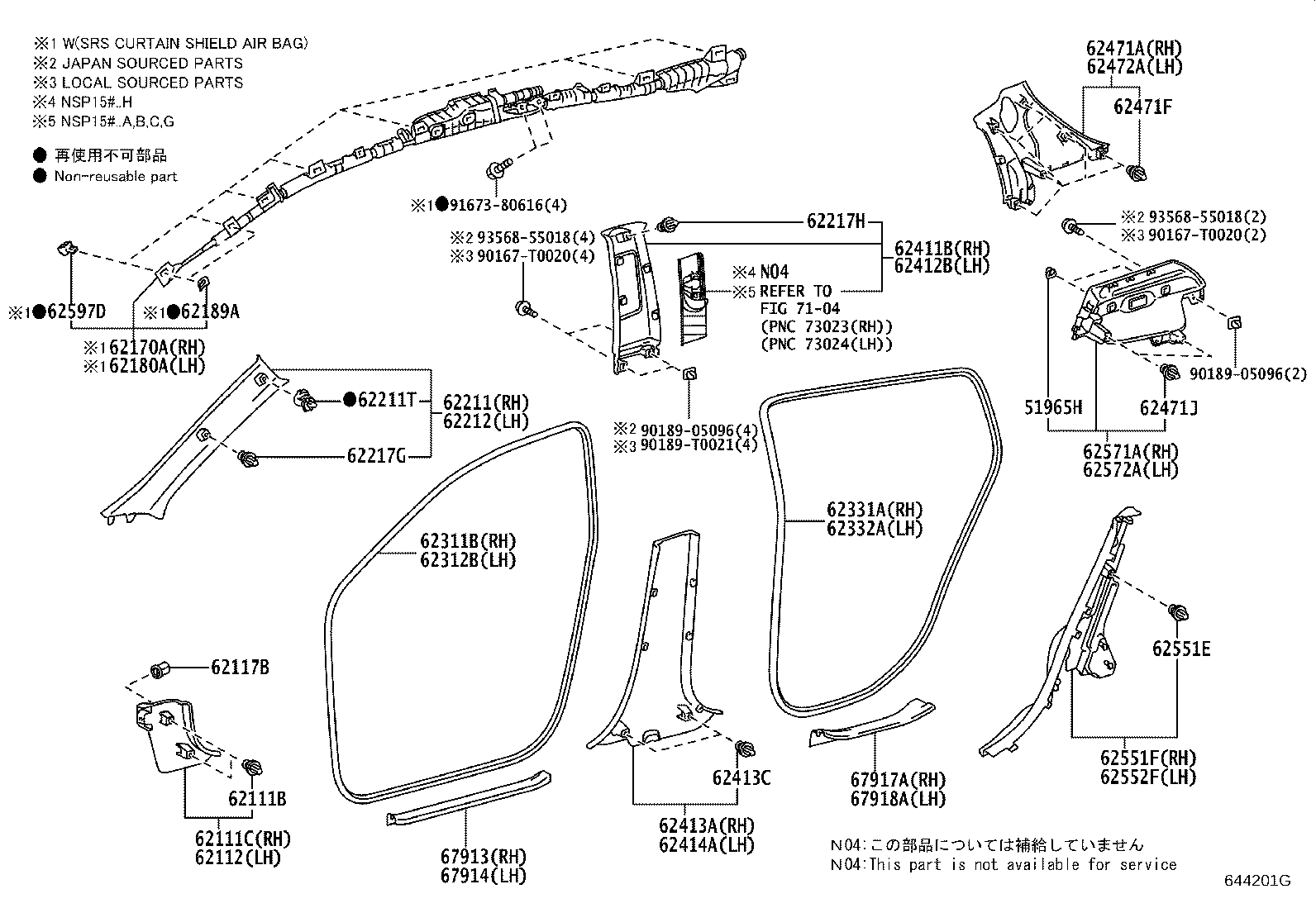

Click highlighted areas on diagram

Part #	Description	Period	Qty
62111B - CLIP(FOR COWL SIDE TRIM)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
90467-06193C0	NSP151..TAIW BLACK,TYPE B:REFER ILLUST.	10/2013 - 02/2018	2
62211 - GARNISH, FRONT PILLAR, RH
62211-0D470C0	NSP151..CVT..D;NSP15#..(GCC,GEN,TH,VN)..R BLACK,TRIM0#,2#	10/2013 - 08/2017	1
62211-0D460C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62211-0D480C0	NSP151..R..C BLACK,TRIM2#	10/2016 - 12/2017	1
62212 - GARNISH, FRONT PILLAR, LH
62212-0D460C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62212-0D480C0	NSP151..R..C BLACK,TRIM2#	10/2016 - 12/2017	1
62212-0D470C0	NSP151..CVT..D;NSP15#..(GCC,GEN,TH,VN)..R BLACK,TRIM0#,2#	10/2013 - 08/2017	1
62217G - CLIP, FRONT PILLAR GARNISH
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	2
62217H - CLIP, CENTER PILLER GARNISH
90467-T0021	NSP151..C	10/2013 - 12/2017	2
90467-10188	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
62227A - GRILLE, SPEAKER FRONT PILLAR GARNISH, RH
62227-0D050C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62228B - GRILLE, SPEAKER FRONT PILLAR GARNISH, LH
62228-0D050C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	12
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	12
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D440C0	NSP151..D MEXICO SPEC&REAR SEAT CENTER HEADREST-WITH,BLACK,TRIM0#,2#	07/2016 - 08/2017	1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-10188	NSP151..C	10/2013 - 12/2017	2
90467-10188	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-0D221C0	NSP151..TAIW..V BLACK,TRIM2#	05/2016 - 02/2018	1
62551-0D221C0	NSP151..TAIW..(G,R) BLACK,TRIM0#,2#	05/2016 - 02/2018	1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-0D181C0	NSP151..TAIW..(G,R) BLACK,TRIM0#,2#	05/2016 - 02/2018	1
62552-0D181C0	NSP151..TAIW..V BLACK,TRIM2#	05/2016 - 02/2018	1
Common parts
90167-T0020
90189-05096
93568-55018

(1709- )NSP152 ; (1710- )GCC,GEN,PH,SA,VN..A ; (1802- )C ; (1804- )F ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
62111B - CLIP(FOR COWL SIDE TRIM)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
90467-06193C0	NSP151..TAIW BLACK,TYPE B:REFER ILLUST.	10/2013 - 02/2018	2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0D090	NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)	09/2017 - 12/2999	1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0D090	NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)	09/2017 - 12/2999	1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010	NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)	09/2017 - 12/2999	4
62211 - GARNISH, FRONT PILLAR, RH
62211-0D470C0	NSP151..CVT..D;NSP15#..(GCC,GEN,TH,VN)..R BLACK,TRIM0#,2#	10/2013 - 08/2017	1
62211-0D460C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62211-0D480C0	NSP151..R..C BLACK,TRIM2#	10/2016 - 12/2017	1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-52120	NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)	09/2017 - 12/2999	2
62212 - GARNISH, FRONT PILLAR, LH
62212-0D460C0	NSP151..CVT..R..C BRUNEI SPEC&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2#	10/2016 - 12/2017	1
62212-0D480C0	NSP151..R..C BLACK,TRIM2#	10/2016 - 12/2017	1
62212-0D470C0	NSP151..CVT..D;NSP15#..(GCC,GEN,TH,VN)..R BLACK,TRIM0#,2#	10/2013 - 08/2017	1
62217G - CLIP, FRONT PILLAR GARNISH
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	2
62217H - CLIP, CENTER PILLER GARNISH
90467-T0021	NSP151..C	10/2013 - 12/2017	2
90467-10188	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	12
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	12
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-T0021	NSP151..C	10/2013 - 12/2017	4
90467-T0021	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A	09/2017 - 12/2999	4
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D440C0	NSP151..D MEXICO SPEC&REAR SEAT CENTER HEADREST-WITH,BLACK,TRIM0#,2#	07/2016 - 08/2017	1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-10188	NSP151..C	10/2013 - 12/2017	2
90467-10188	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-0D221C0	NSP151..TAIW..V BLACK,TRIM2#	05/2016 - 02/2018	1
62551-0D221C0	NSP151..TAIW..(G,R) BLACK,TRIM0#,2#	05/2016 - 02/2018	1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-0D181C0	NSP151..TAIW..(G,R) BLACK,TRIM0#,2#	05/2016 - 02/2018	1
62552-0D181C0	NSP151..TAIW..V BLACK,TRIM2#	05/2016 - 02/2018	1
62597D - CLIP
90467-18017	NSP151..CVT..R..C;NSP151..(AGT,BZ,SA)..V;NSP15#..CVT..(AGT,PH,TH,VN)..(G,R)	09/2017 - 12/2999	14
Common parts
90167-T0020
90189-05096
90189-T0021
91673-80616
93568-55018
Linked diagrams
7104

NSP151L-AHXRKR (2016)

(1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1310-1802)NCP15# ; (1605-1802)TAIW ; (1610-1

(1709- )NSP152 ; (1710- )GCC,GEN,PH,SA,VN..A ; (1802- )C ; (1804- )F ;
