Toyota Yaris NSP151 INSTRUMENT PANEL & GLOVE COMPARTMENT

Manufacturers Home
Toyota
GR
YARIS
NSP151L-AHXRKR (2016)
5501 - INSTRUMENT PANEL & GLOVE COMPARTMENT

NSP151L-AHXRKR (2016)

Toyota Yaris

Production May 2016 - Feb 2018

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

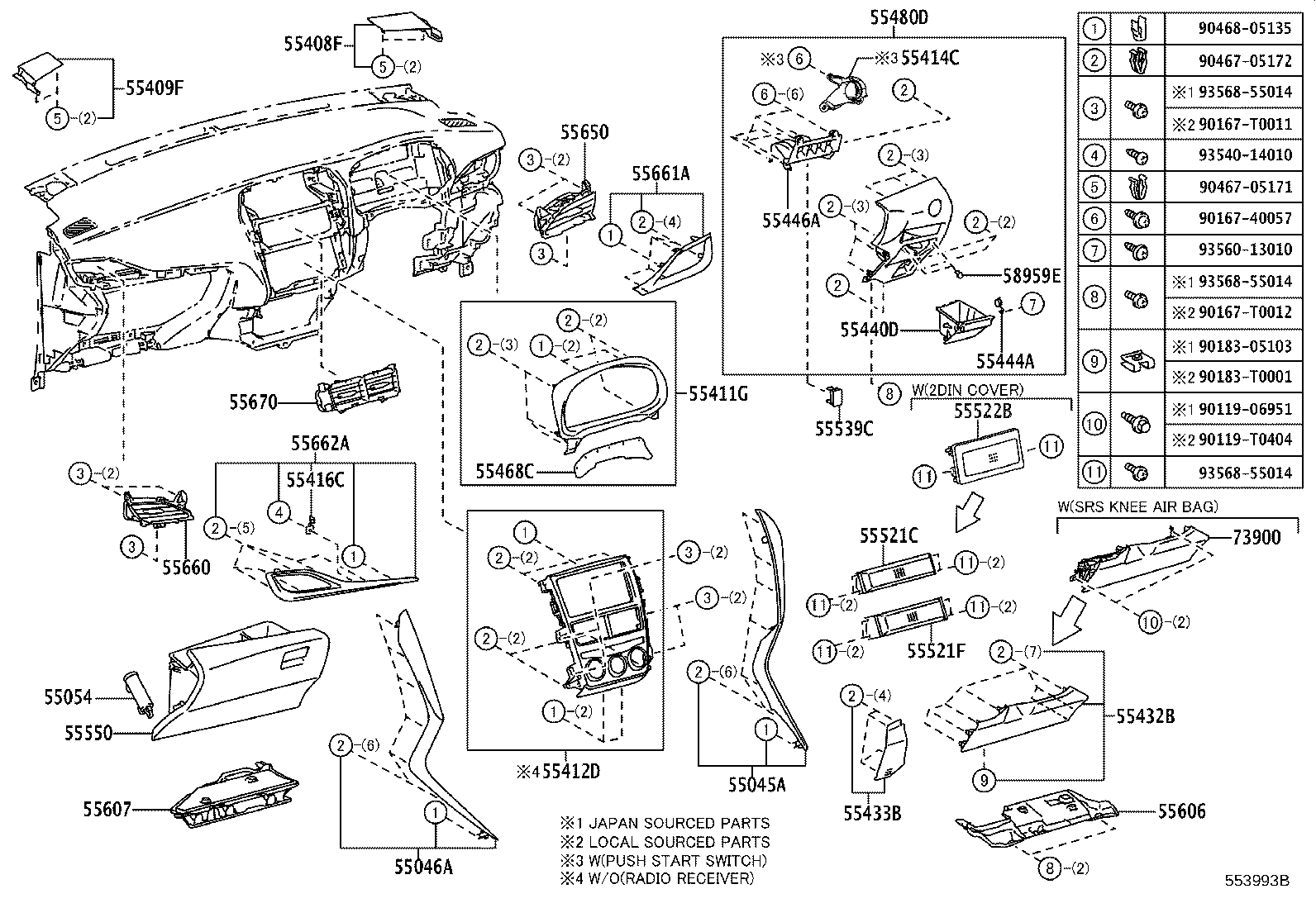

ILLUST NO. 2 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C

Click highlighted areas on diagram

Part #	Description	Period	Qty
55539N - COVER, SPARE SWITCH HOLE
55539-0D170C0	NSP151..(G,R)..C BLACK,TRIM2#	10/2016 - 12/2017	1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050	NSP151..C	10/2013 - 12/2017	2
55557-60050	NSP151..TAIW	10/2013 - 02/2018	2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0D450C0	NSP151..(G,R)..C BLACK,TRIM2#,DRIVER SIDE	10/2016 - 12/2017	1
55650-0D590	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0D450C0	NSP151..(G,R)..C BLACK,TRIM2#,DRIVER SIDE	10/2016 - 12/2017	1
55650-0D590	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-0D290C0	NSP151..(G,R)..C BLACK,TRIM2#,PASSENGER SIDE	10/2016 - 12/2017	1
55660-0D440	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-0D290C0	NSP151..(G,R)..C BLACK,TRIM2#,PASSENGER SIDE	10/2016 - 12/2017	1
55660-0D440	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
Common parts
90167-T0011
90168-40027
90183-05103
90467-10201
90467-10203
90467-12080
90467-T0033
90468-05135
93568-55014

ILLUST NO. 1 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C

Click highlighted areas on diagram

Part #	Description	Period	Qty
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0D450	NSP151..TAIW	05/2016 - 02/2018	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-0D720	NSP151..TAIW	05/2016 - 02/2018	1
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
Common parts
52161-0K040
52161-16010
90105-T0041
90105-T0194
90119-08516
90119-08C11
90119-T0106
90119-T0314
90119-T0321
90159-60431
90159-60613
90159-70003
90159-T0014
90159-T0037
90167-T0012
90178-T0006
90178-T0019
90179-06115
90467-10201
91553-80616
91673-80816
93568-55014
94151-80800
Linked diagrams
8202

ILLUST NO. 1 OF 2(1710- )F ; (1710- )LHD..AGT,BZ,GCC,GEN,PH,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
52161V - PIECE, INSTRUMENT PANEL
52161-16010	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (J)	09/2017 - 12/2999	2
52161-0K040	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (L)	09/2017 - 12/2999	2
52161V - PIECE, INSTRUMENT PANEL
52161-16010	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (J)	09/2017 - 12/2999	2
52161-0K040	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (L)	09/2017 - 12/2999	2
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0D450	NSP151..TAIW	05/2016 - 02/2018	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-0D720	NSP151..TAIW	05/2016 - 02/2018	1
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050	NSP151..C	10/2013 - 12/2017	2
55557-60050	NSP151..TAIW	10/2013 - 02/2018	2
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0D160	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP151,152..RHD..A	09/2017 - 12/2999	1
Common parts
90105-08120
90105-T0041
90105-T0194
90119-08516
90119-08C11
90119-T0106
90119-T0314
90119-T0321
90159-50388
90159-60431
90159-60613
90159-70003
90159-T0009
90159-T0014
90159-T0037
90167-T0011
90167-T0012
90178-T0007
90178-T0019
90179-06274
90183-05103
90467-05172
91553-80616
91673-80816
93568-55014
94151-80800
Linked diagrams
8202

ILLUST NO. 1 OF 2(1709- )HTWC ; (1710- )NSP150,151..RHD..A; (1802- )C ; (1904- )B ; (19

Click highlighted areas on diagram

Part #	Description	Period	Qty
52161V - PIECE, INSTRUMENT PANEL
52161-16010	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (J)	09/2017 - 12/2999	2
52161-0K040	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (L)	09/2017 - 12/2999	2
52161V - PIECE, INSTRUMENT PANEL
52161-16010	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (J)	09/2017 - 12/2999	2
52161-0K040	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A (L)	09/2017 - 12/2999	2
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0D450	NSP151..TAIW	05/2016 - 02/2018	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-0D720	NSP151..TAIW	05/2016 - 02/2018	1
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
55394C - BOLT, INSTRUMENT PANEL
55394-52010	NSP151..TAIW	10/2013 - 02/2018	4
55394-52010	NSP151..C	10/2013 - 12/2017	4
55394-52010	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	4
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050	NSP151..C	10/2013 - 12/2017	2
55557-60050	NSP151..TAIW	10/2013 - 02/2018	2
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0D160	NSP151..(G,V)..C;NSP151..CVT..R..C;NSP151,152..RHD..A	09/2017 - 12/2999	1
Common parts
90105-08120
90105-T0041
90105-T0194
90119-08C11
90119-T0106
90119-T0314
90159-50388
90159-60431
90159-60613
90159-70003
90159-T0009
90159-T0014
90159-T0037
90167-T0012
90178-T0007
90178-T0019
90179-06274
90183-05103
90467-05172
91553-80616
91673-80816
93568-55014
94151-80800
Linked diagrams
8202

ILLUST NO. 2 OF 2(1709- )HTWC ; (1710- )NSP150,151..RHD..A; (1802- )C ; (1904- )B ; (19

Click highlighted areas on diagram

Part #	Description	Period	Qty
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	09/2017 - 12/2999	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0D450C0	NSP151..(G,R)..C BLACK,TRIM2#,DRIVER SIDE	10/2016 - 12/2017	1
55650-0D590	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-0D290C0	NSP151..(G,R)..C BLACK,TRIM2#,PASSENGER SIDE	10/2016 - 12/2017	1
55660-0D440	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-0D490	NSP151..D..A	10/2017 - 12/2999	1
58959E - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-0D070C0	NSP151..V..H;NSP150,151..CVT..(AGT,PH)..(G,R) BLACK,TRIM2#	10/2017 - 12/2999	1
Common parts
90119-06951
90119-T0404
90167-40057
90167-T0011
90167-T0012
90183-05103
90183-T0001
90467-05171
90467-05172
90468-05135
93540-14010
93560-13010
93568-55014

ILLUST NO. 2 OF 2(1710- )F ; (1710- )LHD..GCC,GEN,PH,VN..A

Click highlighted areas on diagram

Part #	Description	Period	Qty
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	09/2017 - 12/2999	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0D450C0	NSP151..(G,R)..C BLACK,TRIM2#,DRIVER SIDE	10/2016 - 12/2017	1
55650-0D590	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-0D290C0	NSP151..(G,R)..C BLACK,TRIM2#,PASSENGER SIDE	10/2016 - 12/2017	1
55660-0D440	NSP150..H;NSP151..MTM..D;NSP151..CVT..D..H	10/2017 - 12/2999	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-0D490	NSP151..D..A	10/2017 - 12/2999	1
58959E - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060	NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN	09/2017 - 12/2999	2
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-0D070C0	NSP151..V..H;NSP150,151..CVT..(AGT,PH)..(G,R) BLACK,TRIM2#	10/2017 - 12/2999	1
Common parts
90119-06951
90119-T0404
90167-40057
90167-T0011
90167-T0012
90183-05103
90183-T0001
90467-05171
90467-05172
90468-05135
93560-13010
93568-55014

NSP151L-AHXRKR (2016)

ILLUST NO. 2 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C

ILLUST NO. 1 OF 2(1310-1709)RHD ; (1709-1710)C ; (1710-1802)C

ILLUST NO. 1 OF 2(1710- )F ; (1710- )LHD..AGT,BZ,GCC,GEN,PH,VN

ILLUST NO. 1 OF 2(1709- )HTWC ; (1710- )NSP150,151..RHD..A; (1802- )C ; (1904- )B ; (19

ILLUST NO. 2 OF 2(1709- )HTWC ; (1710- )NSP150,151..RHD..A; (1802- )C ; (1904- )B ; (19

ILLUST NO. 2 OF 2(1710- )F ; (1710- )LHD..GCC,GEN,PH,VN..A
