Toyota Yaris NSP151 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
GR
YARIS
NSP151L-AHXGKV (2017)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

NSP151L-AHXGKV (2017)

Toyota Yaris

Production Oct 2017 - Aug 2020

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1710- )LHD..GCC,GEN,PH,VN..A

Click highlighted areas on diagram

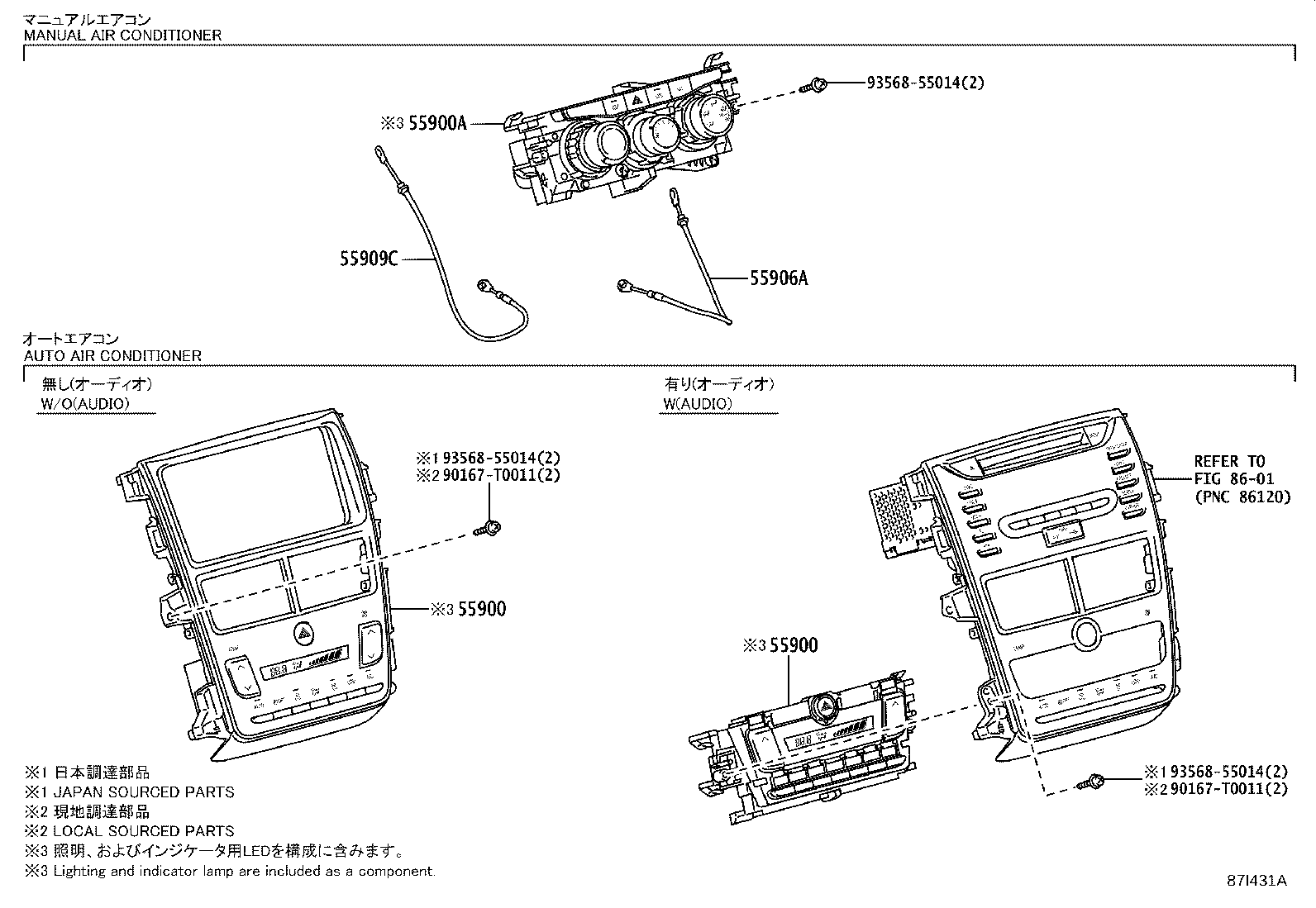

MANUAL HEATER CONTROL-DEALER OPTION

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0DB20	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55900-0DE30	NSP150,151..D..H	06/2018 - 10/2019	1
55900-0DG80	NSP150,151..R..H	06/2018 - 10/2019	1
55900-0DB20	NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN)..(G,R)..A	10/2017 - 12/2999	1
55900-0DB70	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
55900-0DB70	NSP151..G..C	02/2018 - 12/2999	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D130	NSP151..(G,R)..C	10/2013 - 12/2017	1
55906-0D231	NSP150,151..(D,R)..H	06/2018 - 10/2019	1
55906-0D190	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55906-0D190	NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A	10/2017 - 12/2999	1
55906-0D180	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
55906-0D180	NSP151..5F..G;NSP151..SA..(D,R);NSP151..CVT..(G,R)..C	10/2017 - 12/2999	1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D201	NSP150,151..(D,R)..H	06/2018 - 10/2019	1
55909-0D170	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55909-0D170	NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN)..A;NSP150..LHD..(GCC,GEN)..R	10/2017 - 12/2999	1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 2 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

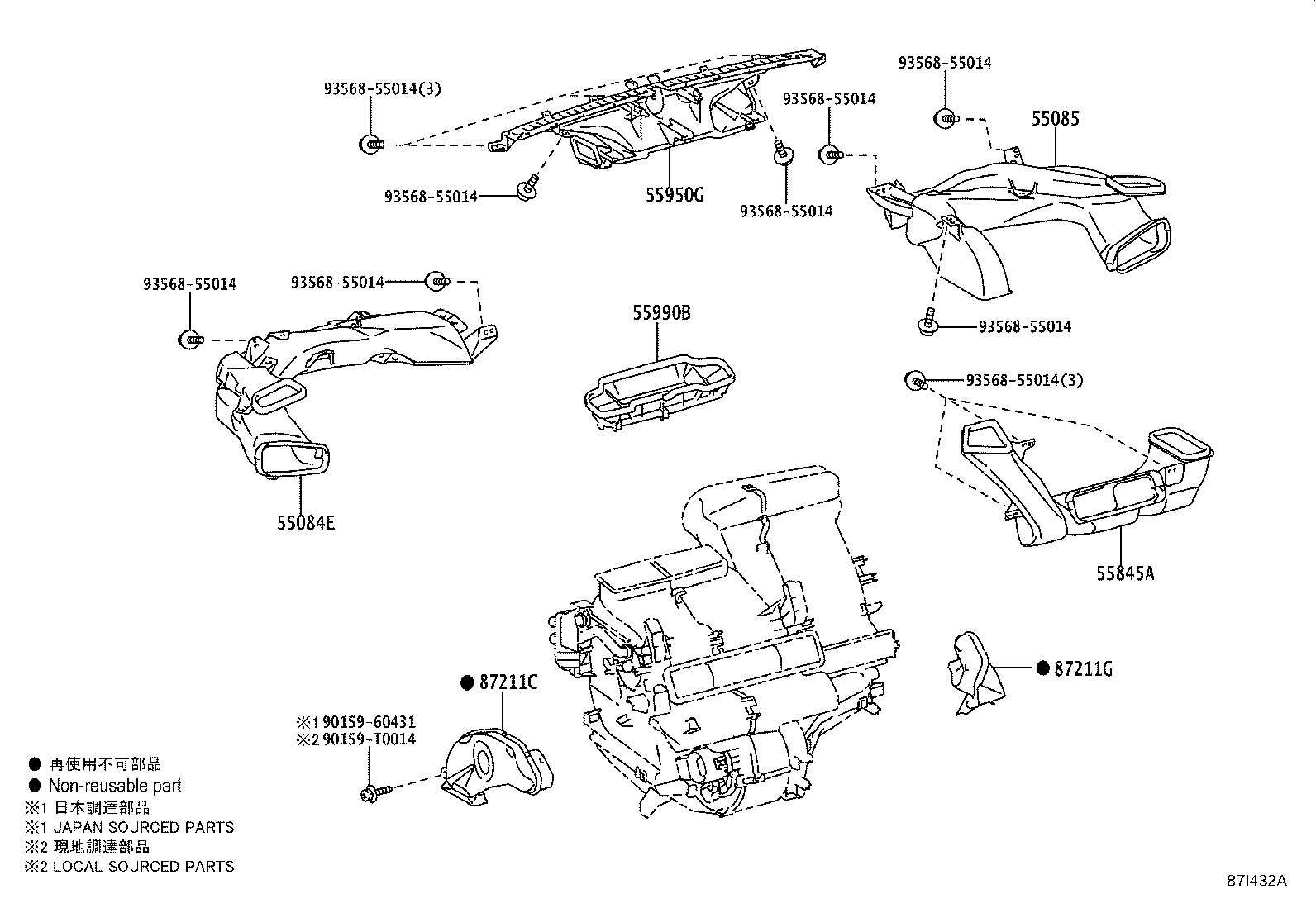

AIR DUCT

Part #	Description	Period	Qty
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-0D270	NSP150,151..H	06/2018 - 10/2019	1
55084-0D280	NSP150,151..GCC	10/2017 - 12/2999	1
55084-0D230	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-0D220	NSP150,151..H	06/2018 - 10/2019	1
55085-0D180	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
55085-0D230	NSP150,151..GCC	10/2017 - 12/2999	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55870-0D110	NSP150,151..GCC	10/2017 - 12/2999	1
55870-0D100	NSP150,151..H	06/2018 - 10/2019	1
55870-0D050	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D320	NSP150,151..H	06/2018 - 10/2019	1
55950-0D290	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-0D080	NSP150,151..H	06/2018 - 10/2019	1
55990-0D030	NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A	10/2017 - 12/2999	1
55990-0D100	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
87211C - DUCT, AIR, NO.4
87211-0D560	NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A	10/2017 - 12/2999	1
87211-0D530	NSP150,151..H	06/2018 - 10/2019	1
87211-0D420	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
87211G - DUCT, AIR, NO.5
87211-0D590	NSP151..(G,V)..C;NSP151..CVT..R..C	02/2018 - 12/2999	1
87211-0D540	NSP150,151..H	06/2018 - 10/2019	1
87211-0D320	NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A	10/2017 - 12/2999	1
Common parts
90159-60431
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 3 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

SENSOR

Part #	Description	Period	Qty
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
88625-52130	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 08/2020	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 08/2020	1
88625-47021	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
88790B - THERMISTOR ASSY
88790-22131	NSP151..C	10/2013 - 12/2017	1
88790-0K010	NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R LOCAL SOURCED PARTS	04/2019 - 12/2999	1
88790-28100	NSP151..A,H;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R JAPAN SOURCED PARTS	04/2019 - 12/2999	1
Linked diagrams
8401
8714

ILLUST NO. 1 OF 3(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806- )H

Click highlighted areas on diagram

MANUAL HEATER CONTROL-MAKER OPTION

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0DB20	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55900-0DE30	NSP150,151..D..H	06/2018 - 10/2019	1
55900-0DG80	NSP150,151..R..H	06/2018 - 10/2019	1
55900-0DB20	NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN)..(G,R)..A	10/2017 - 12/2999	1
55900-0DB70	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
55900-0DB70	NSP151..G..C	02/2018 - 12/2999	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D130	NSP151..(G,R)..C	10/2013 - 12/2017	1
55906-0D231	NSP150,151..(D,R)..H	06/2018 - 10/2019	1
55906-0D190	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55906-0D190	NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A	10/2017 - 12/2999	1
55906-0D180	NSP151..CVT..G..C BRUNEI SPEC	02/2018 - 12/2999	1
55906-0D180	NSP151..5F..G;NSP151..SA..(D,R);NSP151..CVT..(G,R)..C	10/2017 - 12/2999	1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D201	NSP150,151..(D,R)..H	06/2018 - 10/2019	1
55909-0D170	NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL)	10/2017 - 10/2019	1
55909-0D170	NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN)..A;NSP150..LHD..(GCC,GEN)..R	10/2017 - 12/2999	1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 1 OF 3(1908- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

Part #	Description	Period	Qty	Price
Common parts
90167-T0011
93568-55014
Linked diagrams
5501

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty	Price
Common parts
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

SENSOR

Part #	Description	Period	Qty	Price
Linked diagrams
8401
8714

ILLUST NO. 1 OF 3(1911-2102)

Click highlighted areas on diagram

HEATER CONTROL PANEL

Part #	Description	Period	Qty	Price
Common parts
90167-T0011
93568-55014
Linked diagrams
8601

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty	Price
Common parts
90159-60431
90159-T0014
93568-55014

ILLUST NO. 3 OF 3(1911- )

Click highlighted areas on diagram

SENSOR

Part #	Description	Period	Qty	Price
Linked diagrams
8401
8714
