NSP151L-AHXGKV (2017)
Toyota Yaris
(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806-1904)H

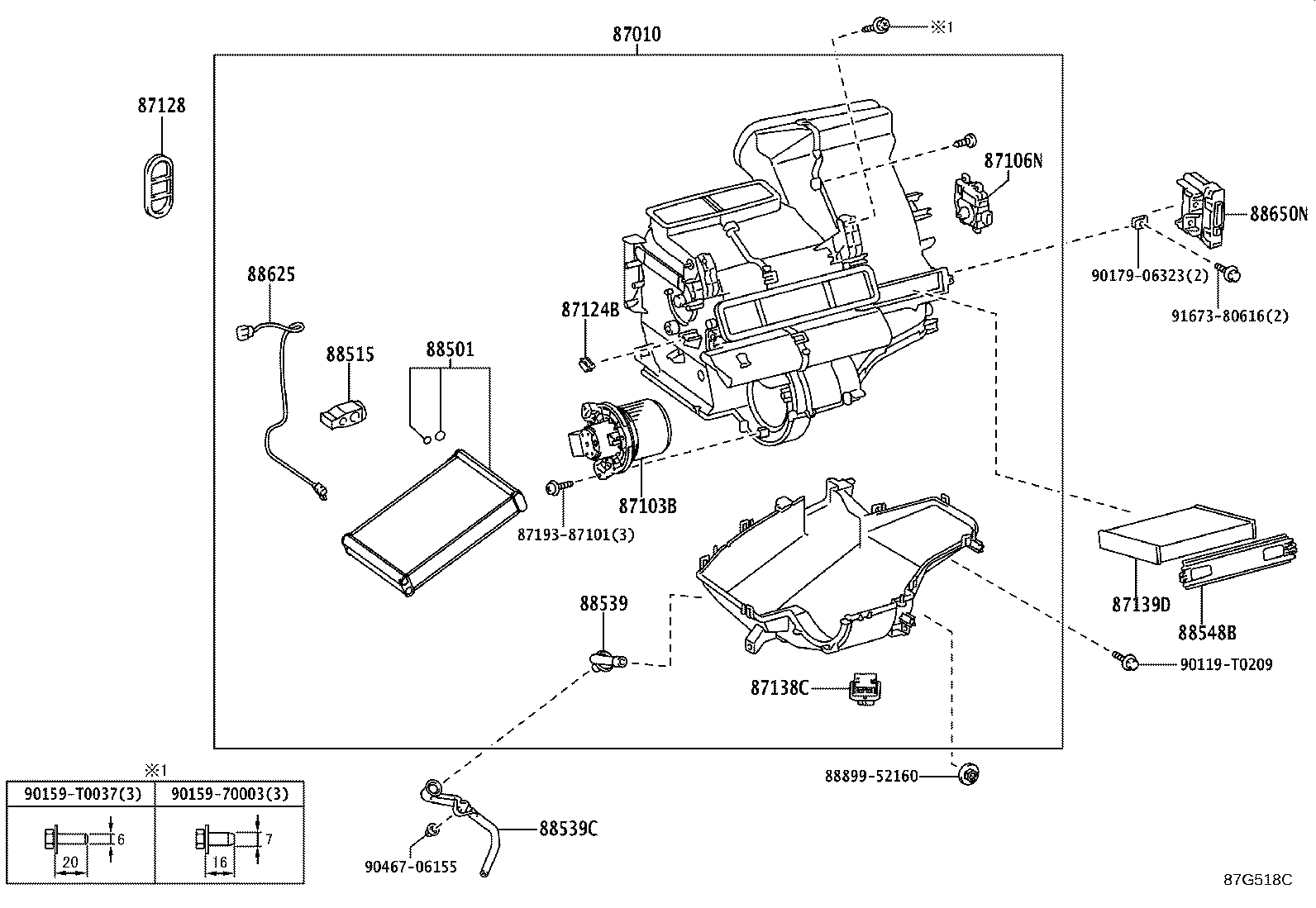

AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0D110 |
NSP151..(G,V)..H |
1 | ||
| 82212-0D020 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 82212-0D010 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
NSP151..(G,V)..H |
24 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
17 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
19 | ||
| 90068-00042 |
NSP150,151..GCC,VN |
1 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 90099-00968 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 90068-00042 |
NSP151..V..A |
28 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0D310 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D070 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D310 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D190 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D070 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D190 |
NSP151..V..C |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D080 |
NSP150,151..H |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D140 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D060 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D040 |
NSP151..G..F G-HI PACKAGE, WITH(*CUSA) |
1 | ||
| 87165-0D060 |
NSP151..V..C |
1 | ||
| 87165-0D150 |
NSP151..V..C |
1 | ||
| 87165-0D100 |
NSP151..(G,V)..H |
1 | ||
| 87165-0D140 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D150 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D200 |
NSP151..(G,V)..H |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0D120 |
NSP150,151..H |
1 | ||
| 87237-0D050 |
NSP150,151..LHD..(GCC,GEN,VN)..A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP151..C ID=10.8,OD=15.6 |
1 | ||
| 90068-14044 |
NSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
NSP150,151..GCC..G ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP151..C ID=13.4,OD=18.2 |
1 | ||
| 90068-14043 |
NSP151..VN..G;NSP150,151..GCC..R ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NSP151..C |
2 | ||
| 90099-04630 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| 88669E - HOSE, AIR | ||||
| 87233-0D100 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87233-0D180 |
NSP151..V..C |
1 | ||
| 87233-0D070 |
NSP151..(G,V)..H |
1 | ||
| 87233-0D180 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88897-0D080 |
NSP151..(G,V)..H |
1 | ||
| 88897-0D040 |
NSP151..V..C |
1 | ||
| 88897-0D040 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-06942 | ||||
| 90119-T0209 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F,H

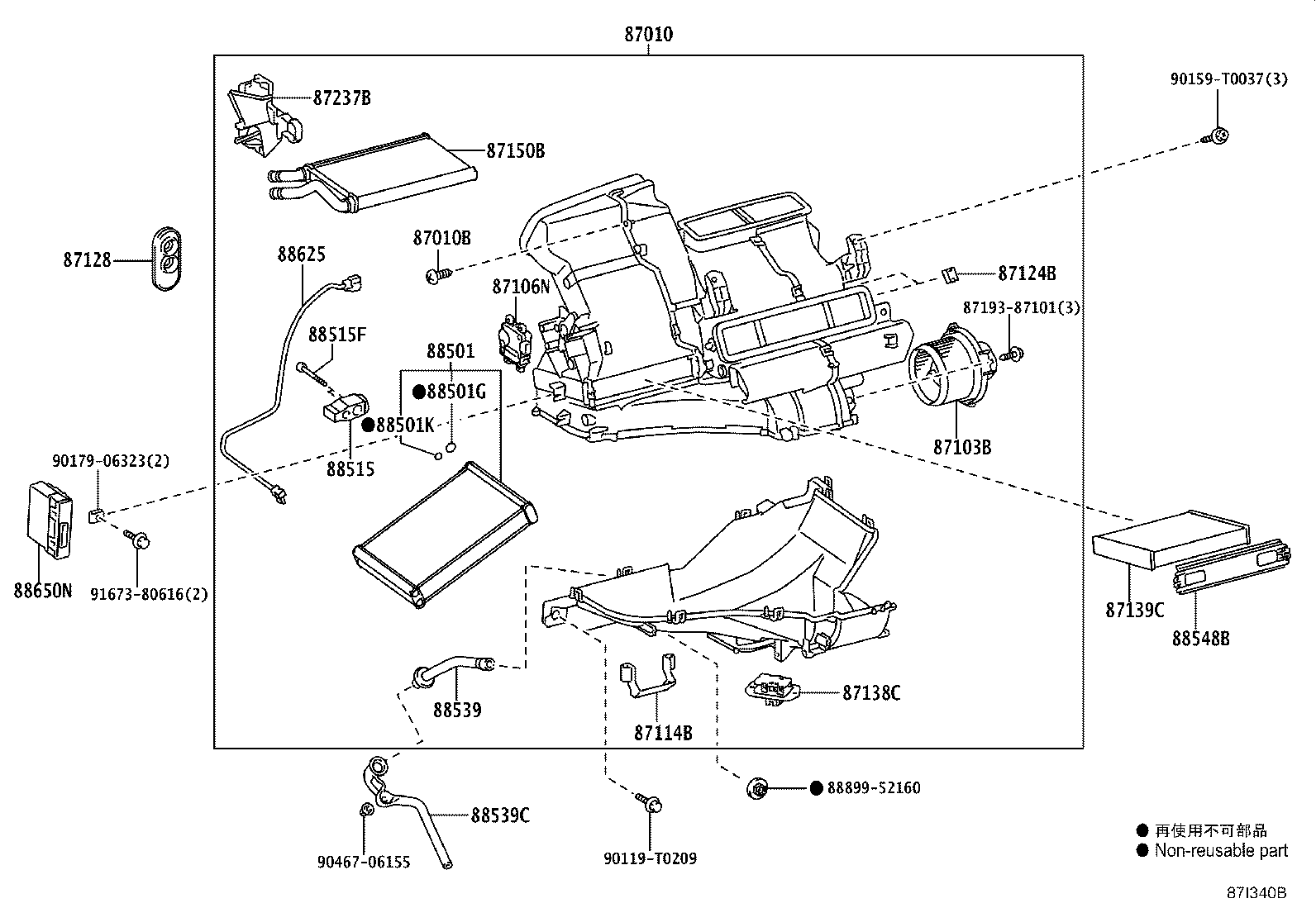

AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0D110 |
NSP151..(G,V)..H |
1 | ||
| 82212-0D020 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 82212-0D010 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
NSP151..(G,V)..H |
24 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
17 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
19 | ||
| 90068-00042 |
NSP150,151..GCC,VN |
1 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 90099-00968 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 90068-00042 |
NSP151..V..A |
28 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D310 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D190 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D070 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D190 |
NSP151..V..C |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D060 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D040 |
NSP151..G..F G-HI PACKAGE, WITH(*CUSA) |
1 | ||
| 87165-0D060 |
NSP151..V..C |
1 | ||
| 87165-0D150 |
NSP151..V..C |
1 | ||
| 87165-0D100 |
NSP151..(G,V)..H |
1 | ||
| 87165-0D140 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D150 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D200 |
NSP151..(G,V)..H |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP151..C ID=10.8,OD=15.6 |
1 | ||
| 90068-14044 |
NSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
NSP150,151..GCC..G ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP151..C ID=13.4,OD=18.2 |
1 | ||
| 90068-14043 |
NSP151..VN..G;NSP150,151..GCC..R ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NSP151..C |
2 | ||
| 90099-04630 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| 88669E - HOSE, AIR | ||||
| 87233-0D100 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87233-0D180 |
NSP151..V..C |
1 | ||
| 87233-0D070 |
NSP151..(G,V)..H |
1 | ||
| 87233-0D180 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88897-0D080 |
NSP151..(G,V)..H |
1 | ||
| 88897-0D040 |
NSP151..V..C |
1 | ||
| 88897-0D040 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F,H
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NSP150,151..(D,R)..H |
2 | ||
| 87124-0D160 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
2 | ||
| 87124-0D310 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D350 |
NSP150,151..(D,R)..H |
1 | ||
| 87138-0D330 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87138-0D160 |
NSP150,151..GCC |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F; (1806-1904)H
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
NSP151..(G,V)..H |
24 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
17 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
19 | ||
| 90068-00042 |
NSP150,151..GCC,VN |
1 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 90099-00968 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 90068-00042 |
NSP151..V..A |
28 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D080 |
NSP150,151..H |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NSP150,151..(D,R)..H |
2 | ||
| 87124-0D160 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
2 | ||
| 87124-0D310 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D350 |
NSP150,151..(D,R)..H |
1 | ||
| 87138-0D330 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87138-0D160 |
NSP150,151..GCC |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D140 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0D120 |
NSP150,151..H |
1 | ||
| 87237-0D050 |
NSP150,151..LHD..(GCC,GEN,VN)..A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP151..C ID=10.8,OD=15.6 |
1 | ||
| 90068-14044 |
NSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
NSP150,151..GCC..G ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP151..C ID=13.4,OD=18.2 |
1 | ||
| 90068-14043 |
NSP151..VN..G;NSP150,151..GCC..R ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NSP151..C |
2 | ||
| 90099-04630 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-06942 | ||||
| 90119-T0209 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1904- )H
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0D110 |
NSP151..(G,V)..H |
1 | ||
| 82212-0D020 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 82212-0D010 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
NSP151..(G,V)..H |
24 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
17 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
19 | ||
| 90068-00042 |
NSP150,151..GCC,VN |
1 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 90099-00968 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 90068-00042 |
NSP151..V..A |
28 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0D310 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D070 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D310 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D190 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D070 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D190 |
NSP151..V..C |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D080 |
NSP150,151..H |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D140 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D060 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D040 |
NSP151..G..F G-HI PACKAGE, WITH(*CUSA) |
1 | ||
| 87165-0D060 |
NSP151..V..C |
1 | ||
| 87165-0D150 |
NSP151..V..C |
1 | ||
| 87165-0D100 |
NSP151..(G,V)..H |
1 | ||
| 87165-0D140 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87165-0D150 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87165-0D200 |
NSP151..(G,V)..H |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0D120 |
NSP150,151..H |
1 | ||
| 87237-0D050 |
NSP150,151..LHD..(GCC,GEN,VN)..A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP151..C ID=10.8,OD=15.6 |
1 | ||
| 90068-14044 |
NSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
NSP150,151..GCC..G ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP151..C ID=13.4,OD=18.2 |
1 | ||
| 90068-14043 |
NSP151..VN..G;NSP150,151..GCC..R ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NSP151..C |
2 | ||
| 90099-04630 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| 88669E - HOSE, AIR | ||||
| 87233-0D100 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87233-0D180 |
NSP151..V..C |
1 | ||
| 87233-0D070 |
NSP151..(G,V)..H |
1 | ||
| 87233-0D180 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88897-0D080 |
NSP151..(G,V)..H |
1 | ||
| 88897-0D040 |
NSP151..V..C |
1 | ||
| 88897-0D040 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06942 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1904- )H
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DQ10 |
NSP151..R..H |
1 | ||
| 87010-0DM50 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87010-0DQ11 |
NSP151..R..H |
1 | ||
| 87010-0DM40 |
NSP150,151..GCC |
1 | ||
| 87010-0DP30 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87010-0DP30 |
NSP151..V..C |
1 | ||
| 87010-0DN01 |
NSP151..V..A |
1 | ||
| 87010-0DP20 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
NSP151..(G,V)..H |
24 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
17 | ||
| 90094-90426 |
NSP150,151..(D,R)..H |
19 | ||
| 90068-00042 |
NSP150,151..GCC,VN |
1 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 90099-00968 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 90068-00042 |
NSP151..V..A |
28 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D450 |
NSP150,151..H |
1 | ||
| 87103-0D360 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87103-0D290 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D320 |
NSP151..(G,V)..H |
1 | ||
| 87106-0D520 |
NSP150,151..(D,R)..H |
1 | ||
| 87106-0D160 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 87106-0D200 |
NSP151..V..C |
1 | ||
| 87106-0D200 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 87106-0D380 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 87106-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D080 |
NSP150,151..H |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NSP150,151..(D,R)..H |
2 | ||
| 87124-0D160 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
2 | ||
| 87124-0D310 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D220 |
NSP150,151..H |
1 | ||
| 87128-0D091 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87128-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D350 |
NSP150,151..(D,R)..H |
1 | ||
| 87138-0D330 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 87138-0D160 |
NSP150,151..GCC |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP151..C *DPF |
1 | ||
| 87139-02150 |
NSP150,151..H OE PART |
1 | ||
| 87139-02150 |
NSP150,151..H DUST FILTER |
1 | ||
| 87139-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C DUST FILTER |
1 | ||
| 87139-02130 |
NSP150,151..GCC POLLEN FILTER |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D140 |
NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,SA,VN)..A |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0D120 |
NSP150,151..H |
1 | ||
| 87237-0D050 |
NSP150,151..LHD..(GCC,GEN,VN)..A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D460 |
NSP150,151..H |
1 | ||
| 88501-0D380 |
NSP150,151..GCC |
1 | ||
| 88501-0D520 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP151..C ID=10.8,OD=15.6 |
1 | ||
| 90068-14044 |
NSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
NSP150,151..GCC..G ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP151..C ID=13.4,OD=18.2 |
1 | ||
| 90068-14043 |
NSP151..VN..G;NSP150,151..GCC..R ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D390 |
NSP151..F |
1 | ||
| 88515-0D370 |
NSP151..C |
1 | ||
| 88515-0D400 |
NSP150,151..H |
1 | ||
| 88515-0D500 |
NSP151..C |
1 | ||
| 88515-0K100 |
NSP150,151..(GCC,GEN,SA,VN)..A |
1 | ||
| 88515-0D570 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 88515-0D580 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04630 |
NSP151..C |
2 | ||
| 90099-04630 |
NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D560 |
NSP150,151..H |
1 | ||
| 88539-0D300 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D160 |
NSP150,151..H |
1 | ||
| 88539-0D350 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 88539-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D260 |
NSP150,151..H |
1 | ||
| 88548-0D230 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D360 |
NSP151..(G,V)..H |
1 | ||
| 88620-0D170 |
NSP150,151..(D,R)..H |
1 | ||
| 88620-0D200 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88620-0D050 |
NSP151..VN..R;NSP150..GCC..G;NSP150..5F..GEN..R;NSP151..(GCC,GEN)..A;NSP150..LHD..CVT..R..A |
1 | ||
| 88620-0D260 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88620-0D260 |
NSP151..V..C |
1 | ||
| 88620-0D120 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D870 |
NSP150,151..(D,R)..H |
1 | ||
| 88650-0D880 |
NSP151..(G,V)..H |
1 | ||
| 88650-0D890 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 88650-0D770 |
NSP151..5F..G;NSP150..CVT..PH;NSP151..CVT..(G,R)..C |
1 | ||
| 88650-0D820 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 88650-0D780 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..(GCC,GEN)..R;NSP151..(GCC,GEN,SA)..(D,G,R)..A |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06942 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1908- )
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1908- )
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||

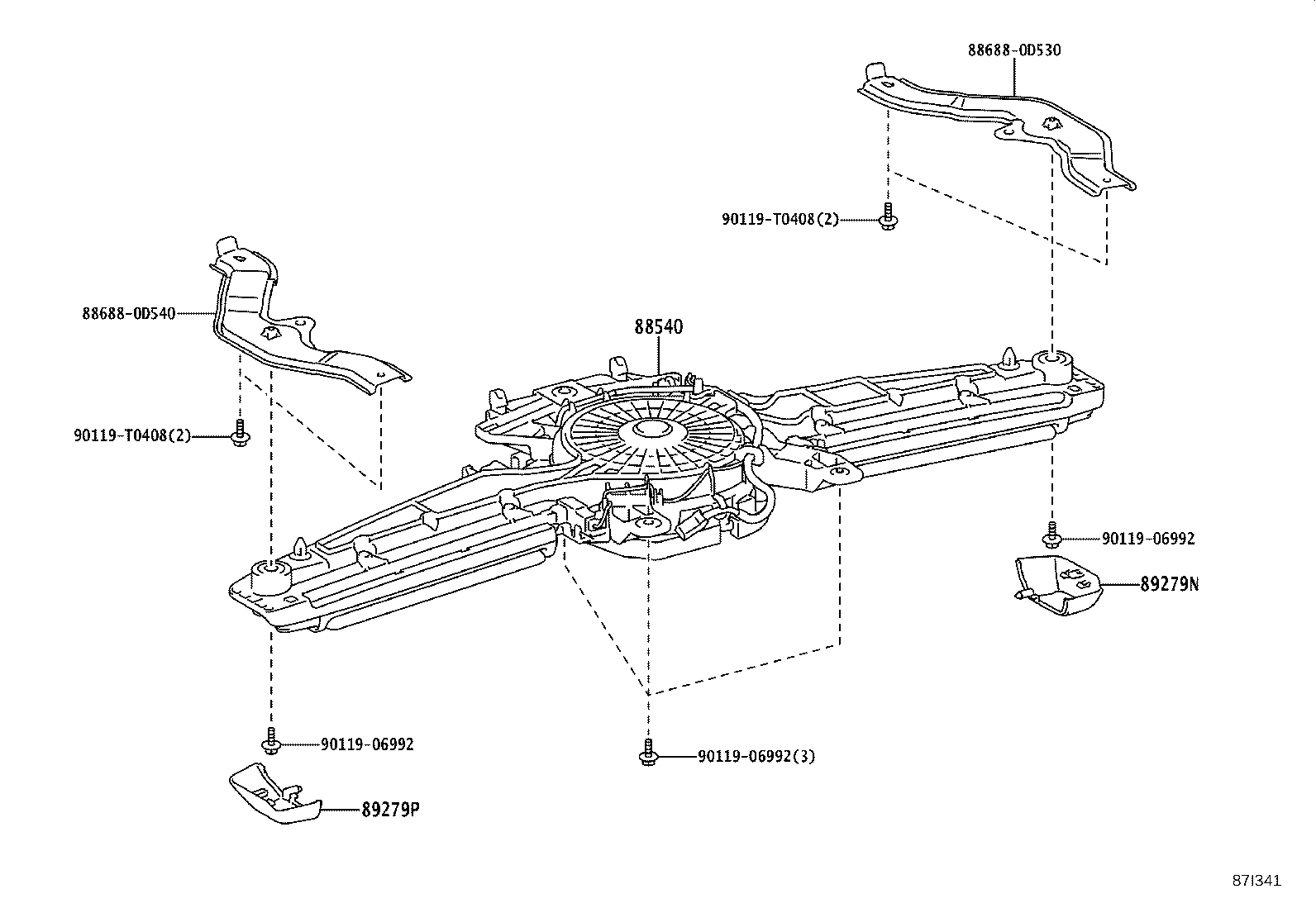

ILLUST NO. 2 OF 2(1908- )
ROOF FAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-0D530 | ||||
| 88688-0D540 | ||||
| 90119-06992 | ||||
| 90119-T0408 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
