NSP151L-AHXGKV (2017)
Toyota Yaris
Production
Oct 2017
-
Aug 2020
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

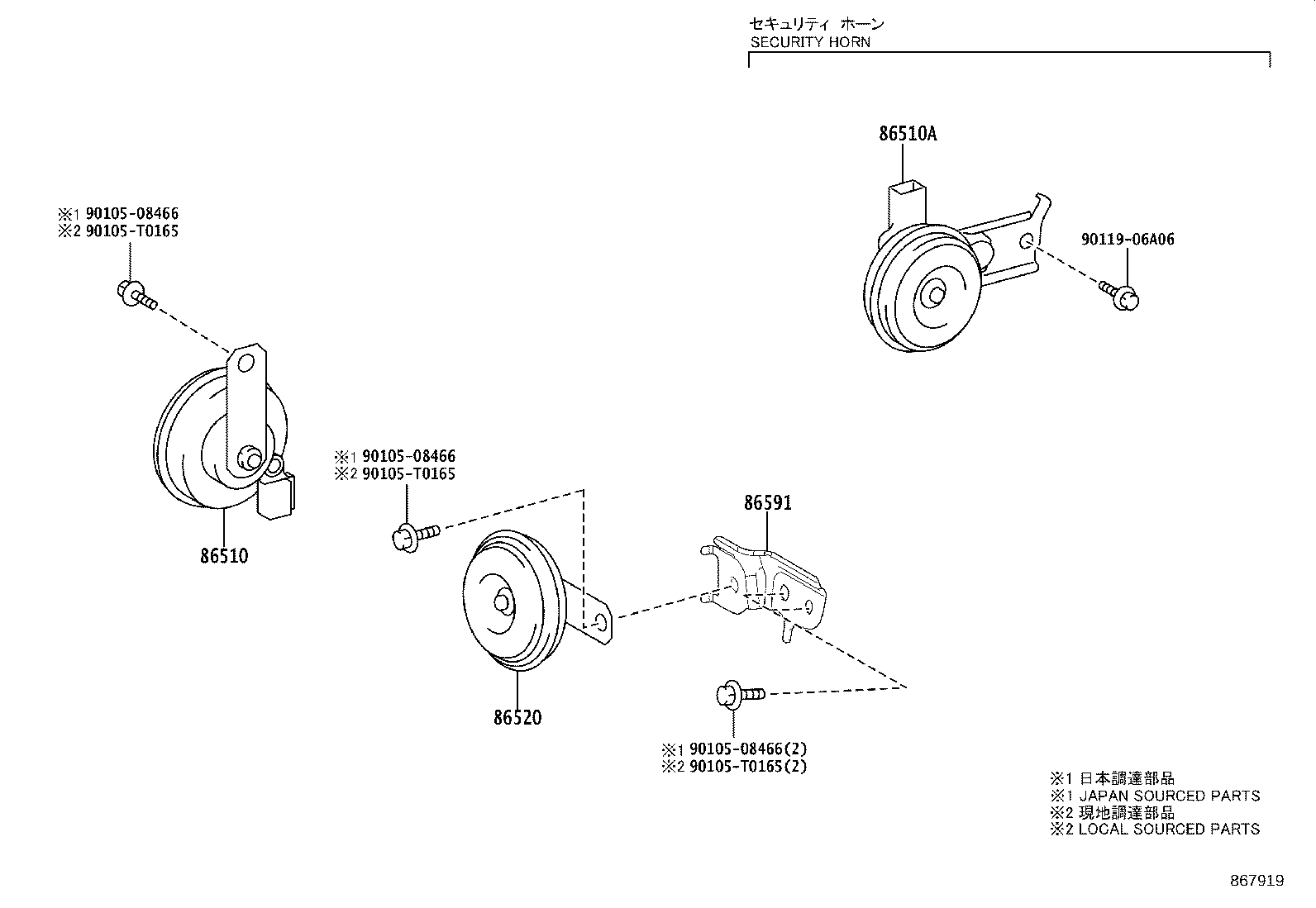

(1310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-0K010 |
NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H) |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-0D160 |
NSP151..C |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-0D160 |
NSP151..C |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-0D030 |
NSP151..C TYPE A:REFER ILLUST. |
1 | ||
| 86591-0D060 |
NSP150,151..H TYPE B:REFER ILLUST. |
1 | ||
| 86591-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C TYPE B:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90105-08466 | ||||
| 90105-T0165 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||

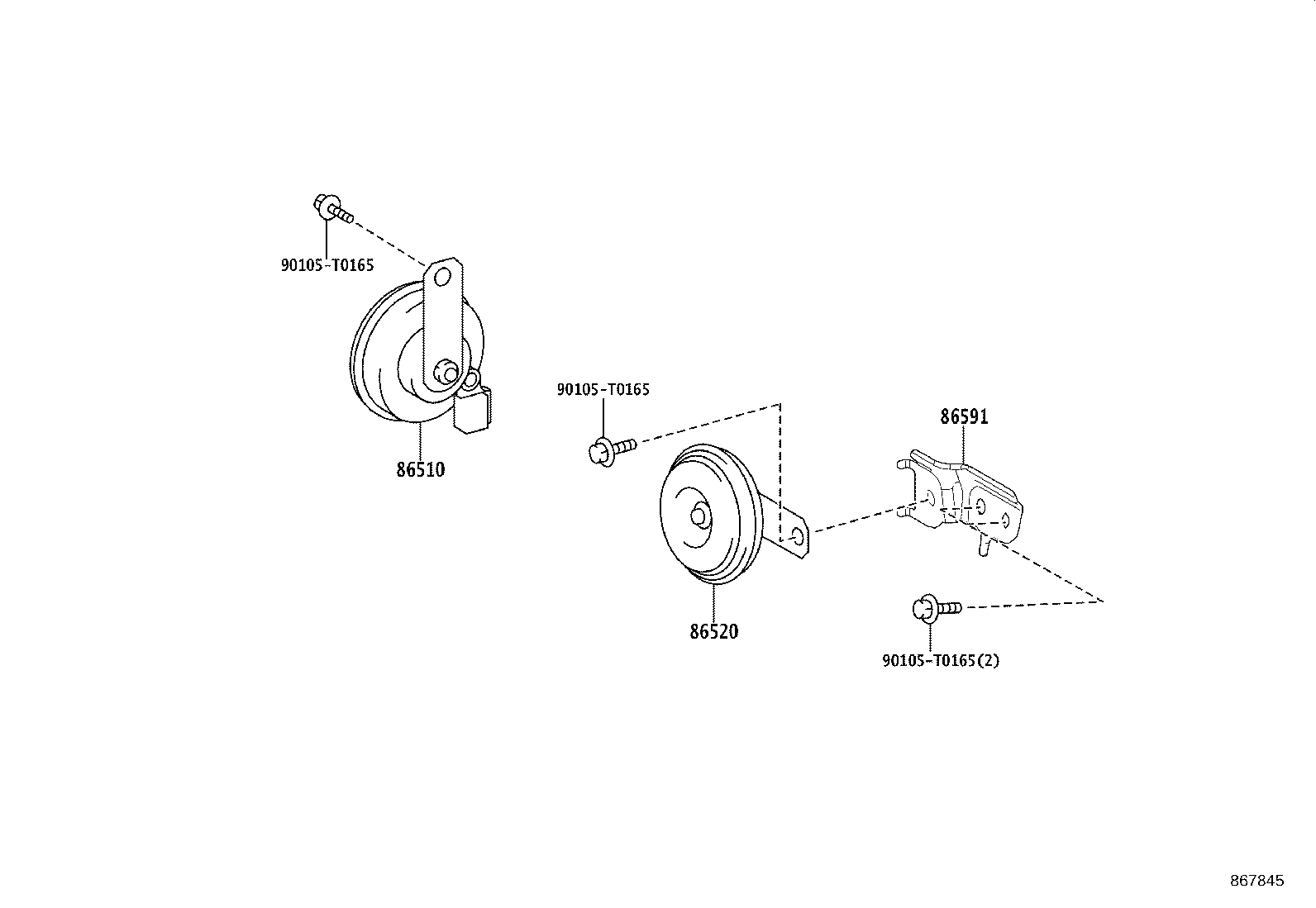

(1908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0165 | ||||
(1911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08466 | ||||
| 90105-T0165 | ||||
| 90119-06A06 | ||||
