NSP151L-AHXGKV (2017)

Toyota Yaris

Production Oct 2017 - Aug 2020
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

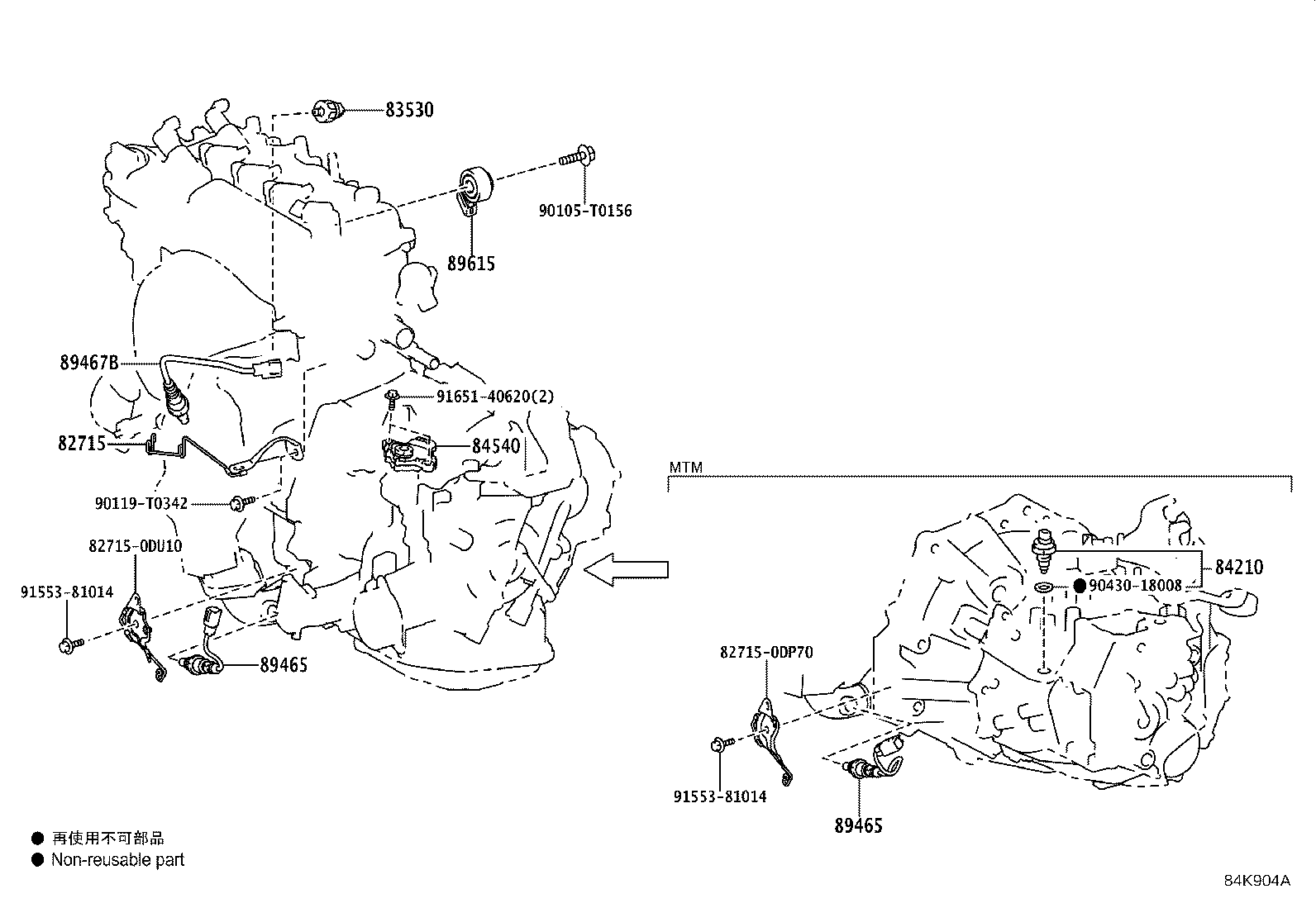

ILLUST NO. 1 OF 7(1310- )NSP15#

Click highlighted areas on diagram

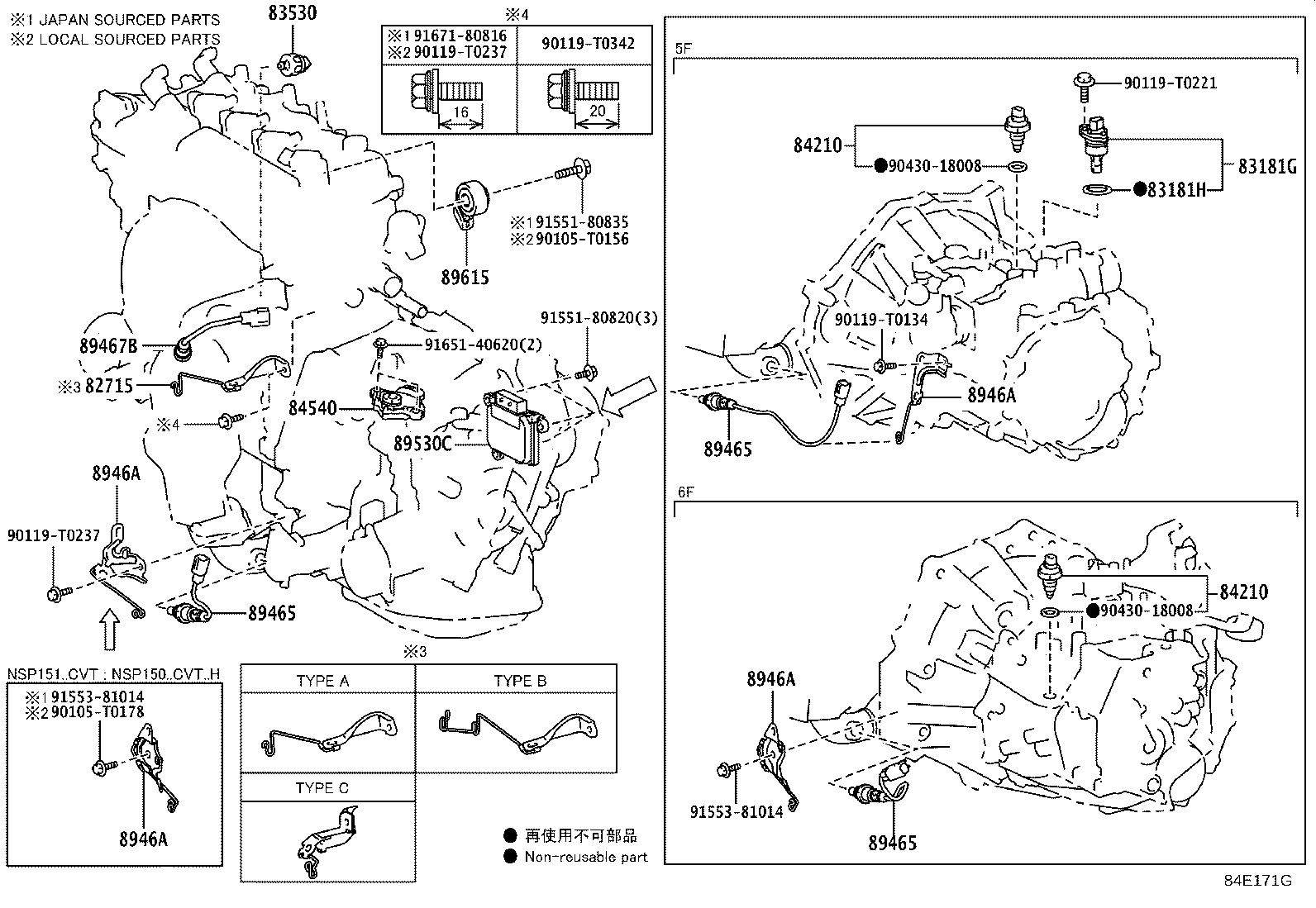

ENGINE & TRANSMISSION

diagram 82715 83181G 83181H 83530 84210 84210 84540 89465 89465 89465 89467B 8946A 8946A 8946A 8946A 89530C 89615 90105T0156 90105T0178 90119T0134 90119T0221 90119T0237 90119T0237 90119T0342 9043018008 9043018008 9155180820 9155180835 9155381014 9155381014 9165140620 9167180816
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-0DL90

NSP150,151..H

TYPE B:REFER ILLUST.

 1
82715-5C360

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,PH,SA,VN)..A

TYPE B:REFER ILLUST.

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

NSP151..C

YAZAKI

 1
83530-28020

NSP151..C

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-52070

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
89465 - SENSOR, OXYGEN
89465-52740

NSP151..CVT..C

 1
89465 - SENSOR, OXYGEN
89465-52740

NSP151..CVT..C

 1
89465 - SENSOR, OXYGEN
89465-52740

NSP151..CVT..C

 1
89467B - SENSOR, AIR FUEL RATIO
89467-30050

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..LHD..(GCC,GEN);NSP151..AGT,GCC,GEN,PH,SA,VN

 1
8946A - BRACKET, EXHAUST SENSOR CLAMP
82715-12S40

NSP151..CVT..(GCC,GEN,IDN,PH,SA,VN)..(A,C)

 1
8946A-52080

NSP151..CVT..(A,C)

 1
8946A - BRACKET, EXHAUST SENSOR CLAMP
82715-12S40

NSP151..CVT..(GCC,GEN,IDN,PH,SA,VN)..(A,C)

 1
8946A-52080

NSP151..CVT..(A,C)

 1
8946A - BRACKET, EXHAUST SENSOR CLAMP
82715-12S40

NSP151..CVT..(GCC,GEN,IDN,PH,SA,VN)..(A,C)

 1
8946A-52080

NSP151..CVT..(A,C)

 1
8946A - BRACKET, EXHAUST SENSOR CLAMP
82715-12S40

NSP151..CVT..(GCC,GEN,IDN,PH,SA,VN)..(A,C)

 1
8946A-52080

NSP151..CVT..(A,C)

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

NSP151..C

 1
Common parts
90105-T0156
90105-T0178
90119-T0134
90119-T0221
90119-T0237
90119-T0342
90430-18008
91551-80820
91551-80835
91553-81014
91651-40620
91671-80816

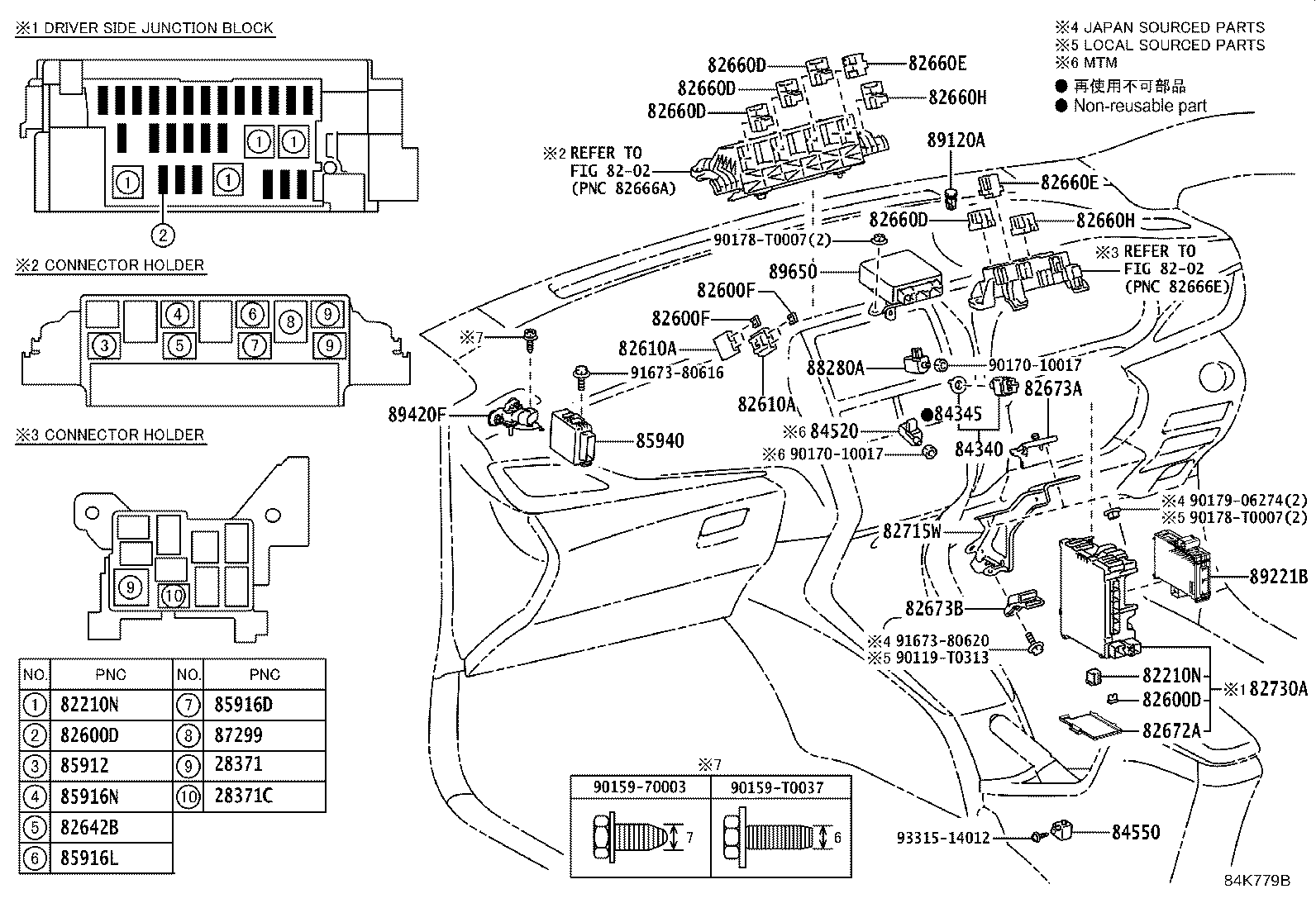

ILLUST NO. 4 OF 7(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F,H

Click highlighted areas on diagram

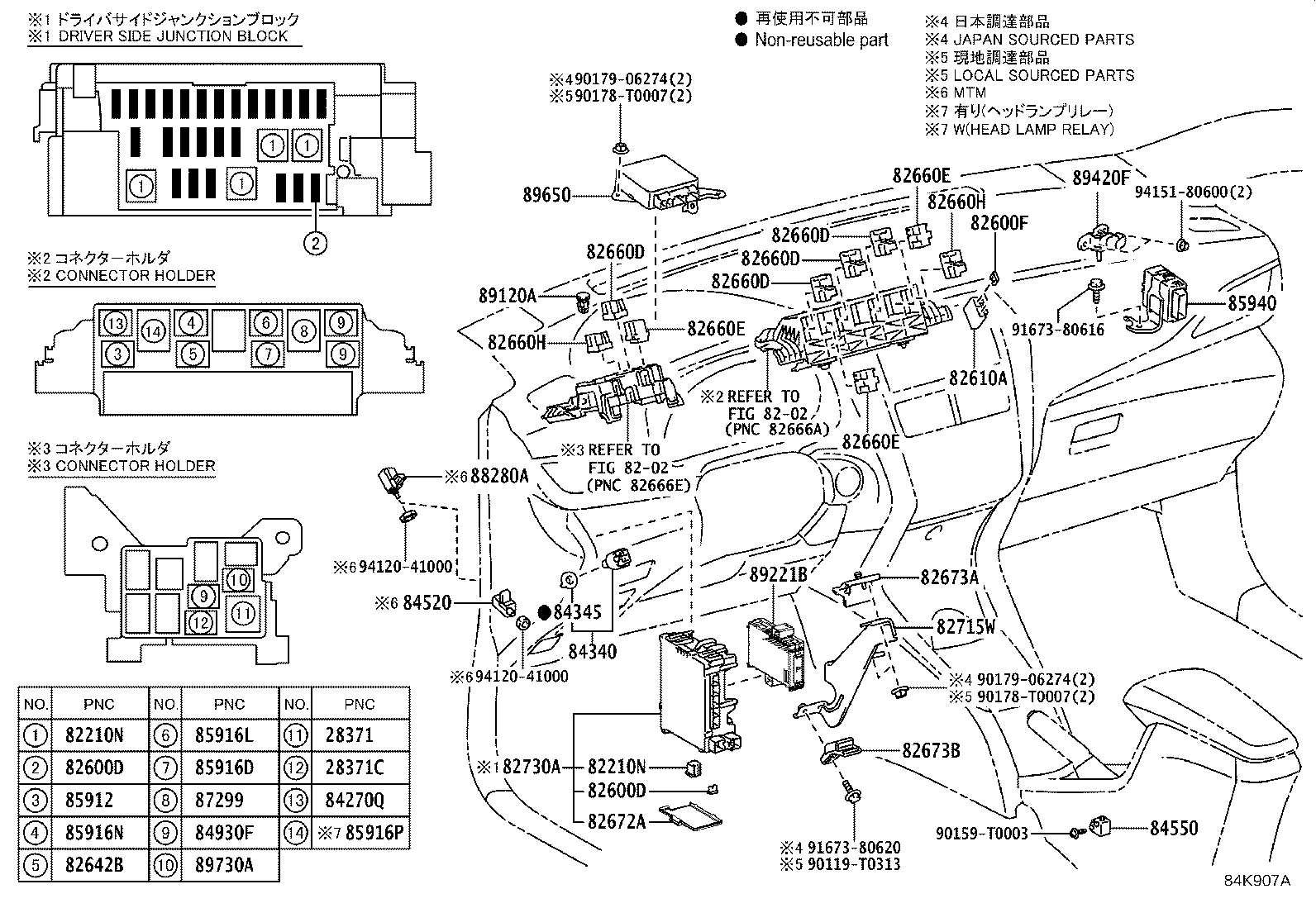

COWL

diagram 28371 28371C 8202 8202 82210N 82210N 82600D 82600D 82600F 82610A 82642B 82660D 82660D 82660D 82660D 82660E 82660E 82660H 82660H 82672A 82673A 82673B 82715W 82730A 84270Q 84340 84345 84520 84550 84930F 85530A 85912 85916D 85916L 85916N 85916P 85940 87299 88280A 89120A 89221B 89420F 89420F 89650 89730A 90119T0313 9015970003 90159T0003 90159T0037 9017010017 9017010017 90178T0007 90178T0007 9017906274 9017906274 9167380616 9167380620 9331514012 9412041000 9412041000 9415180600
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90987-T2009

2NRFE..NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
90987-T2009

2NRFE..NSP151..PH,SA;2NRFE..NSP151..V..(C,H);1NRFE,2NR#..NSP150,151..LHD..(BZ,GEN,VN)..(G,V)

 1
90987-T2009

2NRFE..NSP151..CVT..G..C

BRUNEI SPEC

 1
28371C - RELAY, IGNITION, NO.2
90987-02027

2NRFE..NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL),(J)

 1
90987-T2001

2NRFE..NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL),(L)

 1
90987-02027

2NRFE..NSP151..PH,SA;2NRFE..NSP151..V..(C,H);1NRFE,2NR#..NSP150,151..LHD..(BZ,GEN,VN)..(G,V)

(J)

 1
90987-T2001

2NRFE..NSP151..PH,SA;2NRFE..NSP151..V..(C,H);1NRFE,2NR#..NSP150,151..LHD..(BZ,GEN,VN)..(G,V)

(L)

 1
90987-T2001

2NRFE..NSP151..CVT..G..C

BRUNEI SPEC,(L)

 1
90987-02027

2NRFE..NSP151..CVT..G..C

BRUNEI SPEC,(J)

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08295

NSP151..C

30A,TERM.:FEMALE,PNK

 1
90982-08294

NSP151..C

40A,TERM.:FEMALE,GRN

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08295

NSP151..C

30A,TERM.:FEMALE,PNK

 1
90982-08294

NSP151..C

40A,TERM.:FEMALE,GRN

 1
82600D - INSTRUMENT PANEL FUSE
90982-09023

NSP151..C

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..C

5A,MINI FUSE,TAN

 1
90982-09021

NSP151..C

10A,MINI FUSE,RED

 1
90982-09020

NSP151..C

7.5A,MINI FUSE,BROWN

 1
90982-09024

NSP151..C

25A,MINI FUSE

 1
90982-09022

NSP151..C

15A,MINI FUSE,BLUE

 1
82600D - INSTRUMENT PANEL FUSE
90982-09023

NSP151..C

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..C

5A,MINI FUSE,TAN

 1
90982-09021

NSP151..C

10A,MINI FUSE,RED

 1
90982-09020

NSP151..C

7.5A,MINI FUSE,BROWN

 1
90982-09024

NSP151..C

25A,MINI FUSE

 1
90982-09022

NSP151..C

15A,MINI FUSE,BLUE

 1
82600F - FUSE, FUSE BLOCK
90982-09008

NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN

7.5A,MINI FUSE,BRN

 1
90982-09007

NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN

5A,MINI FUSE,TAN

 1
82610A - BLOCK ASSY, FUSE
82610-20080

NCP15#,NSP150,152..A;NSP151..GCC,GEN,IDN,PH,TAIW,VN

 2
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90987-T2001

NSP151..VN..G;NSP151..V..(C,F);NSP151..(G,R)..F;NSP151..(AGT,PH,SA)..(G,R,V)

 1
90987-T2001

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL),(L)

 1
90987-T2001

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S))

 1
90987-02027

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL),(J)

 1
90987-T2001

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
90987-T2001

NSP151..CVT..G..C

BRUNEI SPEC

 1
90987-T2001

NSP151..V..C;NSP151..VN..G;NSP151..(AGT,PH,SA)..(G,R,V)

(L)

 1
90987-T2001

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S)),(L)

 1
90987-02027

NSP151..CVT..G..C

BRUNEI SPEC,(J)

 1
90987-02027

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S)),(J)

 1
90987-02027

NSP151..V..C;NSP151..VN..G;NSP151..(AGT,PH,SA)..(G,R,V)

(J)

 1
90987-T2001

NSP151..CVT..G..C

BRUNEI SPEC,(L)

 1
82660D - BLOCK ASSY, RELAY
82660-74010

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
82660D - BLOCK ASSY, RELAY
82660-74010

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
82660D - BLOCK ASSY, RELAY
82660-74010

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
82660D - BLOCK ASSY, RELAY
82660-74010

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
82673A - BRACKET, JUNCTION BLOCK
82673-0D050

NSP151..C

 1
82673-0D320

NSP150..CVT..PH;NSP150..LHD..(BZ,GCC,GEN);NSP151..AGT,BZ,GCC,GEN,PH,VN

 1
82673-0D380

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
82673B - BRACKET, JUNCTION BLOCK
82673-0D040

NSP151..C

 1
82715W - BRACKET, WIRING HARNESS CLAMP
82715-0DX40

NSP150,151..H

 1
82715-0DW90

NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A

 1
82715-0DW60

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
82730A - BLOCK ASSY, DRIVER SIDE JUNCTION
82730-0DA30

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
82730-0D510

NSP151..C

 1
82730-0DB00

NSP150..R..H;NSP151..(G,V)..H

 1
82730-0DA90

NSP150..D;NSP151..(D,R)..H

 1
84270Q - RELAY, LAMP CUT
90987-02027

NSP150,151..H

 1
84340 - SWITCH ASSY, STOP LAMP
84340-09210

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S))

 1
84340-09210

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
84340-49085

NSP151..V..H;NSP151..AGT..G

 1
84340-09041

NSP151..R..H;NSP150..GCC..G;NSP150,151..CVT..(IDN,PH,VN)..R;NSP151..(BZ,GCC,GEN,SA)..(D,G,R);NSP150..LHD..(BZ,GCC,GEN)..(D,R)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010

NSP151..C

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030

NSP151..C

 1
84550-0K010

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
85912 - RELAY, DEFOGGER
90987-02027

NSP151..G..C

(J)

 1
90987-02027

NSP150,151..(D,R)..H

 1
90987-T2001

NSP151..CVT..G..C

BRUNEI SPEC

 1
90987-T2001

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
90987-T2001

NSP151..G..C

(L)

 1
90987-T2001

NSP152..HTWC;NSP151..V..(A,C);NSP150,151..CVT..(GEN,PH,VN)..G..A

(L)

 1
90987-02027

NSP151..G..C;NSP152..HTWCB;NSP150..GCC..G;NSP150..5F..GEN..R;NSP150..LHD..CVT..R..A;NSP151..(AGT,BZ,GCC,GEN)..(G,V);NSP151..(GCC,GEN,SA,VN)..(D,R)..A

(J)

 1
90987-T2001

NSP151..G..C;NSP152..HTWCB;NSP150..GCC..G;NSP150..5F..GEN..R;NSP150..LHD..CVT..R..A;NSP151..(AGT,BZ,GCC,GEN)..(G,V);NSP151..(GCC,GEN,SA,VN)..(D,R)..A

(L)

 1
90987-02027

NSP152..HTWC;NSP151..V..(A,C);NSP150,151..CVT..(GEN,PH,VN)..G..A

(J)

 1
85916D - RELAY, FOG LAMP
90987-T2001

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S))

 1
90987-T2001

NSP150..CVT..G;NSP150,151..CVT..(PH,VN)..R;NSP151..(GCC,IDN,PH,SA,VN)..(G,V)

 1
90987-T2001

NSP151..G..C

MLM PACKAGE

 1
85916L - RELAY, REAR FOG LAMP
90987-T2001

NSP151..GCC,PH,SA;NSP150..CVT..(GCC,PH)

 1
85916N - RELAY, TAIL LAMP
90987-T2001

NSP151..C

 1
85916P - RELAY, HEADLAMP
90987-T2002

NSP151..C

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-52040

NSP151..V..H

 1
87299 - RELAY, HEATER
90987-02025

NSP151..C

(J)

 1
90987-T2002

NSP151..C

(L)

 1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-30020

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
89121-30020

NSP151..CVT..G..C

BRUNEI SPEC

 1
89121-30020

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S))

 1
89121-30020

NSP150..R..H;NSP151..V..C;NSP151..(GEN,VN)..G;NSP151..(AGT,BZ,PH,SA)..(G,R,V)

 1
89221B - COMPUTER, BODY
89221-0D840

NSP150,151..H

 1
89221-0D640

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
89221-0D640

NSP151..GCC..R

E-SPORT PACKAGE(GRADE MARK(S))

 1
89221-0D700

NSP151..(G,V)..C

 1
89221-0DA20

NSP150,151..LHD..(GCC,GEN)..A

 1
89420F - SENSOR ASSY, VACUUM
89421-26030

NSP150,151..H

 1
89420-52100

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,SA,VN)..A

 1
89420F - SENSOR ASSY, VACUUM
89421-26030

NSP150,151..H

 1
89420-52100

NSP151..(G,V)..C;NSP151..CVT..R..C;NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,SA,VN)..A

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-0D650

NSP150,151..H

JTEKT/DENSO

 1
89730A - RELAY(FOR SECURITY WARNING)
90987-T2001

NSP151..C

 1
Common parts
90119-T0313
90159-70003
90159-T0003
90159-T0037
90170-10017
90178-T0007
90179-06274
91673-80616
91673-80620
93315-14012
94120-41000
94151-80600
Linked diagrams
8202

ILLUST NO. 5 OF 7(1710- )LHD..GCC,GEN,PH,VN..A ; (1804- )F,H

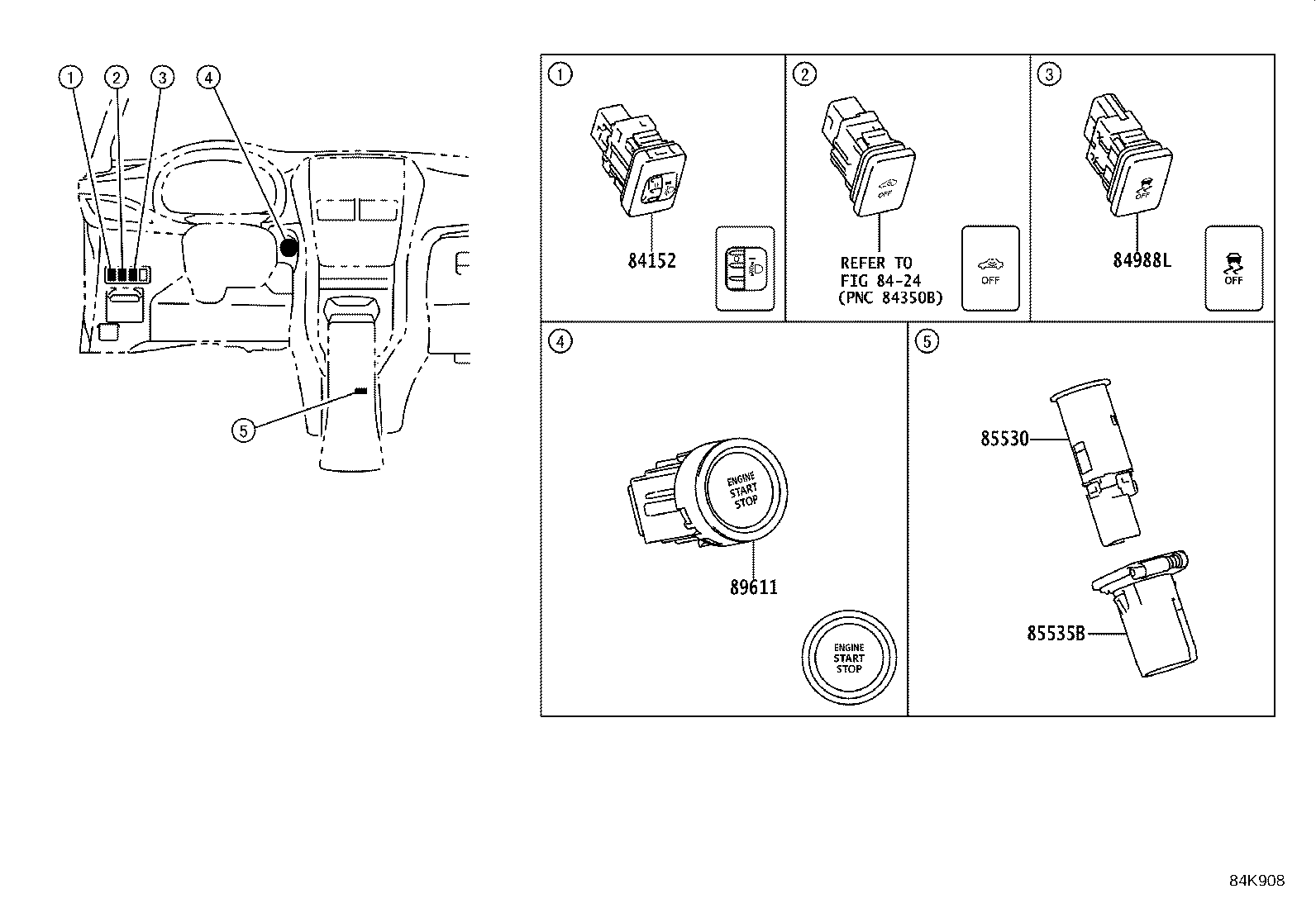

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84152 8417 8435 84970 84988L 85530 85532 85535B 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-0D200

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
84970 - SWITCH ASSY, COMBINATION
84970-52130

NSP151..CVT..G..C

BRUNEI SPEC

 1
84970-52130

NSP151..PH;NSP151..CVT..V..C

 1
84988L - SWITCH, VSC OFF
84988-0K060

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D040

NSP150,151..H

 1
85530-0K070

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0D160

NSP150,151..H

 1
85535-0D140

NSP151..(G,V)..C;NSP151..CVT..R..C

 1
89611 - SWITCH, PUSH START
89611-0K011

NSP151..GCC..G

G-HI PACKAGE, WITH(CRUISE CONTROL)

 1
89611-0K021

NSP151..CVT..G..C

BRUNEI SPEC

 1
Linked diagrams
8417
8435

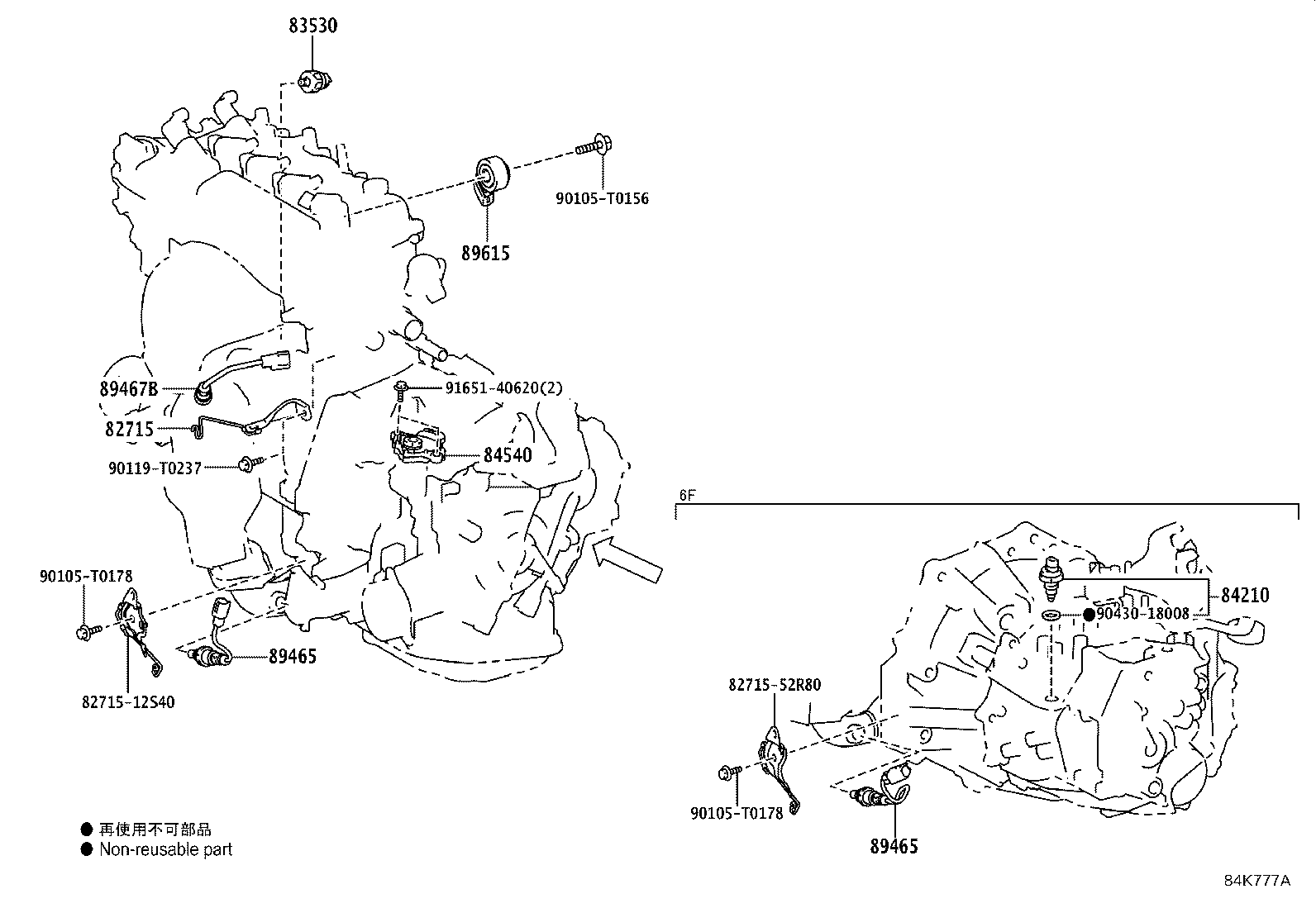

ILLUST NO. 1 OF 7(1908- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 8271512S40 8271552R80 83530 84210 84540 89465 89465 89467B 89615 90105T0156 90105T0178 90105T0178 90119T0237 9043018008 9165140620
Part # Description Qty Price
Common parts
82715-12S40
82715-52R80
90105-T0156
90105-T0178
90119-T0237
90430-18008
91651-40620

ILLUST NO. 2 OF 7(1908- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28300 82210P 82600E 82616 82660 82660B 82660C 82660F 82660F 82661 82662A 82663 82741 85916P 85926 85927 85927A 85928B 85934 86530 90119T0283 90178T0018 9017906178 9167180620 9167380616 9415180600
Part # Description Qty Price
Common parts
90119-T0283
90178-T0018
90179-06178
91671-80620
91673-80616
94151-80600

ILLUST NO. 3 OF 7(1908- )

Click highlighted areas on diagram

COWL

diagram 28371 28371C 8202 8202 82210N 82210N 82600D 82600D 82600F 82600F 82610A 82610A 82642B 82660D 82660D 82660D 82660D 82660E 82660E 82660H 82660H 82672A 82673A 82673B 82715W 82730A 84340 84345 84520 84550 85912 85916D 85916L 85916N 85940 87299 88280A 89120A 89221B 89420F 89650 90119T0313 9015970003 90159T0037 9017010017 9017010017 90178T0007 90178T0007 9017906274 9167380616 9167380620 9331514012
Part # Description Qty Price
Common parts
90119-T0313
90159-70003
90159-T0037
90170-10017
90178-T0007
90179-06274
91673-80616
91673-80620
93315-14012
Linked diagrams
8202

ILLUST NO. 4 OF 7(1908- )

Click highlighted areas on diagram

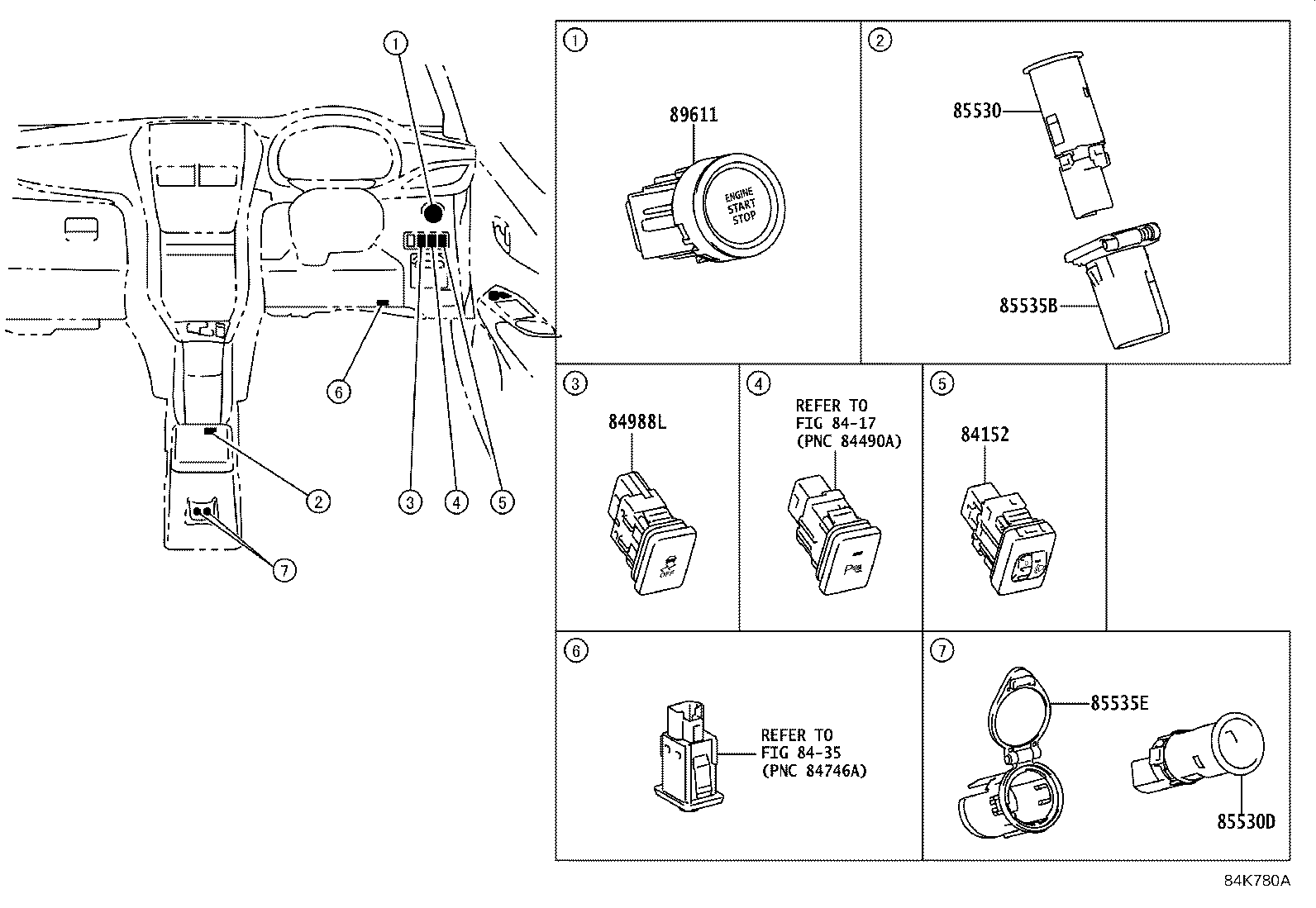

INSTRUMENT PANEL

diagram 84152 8417 8435 84988L 85530 85530D 85535B 85535E 89611
Part # Description Qty Price
Linked diagrams
8417
8435

ILLUST NO. 5 OF 7(1908- )

Click highlighted areas on diagram

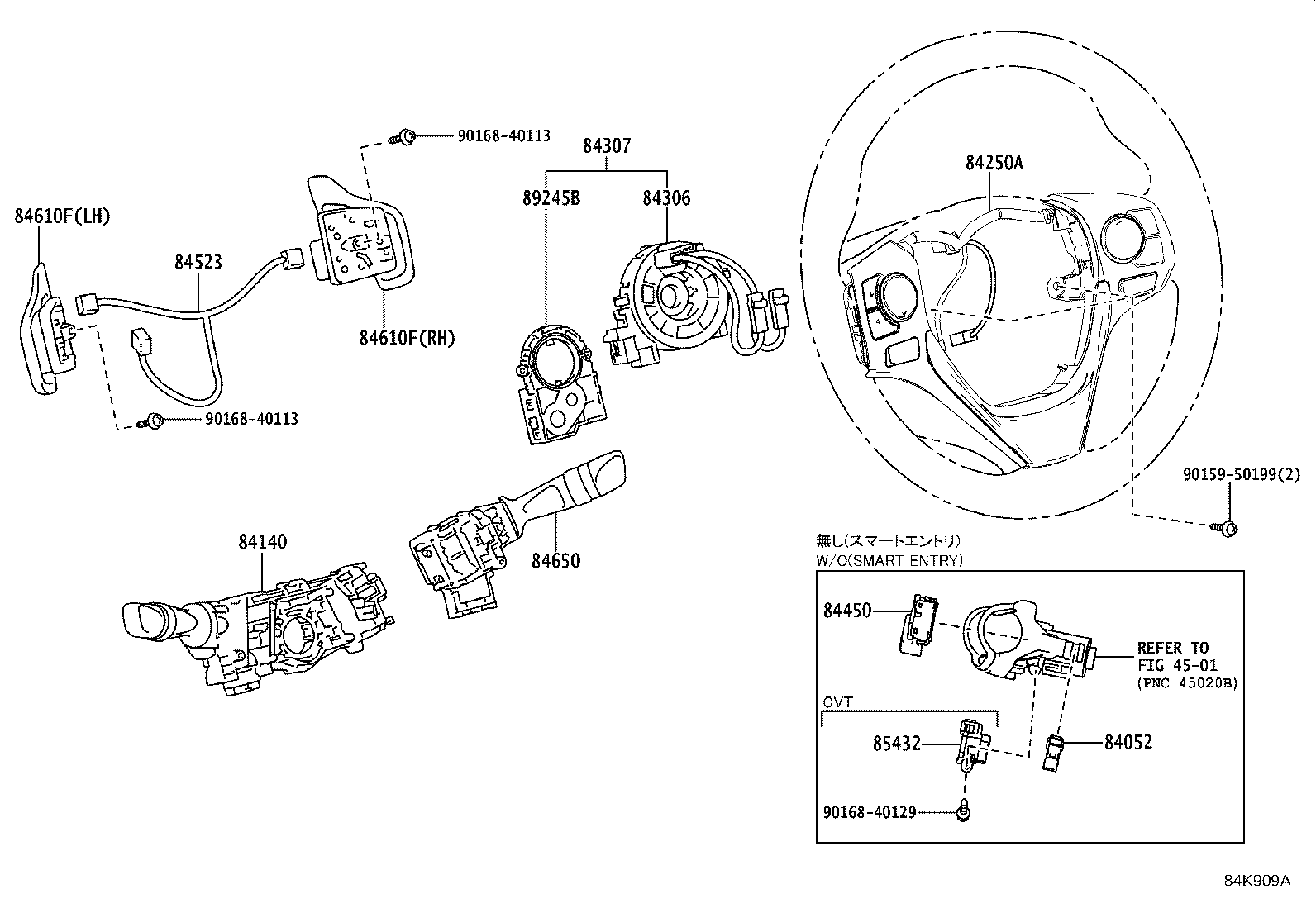

STEERING

diagram 4501 84052 84140 84250A 84306 84307 84450 84523 84610F 84610F 84650 85432 89245B 9015950199 9016840113 9016840113 9016840129
Part # Description Qty Price
Common parts
90159-50199
90168-40113
90168-40129
Linked diagrams
4501

ILLUST NO. 6 OF 7(1908- )

Click highlighted areas on diagram

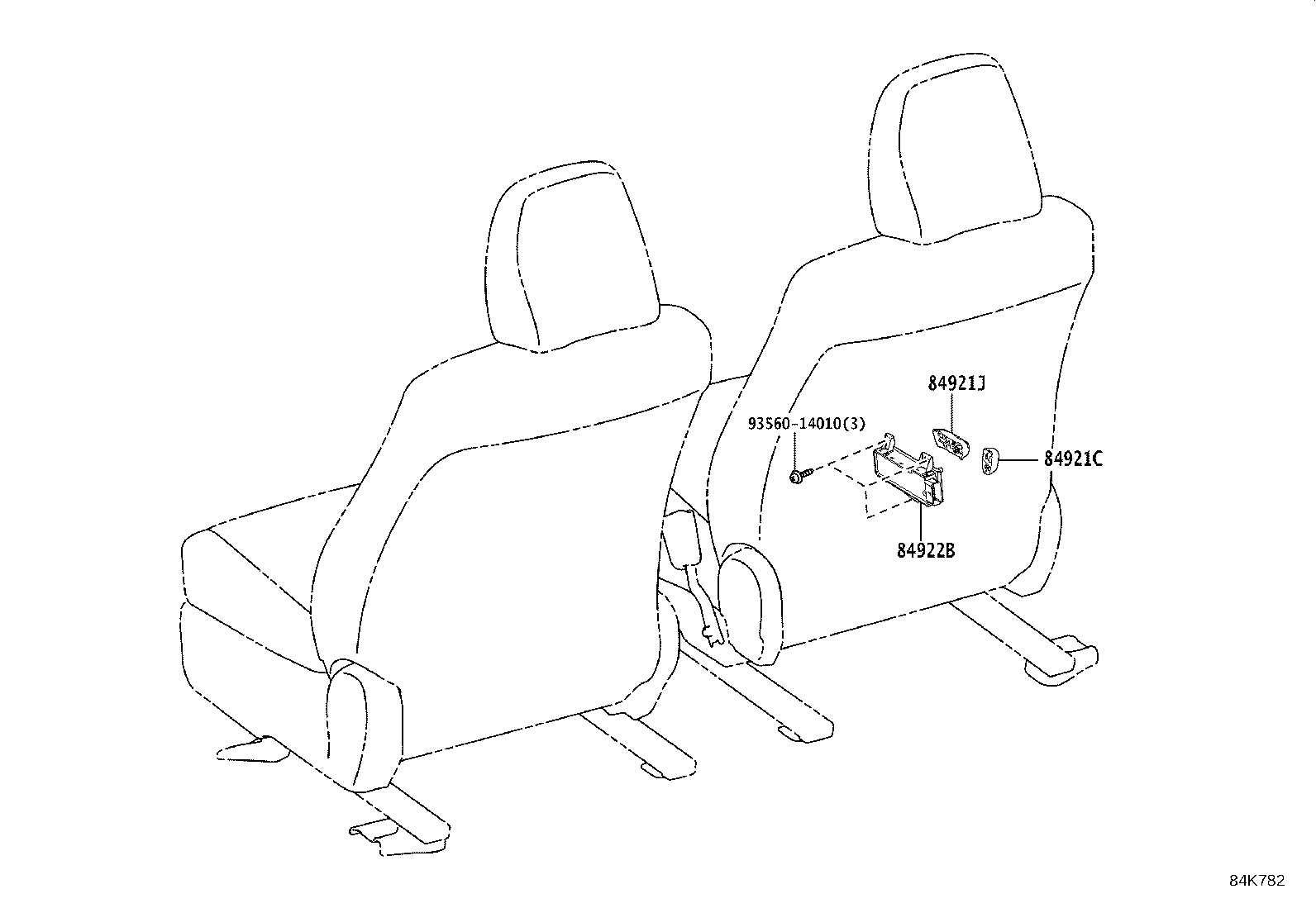

SEAT

diagram 84921C 84921J 84922B 9356014010
Part # Description Qty Price
Common parts
93560-14010

ILLUST NO. 7 OF 7(1908- )

Click highlighted areas on diagram

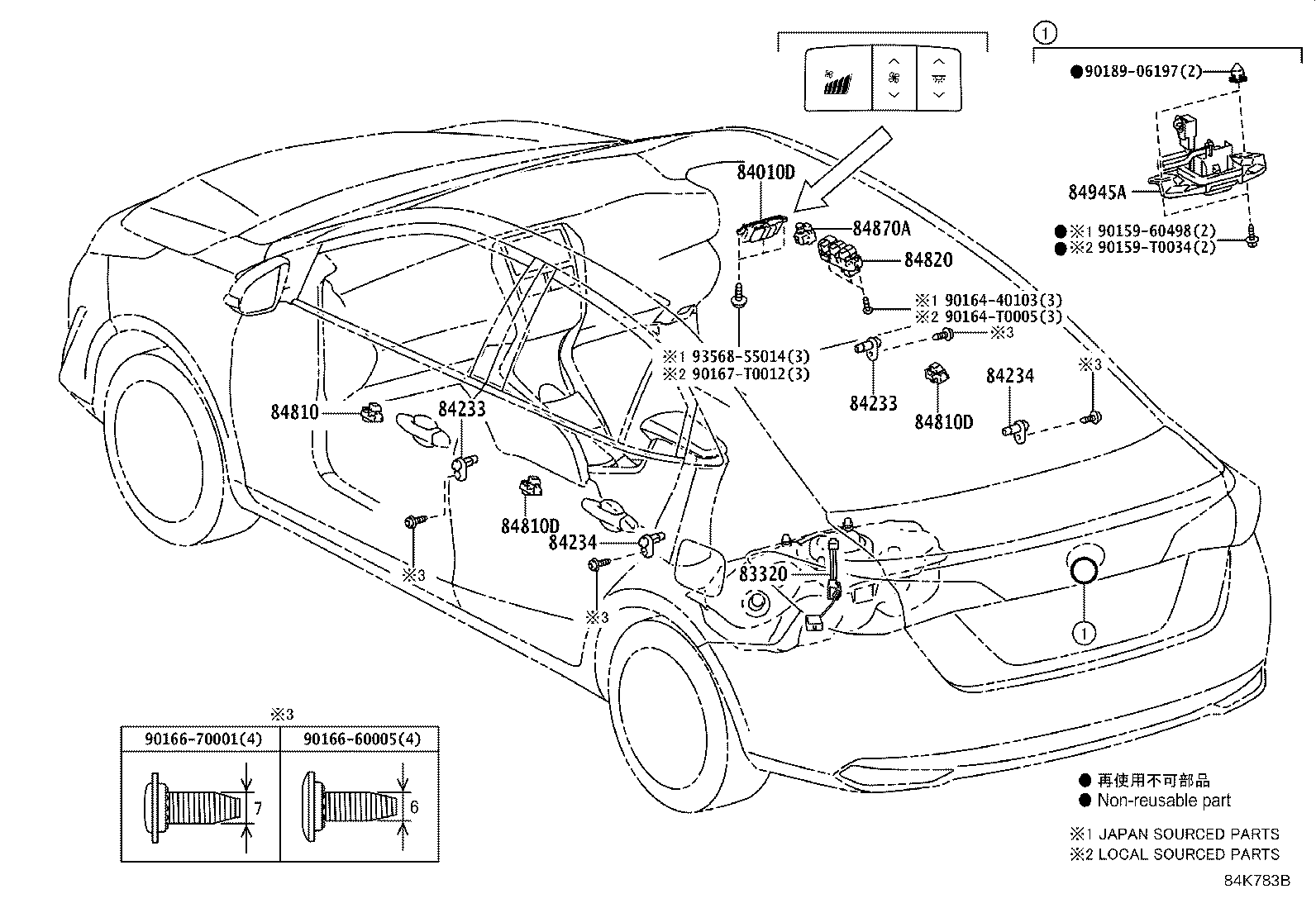

DOOR, ROOF, FLOOR & LUGGAGE

diagram 83320 84010D 84233 84233 84234 84234 84810 84810D 84810D 84820 84870A 84945A 9015960498 90159T0034 9016440103 90164T0005 9016660005 9016670001 90167T0012 9018906197 9356855014
Part # Description Qty Price
Common parts
90159-60498
90159-T0034
90164-40103
90164-T0005
90166-60005
90166-70001
90167-T0012
90189-06197
93568-55014

ILLUST NO. 1 OF 7(1911- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 827150DP70 827150DU10 83530 84210 84540 89465 89465 89467B 89615 90105T0156 90119T0342 9043018008 9155381014 9155381014 9165140620
Part # Description Qty Price
Common parts
82715-0DP70
82715-0DU10
90105-T0156
90119-T0342
90430-18008
91553-81014
91651-40620

ILLUST NO. 2 OF 7(1911- )

Click highlighted areas on diagram

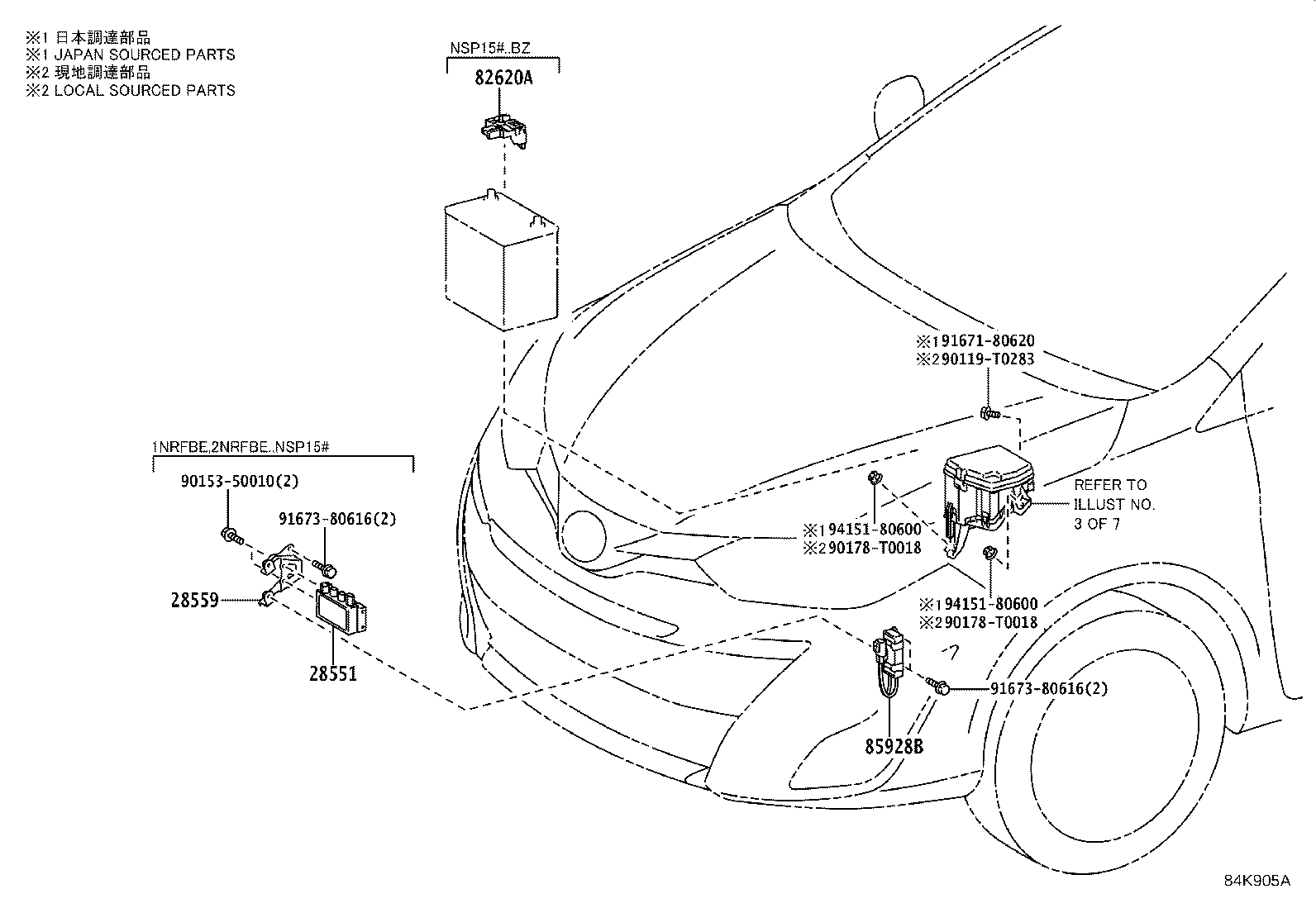

ENGINE ROOM

diagram 28551 28559 82620A 85928B 90119T0283 9015350010 90178T0018 90178T0018 9167180620 9167380616 9167380616 9415180600 9415180600
Part # Description Qty Price
Common parts
90119-T0283
90153-50010
90178-T0018
91671-80620
91673-80616
94151-80600

ILLUST NO. 3 OF 7(1911- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82210P 82600E 82616 82660 82660B 82660C 82660F 82660F 82661 82662A 82663 82741 85916P 85926 85927 85927A 85934 86530
Part # Description Qty Price

ILLUST NO. 4 OF 7(1911- )

Click highlighted areas on diagram

COWL

diagram 28371 28371C 8202 8202 82210N 82210N 82600D 82600D 82600F 82610A 82642B 82660D 82660D 82660D 82660D 82660E 82660E 82660E 82660H 82660H 82672A 82673A 82673B 82715W 82730A 84270Q 84340 84345 84520 84550 84930F 85912 85916D 85916L 85916N 85916P 85940 87299 88280A 89120A 89221B 89420F 89650 89730A 90119T0313 90159T0003 90178T0007 90178T0007 9017906274 9017906274 9167380616 9167380620 9412041000 9412041000 9415180600
Part # Description Qty Price
Common parts
90119-T0313
90159-T0003
90178-T0007
90179-06274
91673-80616
91673-80620
94120-41000
94151-80600
Linked diagrams
8202

ILLUST NO. 5 OF 7(1911- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84152 8424 84988L 85530 85535B 89611
Part # Description Qty Price
Linked diagrams
8424

ILLUST NO. 6 OF 7(1911- )

Click highlighted areas on diagram

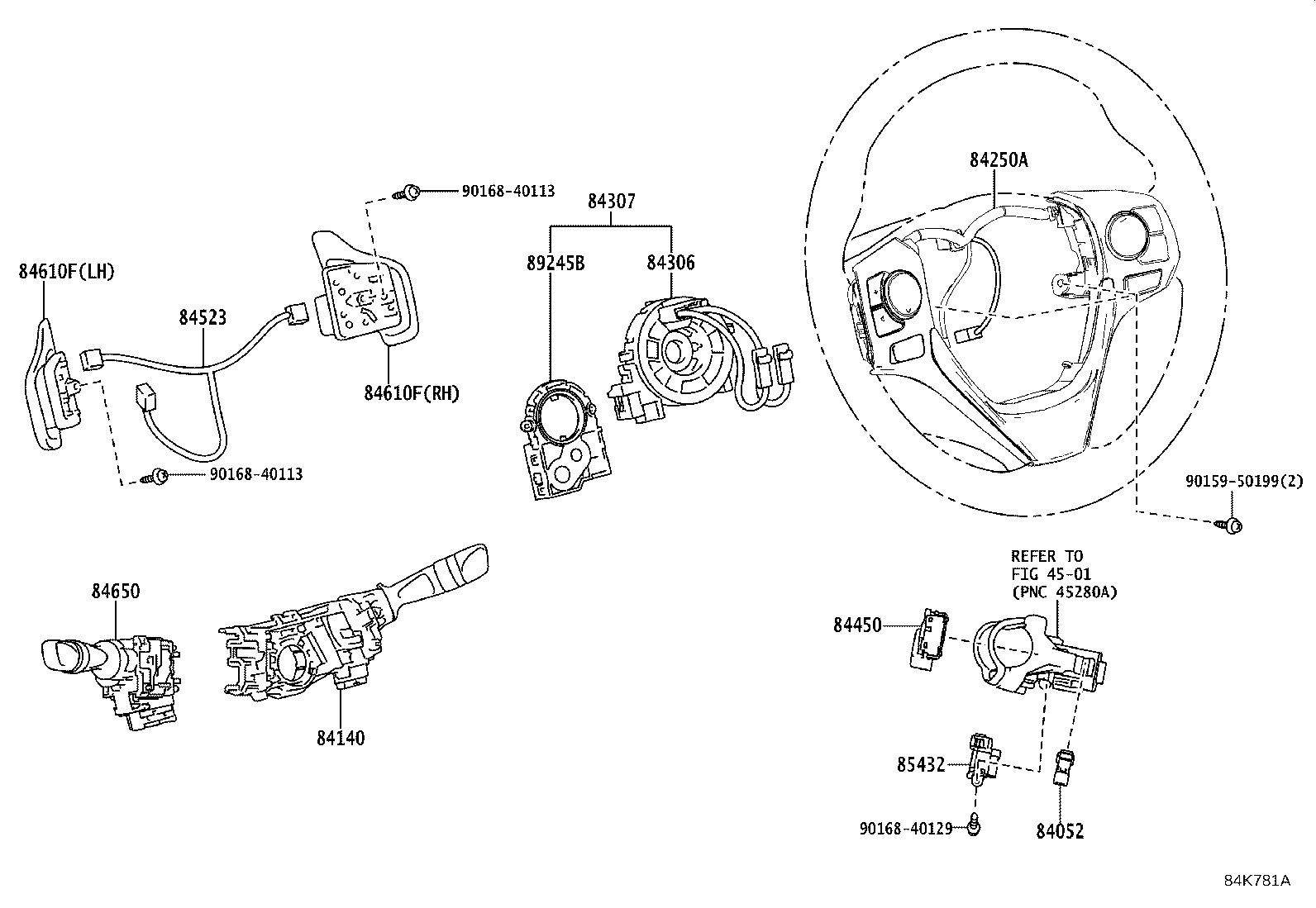

STEERING

diagram 4501 84052 84140 84250A 84306 84307 84450 84523 84610F 84610F 84650 85432 89245B 9015950199 9016840113 9016840113 9016840129
Part # Description Qty Price
Common parts
90159-50199
90168-40113
90168-40129
Linked diagrams
4501

ILLUST NO. 7 OF 7(1911- )5D

Click highlighted areas on diagram

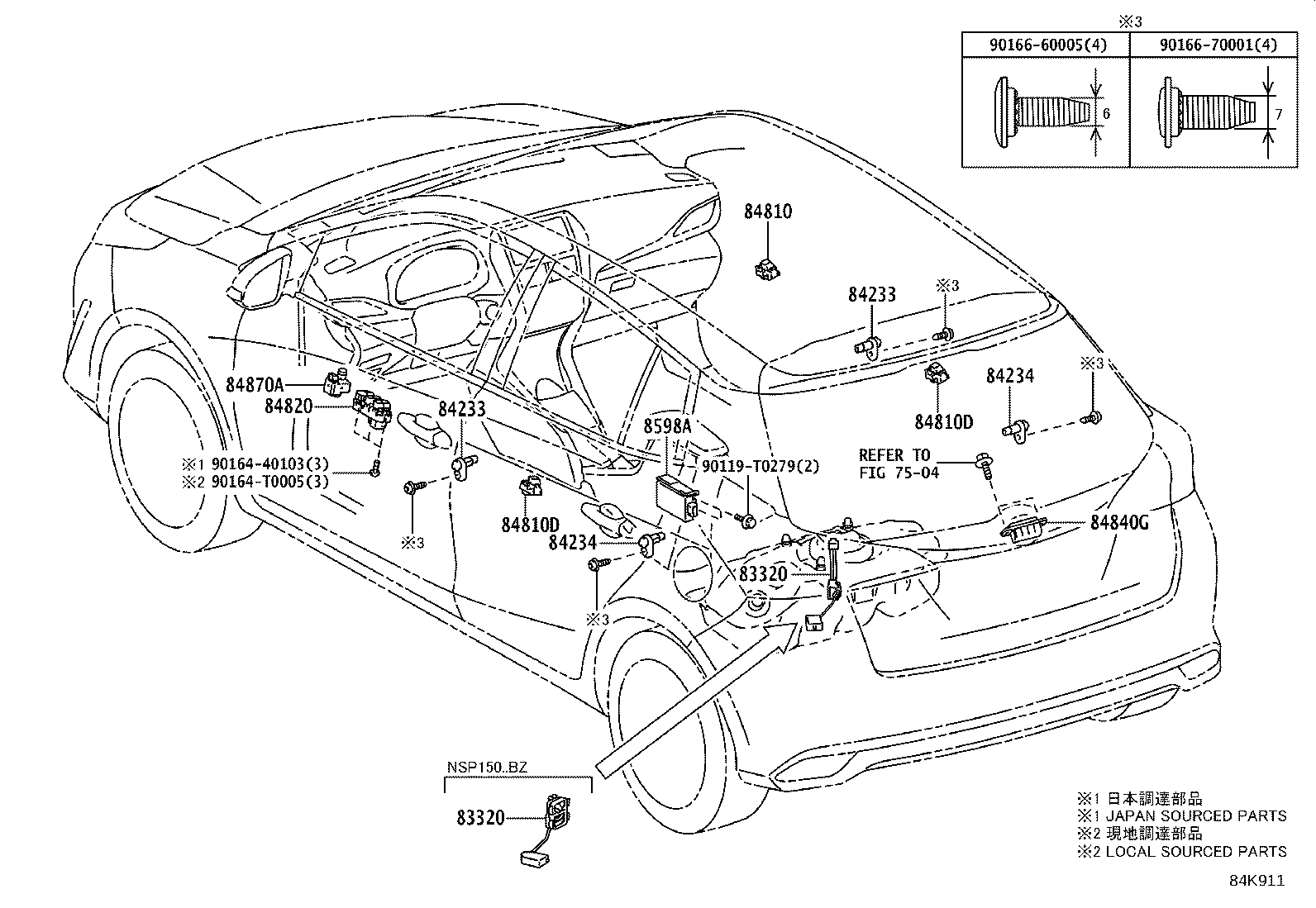

DOOR,ROOF,FLOOR & BACK DOOR

diagram 7504 83320 83320 84233 84233 84234 84234 84810 84810D 84810D 84820 84840G 84870A 8598A 90119T0279 9016440103 90164T0005 9016660005 9016670001
Part # Description Qty Price
Common parts
90119-T0279
90164-40103
90164-T0005
90166-60005
90166-70001
Linked diagrams
7504
