NSP151L-AHXGKV (2017)
Toyota Yaris
ILLUST NO. 1 OF 3(1310-1806)NSP150,151..GCC ; (1310- )NSP150,151..GEN,PH,SA,VN..A ; (1310- )NC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-0Y040 |
2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H) |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0Y010 |
2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H) |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D200 |
NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H) |
1 | ||
| 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 | ||||
| 77028-0D160 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D290 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77001-0D280 |
NSP150,151..GCC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D070 |
NSP150,151..H |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0D110 |
NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-0D070 |
NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D190 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D280 |
NSP150,151..H |
1 | ||
| 77291-0D210 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NSP151..C |
2 | ||
| 77391-12020 |
NSP150,151..H (J) |
2 | ||
| 77391-02020 |
NSP150,151..H (L) |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NSP151..C |
2 | ||
| 77391-12020 |
NSP150,151..H (J) |
2 | ||
| 77391-02020 |
NSP150,151..H (L) |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0D120 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77606-0D130 |
NSP150,151..H |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-0D120 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-52040 |
NSP150,151..H |
1 | ||
| 77645-0D060 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77701-0D120 |
NSP150,151..GCC |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-0D110 |
NSP151..C |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0D130 |
NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H) |
1 | ||
| Common parts | ||||
| 90119-T0327 | ||||
| 90119-T0341 | ||||
| 90119-T0555 | ||||
| 90182-T0041 | ||||
| 90269-05049 | ||||
| 90301-07020 | ||||
| 90301-T0035 | ||||
| 90466-11004 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1310- )

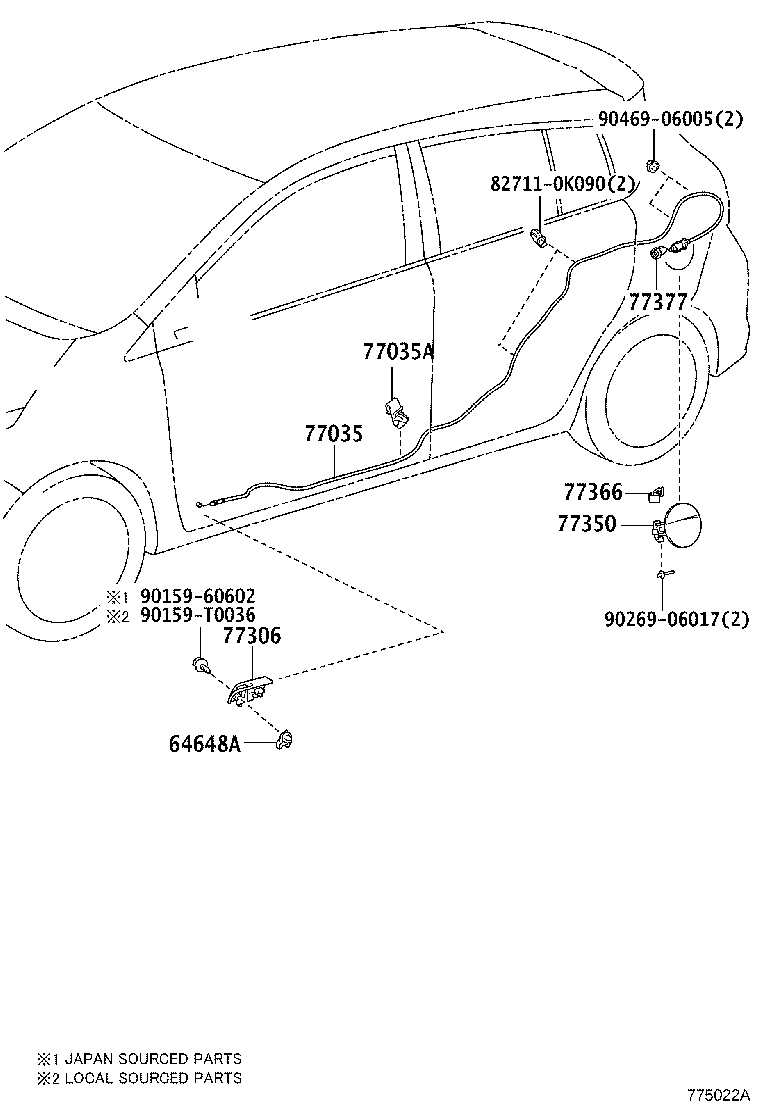

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-0D020 |
NSP151..C |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-0D020 |
NSP151..C |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D600 |
NSP150,151..H |
1 | ||
| 77035-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77035-0D330 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D600 |
NSP150,151..H |
1 | ||
| 77035-0D420 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77035-0D330 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D070 |
NSP150..CVT..PH;NSP150..LHD..(BZ,GCC,GEN);NSP151..AGT,BZ,GCC,GEN,PH,VN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D070 |
NSP150..CVT..PH;NSP150..LHD..(BZ,GCC,GEN);NSP151..AGT,BZ,GCC,GEN,PH,VN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0D200 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52011 |
NSP151..C |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
NSP151..C |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
NSP151..C |
1 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 82711-35520 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-06005 | ||||
| 90469-T0003 | ||||
ILLUST NO. 2 OF 3(1310- )NSP15#

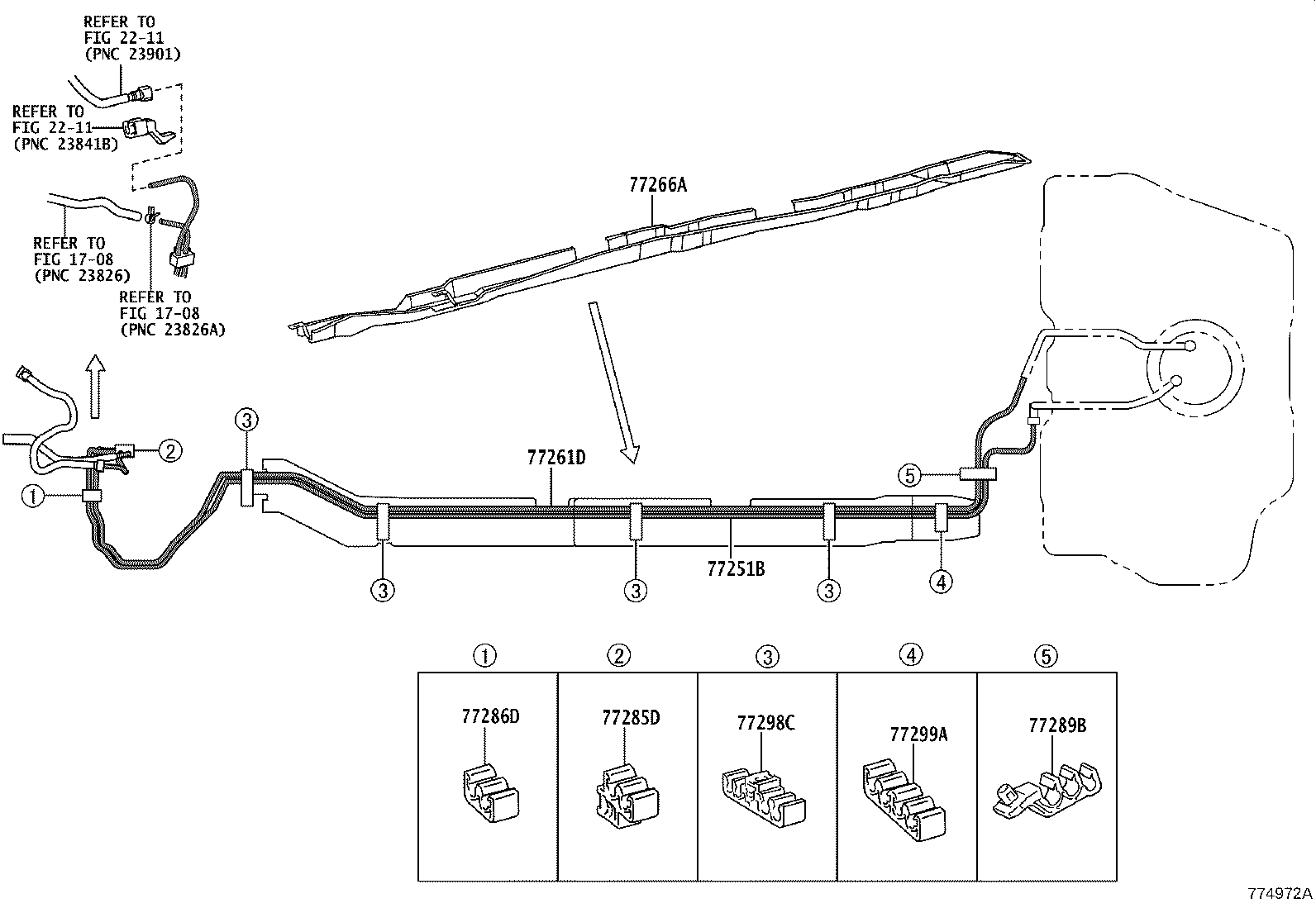

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D590 |
NSP150,151..H |
1 | ||
| 77251-0D500 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77251-0D490 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0D440 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77261-0D520 |
NSP150,151..H |
1 | ||
| 77261-0D430 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-0D130 |
NSP150,151..H |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D290 |
NSP150,151..H |
1 | ||
| 77285-0D240 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0D230 |
NSP150,151..H |
1 | ||
| 77286-0D180 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0D140 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77289-0D190 |
NSP150,151..H |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0D120 |
NSP151..F |
4 | ||
| 77298-0D200 |
NSP150,151..H |
4 | ||
| 77298-0D170 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0D140 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 77299-0D180 |
NSP150,151..H |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 3(1908- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0327 | ||||
| 90119-T0341 | ||||
| 90119-T0555 | ||||
| 90182-T0041 | ||||
| 90301-07020 | ||||
| 90301-08020 | ||||
| 90466-11004 | ||||
| 90466-T0048 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1908- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1908- )

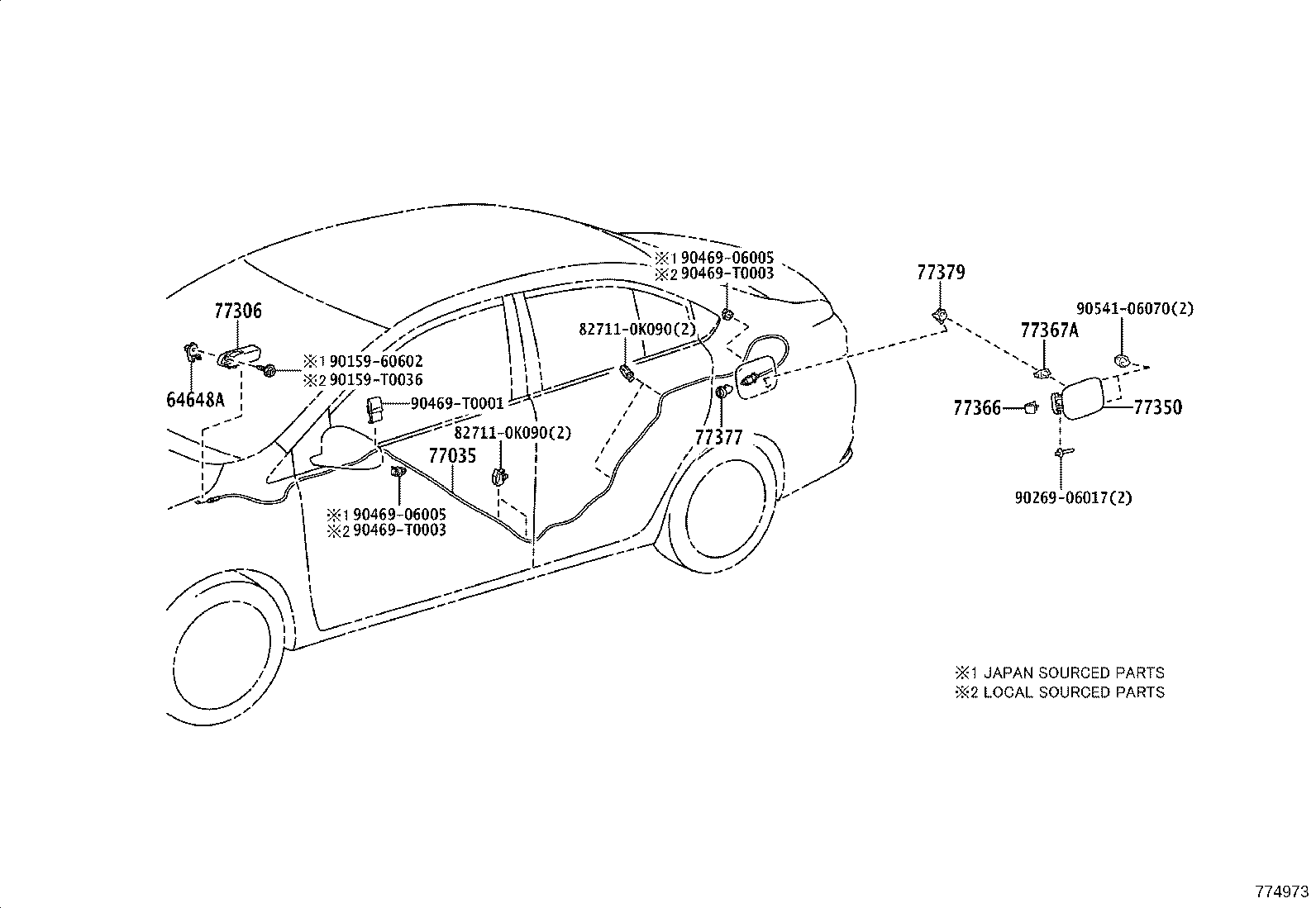

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-0K090 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-06005 | ||||
| 90469-T0001 | ||||
| 90469-T0003 | ||||
| 90541-06070 | ||||
ILLUST NO. 2 OF 3(1911- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1911- )5D
FUEL LID OPENR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-0K090 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-06005 | ||||
