NSP151L-AHXGKV (2017)
Toyota Yaris
(1310- )
WITH(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

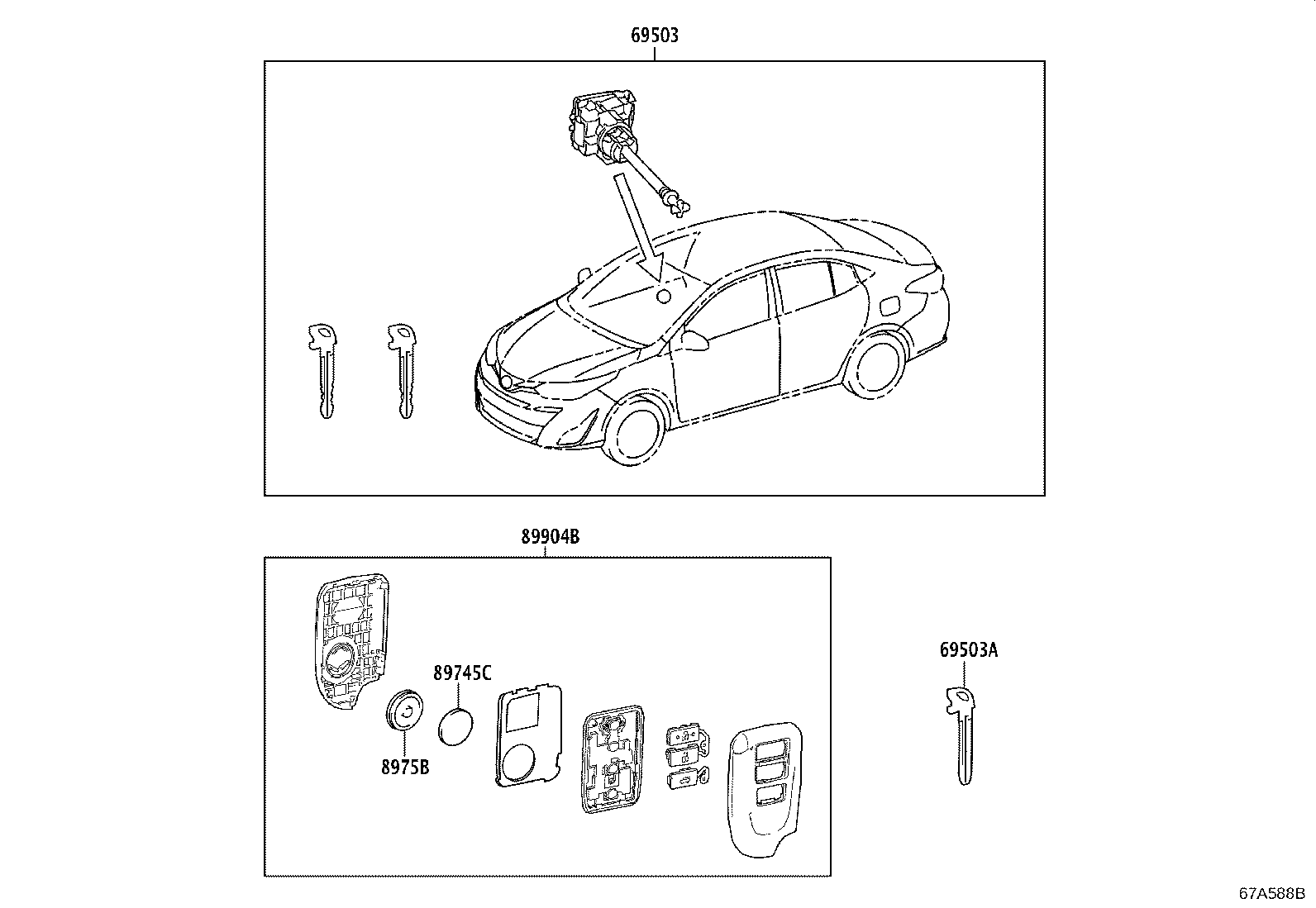

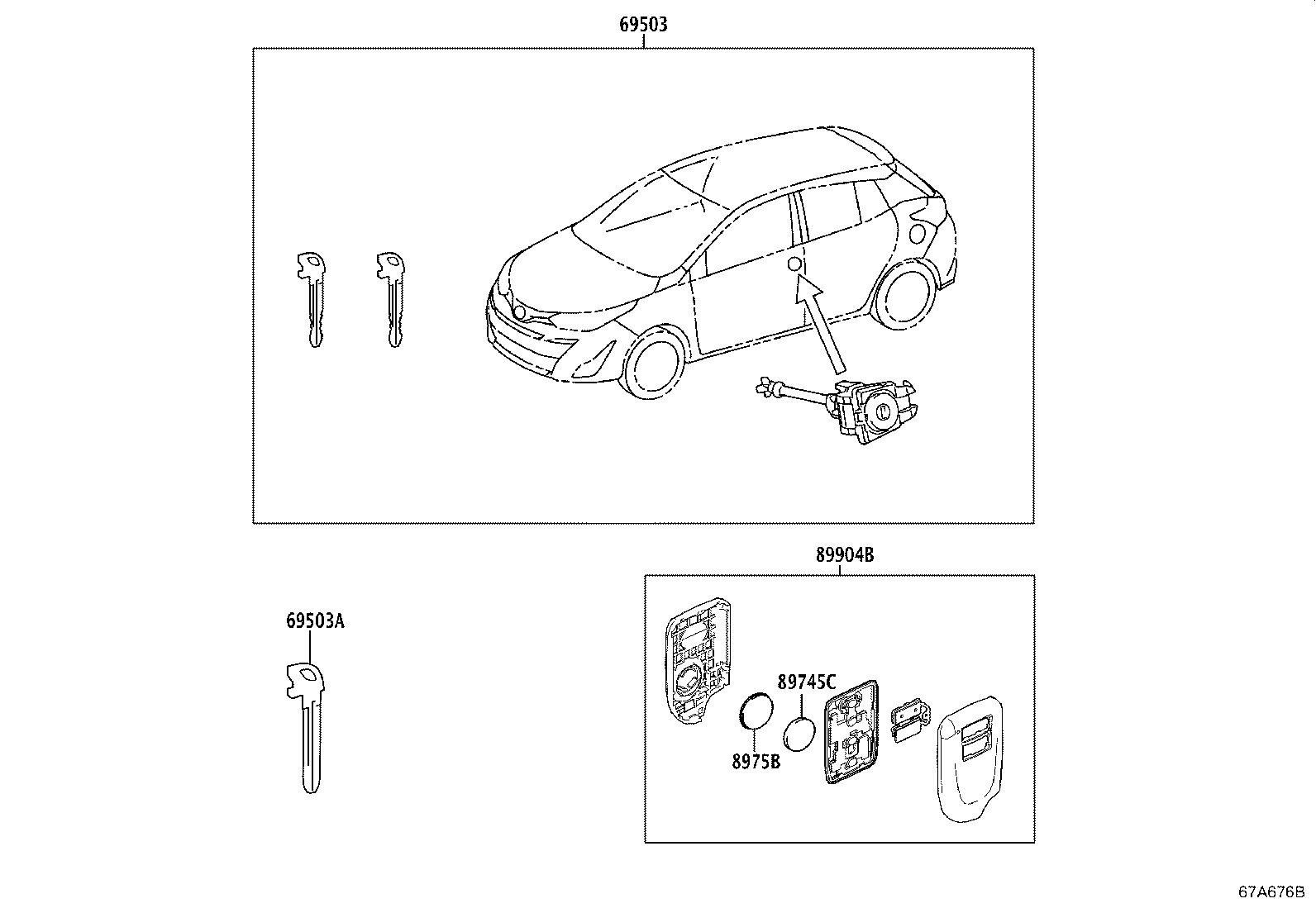

| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0DJ20 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 69005-0DL90 |
NSP151..AGT..G;NSP150,151..(D,R)..H WIRELESS KEY 2 PCS. |
1 | ||
| 69005-0DK50 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 69005-0DK50 |
NSP151..V..C |
1 | ||
| 69005-0DK40 |
NSP151..CVT..(G,R)..C WIRELESS KEY 2 PCS. |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
NSP151..AGT..G;NSP150,151..(D,R)..H MASTER KEY,W(*68) |
2 | ||
| 69515-52180 |
NSP151..CVT..G..C MASTER KEY,BRUNEI SPEC |
1 | ||
| 69515-52180 |
NSP151..GCC..G MASTER KEY,G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-0K010 |
NSP151..GCC..G CR2032,G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745-0K010 |
NSP151..GCC..G CR2032,UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745-0K010 |
NSP151..CVT..G..C CR2032,BRUNEI SPEC |
1 | ||
| 8975B - COVER, TRANSMITTER BATTERY HOUSING | ||||
| 8975B-0D010 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
2 | ||
| 8975B-0D010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
2 | ||
| 8975B-0D010 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-0D200 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
2 | ||
| 89904-0D220 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
2 | ||
| 89904-0D270 |
NSP151..V..C |
2 | ||
| 89904-0D270 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||

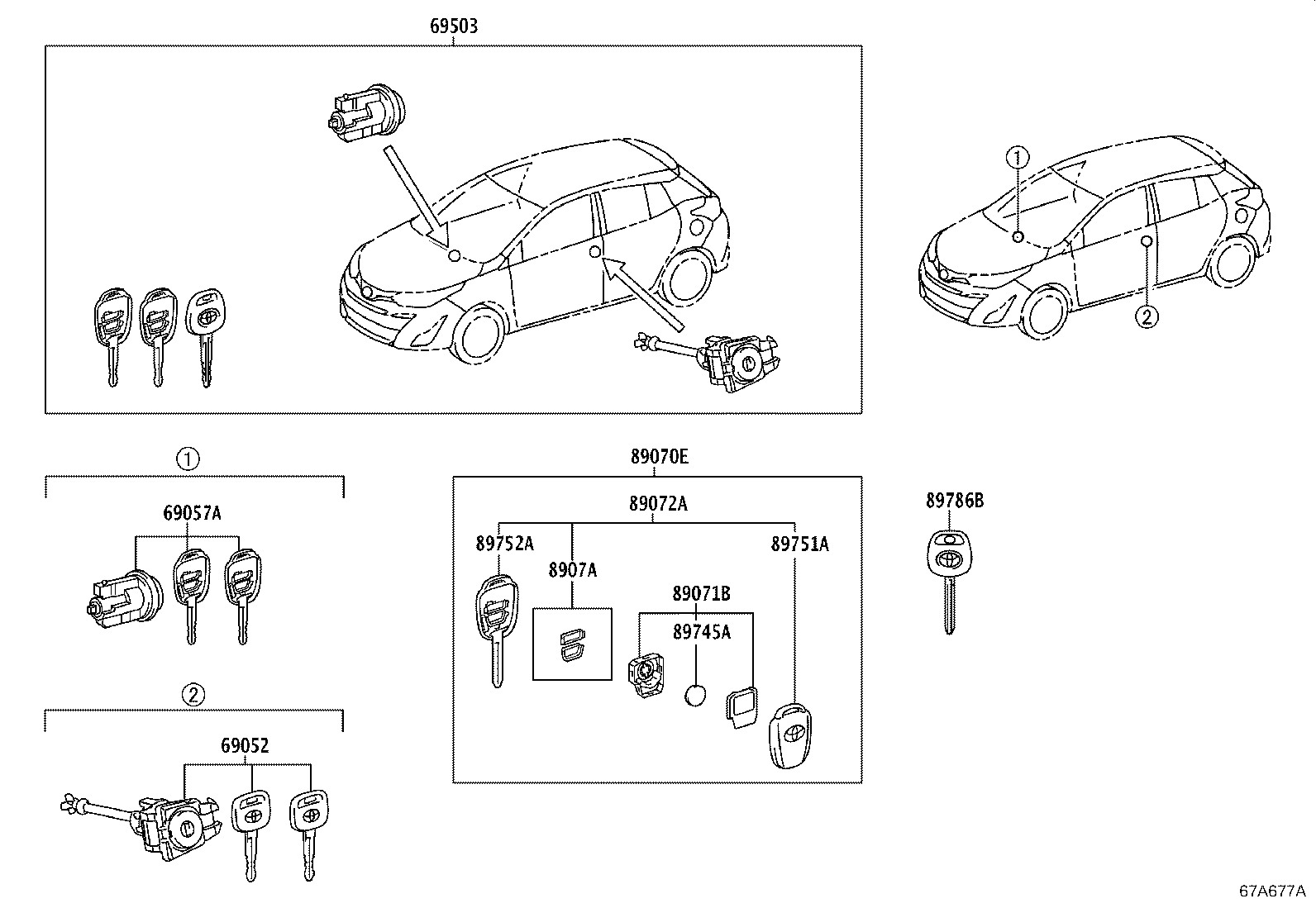

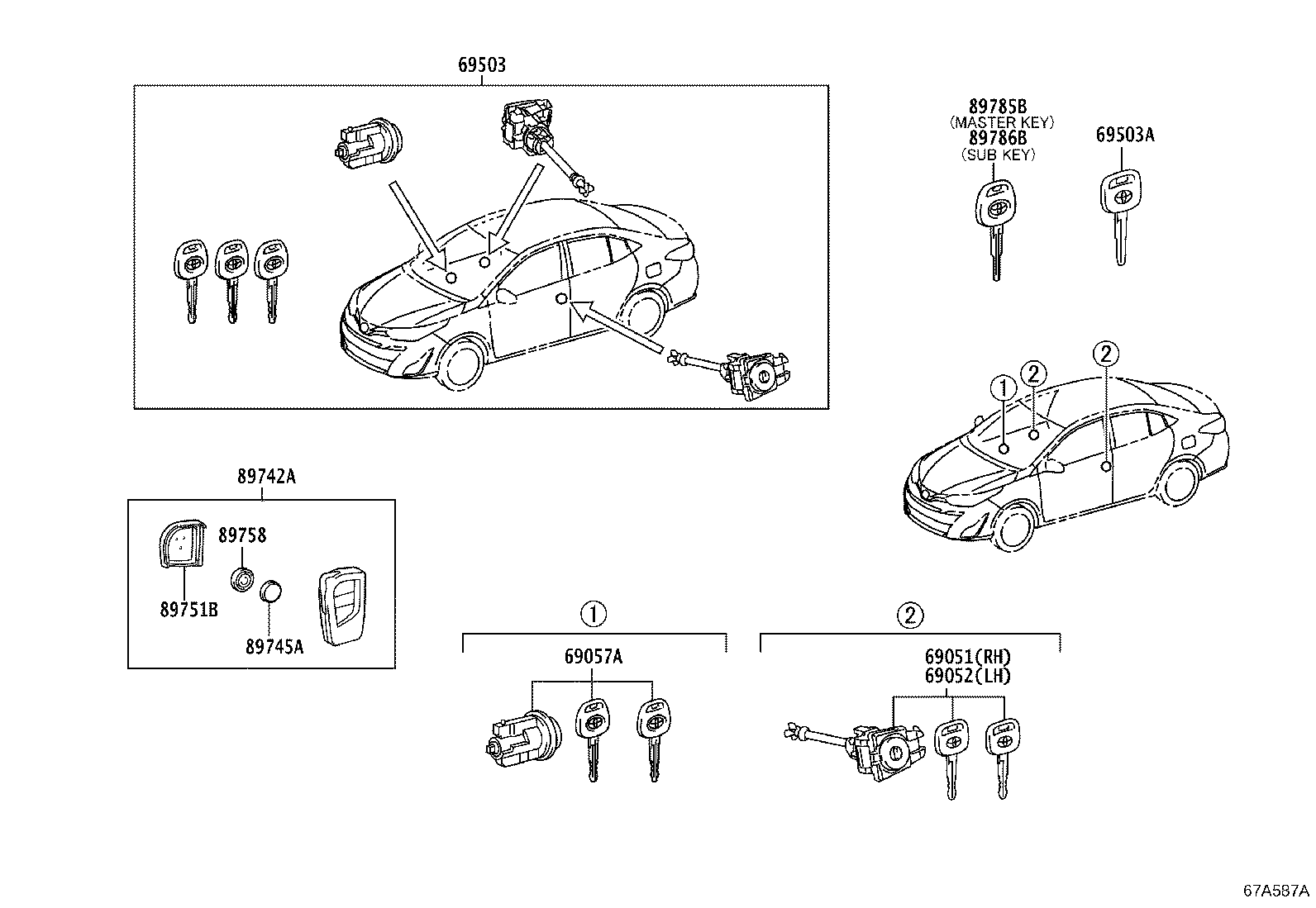

(1310- )GCC,GEN,IDN,MA,PH,SA,TH,VN..A,C
WITHOUT(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0D370 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0D350 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0D700 |
NSP151..CVT..(G,R)..C WIRELESS KEY 2 PCS. |
1 | ||
| 69057-0DB30 |
NSP151..AGT..G;NSP150,151..(D,R)..H WIRELESS KEY 2 PCS. |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0DJ20 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 69005-0DL90 |
NSP151..AGT..G;NSP150,151..(D,R)..H WIRELESS KEY 2 PCS. |
1 | ||
| 69005-0DK50 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 69005-0DK50 |
NSP151..V..C |
1 | ||
| 69005-0DK40 |
NSP151..CVT..(G,R)..C WIRELESS KEY 2 PCS. |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
NSP151..AGT..G;NSP150,151..(D,R)..H MASTER KEY,W(*68) |
2 | ||
| 69515-52180 |
NSP151..CVT..G..C MASTER KEY,BRUNEI SPEC |
1 | ||
| 69515-52180 |
NSP151..GCC..G MASTER KEY,G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-0D640 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89070-0D720 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 89070-0D580 |
NSP151..GCC..R SAUDI ARABIA SPEC |
1 | ||
| 89070-0D720 |
NSP151..(G,R)..C |
1 | ||
| 89070-0D630 |
NSP151..GCC;NSP150..GCC..R UAE, OMAN SPEC |
1 | ||
| 89070-0D640 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89070-0DC11 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 89070-0D640 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89070-0DC10 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 89070-0D640 |
NSP150,151..GCC |
1 | ||
| 89070-0D721 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 89070-0D721 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-0D070 |
NSP151..GCC..R SAUDI ARABIA SPEC |
1 | ||
| 89071-0D130 |
NSP151..(G,R)..C |
2 | ||
| 89071-0D070 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
2 | ||
| 89071-0D070 |
NSP151..GCC;NSP150..GCC..R UAE, OMAN SPEC |
1 | ||
| 89071-0D100 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89071-0D100 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89071-0D100 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89071-0D130 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||
| 89071-0D071 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
2 | ||
| 89071-0D100 |
NSP150,151..GCC |
1 | ||
| 89071-0D131 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
2 | ||
| 89071-0D131 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-0D340 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89072-0D340 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89072-0D700 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 89072-0D450 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 89072-0D340 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89072-0D450 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 8907A-52010 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 8907A-52010 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||
| 8907A-52010 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 8907A-52010 |
NSP150..H;NSP151..6F..(D,R);NSP151..(AGT,IDN)..G;NSP151..CVT..(D,R)..(C,H) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0D040 |
NSP151..GCC..G CR1620,UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745-0D060 |
NSP151..CVT..G..C CR1620,BRUNEI SPEC |
1 | ||
| 89745-0D040 |
NSP151..GCC..G CR1620,G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745-0D040 |
NSP151..GCC..G CR1620,JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89745-0D060 |
NSP151..5F..G;NSP151..CVT..(G,R)..C CR1620 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42090 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89751-42090 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89751-42090 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89751-0D150 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
2 | ||
| 89751-42090 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
2 | ||
| 89751-42090 |
NSP151..CVT..G..C BRUNEI SPEC |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-0D120 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89752-0D120 |
NSP151..GCC..G UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89752-0D160 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| 89752-0D120 |
NSP151..GCC..G JORDAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89752-0D160 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-08040 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0D040 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 89786-08040 |
NSP151..GCC..G BLANK KEY,G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 89786-0D040 |
NSP151..5F..G;NSP151..CVT..(G,R)..C |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
