NSP151L-AHXGKV (2017)
Toyota Yaris

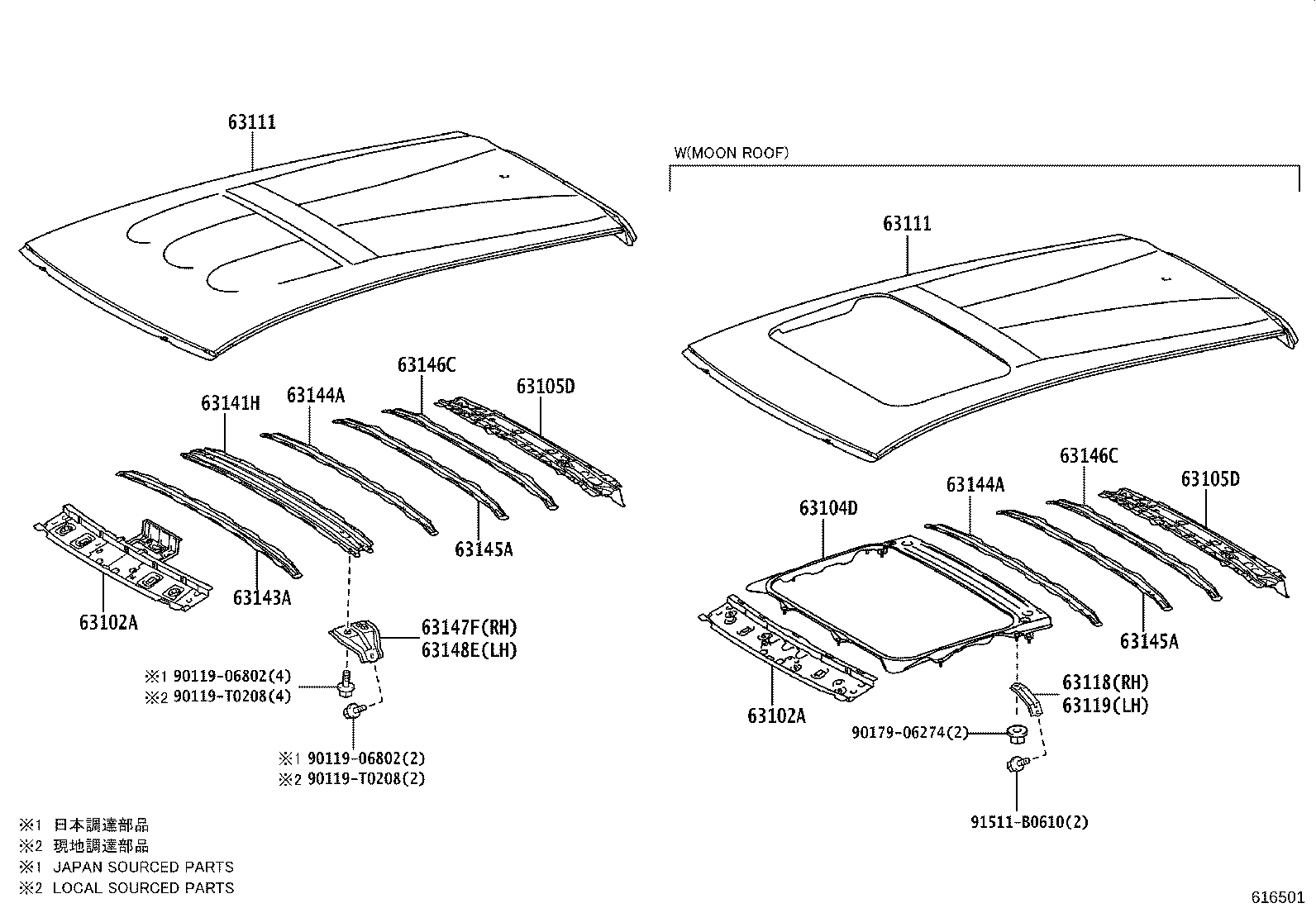

ILLUST NO. 1 OF 2(1310- )
PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-0D250 |
NSP151..V..H |
1 | ||
| 63102-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63102-0D260 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-0D250 |
NSP151..V..H |
1 | ||
| 63102-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63102-0D260 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-0D060 |
NSP151..V..H |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-0D190 |
NSP150,151..H |
1 | ||
| 63105-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-0D190 |
NSP150,151..H |
1 | ||
| 63105-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0140 |
NSP151..V..H |
1 | ||
| 63111-K0040 |
NSP151..C |
1 | ||
| 63111-K0130 |
NSP150..CVT..(GCC,PH);NSP151..CVT..(GCC,IDN,VN)..R;NSP151..(GCC,IDN,PH,SA,VN)..(G,V) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0140 |
NSP151..V..H |
1 | ||
| 63111-K0040 |
NSP151..C |
1 | ||
| 63111-K0130 |
NSP150..CVT..(GCC,PH);NSP151..CVT..(GCC,IDN,VN)..R;NSP151..(GCC,IDN,PH,SA,VN)..(G,V) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0D030 |
NSP151..V..H |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-0D030 |
NSP151..V..H |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0D260 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63141-0D240 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0D220 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63143-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63144-0D230 |
NSP150,151..H |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D110 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63144-0D230 |
NSP150,151..H |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63145-0D010 |
NSP151..C |
1 | ||
| 63145-0D130 |
NSP150,151..H |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63145-0D010 |
NSP151..C |
1 | ||
| 63145-0D130 |
NSP150,151..H |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63148-0D080 |
NSP150,151..H |
1 | ||
| 63148-0D030 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63148-0D080 |
NSP150,151..H |
1 | ||
| 63148-0D030 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-0D090 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 63147-0D130 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-0D130 |
NSP150,151..(D,G,R)..H |
1 | ||
| 63147-0D090 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90119-T0208 | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||
(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06802 | ||||
| 90119-T0208 | ||||
| 90119-T0329 | ||||
ILLUST NO. 1 OF 2(1911- )5D
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06802 | ||||
| 90119-T0208 | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||

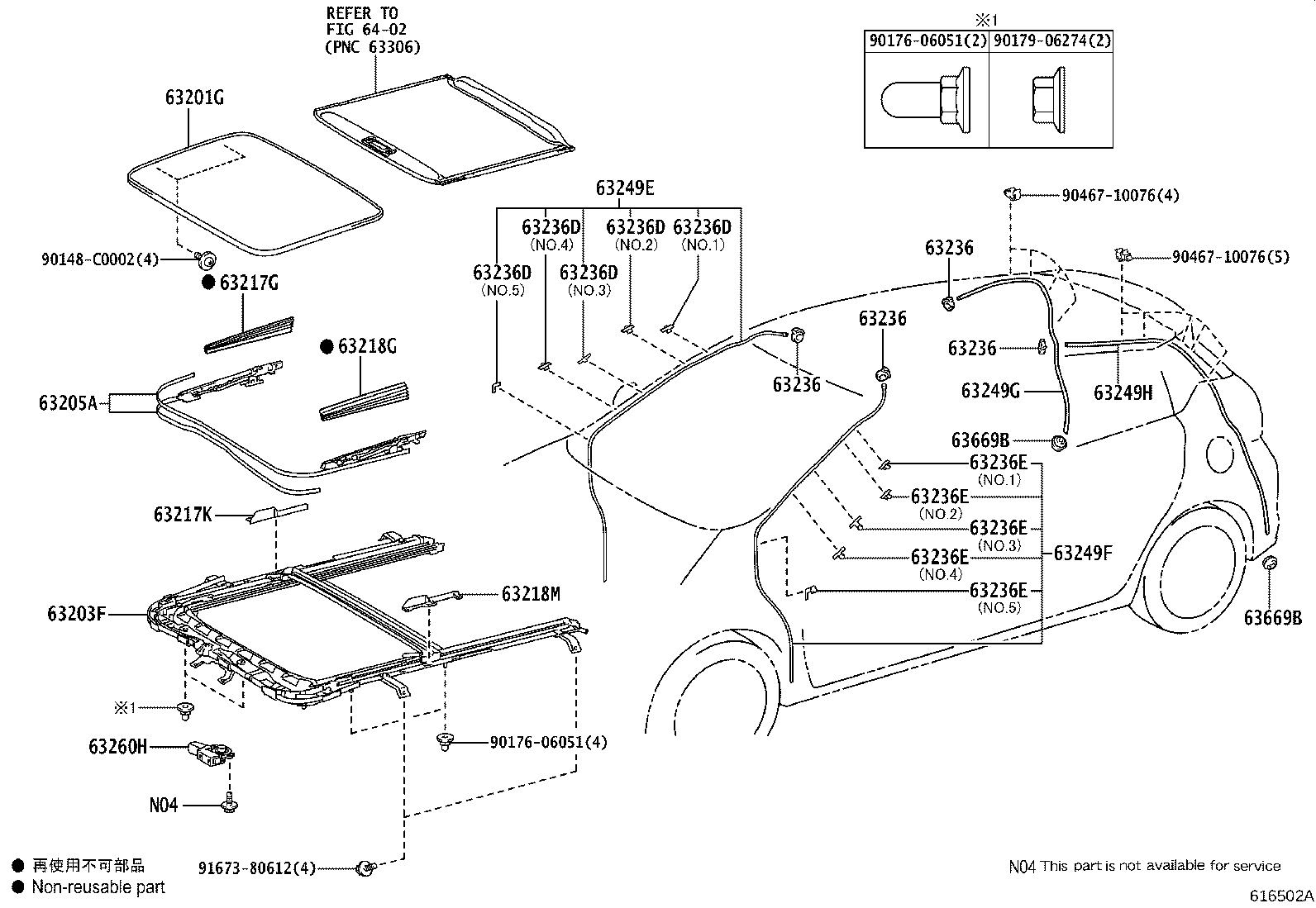

ILLUST NO. 2 OF 2(1911- )5D
MOON ROOF HOUSING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-C0002 | ||||
| 90176-06051 | ||||
| 90179-06274 | ||||
| 90467-10076 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
