NSP151L-AHXGKV (2017)
Toyota Yaris
(1310- )

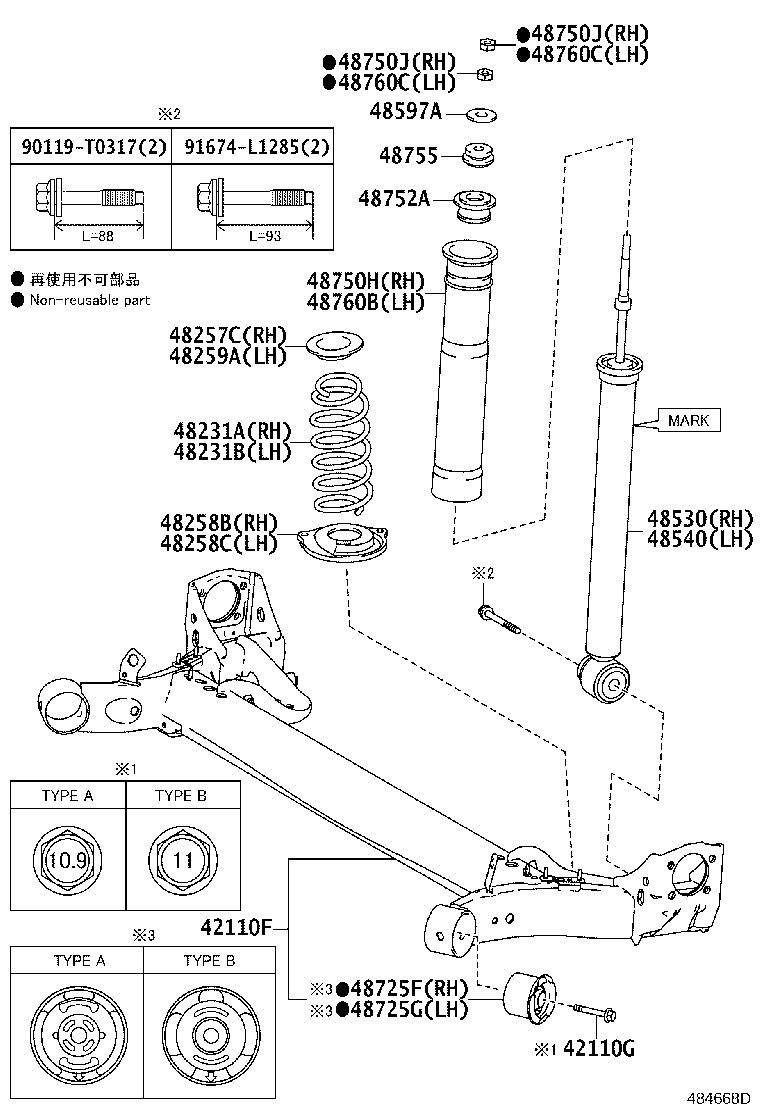

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-0D580 |
NSP150,151..H |
1 | ||
| 42110-0D501 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 42110-0D501 |
NSP151..V..C |
1 | ||
| 42110-0D491 |
NSP151..G..C |
1 | ||
| 42110G - BOLT (FOR REAR AXLE BEAM) | ||||
| 90119-T0598 |
NSP151..C TYPE A:REFER ILLUST. |
2 | ||
| 90119-12385 |
NSP151..C TYPE B:REFER ILLUST. |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-0D480 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN)..(D,R)..A |
1 | ||
| 48231-0DA10 |
NSP151..GCC..G;NSP151..PH,SA,VN |
1 | ||
| 48231-0D770 |
NSP151..CVT..R..C |
1 | ||
| 48231-0DB20 |
NSP151..(G,V)..C |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-0DA10 |
NSP151..GCC..G;NSP151..PH,SA,VN |
1 | ||
| 48231-0D480 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN)..(D,R)..A |
1 | ||
| 48231-0DB20 |
NSP151..(G,V)..C |
1 | ||
| 48231-0D770 |
NSP151..CVT..R..C |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-0D150 |
NSP150,151..H |
1 | ||
| 48257-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48258-0D150 |
NSP150,151..H |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0D150 |
NSP150,151..H |
1 | ||
| 48258-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-0D150 |
NSP150,151..H |
1 | ||
| 48257-0D130 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-0DE70 |
NSP150,151..H MARK 48530-0DE70 |
1 | ||
| 48530-0DG90 |
NSP151..A,H;NSP152..HTWCB;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP150,151..CVT..(IDN,PH)..R MK.-0DG90 OR -0DF50 |
1 | ||
| 48530-0DE20 |
NSP151..(G,V)..C;NSP151..CVT..R..C MARK 48530-0DE20 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-0DE70 |
NSP150,151..H MARK 48530-0DE70 |
1 | ||
| 48530-0DE20 |
NSP151..(G,V)..C;NSP151..CVT..R..C MARK 48530-0DE20 |
1 | ||
| 48530-0DG90 |
NSP151..A,H;NSP152..HTWCB;NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP150,151..CVT..(IDN,PH)..R MK.-0DG90 OR -0DF50 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
NSP151..C |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-0D190 |
NSP150,151..H |
1 | ||
| 48725-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-0D190 |
NSP150,151..H |
1 | ||
| 48725-0D150 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-0D161 |
NSP150,151..C,H |
1 | ||
| 48750-0D210 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 48750-0D220 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61000 |
NSP151..C (J) |
2 | ||
| 90170-T0011 |
NSP151..C (L) |
2 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61000 |
NSP151..C (J) |
2 | ||
| 90170-T0011 |
NSP151..C (L) |
2 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-0D120 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 48752-0D140 |
NSP150,151..H |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-0D200 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 48755-0D230 |
NSP150,151..H |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-0D161 |
NSP150,151..C,H |
1 | ||
| 48750-0D220 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 48750-0D210 |
NSP151,152..A;NSP150..LHD..CVT;NSP150..5F..GEN..R |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90170-T0011 |
NSP151..C (L) |
2 | ||
| 94130-61000 |
NSP151..C (J) |
2 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90170-T0011 |
NSP151..C (L) |
2 | ||
| 94130-61000 |
NSP151..C (J) |
2 | ||
| Common parts | ||||
| 90119-T0317 | ||||
| 91674-L1285 | ||||
(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0317 | ||||
| 91674-L1285 | ||||
(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91674-L1285 | ||||
