NSP151L-AHXGKV (2017)
Toyota Yaris
(1310- )LHD..GCC,GEN,PH,VN..A

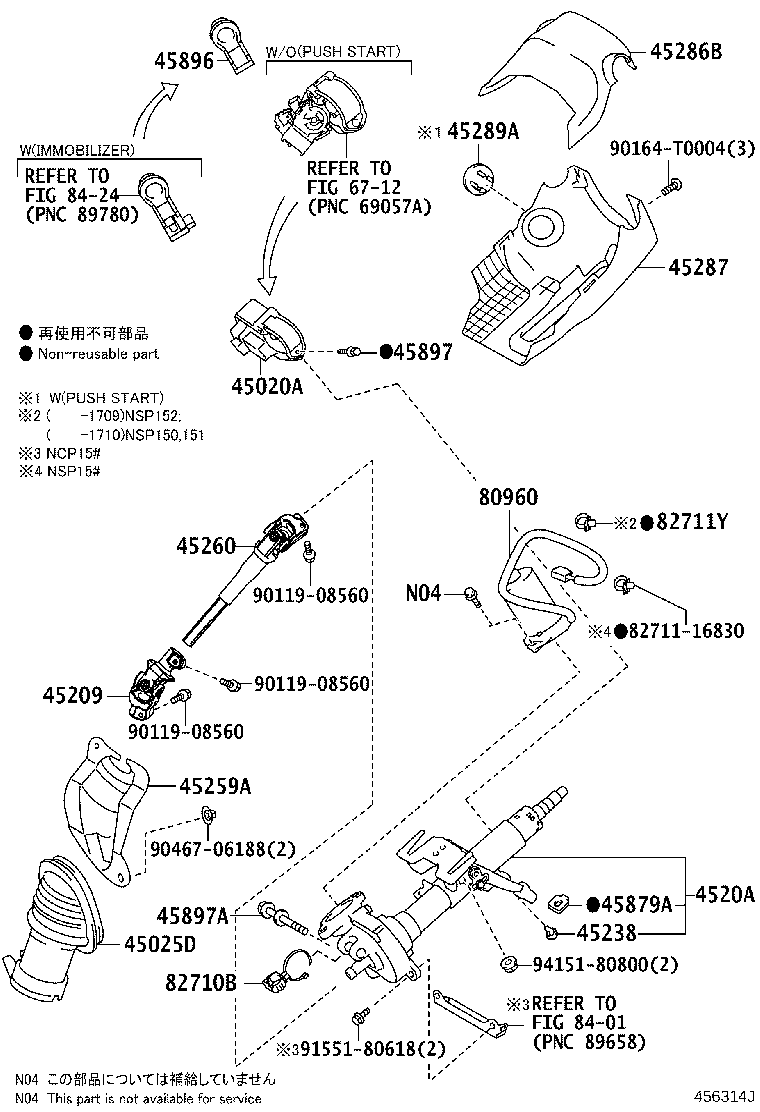

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-0K190 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 45020-0K210 |
NSP151..V..C |
1 | ||
| 45020-0K210 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0D190 |
NSP151..C |
1 | ||
| 45025-0D230 |
NSP150,151..H |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-0D130 |
NSP150,151..H |
1 | ||
| 45209-0D050 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-0D390 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 4520A-0D410 |
NSP151..(G,R)..C |
1 | ||
| 4520A-0D500 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 4520A-0D400 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 4520A-0D420 |
NSP151..V..C |
1 | ||
| 4520A-0D420 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-0D240 |
NSP150,151..H |
1 | ||
| 45259-0D160 |
NSP151..C |
1 | ||
| 45259-0D260 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0D270 |
NSP150,151..H |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0D311C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D320C0 |
NSP150,151..LHD..(GCC,GEN)..A BLACK,TRIM0#,2# |
1 | ||
| 45286-0D310C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D340C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0D280C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D281C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D290C0 |
NSP150,151..LHD..(GCC,GEN)..A BLACK,TRIM0#,2# |
1 | ||
| 45287-0D310C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-0D020C0 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL),BLACK,TRIM0#,2# |
1 | ||
| 45289-0D130C0 |
NSP151..CVT..G..C BRUNEI SPEC,BLACK,TRIM2# |
1 | ||
| 45289-0D130C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-52010 |
NSP150,151..H |
2 | ||
| 45879-0D060 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NSP151..C |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NSP151..C |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-0D340 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 80960-0D300 |
NSP150,151..H |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90164-T0004 | ||||
| 90467-06188 | ||||
| 91551-80618 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6712 | ||||
| 8401 | ||||
| 8424 | ||||
(1806- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-0K190 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 45020-0K210 |
NSP151..V..C |
1 | ||
| 45020-0K210 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0D190 |
NSP151..C |
1 | ||
| 45025-0D230 |
NSP150,151..H |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-0D130 |
NSP150,151..H |
1 | ||
| 45209-0D050 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-0D390 |
NSP151..VN..R;NSP150..GCC..G;NSP150..LHD..R..A;NSP151..(GCC,GEN)..A |
1 | ||
| 4520A-0D410 |
NSP151..(G,R)..C |
1 | ||
| 4520A-0D500 |
NSP151..AGT..G;NSP150,151..(D,R)..H |
1 | ||
| 4520A-0D400 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL) |
1 | ||
| 4520A-0D420 |
NSP151..V..C |
1 | ||
| 4520A-0D420 |
NSP151..CVT..G..C BRUNEI SPEC |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-0D240 |
NSP150,151..H |
1 | ||
| 45259-0D160 |
NSP151..C |
1 | ||
| 45259-0D260 |
NSP150..5F..GEN..R;NSP150..LHD..CVT..A;NSP151..(GCC,GEN,PH,VN)..A |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0D270 |
NSP150,151..H |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-0D270 |
NSP151..CVT..AGT..G;NSP150,151..CVT..(D,R)..H |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0D311C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D320C0 |
NSP150,151..LHD..(GCC,GEN)..A BLACK,TRIM0#,2# |
1 | ||
| 45286-0D310C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45286-0D340C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0D280C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D281C0 |
NSP150,151..H BLACK,TRIM2# |
1 | ||
| 45287-0D290C0 |
NSP150,151..LHD..(GCC,GEN)..A BLACK,TRIM0#,2# |
1 | ||
| 45287-0D310C0 |
NSP151..(G,V)..C;NSP151..CVT..R..C BLACK,TRIM2# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-0D020C0 |
NSP151..GCC..G G-HI PACKAGE, WITH(CRUISE CONTROL),BLACK,TRIM0#,2# |
1 | ||
| 45289-0D130C0 |
NSP151..CVT..G..C BRUNEI SPEC,BLACK,TRIM2# |
1 | ||
| 45289-0D130C0 |
NSP151..V..C BLACK,TRIM2# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-52010 |
NSP150,151..H |
2 | ||
| 45879-0D060 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NSP151..C |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NSP151..C |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-0D340 |
NSP151..(G,V)..C;NSP151..CVT..R..C |
1 | ||
| 80960-0D300 |
NSP150,151..H |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90164-50034 | ||||
| 90164-T0004 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
