NSP151L-AHXGKV (2017)
Toyota Yaris

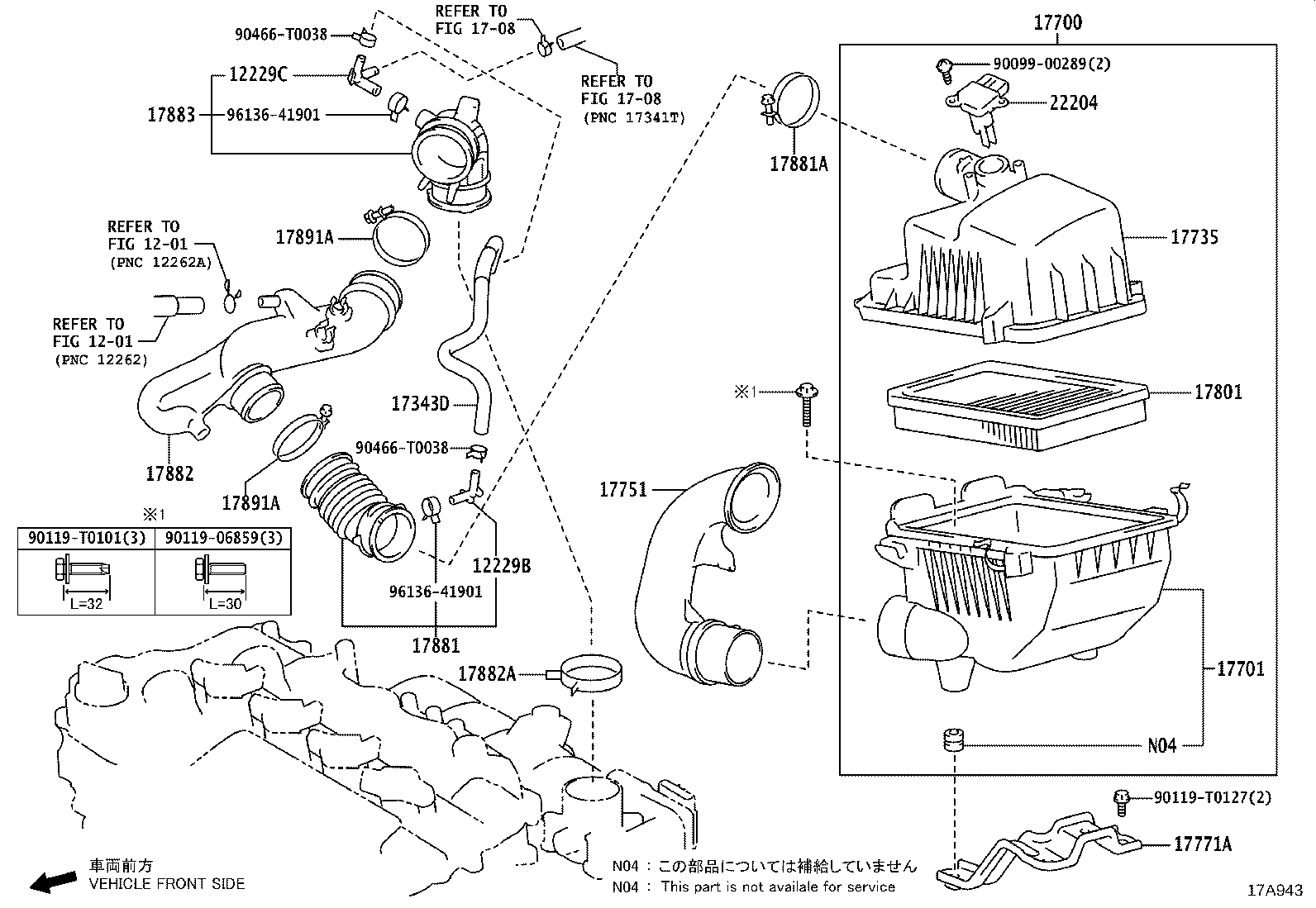

(1710- )2NRFE..F ; (1710- )1NRFE,2NRFE..CVT..GCC,GEN,MA,PH,SA,VN..A,B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229B - PIPE, VENTILATION, NO.1 | ||||
| 12229-0Y110 |
2NRFE..NSP151..CVT..C |
1 | ||
| 12229-0Y100 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 12229C - PIPE, VENTILATION, NO.2 | ||||
| 12229-0Y150 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,IDN,PH,SA,VN) |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-0Y011 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17343-0Y021 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0Y260 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17700-0Y200 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17700-0Y190 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y190 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17701-0M070 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701-0M090 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0Y140 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735-0Y210 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17735-0Y150 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y261 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 17751-0Y240 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y041 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771-0Y080 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17771-0Y090 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0Y070 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y240 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17881-0Y250 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y160 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17882-0Y140 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#..NSP150,151..AGT,BZ,GCC,GEN,PH,SA,VN |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y041 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17883-0Y061 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
1NRFBE,2NR#..NSP150,151..H (J) |
1 | ||
| 22204-0V020 |
2NRFE..NSP151..C |
1 | ||
| 22204-0V010 |
1NRFBE,2NR#..NSP150,151..H (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0127 | ||||
| 90167-T0033 | ||||
| 90387-T0026 | ||||
| 90466-T0038 | ||||
| 90480-T0015 | ||||
| 91673-80820 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||

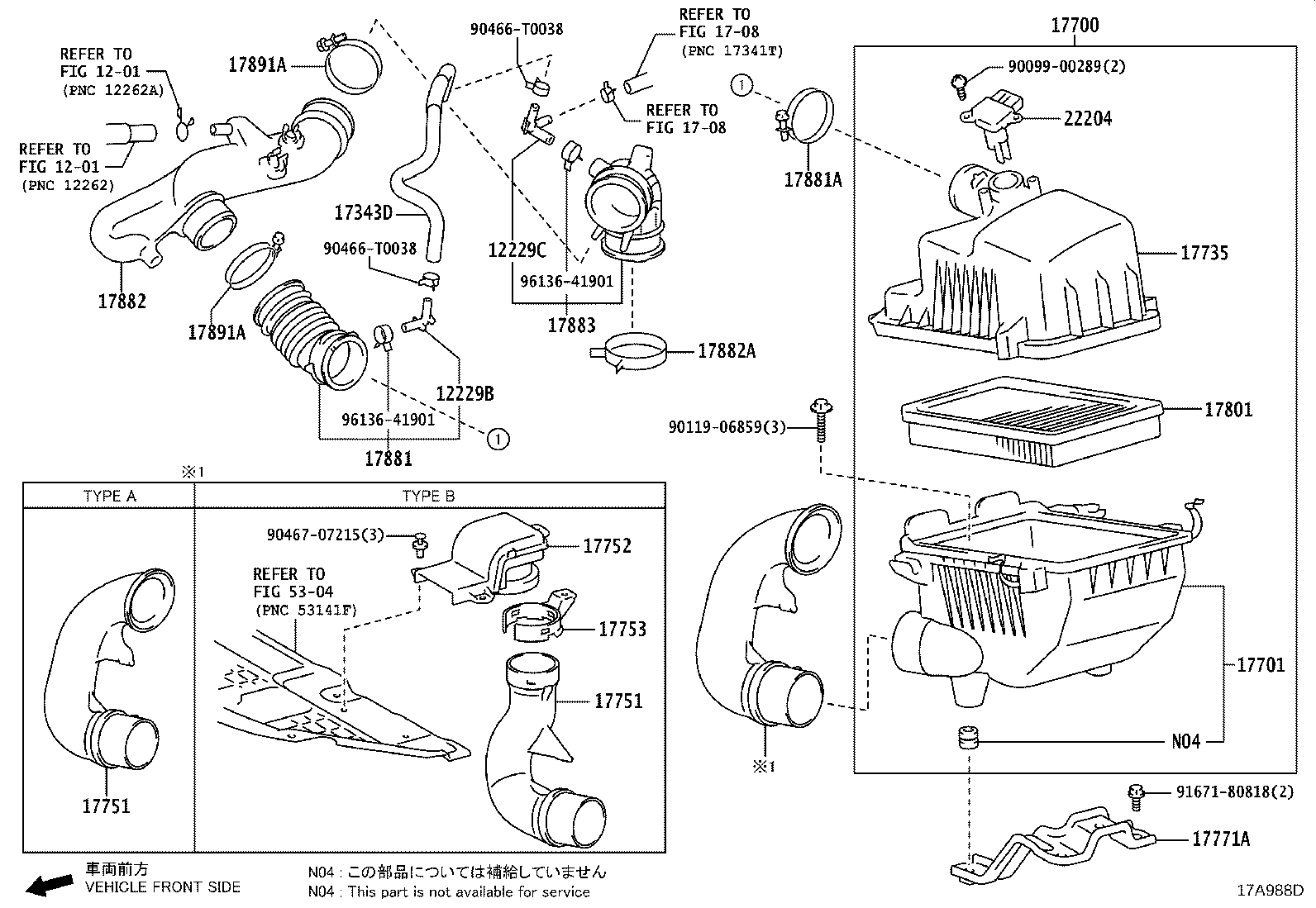

(1806- )1NRFBE,2NR#..CVT..H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229B - PIPE, VENTILATION, NO.1 | ||||
| 12229-0Y110 |
2NRFE..NSP151..CVT..C |
1 | ||
| 12229-0Y100 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 12229C - PIPE, VENTILATION, NO.2 | ||||
| 12229-0Y150 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,IDN,PH,SA,VN) |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-0Y011 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17343-0Y021 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0Y260 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17700-0Y200 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17700-0Y190 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y190 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17701-0M070 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701-0M090 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0Y140 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735-0Y210 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17735-0Y150 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y261 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 17751-0Y240 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y041 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771-0Y080 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17771-0Y090 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0Y070 |
2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y240 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17881-0Y250 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y160 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17882-0Y140 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#..NSP150,151..AGT,BZ,GCC,GEN,PH,SA,VN |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y041 |
1NR#,2NRFBE..NSP150,151..LHD..CVT;2NRFE..NSP151..CVT..(AGT,GCC,GEN,PH,SA,VN) |
1 | ||
| 17883-0Y061 |
2NRFE..NSP151..CVT..C |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
1NRFBE,2NR#..NSP150,151..H (J) |
1 | ||
| 22204-0V020 |
2NRFE..NSP151..C |
1 | ||
| 22204-0V010 |
1NRFBE,2NR#..NSP150,151..H (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90466-T0038 | ||||
| 91671-80818 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
(1908- )2NRFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0127 | ||||
| 90466-T0038 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
(1911- )1NRFBE,2NR#..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90466-T0038 | ||||
| 90467-07215 | ||||
| 91671-80818 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
| 5304 | ||||
