NSP151L-AHXGKR (2016)

Toyota Yaris

Production May 2016 - Feb 2018
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NSP152 ; (1310-1802)NSP151..C ; (1310- )NCP15# ; (1310- )NSP151..T

Click highlighted areas on diagram

diagram 3312 58804A 58805C 58808 58811D 58815B 58833B 58834B 58901A 58904B 58910C 58917 58981B 58995A 58997 90119T0038 90119T0038 90119T0342 9015950384 90163T0001 9046710201 9046710203 9046805138 91631J0612 91631J0612 9167180820 9167380616
Part # Description Qty Price
58811D - CLIP(FOR CONSOLE BOX)
90467-05164C7

NSP151..TAIW..V

BLACK,TRIM2#

 1
90467-05164C7

NSP151..TAIW..V

BLACK,TRIM2#

 1
90467-T0004C4

NSP151..R..C

BLACK,TRIM2#,(L)

 1
90467-T0004C4

NSP151..R..C

BLACK,TRIM2#,(L)

 1
90467-10203

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 2
90467-10203

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 2
90467-05164C7

NSP151..TAIW..(G,R)

BLACK,TRIM0#,2#

 1
90467-05164C7

NSP151..TAIW..(G,R)

BLACK,TRIM0#,2#

 1
90467-05164C7

NSP151..C

BLACK,TRIM2#,(J)

 1
90467-05164C7

NSP151..C

BLACK,TRIM2#,(J)

 1
Common parts
90119-T0038
90119-T0342
90159-50384
90163-T0001
90467-10201
90467-10203
90468-05138
91631-J0612
91671-80820
91673-80616
Linked diagrams
3312

(1709- )NSP152 ; (1710- )GCC,GEN,PH,SA,VN..A ; (1802- )C

Click highlighted areas on diagram

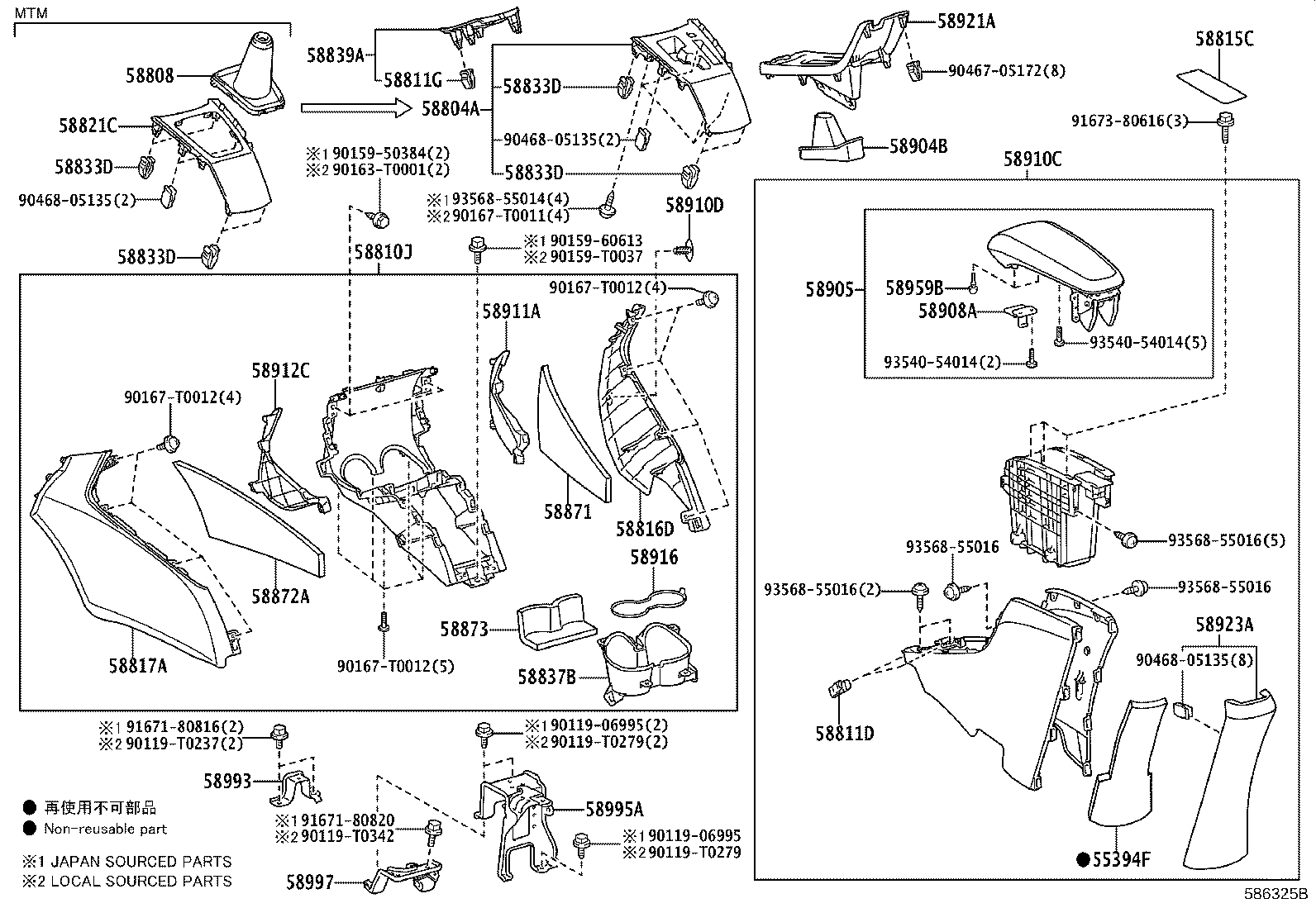

diagram 55394F 58804A 58808 58810J 58811D 58811G 58815C 58816D 58817A 58821C 58833D 58833D 58833D 58833D 58837B 58839A 58871 58872A 58873 58904B 58905 58908A 58910C 58910D 58911A 58912C 58916 58921A 58923A 58959B 58993 58995A 58997 9011906995 9011906995 90119T0237 90119T0279 90119T0279 90119T0342 9015950384 9015960613 90159T0037 90163T0001 90167T0011 90167T0012 90167T0012 90167T0012 9046705172 9046805135 9046805135 9046805135 9167180816 9167180820 9167380616 9354054014 9354054014 9356855014 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
58811D - CLIP(FOR CONSOLE BOX)
90467-05164C7

NSP151..TAIW..V

BLACK,TRIM2#

 1
90467-T0004C4

NSP151..R..C

BLACK,TRIM2#,(L)

 1
90467-10203

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 2
90467-05164C7

NSP151..TAIW..(G,R)

BLACK,TRIM0#,2#

 1
90467-05164C7

NSP151..C

BLACK,TRIM2#,(J)

 1
58811G - CLIP(CONSOL BOX)
90467-05172

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 5
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 4
58910D - CLIP(FOR CONSOLE BOX)
90467-05164C7

NSP151..PH,SA;NSP151..(G,V)..C;NSP15#..CVT..(IDN,PH,TH)..R

BLACK,TRIM2#,(J)

 1
90467-T0004C4

NSP151..PH,SA;NSP151..(G,V)..C;NSP15#..CVT..(IDN,PH,TH)..R

BLACK,TRIM2#,(L)

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NSP151..(G,V)..C;NSP150..LHD..(BZ,GCC,GEN);NSP15#..CVT..(IDN,PH,TH)..R;NSP151..AGT,BZ,GCC,GEN,PH,SA,VN

 2
Common parts
90119-06995
90119-T0237
90119-T0279
90119-T0342
90159-50384
90159-60613
90159-T0037
90163-T0001
90167-T0011
90167-T0012
90467-05172
90468-05135
91671-80816
91671-80820
91673-80616
93540-54014
93568-55014
93568-55016
