Toyota Yaris NSP151 FUEL TANK & TUBE

NSP151L-AHMRK (2017)

Toyota Yaris

Production Oct 2017 - Sep 9999

Engine 2NRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

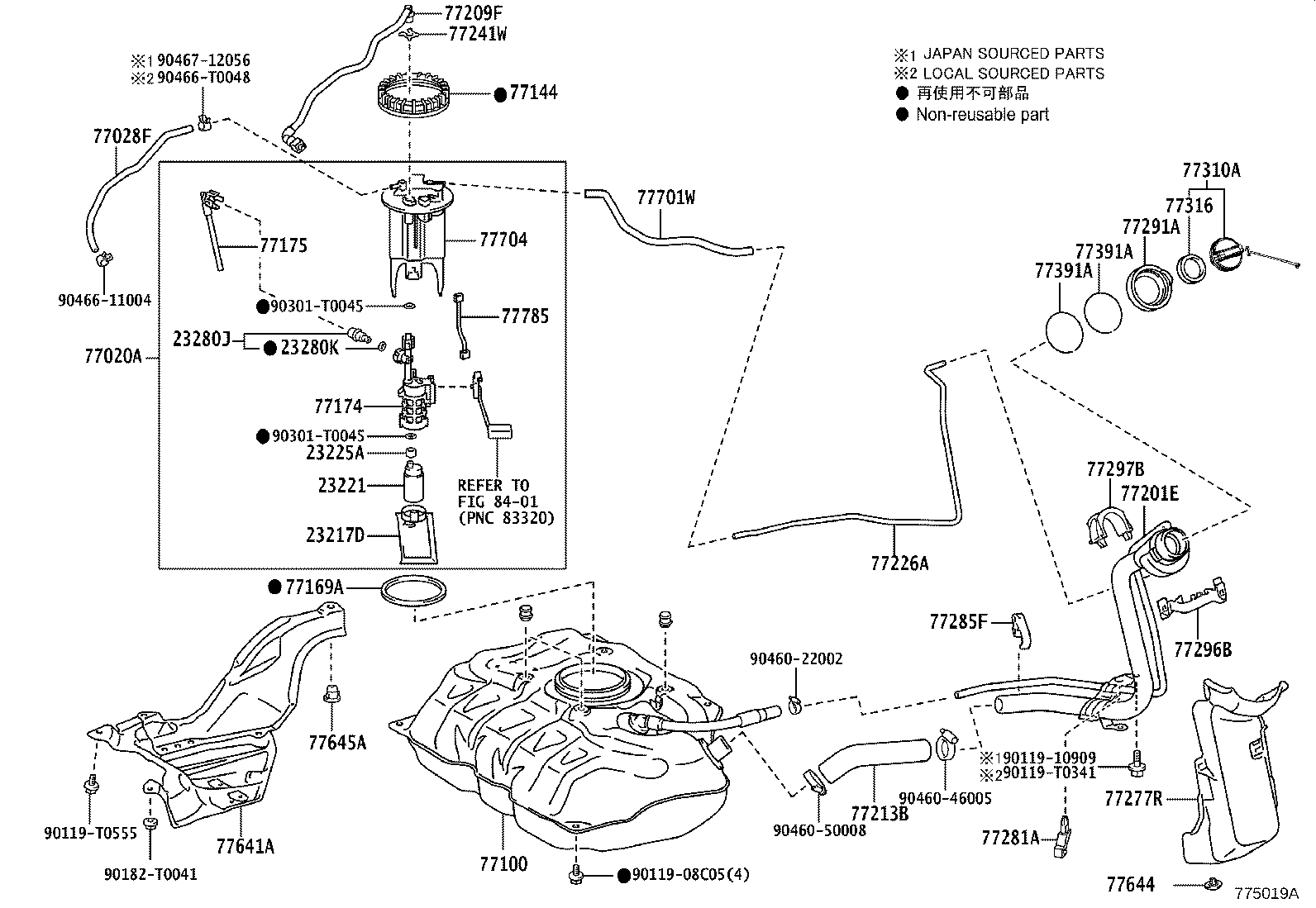

ILLUST NO. 1 OF 3(1310-1806)NSP150,151..GCC ; (1310- )NSP150,151..GEN,PH,SA,VN..A ; (1310- )NC

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23221-0Y010	2NRFE..NSP151..F	04/2018 - 01/2021	1
23221-0Y040	2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H)	02/2018 - 12/2999	1
23225A - SPACER, FUEL PUMP
23225-0Y010	2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H)	02/2018 - 12/2999	1
23225-0H020	2NRFE..NSP151..F	04/2018 - 01/2021	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0D200	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77020-0D180	NSP151..F	04/2018 - 01/2021	1
77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2
77028-0D180	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77028-0D130	NSP151..F	04/2018 - 01/2021	1
77100 - TANK ASSY, FUEL
77001-0D280	NSP151..F	04/2018 - 01/2021	1
77001-0D390	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D070	NSP150,151..H	06/2018 - 10/2019	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-0D110	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77174-0D090	NSP151..F	04/2018 - 01/2021	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-0D040	NSP151..F	04/2018 - 01/2021	1
77175-0D070	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0D230	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77209-0D150	NSP151..F	04/2018 - 01/2021	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D280	NSP150,151..H	06/2018 - 10/2019	1
77291-0D150	NSP151..F	04/2018 - 01/2021	1
77391A - RING, FUEL INLET BOX
77391-02020	NSP150,151..H (L)	06/2018 - 10/2019	2
77391-12020	NSP151..F	04/2018 - 01/2021	2
77391-12020	NSP150,151..H (J)	06/2018 - 10/2019	2
77391A - RING, FUEL INLET BOX
77391-02020	NSP150,151..H (L)	06/2018 - 10/2019	2
77391-12020	NSP151..F	04/2018 - 01/2021	2
77391-12020	NSP150,151..H (J)	06/2018 - 10/2019	2
77641A - PROTECTOR, FUEL TANK, NO.1
77606-0D130	NSP150,151..H	06/2018 - 10/2019	1
77645A - RETAINER, FUEL TANK PROTECTOR
77645-0D020	NSP151..F	04/2018 - 01/2021	1
77645-52040	NSP150,151..H	06/2018 - 10/2019	1
77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-0D080	NSP151..F	04/2018 - 01/2021	1
77701-0D150	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-0D100	NSP151..F	04/2018 - 01/2021	1
77785 - HARNESS, FUEL PUMP
77785-0D100	NSP151..F	04/2018 - 01/2021	1
77785-0D130	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
Common parts
90119-T0327
90119-T0341
90119-T0555
90182-T0041
90269-05049
90301-07020
90301-T0035
90466-11004
90467-12056
Linked diagrams
7403
8401

ILLUST NO. 1 OF 3(1806- )AGT,GEN..H

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23221-0Y010	2NRFE..NSP151..F	04/2018 - 01/2021	1
23221-0Y040	2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H)	02/2018 - 12/2999	1
23225A - SPACER, FUEL PUMP
23225-0Y010	2NRFE..NSP151..R..H;2NRFE..NSP151..CVT..R..C;2NRFE..NSP151..(D,G,V)..(C,H)	02/2018 - 12/2999	1
23225-0H020	2NRFE..NSP151..F	04/2018 - 01/2021	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0D200	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77020-0D180	NSP151..F	04/2018 - 01/2021	1
77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2
77028-0D180	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77028-0D130	NSP151..F	04/2018 - 01/2021	1
77100 - TANK ASSY, FUEL
77001-0D280	NSP151..F	04/2018 - 01/2021	1
77001-0D390	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0D050	NSP150,151..H	06/2018 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D070	NSP150,151..H	06/2018 - 10/2019	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-0D110	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77174-0D090	NSP151..F	04/2018 - 01/2021	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-0D040	NSP151..F	04/2018 - 01/2021	1
77175-0D070	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0D400	NSP150,151..H	06/2018 - 10/2019	1
77201-0D260	NSP151..F	04/2018 - 01/2021	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0D230	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77209-0D150	NSP151..F	04/2018 - 01/2021	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-0D170	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77213-0D070	NSP151..F	04/2018 - 01/2021	1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-0D080	NSP151..F	04/2018 - 01/2021	1
77226-0D180	NSP150,151..H	06/2018 - 10/2019	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-0D130	NSP150,151..H	06/2018 - 10/2019	1
77277-0D070	NSP151..F	04/2018 - 01/2021	1
77281A - CLAMP, FUEL FILLER PIPE
77229-0D020	NSP151..F	04/2018 - 01/2021	1
77229-0D010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0D060	NSP151..F	04/2018 - 01/2021	1
77285-0D040	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D280	NSP150,151..H	06/2018 - 10/2019	1
77291-0D150	NSP151..F	04/2018 - 01/2021	1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-0D020	NSP151..F	04/2018 - 01/2021	1
77296-0D010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77297B - SUPPORT, FUEL TUBE PROTECTOR, NO.2
77297-0D060	NSP151..F	04/2018 - 01/2021	1
77297-0D010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77391A - RING, FUEL INLET BOX
77391-02020	NSP150,151..H (L)	06/2018 - 10/2019	2
77391-12020	NSP151..F	04/2018 - 01/2021	2
77391-12020	NSP150,151..H (J)	06/2018 - 10/2019	2
77391A - RING, FUEL INLET BOX
77391-02020	NSP150,151..H (L)	06/2018 - 10/2019	2
77391-12020	NSP151..F	04/2018 - 01/2021	2
77391-12020	NSP150,151..H (J)	06/2018 - 10/2019	2
77511A - BRACKET, FUEL TANK
77512-0D020	NSP151..F	04/2018 - 01/2021	1
77644-0K010	NSP151..CVT..R..C;NSP151..(D,G,V)..(C,H);NSP150,151..(AGT,BZ)..(D,R)	02/2018 - 12/2999	1
77641A - PROTECTOR, FUEL TANK, NO.1
77606-0D130	NSP150,151..H	06/2018 - 10/2019	1
77645A - RETAINER, FUEL TANK PROTECTOR
77645-0D020	NSP151..F	04/2018 - 01/2021	1
77645-52040	NSP150,151..H	06/2018 - 10/2019	1
77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-0D080	NSP151..F	04/2018 - 01/2021	1
77701-0D150	NSP151..(AGT,GEN)..H	06/2018 - 10/2019	1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-0D100	NSP151..F	04/2018 - 01/2021	1
77785 - HARNESS, FUEL PUMP
77785-0D100	NSP151..F	04/2018 - 01/2021	1
77785-0D130	NSP151..R..H;NSP151..CVT..R..C;NSP151..(AGT,GEN,IDN)..(D,G,V)..(C,H)	02/2018 - 12/2999	1
Common parts
90119-08C05
90119-10909
90119-T0341
90119-T0555
90182-T0041
90301-07020
90301-T0045
90460-22002
90460-46005
90460-50008
90466-11004
90466-T0048
90467-12056
Linked diagrams
8401

ILLUST NO. 1 OF 3(1908- )

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty	Price
Common parts
90119-T0327
90119-T0341
90119-T0555
90182-T0041
90301-07020
90301-08020
90466-11004
90466-T0048
90467-12056
Linked diagrams
7403
8401

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty	Price
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

FUEL LID OPENER

Part #	Description	Period	Qty	Price
Common parts
82711-0K090
90159-60602
90159-T0036
90269-06017
90469-06005
90469-T0001
90469-T0003
90541-06070

ILLUST NO. 1 OF 3(1911- )AGT,GEN

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty	Price
Common parts
90119-08C05
90119-10909
90119-T0341
90119-T0555
90182-T0041
90301-T0045
90460-22002
90460-46005
90460-50008
90466-11004
90466-T0048
90467-12056
Linked diagrams
8401

ILLUST NO. 2 OF 3(1911- )

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty	Price
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1911- )5D

Click highlighted areas on diagram

FUEL LID OPENR

Part #	Description	Period	Qty	Price
Common parts
82711-0K090
90159-60602
90159-T0036
90269-06017
90469-06005
