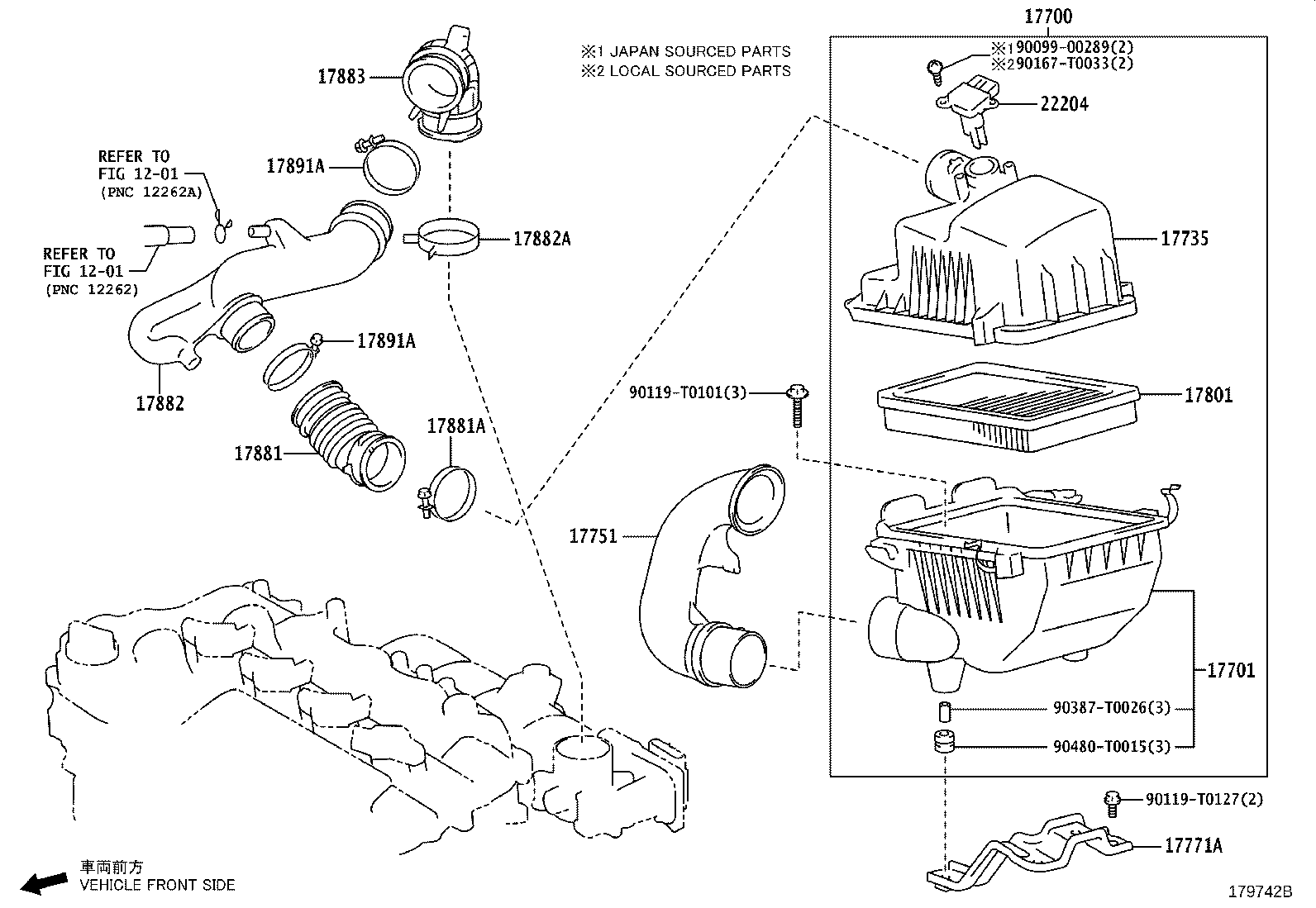

NSP151L-AHMRK (2017)
Toyota Yaris
(1710- )1NRFE,2NRFE..5F..A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0Y260 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17700-0Y210 |
2NRFE..NSP151..F |
1 | ||
| 17700-0Y190 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y190 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17701-0M080 |
2NRFE..NSP151..F |
1 | ||
| 17701-0M070 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0Y160 |
2NRFE..NSP151..F |
1 | ||
| 17735-0Y140 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735-0Y210 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y271 |
2NRFE..NSP151..F |
1 | ||
| 17751-0Y261 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 17751-0Y240 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y080 |
2NRFE..NSP151..F |
1 | ||
| 17771-0Y041 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771-0Y080 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y160 |
3NRFKE..NSP152;2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17881-0Y180 |
2NRFE..NSP151..F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2NRFE..NSP151..F |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y130 |
2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17882-0Y140 |
2NRFE..NSP151..F |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#..NSP150,151..AGT,BZ,GCC,GEN,PH,SA,VN |
1 | ||
| 90466-62002 |
2NRFE..NSP151..F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y071 |
2NRFE..NSP151..F |
1 | ||
| 17883-0Y031 |
2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
2NRFE..NSP151..F |
2 | ||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
2NRFE..NSP151..F |
2 | ||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
1NRFBE,2NR#..NSP150,151..H (J) |
1 | ||
| 22204-0V010 |
1NRFBE,2NR#..NSP150,151..H (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0101 | ||||
| 90119-T0127 | ||||
| 90167-T0033 | ||||
| 90387-T0026 | ||||
| 90480-T0015 | ||||
| Linked diagrams | ||||
| 1201 | ||||
(1710- )2NRFE..F ; (1710- )1NRFE,2NRFE..CVT..GCC,GEN,MA,PH,SA,VN..A,B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229B - PIPE, VENTILATION, NO.1 | ||||
| 12229-0Y120 |
2NRFE..NSP151..F |
1 | ||
| 12229C - PIPE, VENTILATION, NO.2 | ||||
| 12229-0Y170 |
2NRFE..NSP151..F |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-0Y031 |
2NRFE..NSP151..F |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0Y260 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17700-0Y210 |
2NRFE..NSP151..F |
1 | ||
| 17700-0Y190 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y190 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17701-0M080 |
2NRFE..NSP151..F |
1 | ||
| 17701-0M070 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0Y160 |
2NRFE..NSP151..F |
1 | ||
| 17735-0Y140 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17735-0Y210 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y271 |
2NRFE..NSP151..F |
1 | ||
| 17751-0Y261 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;2NRFE..NSP151..(GCC,GEN,PH,SA,VN)..A |
1 | ||
| 17751-0Y240 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y080 |
2NRFE..NSP151..F |
1 | ||
| 17771-0Y041 |
1NRFBE,2NR#..NSP150,151..H |
1 | ||
| 17771-0Y080 |
1NRFE..NSP150..LHD..CVT;1NRFE..NSP150..5F..GEN..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,PH,SA,TH,VN)..A |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y160 |
3NRFKE..NSP152;2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17881-0Y180 |
2NRFE..NSP151..F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2NRFE..NSP151..F |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y130 |
2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17882-0Y140 |
2NRFE..NSP151..F |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#..NSP150,151..AGT,BZ,GCC,GEN,PH,SA,VN |
1 | ||
| 90466-62002 |
2NRFE..NSP151..F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y071 |
2NRFE..NSP151..F |
1 | ||
| 17883-0Y031 |
2NRFE..NSP151..MTM..(A,H);1NR#,2NRFBE..NSP150,151..LHD..MTM..(BZ,GEN) |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
2NRFE..NSP151..F |
2 | ||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
2NRFE..NSP151..F |
2 | ||
| 96111-10730 |
1NRFE..NSP150..LHD..CVT;2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C;1NRFE..NSP150..5F..GEN..R;1NRFBE,2NR#,3NRFKE..NSP15#..AGT,BZ,GCC,GEN,PH,SA,TH,VN |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
1NRFBE,2NR#..NSP150,151..H (J) |
1 | ||
| 22204-0V010 |
1NRFBE,2NR#..NSP150,151..H (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0127 | ||||
| 90167-T0033 | ||||
| 90387-T0026 | ||||
| 90466-T0038 | ||||
| 90480-T0015 | ||||
| 91673-80820 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
