NSP151L-AHMDK (2016)

Toyota Yaris

Production Jul 2016 - Aug 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )LHD..5F

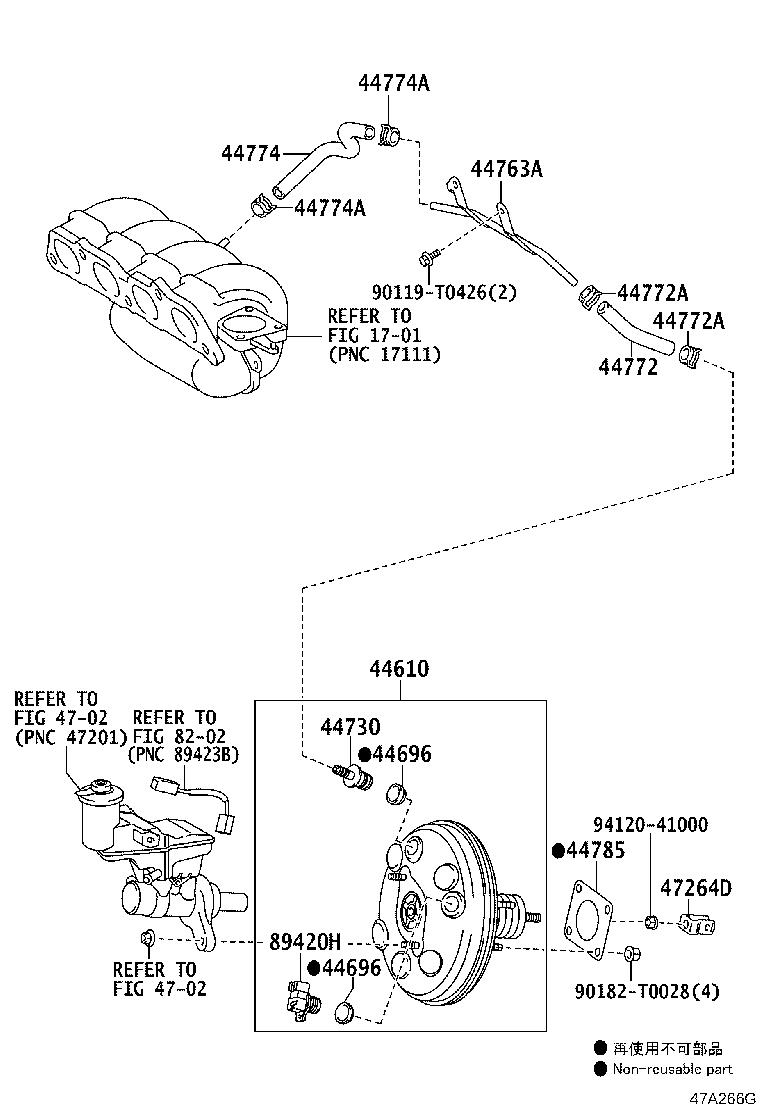

Click highlighted areas on diagram

diagram 1701 44610 44696 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 4702 47264D 8202 89420H 90119T0426 90182T0028 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0D790

NSP150,151..LHD..5F

 1
44610-0D800

NSP150,151..LHD..5F..GEN

LATIN AMERICA SPEC&ABS-WITHOUT

 1
44610-0D760

NSP151..5F..D

LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH

 1
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP152;NSP150,151..5F..A

 2
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP152;NSP150,151..5F..A

 2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D290

NSP150,151..LHD..5F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D450

NSP150,151..LHD..5F

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0D200

NSP150,151..LHD..5F

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP152;NSP150,151..LHD..5F

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP152;NSP150,151..LHD..5F

 2
44785 - GASKET, BRAKE BOOSTER
44785-0D020

NSP15#..GCC,GEN,PH,TH,VN

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D040

NSP15#..GCC,GEN,PH,TH,VN

 1
Common parts
90119-T0426
90182-T0028
94120-41000
Linked diagrams
1701
4702
8202
