NSP150L-HHXRGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 1NRFBE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )NSP150 ; (1911- )4D..D,R ; (1911-)5D..AGT,GEN..D,R

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

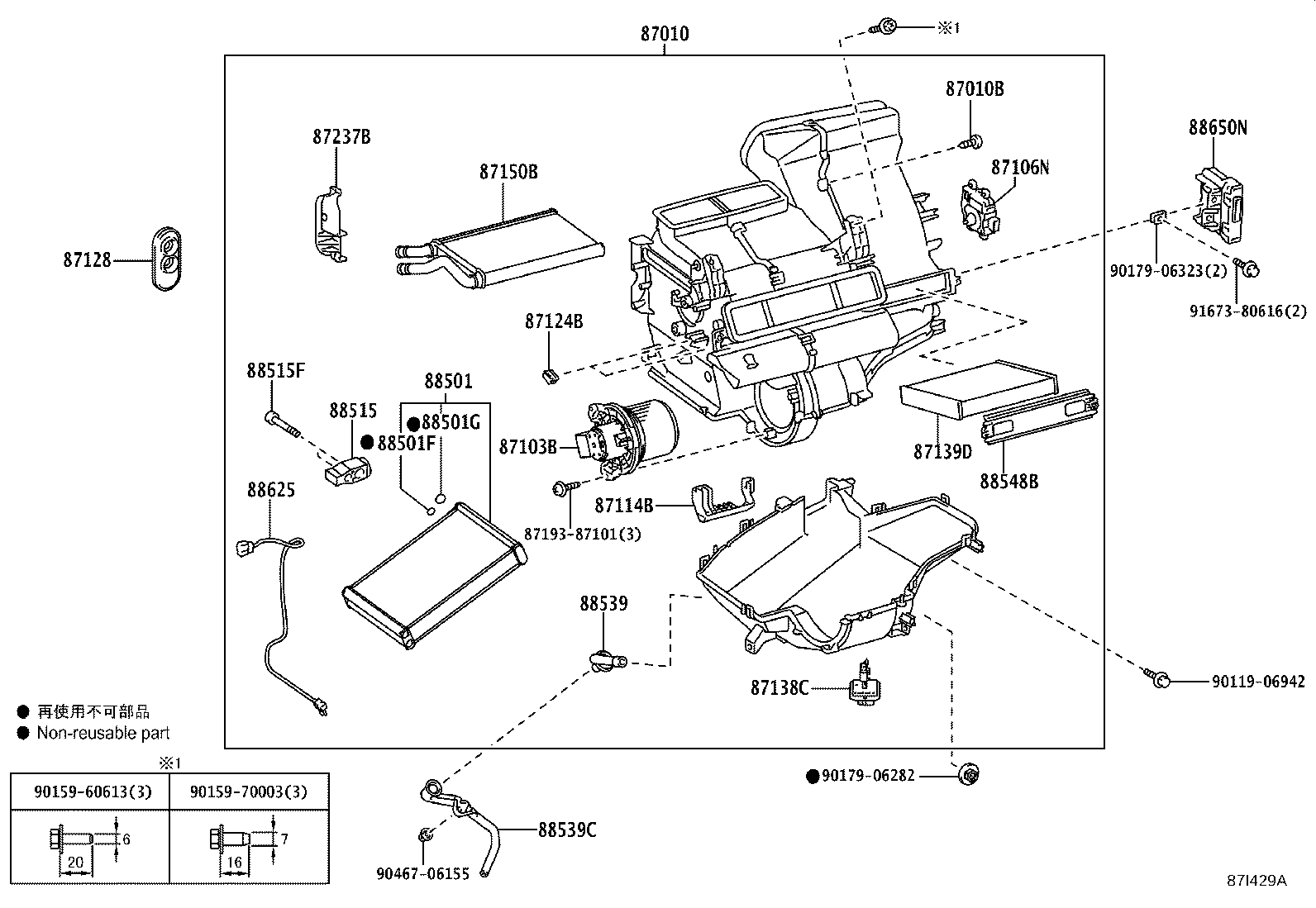

diagram 87010 87010B 87103B 87106N 87114B 87124B 87128 87138C 87139D 87150B 8719387101 87237B 88501 88501F 88501G 88515 88515F 88539 88539C 88548B 88625 88650N 9011906942 9015960613 9015970003 9017906282 9017906323 9046706155 9167380616
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DG61

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90094-90426

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 19
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D450

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0D520

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 1
87114B - COVER, HEATER
87114-0D080

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
87124B - CLAMP, HEATER
87124-0D110

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 2
87128 - GROMMET, HEATER
87128-0D220

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
87138C - RESISTOR, BLOWER
87138-0D350

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 1
87139D - ELEMENT, AIR REFINER
87139-50100

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

*DPF

 1
87139-02150

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

DUST FILTER

 1
87150B - RADIATOR ASSY, HEATER
87150-0D210

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
87237B - COVER, HEATER PIPING
87237-0D120

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D460

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

ID=10.8,OD=15.6

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

ID=13.4,OD=18.2

 1
88515 - VALVE, COOLER EXPANSION
88515-0D630

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04630

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D560

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D160

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88548B - CASE, AIR FILTER
88548-0D260

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0D170

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D870

NSP150..CVT;NSP15#..6F..D;NSP151..AGT..R;NSP151..5D..CVT..D;NSP151..4D..CVT..(D,R)

 1
Common parts
87193-87101
90119-06942
90159-60613
90159-70003
90179-06282
90179-06323
90467-06155
91673-80616
