NSP150L-HHXRGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 1NRFBE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )BZ

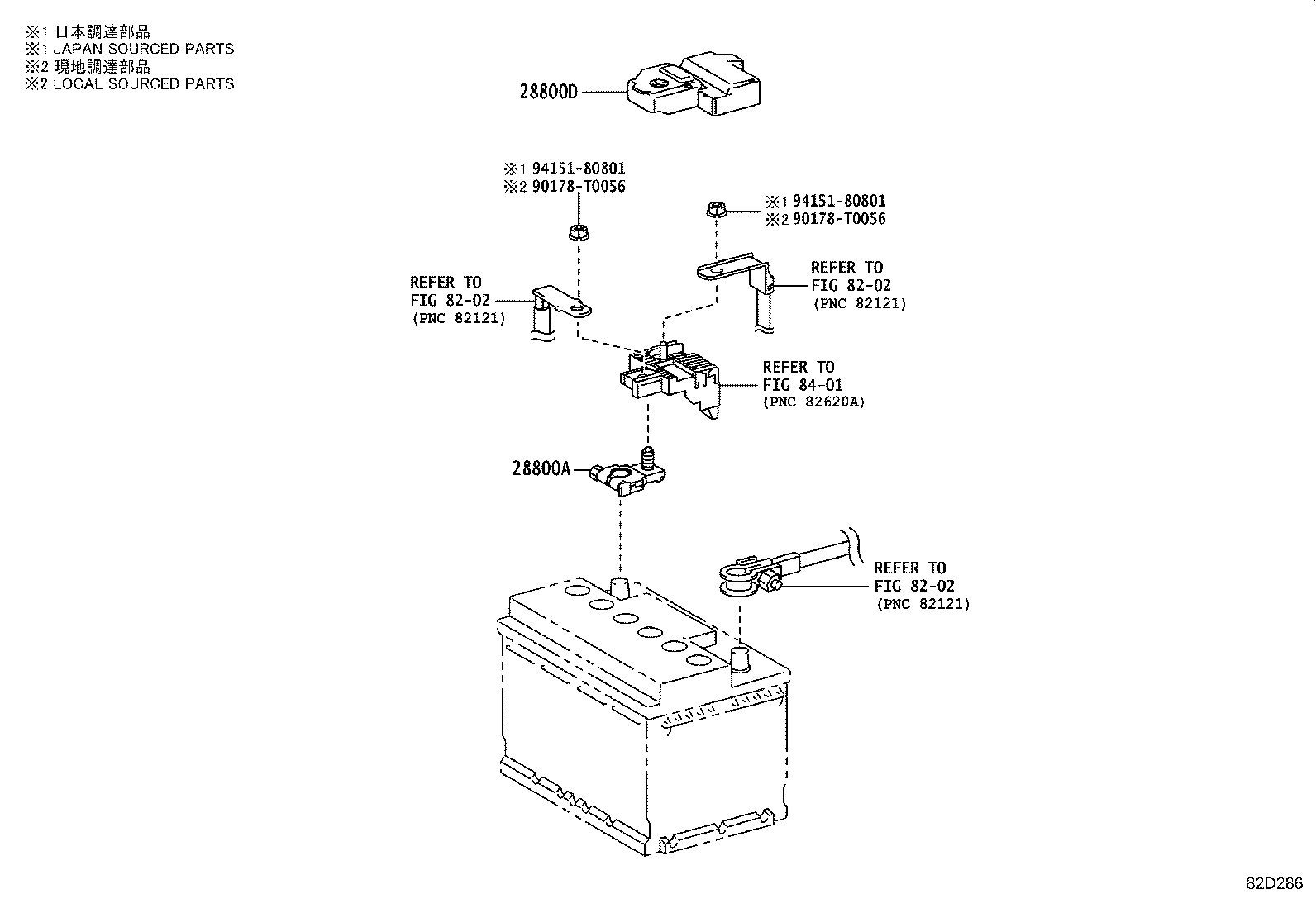

Click highlighted areas on diagram

diagram 28800A 28800D 8202 8202 8202 8401 90178T0056 90178T0056 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

2NRFE..NSP151;1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-52160

1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R

 1
Common parts
90178-T0056
94151-80801
Linked diagrams
8202
8401
