NSP150L-HHXRGG (2019)
Toyota Yaris

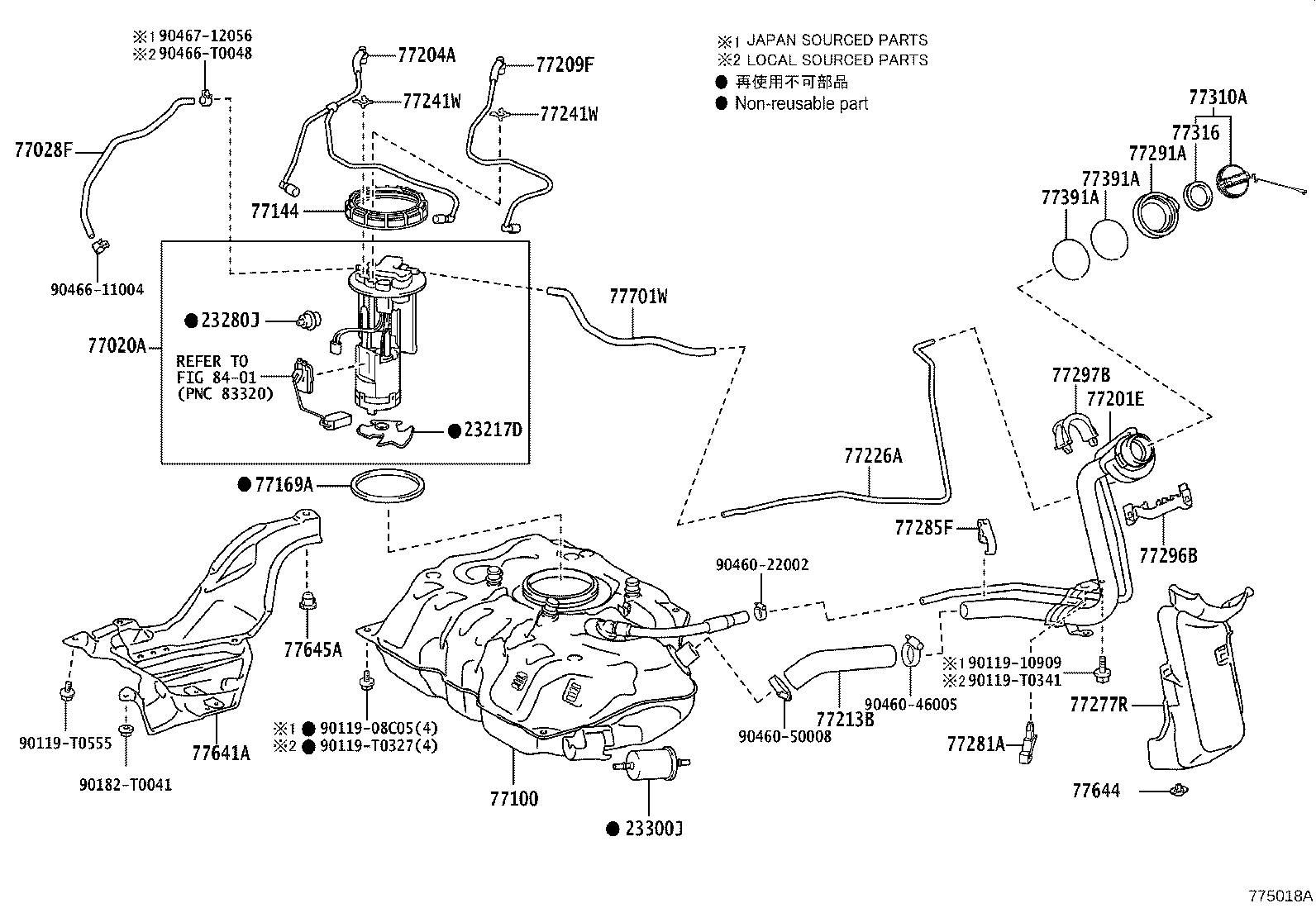

ILLUST NO. 1 OF 3(1911- )BZ
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0Y050 |
1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-0D010 |
1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-0D100 |
1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D370 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 | ||||
| 77028-0D170 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D380 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0D050 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D070 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0D400 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0D080 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D220 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0D170 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0D180 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-0D130 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-0D010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D040 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D280 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-0D010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77297B - SUPPORT, FUEL TUBE PROTECTOR, NO.2 | ||||
| 77297-0D010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (L) |
1 | ||
| 77300-12020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (J) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (J) |
1 | ||
| 77316-0K020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (L) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (L) |
2 | ||
| 77391-12020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (J) |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (L) |
2 | ||
| 77391-12020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R (J) |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77606-0D130 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-0K010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-52040 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D160 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..BZ..(D,G,V) |
1 | ||
| Common parts | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90119-T0327 | ||||
| 90119-T0341 | ||||
| 90119-T0555 | ||||
| 90182-T0041 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-11004 | ||||
| 90466-T0048 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1911- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D590 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0D520 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-0D130 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D290 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0D230 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0D190 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0D200 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0D180 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1911- )5D
FUEL LID OPENR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-0D020 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D600 |
NSP150..6F..D;NSP151..5D..AGT..R;NSP151..5D..(D,G,V);NSP15#..5D..CVT..BZ..(D,R) |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-T0001 |
NSP150..6F..D;NSP151..5D..AGT..R;NSP151..5D..(D,G,V);NSP15#..5D..CVT..BZ..(D,R) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D070 |
NSP150..6F..D;NSP151..5D..AGT..R;NSP151..5D..(D,G,V);NSP15#..5D..CVT..BZ..(D,R) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0D190 |
NSP150..6F..D;NSP151..5D..AGT..R;NSP151..5D..(D,G,V);NSP15#..5D..CVT..BZ..(D,R) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52011 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-06005 | ||||
