NSP150L-HHXRGG (2019)
Toyota Yaris
ILLUST NO. 3 OF 3(1911- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

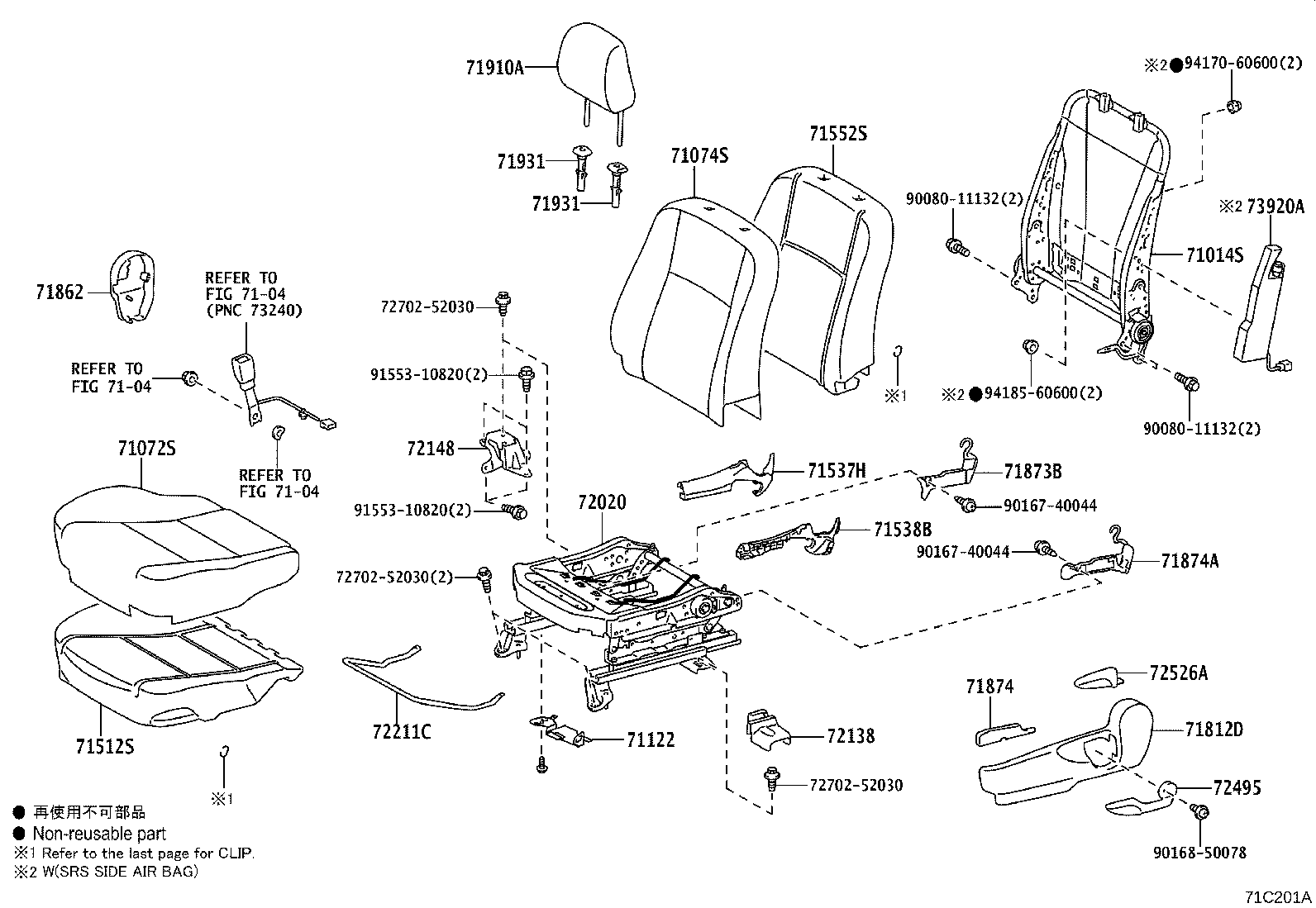

ILLUST NO. 1 OF 3(1911- )5D
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0D310 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0DL50C0 |
NSP15#..D BLACK,TRIM2# |
1 | ||
| 71072-0DX40C0 |
NSP150..CVT..R;NSP151..4D..CVT..R BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0DG80C0 |
NSP15#..D BLACK,TRIM2# |
1 | ||
| 71074-0DT60C0 |
NSP150..CVT..R;NSP151..4D..CVT..R BLACK,TRIM2# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-0D030 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D750 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0D390C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0D320C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D710 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D410C0 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D310C0 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) BLACK,TRIM2# |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-0D400C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0D440C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0D430C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DJ90C1 |
NSP15#..CVT..R;NSP151..CVT..GEN..G;NSP151..6F..(AGT,GEN)..(G,R) BLACK,TRIM2# |
2 | ||
| 71910-0DL20C0 |
NSP15#..D BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C8 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C8 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0D741 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D180C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D181 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 72148-0D180 |
NSP15# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D240 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-0D090C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D320C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90080-11132 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

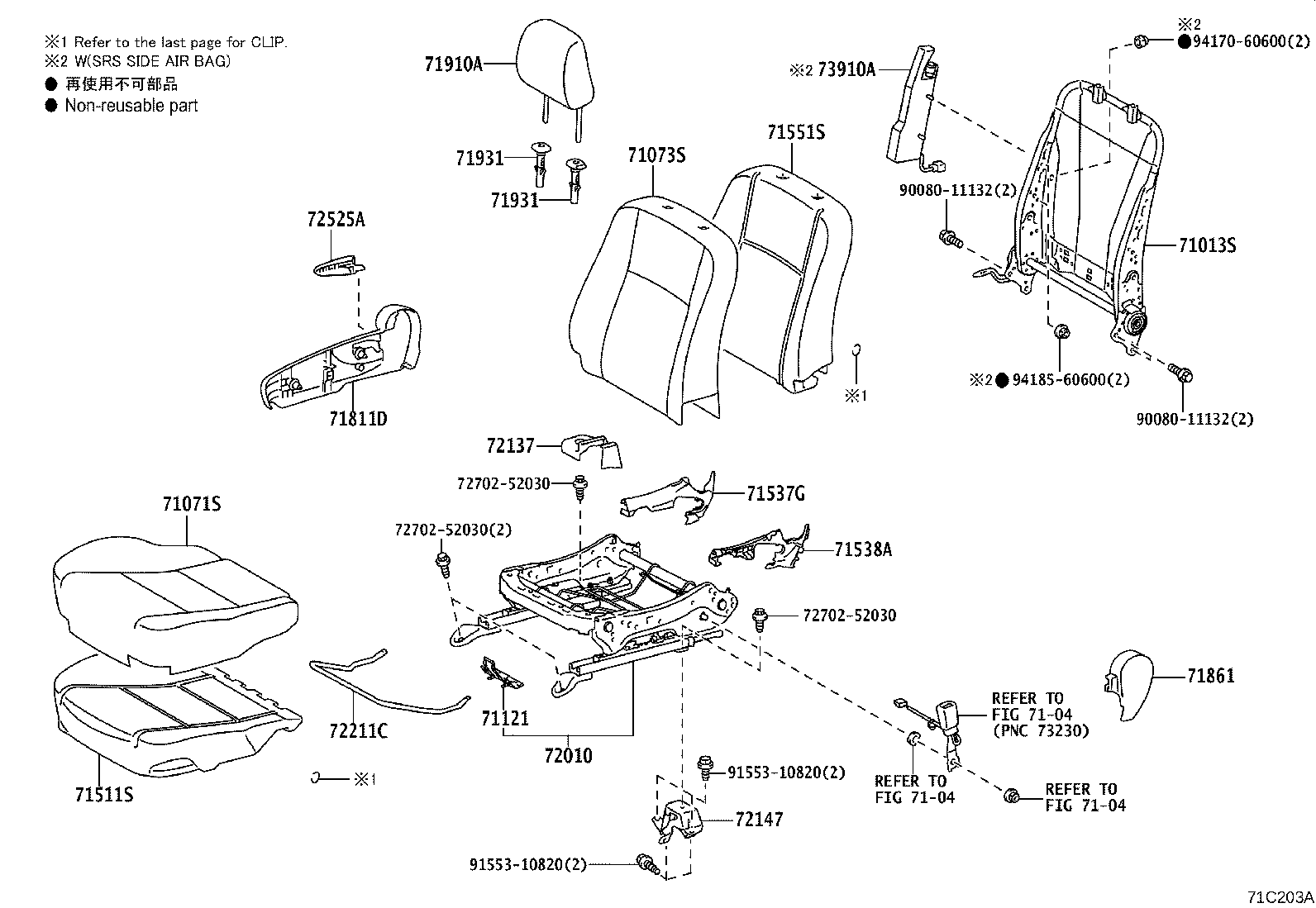

ILLUST NO. 2 OF 3(1911- )5D
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0D350 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0U030C0 |
NSP150..CVT..R;NSP151..4D..CVT..R BLACK,TRIM2# |
1 | ||
| 71071-0U590C0 |
NSP15#..D BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0DY90C0 |
NSP150..CVT..R;NSP151..4D..CVT..R BLACK,TRIM2# |
1 | ||
| 71073-0DM40C0 |
NSP15#..D BLACK,TRIM2# |
1 | ||
| 71121 - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-0D010 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0D100 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-0D280C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0D310C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D790 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D370C0 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D260C0 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..(BZ,GEN)..(D,G) BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DJ90C1 |
NSP15#..CVT..R;NSP151..CVT..GEN..G;NSP151..6F..(AGT,GEN)..(G,R) BLACK,TRIM2# |
2 | ||
| 71910-0DL20C0 |
NSP15#..D BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C8 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010C8 |
NSP150..CVT;NSP150..6F..D;NSP151..CVT..R;NSP151..AGT..V;NSP151..CVT..AGT..G;NSP151..(BZ,GEN)..(D,G,V) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 71011-0D220 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D200C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D171 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
1 | ||
| 72147-0D170 |
NSP15# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D240 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D300C0 |
NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90080-11132 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
