NSP150L-HHFRGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 1NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )6F

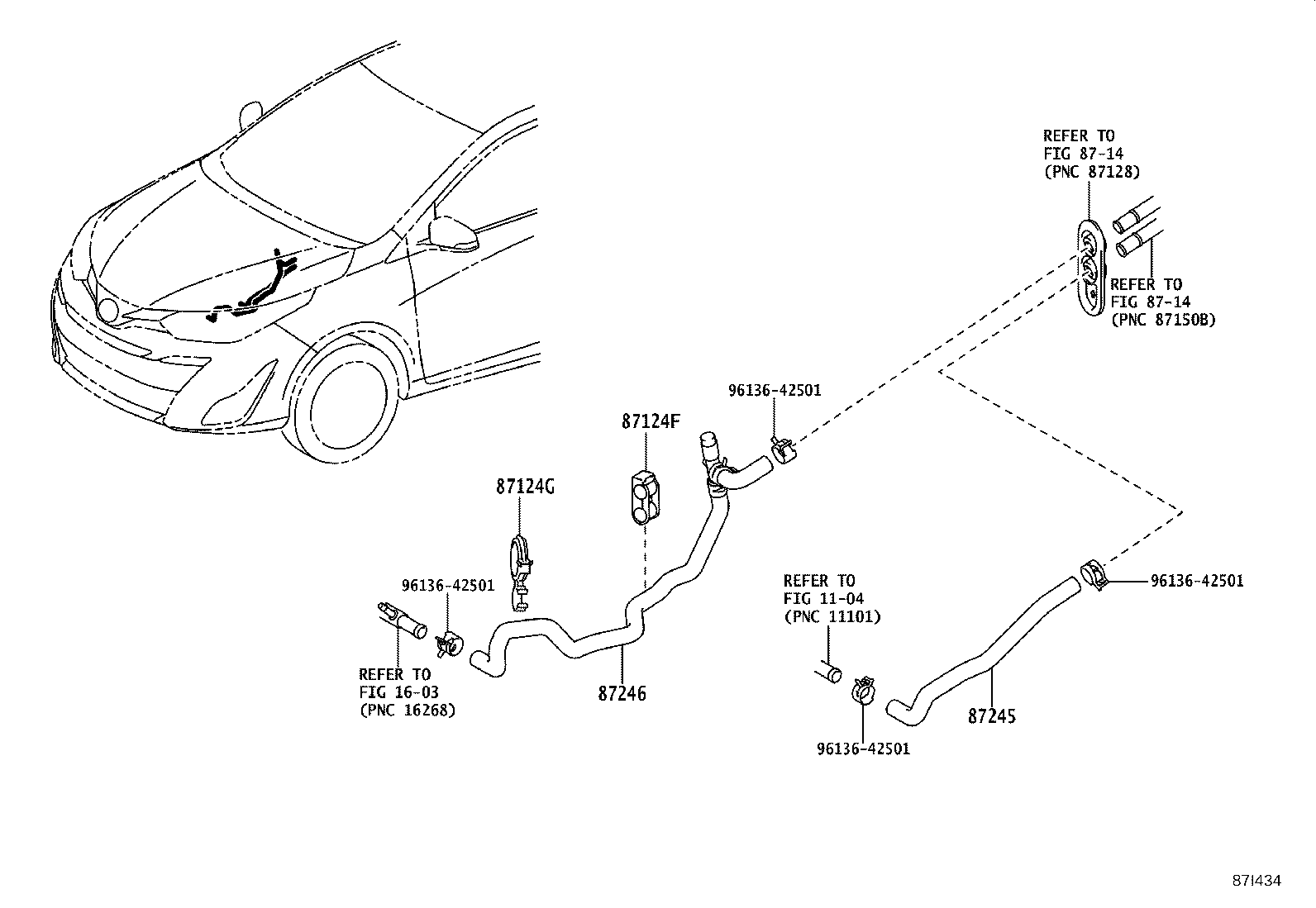

Click highlighted areas on diagram

diagram 1104 1603 87124F 87124G 8714 8714 87245 87246 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
87124-0D550

NSP15#..6F..BZ..R

 1
87124-0D550

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-0D610

NSP15#..6F..BZ..R

 1
87124-0D610

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D760

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
87245-0D760

NSP15#..6F..BZ..R

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-0D740

NSP15#..6F..BZ..R

 1
87209-0D740

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
Common parts
96136-42501
Linked diagrams
1104
1603
8714
