NSP150L-HHFDGG (2019)

Toyota Yaris

Production Nov 2019 - Sep 9999
Engine 1NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )6F

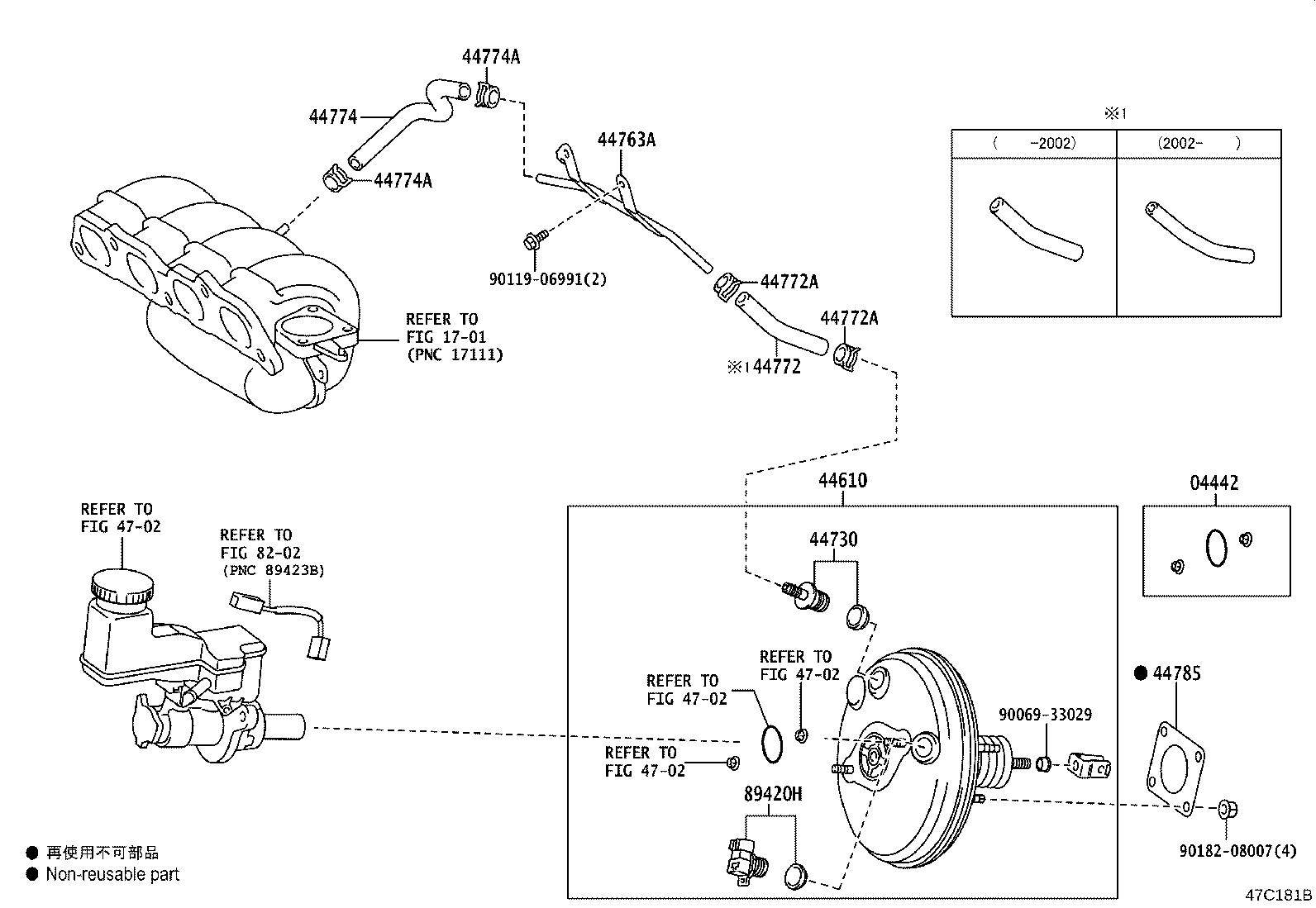

Click highlighted areas on diagram

diagram 04442 1701 44610 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 4702 4702 4702 8202 89420H 9006933029 9011906991 9018208007
Part # Description Qty Price
04442 - FITTING KIT, BRAKE BOOSTER
04442-0D030

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
04442-0D030

NSP15#..6F..BZ..R

 1
44610 - BOOSTER ASSY, BRAKE
44610-09F60

NSP15#..6F

 1
44610-09H40

NSP15#..6F..BZ..R

 1
44610-09H40

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09080

NSP15#..6F..BZ..R

 1
44730-09080

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D350

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
44763-0D350

NSP15#..6F..BZ..R

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D381

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
44772-0D380

NSP15#..6F

 1
44772-0D381

NSP15#..6F..BZ..R

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NSP15#..6F..BZ..R

 2
90467-16014

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NSP15#..6F..BZ..R

 2
90467-16014

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0D170

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 1
44774-0D170

NSP15#..6F..BZ..R

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP15#..6F..BZ..R

 2
90467-16014

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP15#..6F..BZ..R

 2
90467-16014

NSP151..AGT..R;NSP15#..6F..(D,G,V)

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

NSP15#..6F..BZ..R

 1
44785-12040

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
89420H - SENSOR ASSY, VACUUM
89421-09030

NSP15#

 1
89421-52020

NSP150..CVT;NSP150..6F..D;NSP151..D,G,V;NSP151..CVT..R;NSP151..AGT..R

 1
89421-52020

NSP15#..6F..BZ..R

 1
Common parts
90069-33029
90119-06991
90182-08007
Linked diagrams
1701
4702
8202
