NSP150L-AHXGK (2016)

Toyota Yaris

Production Jul 2016 - Aug 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

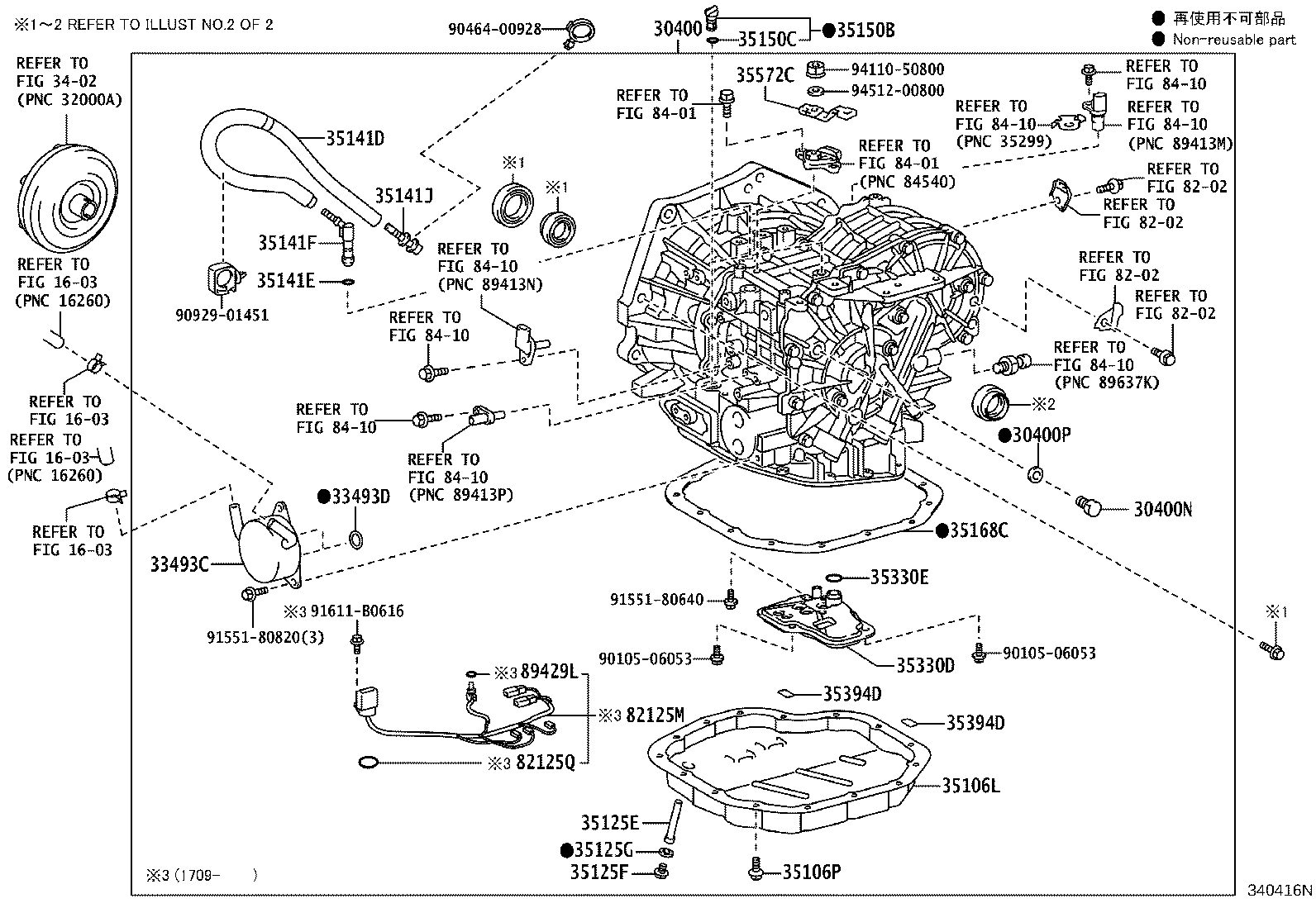

ILLUST NO. 1 OF 2(1310-1902)NSP150,152..CVT..A

Click highlighted areas on diagram

K411

diagram 1603 1603 1603 1603 30400 30400N 30400P 33493C 33493D 3402 35106L 35106P 35125E 35125F 35125G 35141D 35141E 35141F 35141J 35150B 35150C 35168C 35330D 35330E 35394D 35394D 35572C 8202 8202 8202 8202 82125M 82125Q 8401 8401 8410 8410 8410 8410 8410 8410 8410 8410 89429L 9010506053 9010506053 9046400928 9092901451 9155180640 9155180820 91611B0616 9411050800 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-52440

NSP150..CVT

K411

 1
30400N - PLUG, REFILL(CVT)
90341-18077

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
33493C - COOLER, TRANSMISSION OIL
33493-52030

NSP150..CVT

 1
33493D - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

NSP15#..CVT..(GCC,GEN,PH,TH,VN)

 2
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-52090

NSP150,152..CVT

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

NSP150,152..CVT

 15
35125E - TUBE, OVERFLOW(CVT)
35125-52200

NSP150,152..CVT

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
35141D - HOSE(FOR BREATHER PLUG)
35121-52030

NSP150,152..CVT

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-08015

NSP150,152..CVT

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03209

NSP150,152..CVT

 1
35141J - PLUG, BREATHER, NO.2(CVT)
90930-03149

NSP15#..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN)

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-48010

NSP150,152..CVT

 2
35150C - RING, O (FOR TRANSMISSION CASE PLUG)
90301-09173

NSP150,152..CVT

 2
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-52030

NSP150,152..CVT

 1
35330D - STRAINER ASSY, OIL
35330-52060

NSP150,152..CVT

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

NSP150,152..CVT

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

NSP150,152..CVT

 2
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

NSP150,152..CVT

 2
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-52070

NSP150,152..CVT

 1
Common parts
90105-06053
90464-00928
90929-01451
91551-80640
91551-80820
91611-B0616
94110-50800
94512-00800
Linked diagrams
1603
3402
8202
8401
8410

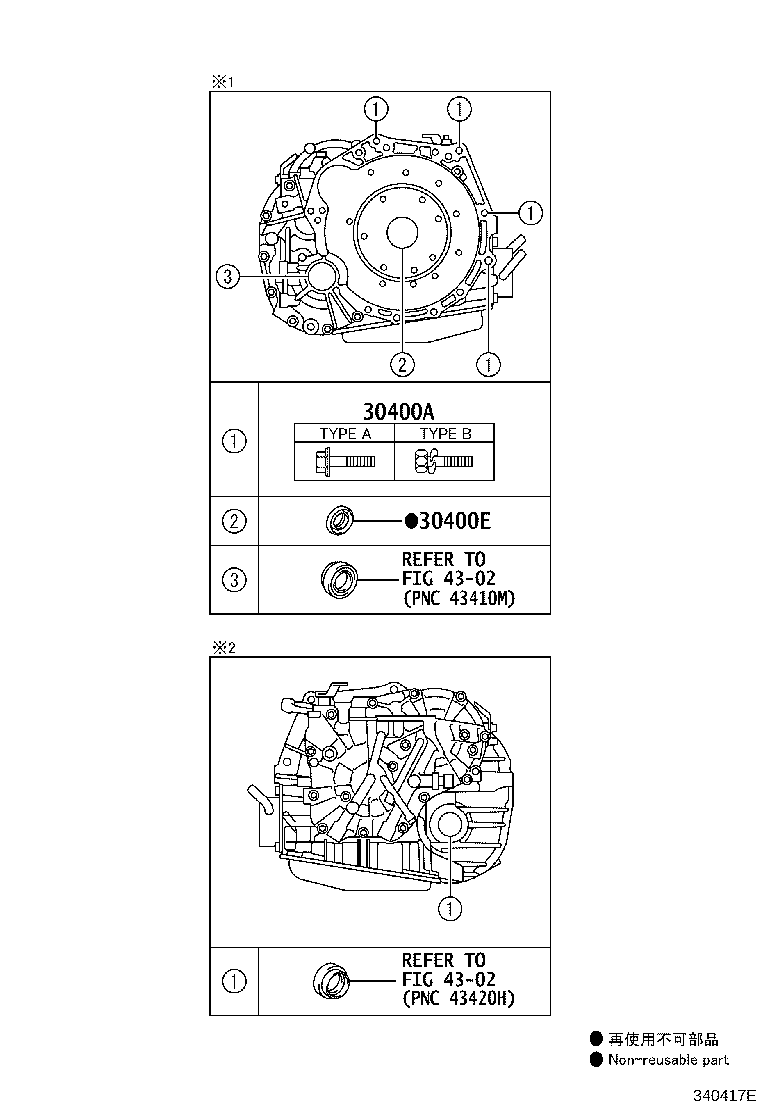

ILLUST NO. 2 OF 2(1310-1902)NSP150,152..CVT..A

Click highlighted areas on diagram

K411

diagram 30400A 30400E 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-T0310

NSP150,152..CVT

TYPE B:REFER ILLUST.

 4
90105-T0173

NSP150,152..CVT

TYPE A:REFER ILLUST.

 4
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-42039

NSP150,152..CVT

 1
Linked diagrams
4302
